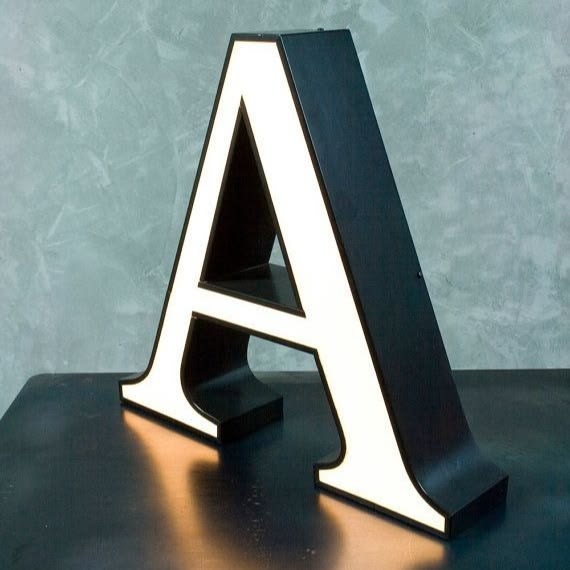

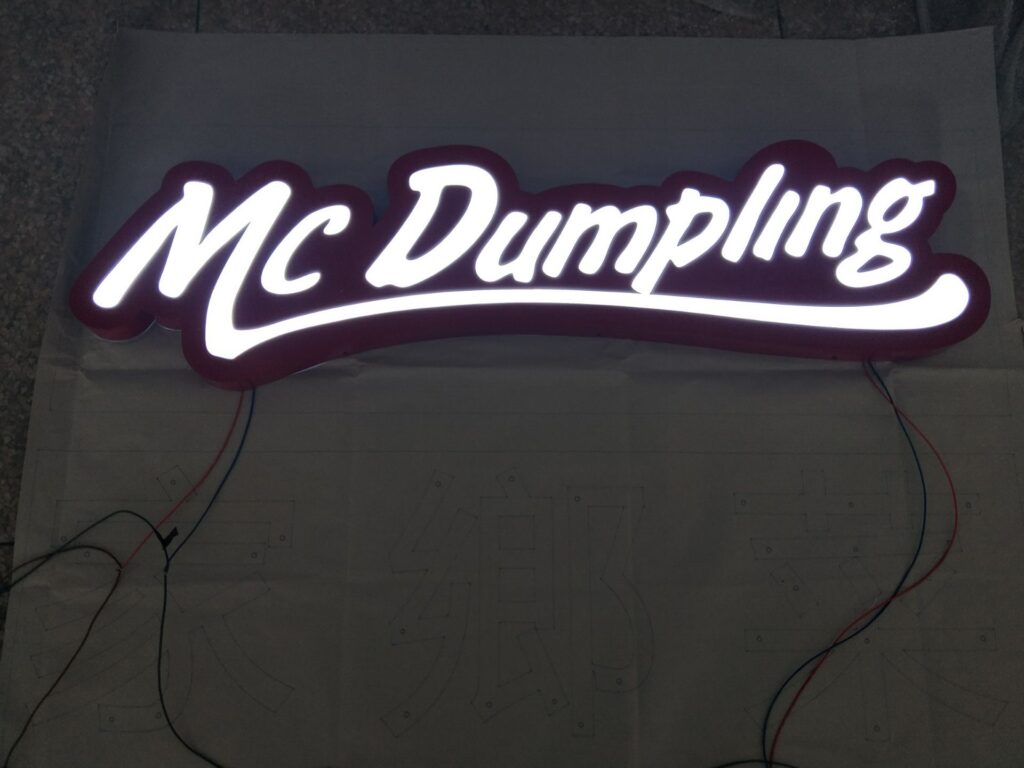

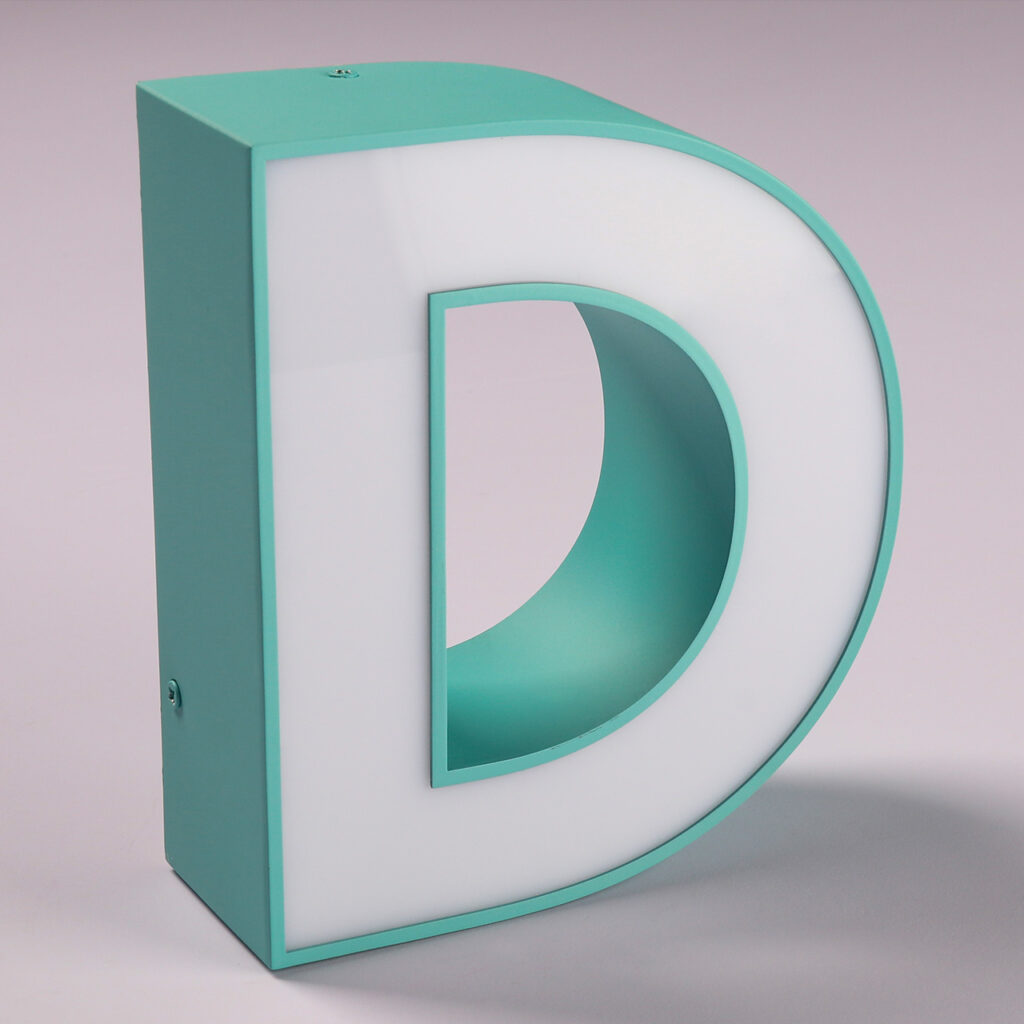

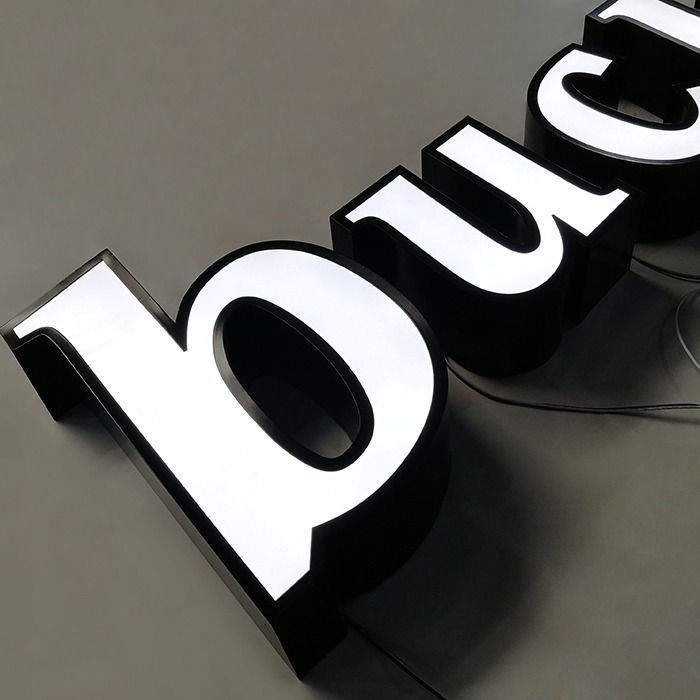

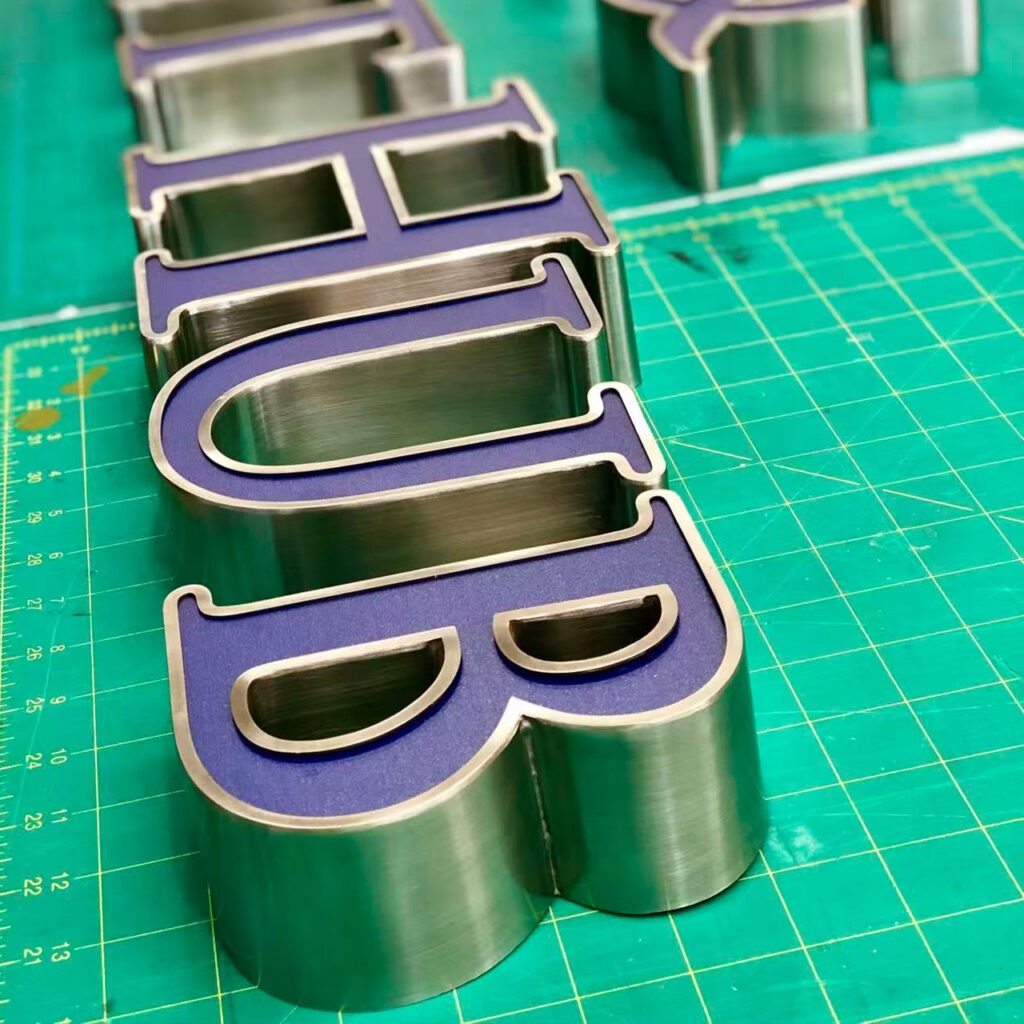

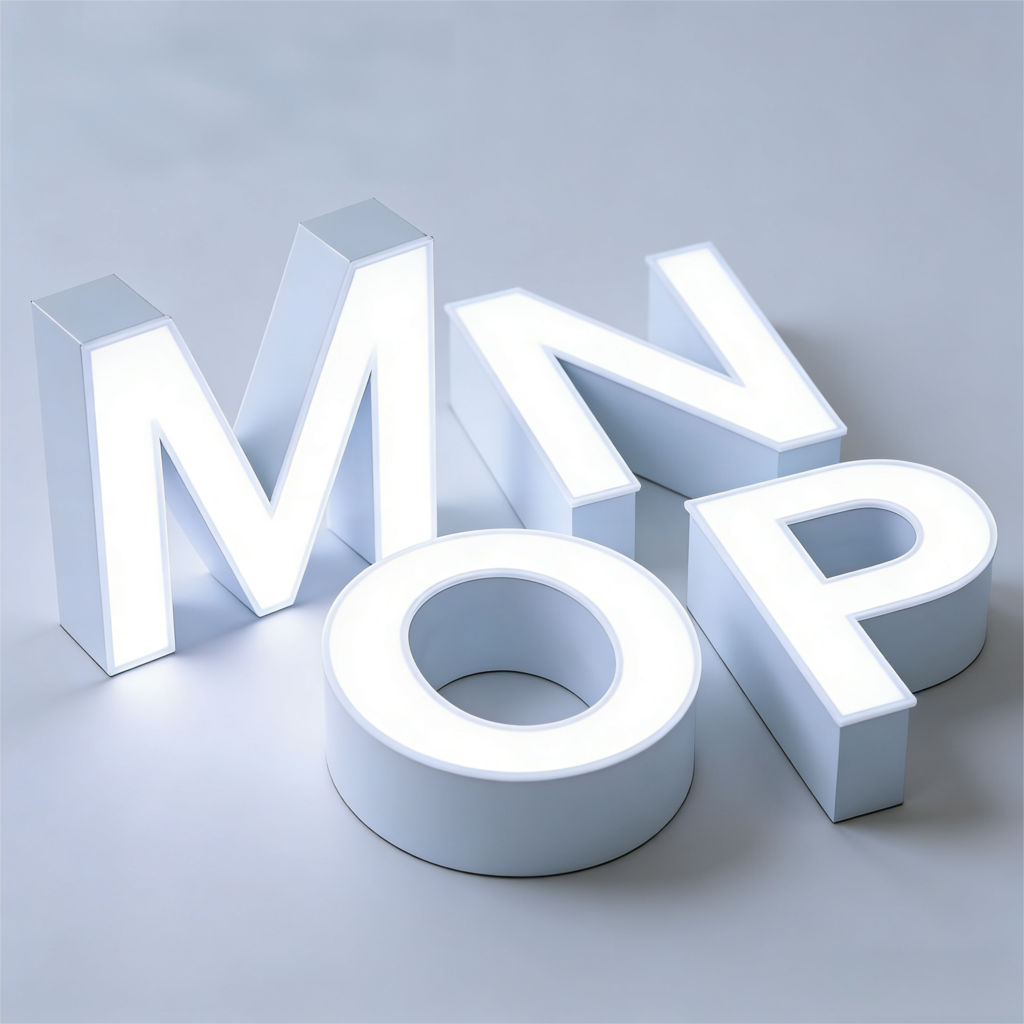

Face Illuminated Channel Letter | Front-lit LED Letter Sign

Material & Build: 3mm or 5mm high-grade Acrylic face fabricated with a 1mm 304-grade stainless steel body/return.
Premium Upgrades: Premium material upgrades for the body include 316 Marine Grade stainless steel, Aluminium, Brass, or Copper.
Backing: Sturdy Hard PVC or Metal Base for structural reinforcement and secure surface mounting.
Return (Depth): Available in standard depths of 30mm, 50mm, 60mm, 80mm, 100mm, 150mm, and 200mm, or fully customized to your demanded project size.
Finishes & Customization: Completely customizable with premium finish treatments including plain silver, polished, brushed, electrical plated, powder-coated, UV printed, or 2pac coated.
Illumination Style: Face Illuminate (Front-lit) styling.
LED Options: High-efficiency LED modules available in 3,000K (Warm White), 6,500K (Natural White), and 10,000K (Cool White). Coloured acrylic/ LEDs, RGB LEDs, and Dimmers are available at an extra cost.
Power Supply: High-reliability 12V DC – 240V AC Meanwell Transformer equipped with electrical certifications matched to your destination country: SAA and C-Tick for Australia/New Zealand, UL/cUL for North America, and CE/RoHS for Europe.
Wiring & Installation: Standard 1.5m lead wire (extendable up to a maximum length of 3m). Each sign kit includes a full-scale installation template/draft for a flawless layout.
Mounting Methods: Supports Flush Mount or Stand-off Mounting via M4, M6, M8, or M10 threaded pins (optional sleeves, nuts and spacers are available).

Target Applications & Use Cases

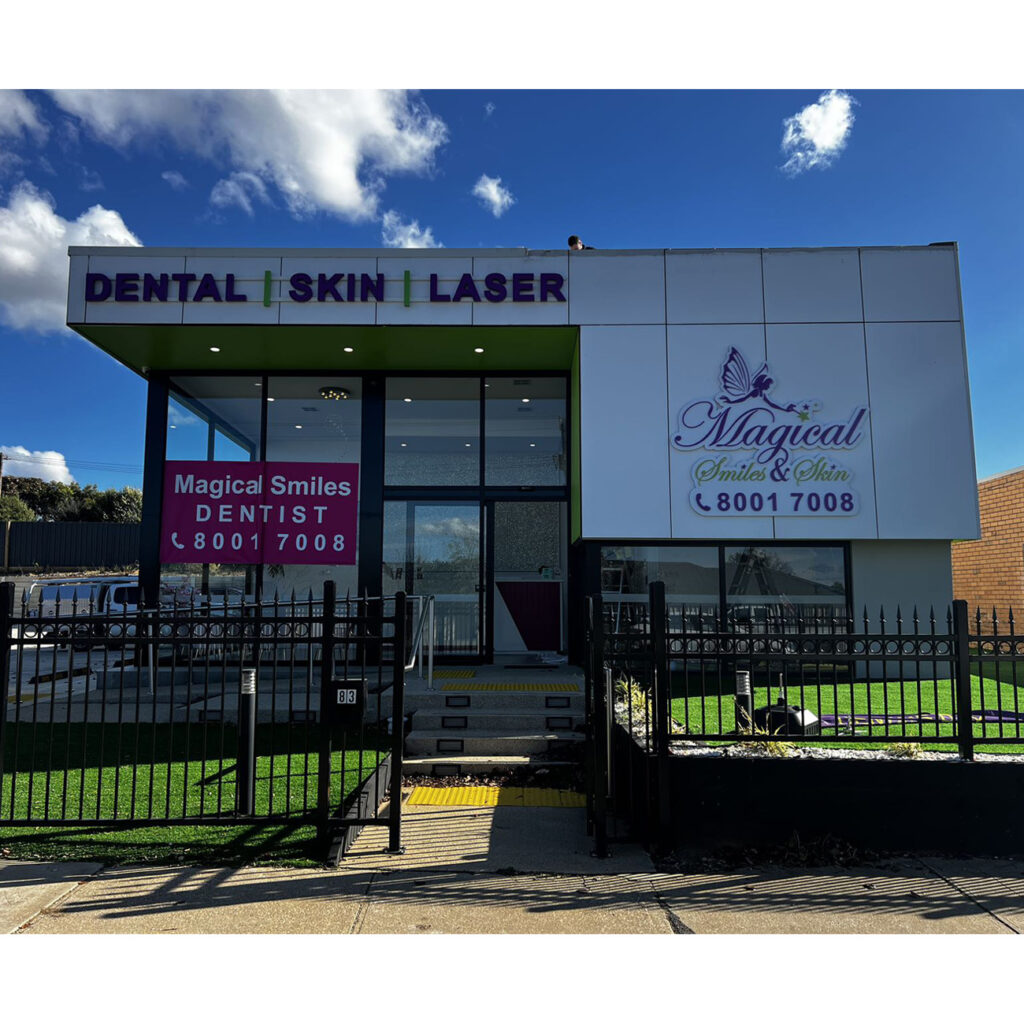

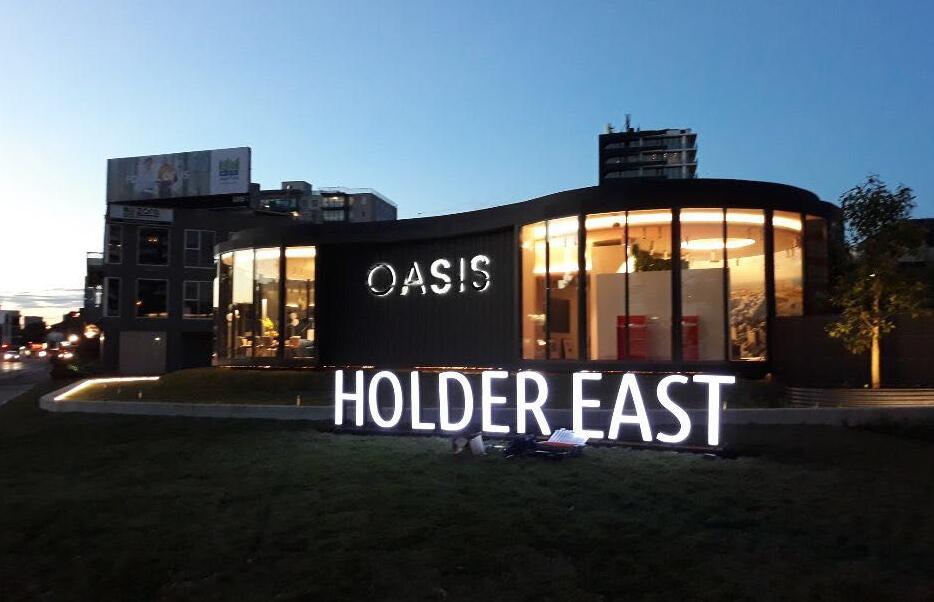

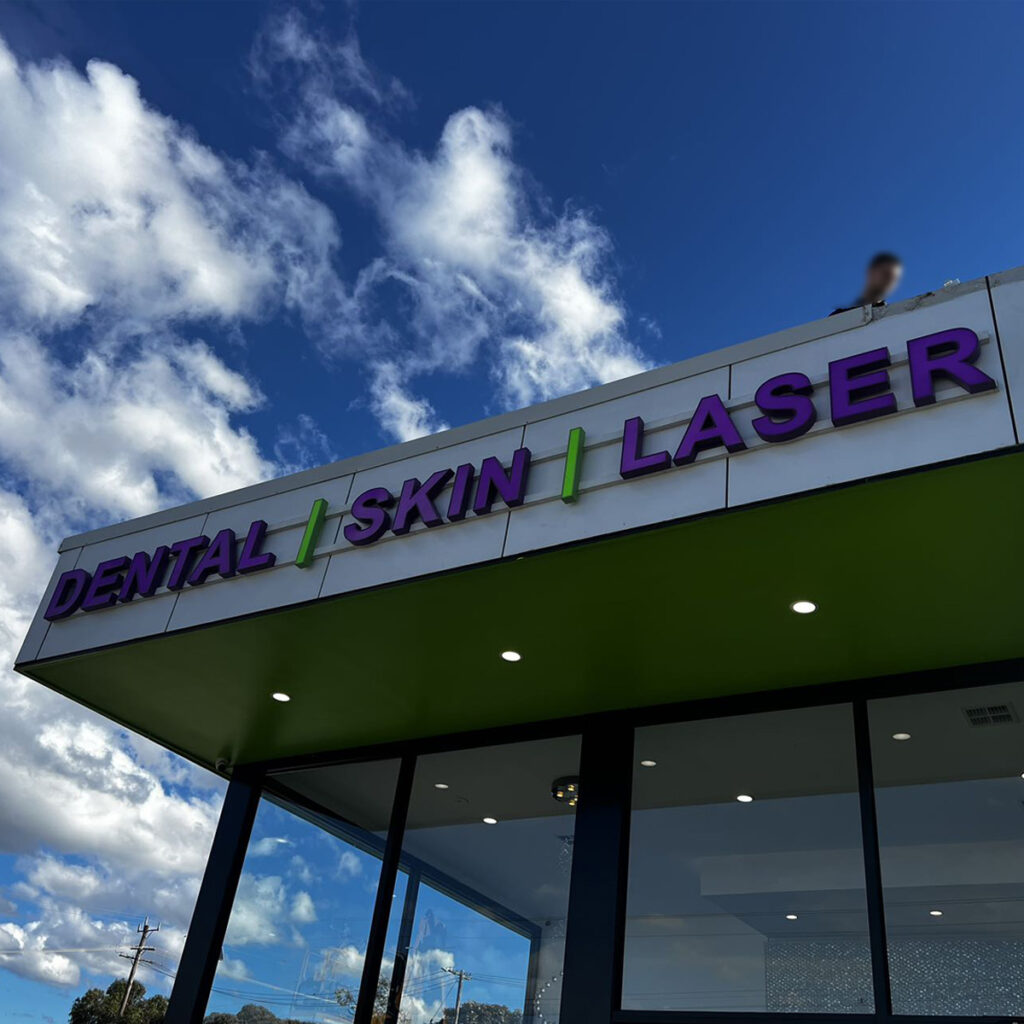

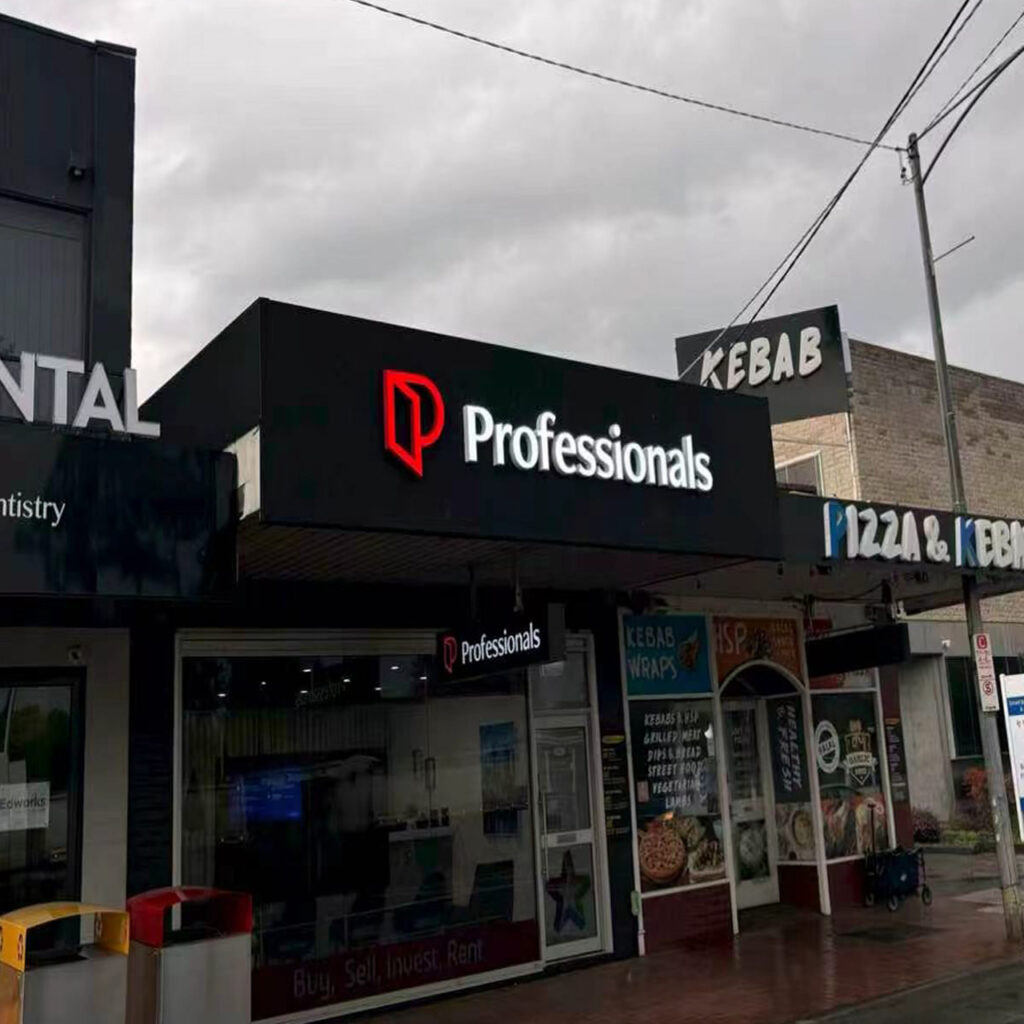

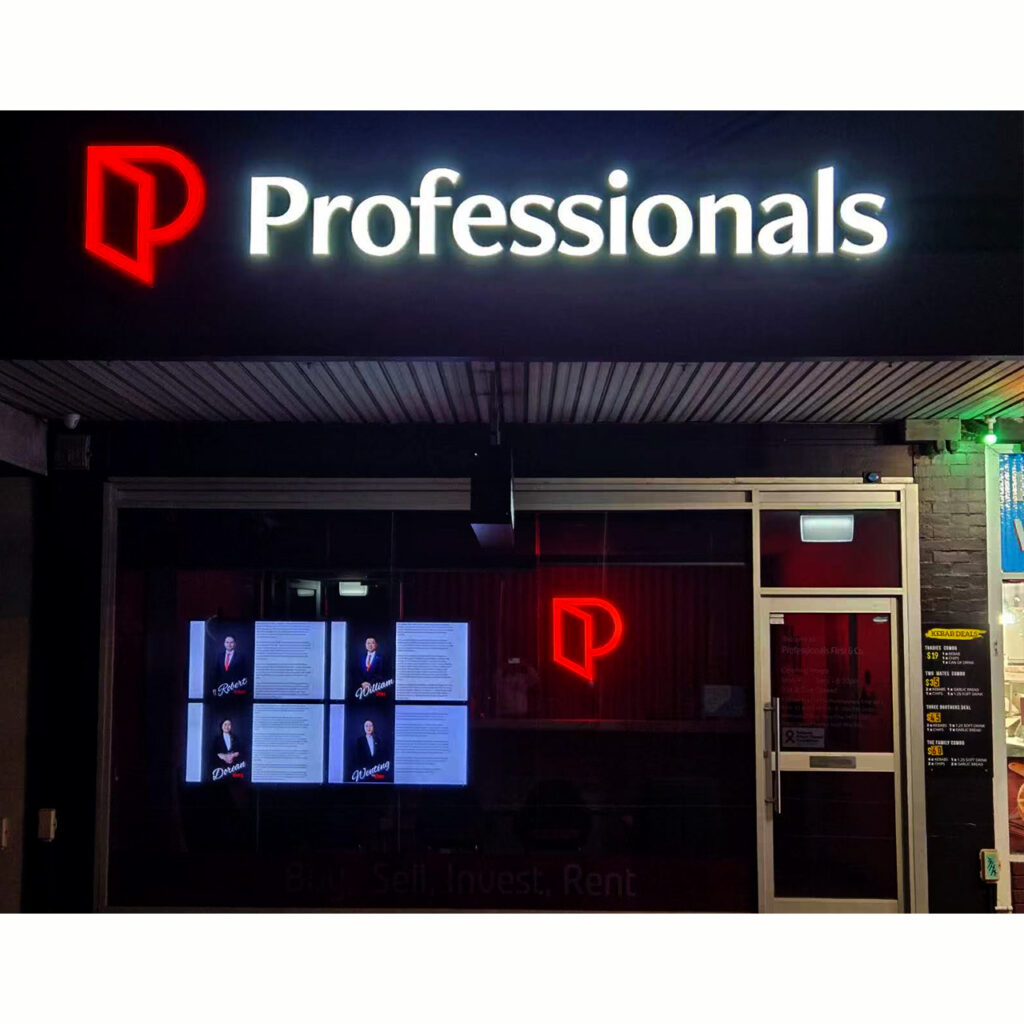

Perfect for high-visibility commercial building facades, retail storefronts, corporate headquarters, hospitality properties, shopping center corridors, and heavy-duty outdoor architectural signage installations.

Side-view-drawing

Face Illuminated Channel Letter

Product code: 3D-001

Environment: Interior | Semi-Outdoor | Fully External (drain holes at bottom rear)
Dimensions: Refer to drawing
Face: 3mm / 5mm Acrylic
Body: 1mm 304 grade stainless steel fabrication
(Premium Options: 316 Marine Grade / Aluminium / Brass / Copper)
Back: Hard PVC / Metal Base
Return(Depth): 30/50/60/80/100/150/200/ demanded size
Finish: Plain silver, polished / brushed, electrical plated, powder coated, UV printed, 2pac coated, etc.
LED Options: LED modules 3,000K (Warm White) | 6,500K (Natural White) | 10,000K (Cool White)
Coloured acrylic/ LEDs, RGB LEDs and Dimmers available at extra cost.
Illumination Style: Face Illuminate
Wiring: Standard 1.5m lead (Maximum extension up to 3m).
Installation Guide: Full-scale installation template/draft included
Installation Method: Flush Mount or Stand-off Mounting
-M4 / M6 / M8 / M10 threaded pins (Optional sleeves, nuts or spacers available in custom colours).
Power Supply: 12V DC – 240V AC C-Tick certified Meanwell Transformer.

Yes. This front-lit signage style is specifically engineered for multi-environment durability, encompassing interior, semi-outdoor, and fully external applications. When manufactured for fully external environments, the letters feature integrated drain holes at the bottom rear to prevent water accumulation and ensure long-term weatherproof reliability.

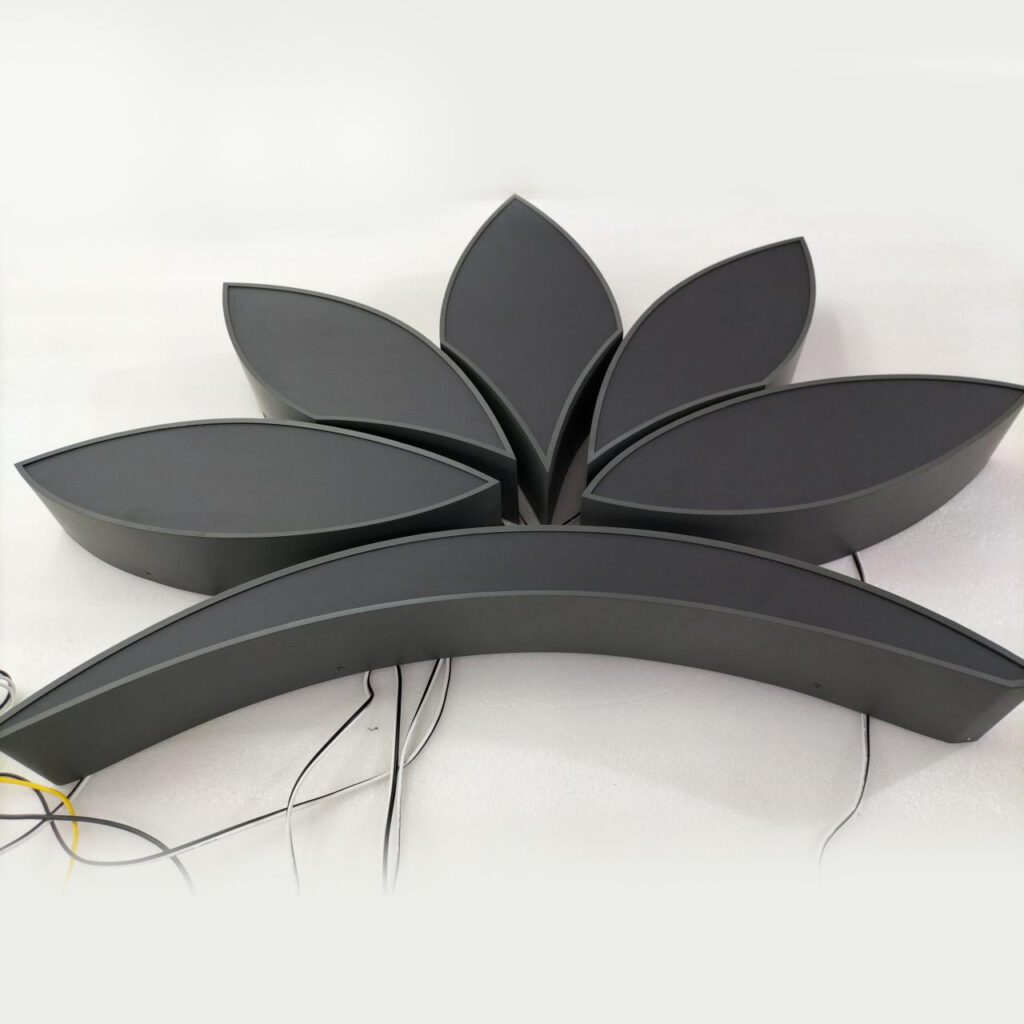

The front face is constructed from heavy-duty 3mm or 5mm acrylic to evenly diffuse light. The structural sides (returns) are fabricated using 1mm 304-grade stainless steel as standard, with premium options for 316 Marine Grade stainless steel, Aluminium, Brass, or Copper. The rear structure features a stable Hard PVC or Metal base.

The letters are fully customizable in overall size and profile. Standard structural return depths include 30mm, 50mm, 80mm, 100mm, 150mm, and 200mm, or they can be built to any demanded size requested by your design. Finishes can be tailored to plain silver, polished, brushed, electrical plated, powder-coated, UV printed, or 2pac coated.

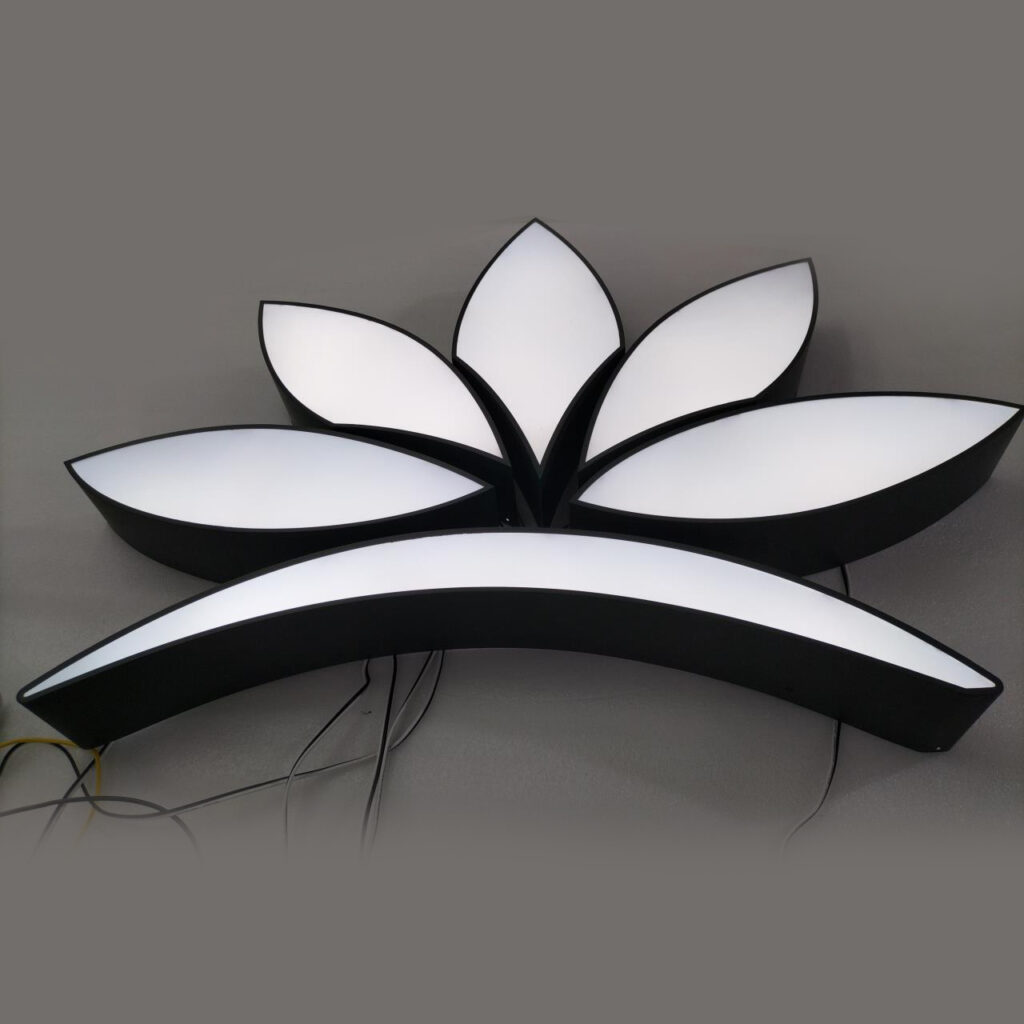

The sign uses premium LED modules available in 3,000K (Warm White), 6,500K (Natural White), and 10,000K (Cool White), with colored acrylic, RGB LEDs, and dimmers available as optional additions. Every unit comes standard with a 1.5-metre lead wire (extendable to 3m) and is driven by a highly reliable 12V DC – 240V AC Meanwell Transformer. To support trouble-free international logistics and local building approvals, our electrical setups feature regional safety certifications matched explicitly to your project’s destination country: SAA and C-Tick for Australia/New Zealand, UL/cUL for North America, and CE/RoHS for Europe.

The product supports Flush Mount or Stand-off Mounting configurations. To ensure accurate positioning, a full-scale paper installation template/draft is provided with the sign. The physical mounting hardware consists of M4, M6, M8, or M10 threaded pins selected by the production team based on the scale of your sign, with optional decorative sleeves or spacers available in custom colors to match your branding.

To deliver a precise, guaranteed custom proposal within 12 working hours, please provide our engineering team with:

Your vector branding layout file (.AI, .EPS, or editable .PDF format) outlining the typography or logo with your required overall width and height marked.
Your choice of metal material and surface finish for the side returns (e.g., Brushed Gold, Mirror Silver, or a specific Pantone powder-coated paint color).
The preferred illumination profile (static color temperature or dynamic RGB color-changing functionality).
The exact installation context (Fully Interior, Shopping Center, or Semi-Outdoor) along with your location details to ensure regional safety compliance matching.
