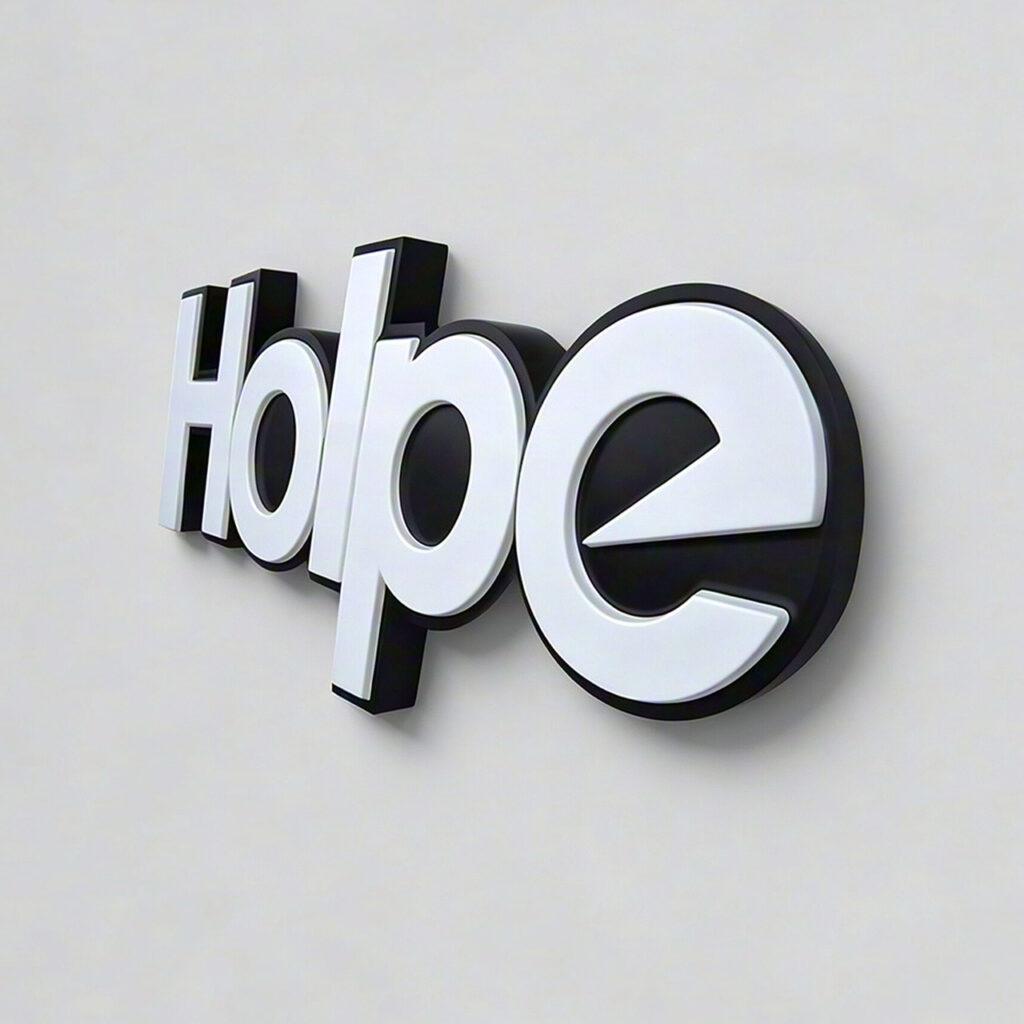

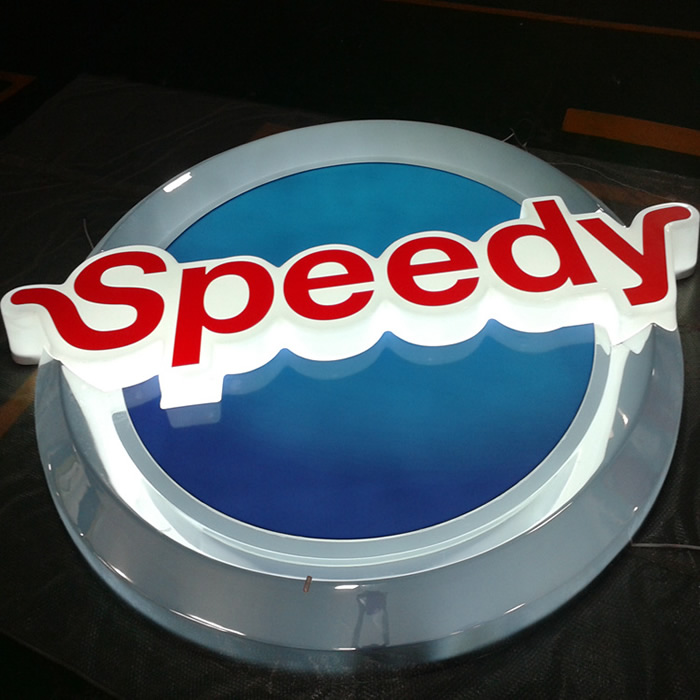

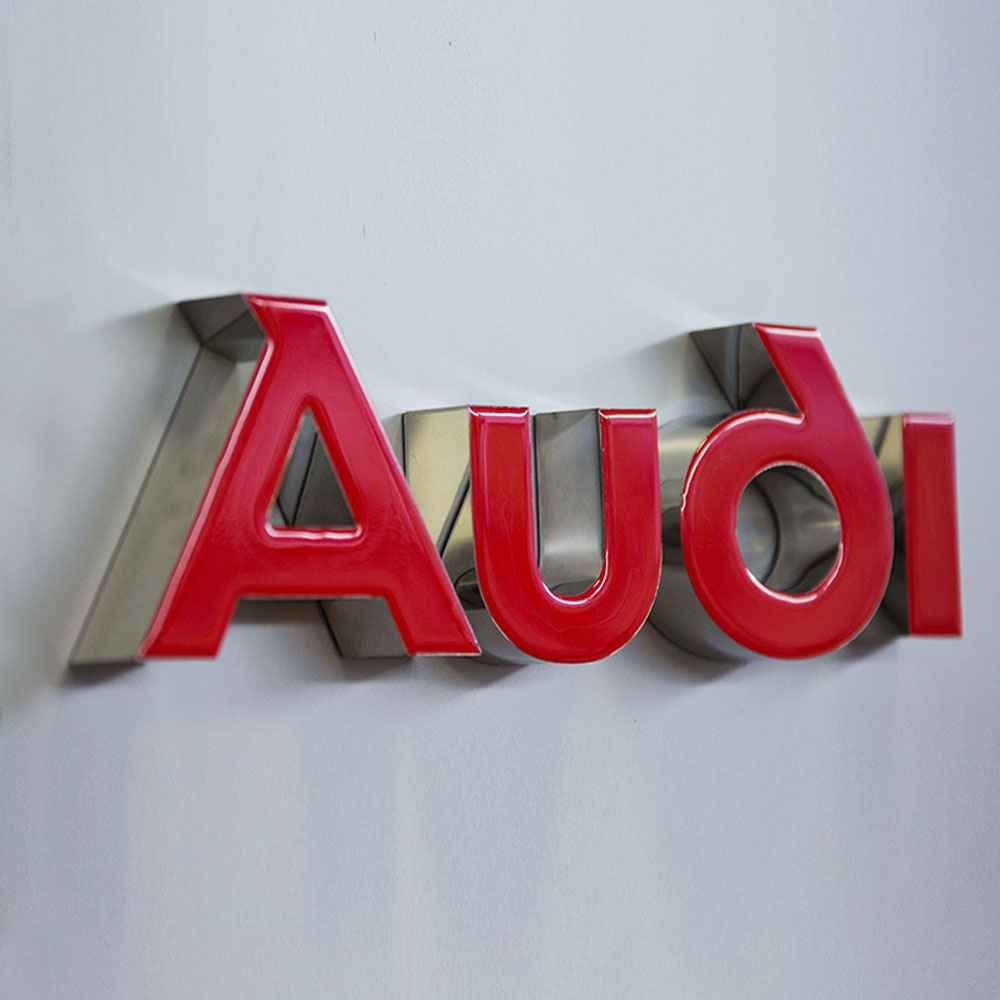

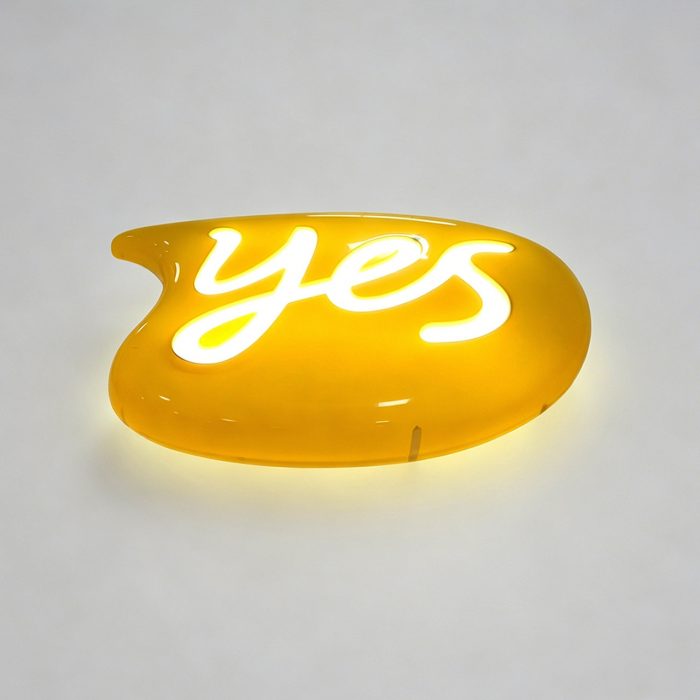

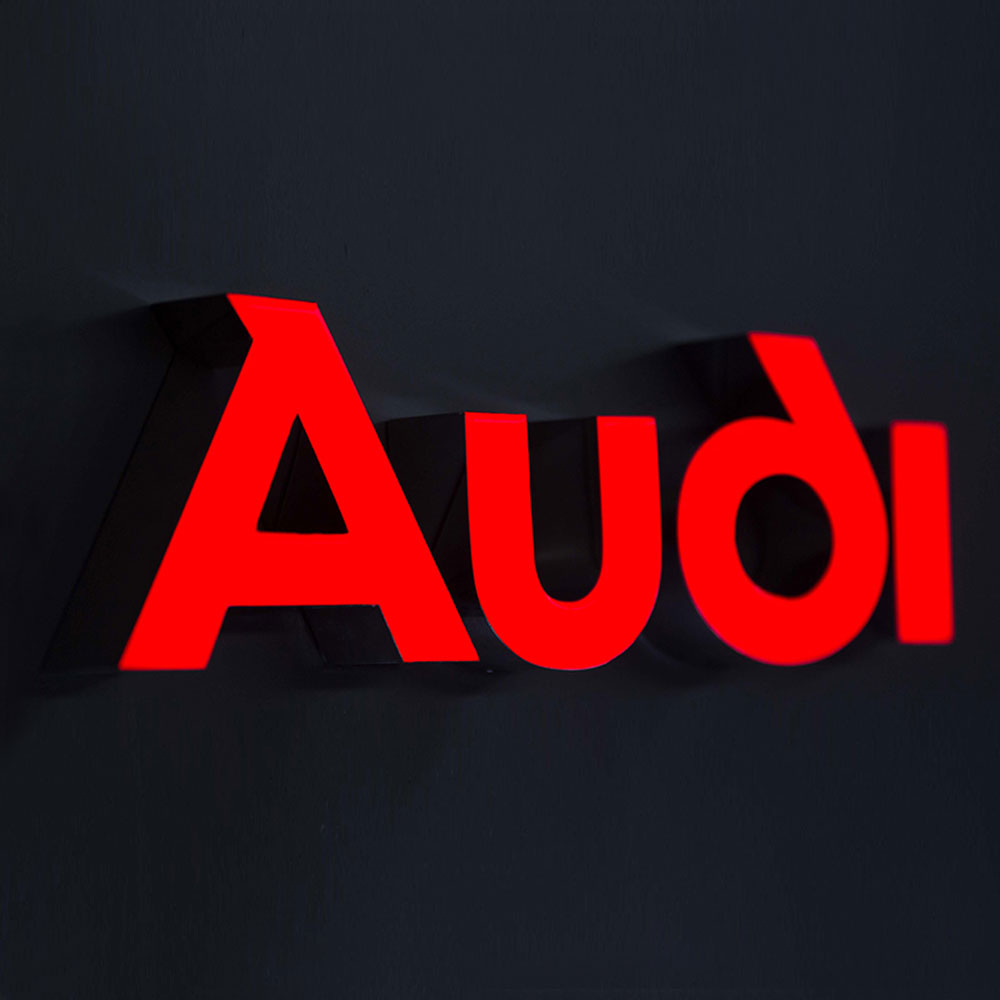

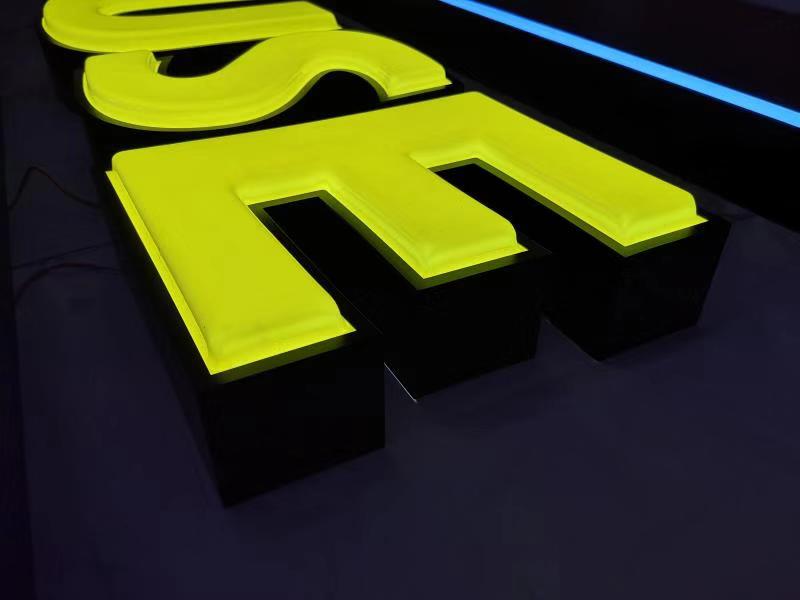

LED Vacuum Formed Sign

Material & Face Build:Heavy-duty, UV-stabilized cast acrylic or high-impact polycarbonate sheets vacuum-pressed over a precision-engineered structural mold to create a seamless 3D embossed face profile.
Frame & Housing:Rugged, anti-corrosive extruded aluminium or fabricated stainless steel return chassis, structurally welded to secure the dimensional face panels.
Illumination Style:Fully backlit face illumination. Premium internal physics guarantee a completely uniform, hot-spot-free glow with edge-to-edge light distribution that illuminates both the front face and the embossed 3D side walls.
LED Color Temperatures:Powered by commercial-grade, low-voltage IP67 waterproof LED modules available in standard 3,000K (Warm White), 6,500K (Natural White), and 10,000K (Cool White). Custom multi-color RGB programmable matrices are available at an extra cost.
Finishes & Customization:Fully tailored to your exact vector logo paths, corporate layouts, and dimensions. Available finishes for the aluminium/metal housing include polished metal, anodized treatments, or high-durability automotive-grade 2pac powder coating. Graphic faces are applied using premium UV-stable translucent vinyl or direct structural UV printing.
Power Supply:High-reliability 12V DC – 240V AC Meanwell Transformer equipped with electrical certifications matched to your destination country: SAA and C-Tick for Australia/New Zealand, UL/cUL for North America, and CE/RoHS for Europe.
Wiring & Installation:Standard 1.5m heavy-duty internal wiring harness exiting cleanly through the rear or integrated mounting brackets (extendable up to 3m). Each custom package includes a 1:1 full-scale installation template.
Mounting Methods:Available in single-sided Wall Flush Mount configurations, or double-sided Projecting Bracket Mount configurations for high-visibility under-awning street advertising.
Weather Resistance:Built to rigorous commercial architectural facade standards. Features UV-stabilized face panels to prevent sun yellowing, along with integrated micro-drainage channels at the lowest points of the chassis to prevent condensation or water pooling.

Target Applications & Use Cases

Highly recommended for high-street retail storefronts, corporate building fascia branding, shopping center under-awning signs, automotive dealerships, petrol station pylons, and external hospitality properties looking for a durable, weather-resistant 3D light box.

LED Vacuum Formed Sign

Product Code: 3D-017

Environment: Interior | Semi-Outdoor | Fully External (equipped with weather-sealed enclosures and bottom drainage weep holes)
Dimensions: Refer to drawing Face: Heavy-duty, high-impact vacuum formed acrylic or polycarbonate face panel (molded into a dimensional 3D spherical or geometric embossed profile) Frame / Chassis: Premium extruded aluminium alloy or galvanized iron structural perimeter matching required depth parameters
Return (Depth): Demanded size
Finish: Natural anodized silver, matte powder-coated, or durable automotive-grade 2pac painted configurations (available in custom Pantone or RAL brand matches)
Graphics Application: High-definition direct UV flatbed printing onto the substrate face prior to thermoforming, or applied premium translucent vinyl graphics
LED Options: High-efficiency, low-voltage IP65/IP67 waterproof rigid LED modules available in 3,000K (Warm White) | 4,500K (Natural White) | 6,500K (Cool White) Dynamic multi-color RGB layouts and smart dimming systems available at extra cost.
Illumination Style: Front-Lit (Face-Lit) or double-sided fully illuminated projection
Wiring: Standard 1.5m heavy-duty lead wire (Maximum extension up to 3m).
Installation Guide: Full-scale 1:1 paper installation template/draft included
Installation Method: Wall Flush Mount, Under-Awning Hanging, or Double-Sided Projecting Bracket Mount via structural fixing anchors
Power Supply: 12V / 24V DC – 240V AC SAA and C-Tick certified Meanwell Transformer (UL/cUL and CE/RoHS profiles available for international compliance).

Standard light box faces are completely flat, meaning your graphics only have two dimensions. A Vacuum Formed Sign Face is physically pressed over a custom mold, causing the letters, borders, or your entire logo shape to stand out 3D from the surface (usually embossing outward by 30mm to 80mm). This physical depth allows light to bleed out of the side angles of the embossed graphic, giving the sign massive dimensional contrast, removing flat glare, and making it significantly more legible and premium when viewed from an angle down the street.

No. Cheap plastic signs will warp, crack, or fade under intense sun exposure. Our signs are exclusively manufactured using premium, optical-grade UV-stabilized cast acrylic or high-impact polycarbonate sheets. These materials are specifically engineered to handle intense climate shifts without losing structural integrity or yellowing. Furthermore, the vacuum-forming process relieves internal material stress, ensuring the 3D embossed curves hold their exact shape flawlessly for years on external facades.

Yes, these signs are engineered from the ground up for full external weather exposure. The structural bond between the 3D vacuum-formed face and the aluminum framing return is sealed using commercial-grade, weather-resistant gaskets and high-strength industrial adhesives. To combat temperature-driven internal condensation, precision-machined micro-drainage holes are integrated into the lowest rear points of the sign frame, allowing any trapped moisture to exit immediately while keeping the internal IP67-rated LED modules dry.

Our double-sided projecting light boxes are built to demanding structural engineering standards. The sign chassis features an internal heavy-duty steel or structural aluminum sub-frame that directly locks onto the external mounting brackets. These brackets are manufactured from thick, structural-grade steel that undergoes anti-corrosion zinc plating or powder coating, and are designed to be securely anchored into masonry, concrete, or structural steel columns using heavy-duty Dynabolts or engineering fixings to safely handle severe wind loads.

To deliver a precise, guaranteed custom proposal within 12 working hours, please provide our engineering team with:

Your vector logo design or typography layout file (.AI, .EPS, or editable .PDF format) with your desired overall dimensions marked.
Your mounting preference: specifying whether you need a single-sided wall flush mount or a double-sided projecting flag sign.
The specific color finish required for the outer frame housing (e.g., Anodized Silver, Matte Black, or a specific 2pac Pantone color match).
The installation context (Interior or Fully Exposed Outdoor Facade) along with your location details to ensure local electrical and shipping compliance matching.
