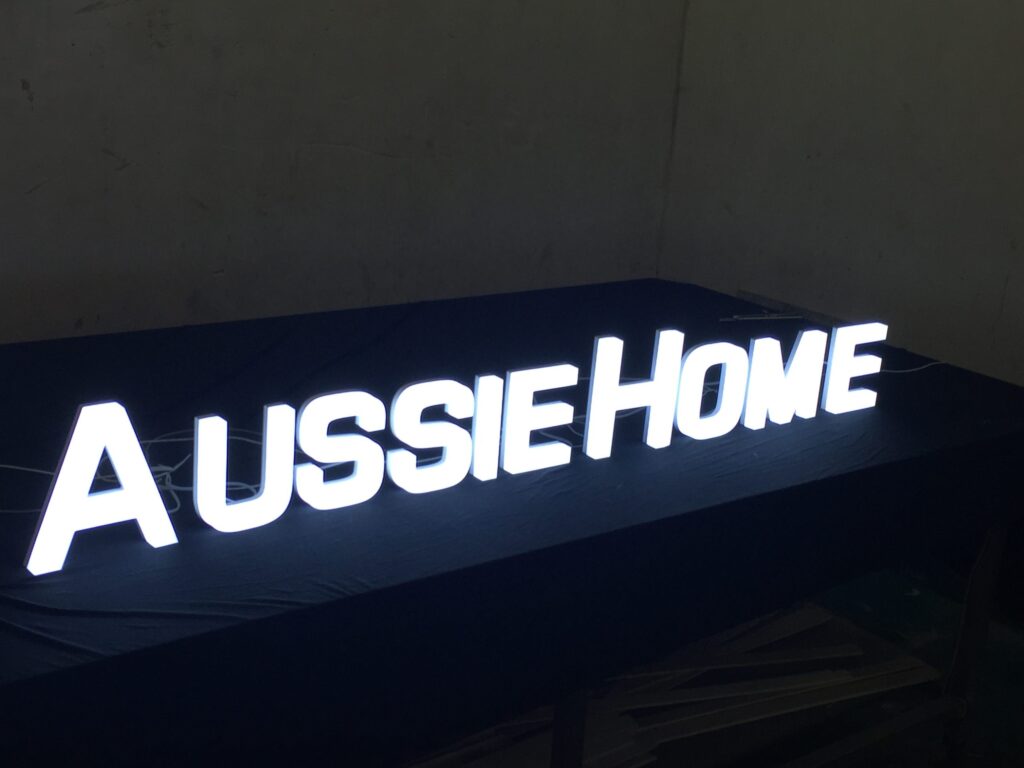

Acrylic Fabricated LED Channel Letters | Front & Side Illuminated 3D Letter Sign

Face & Body: Heavy-duty 3mm Solid Opal Acrylic fabrication, meticulously bent and bonded for structurally sound dimensional shapes.
Craftsmanship: Elite two-face or three-face glue-sealed construction, eliminating visible joints or seams for a pristine finish.
Backing: Enclosed securely with a 3mm Acrylic plate or a heavy-duty Metal panel, entirely optimized based on your structural mounting surfaces.
Return (Depth): Custom depths available and fully engineered to perfectly complement the scale and proportions of your branding project.
Illumination Style: Combined Front Face and Side Return illumination for radiant, 360-degree high-impact visibility.
LED Configurations: Integrated premium LED modules available in 3,000K (Warm White), 6,500K (Natural White), and 10,000K (Cool White). Custom colored acrylics, dynamic RGB LEDs, and remote Dimmers are available at an extra cost.
Power Supply: High-reliability 12V DC – 240V AC Meanwell Transformer equipped with electrical certifications matched to your destination country: SAA and C-Tick for Australia/New Zealand, UL/cUL for North America, and CE/RoHS for Europe.
Wiring & Layout: Standard 1.5m lead wire (extendable up to a maximum of 3m). Comes packed with a full-scale paper installation template/draft for a seamless structural layout.
Mounting Methods: Supports Flush Mount or Stand-off Mounting configurations. Heavy-duty standard M4*50mm fixing screws are provided for standard flush wall anchorage.

Target Applications & Use Cases

Ideal for retail storefront entrances, high-profile shopping mall shopfronts, modern corporate reception lobbies, nighttime entertainment venues, restaurant branding, and high-exposure outdoor commercial signage barriers.

Acrylic Fabricated LED Channel Letters

Product code: 3D-004

Environment: Interior | Semi-Outdoor | Fully External (drain holes at bottom rear)
Dimensions: Refer to drawing
Face & Body: 3mm Solid Opal Acrylic fabrication (option of 5mm face)
Back: Enclosed with a 3mm Acrylic plate or Metal panel (depending on mounting requirements)
Return(Depth): Custom depths available to suit project scale.
Craftsmanship: Two or three-face glue-sealed construction for a seamless, high-end finish.
LED Options: LED modules 3,000K (Warm White) | 6,500K (Natural White) | 10,000K (Cool White)
Coloured acrylic, RGB LEDs and Dimmers available at extra cost.
Illumination Style: Combined Face and Side (Return) illumination for maximum visibility.
Wiring: Standard 1.5m lead (Maximum extension up to 3m).
Installation Guide: Full-scale installation template/draft included
Installation Method: Flush Mount or Stand-off Mounting
(Standard M4*50mm thread pins are included for typical flush fixing)
Power Supply: 12V DC – 240V AC C-Tick certified Meanwell Transformer.

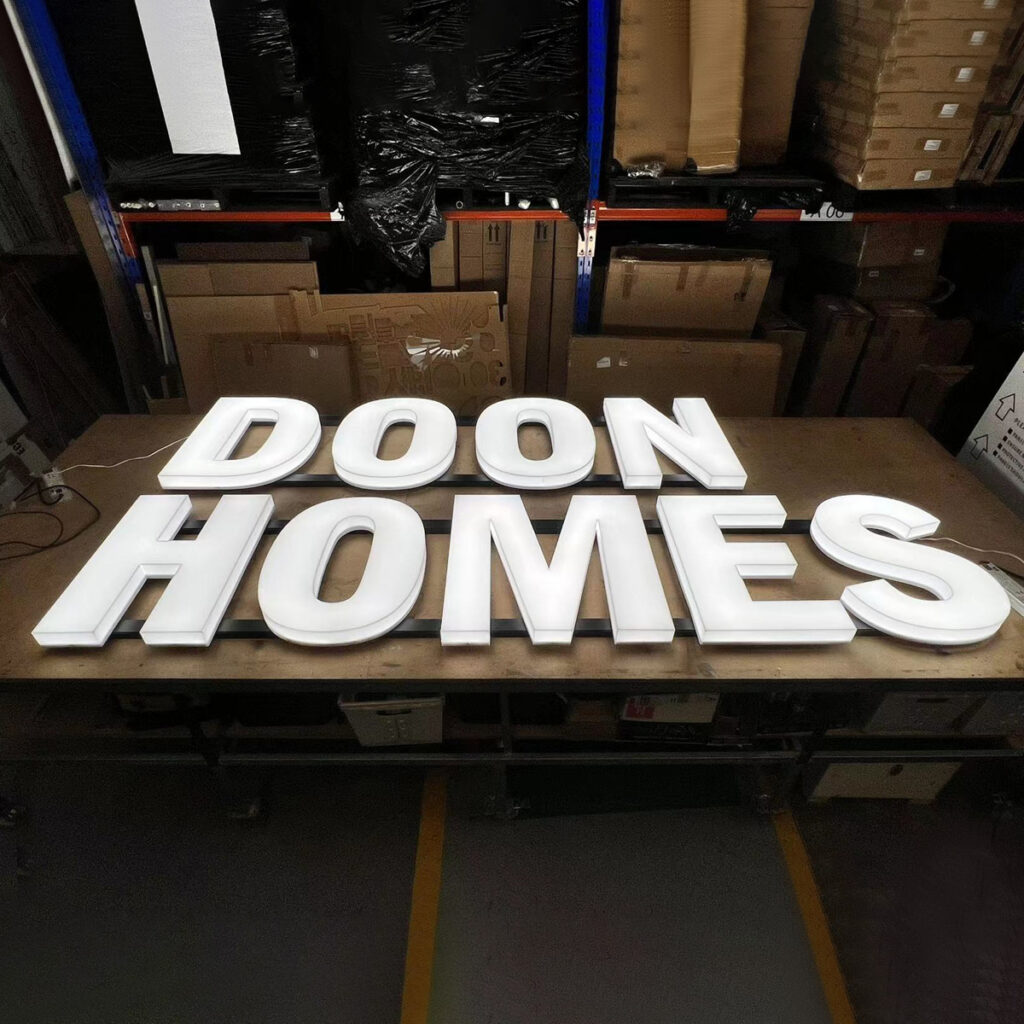

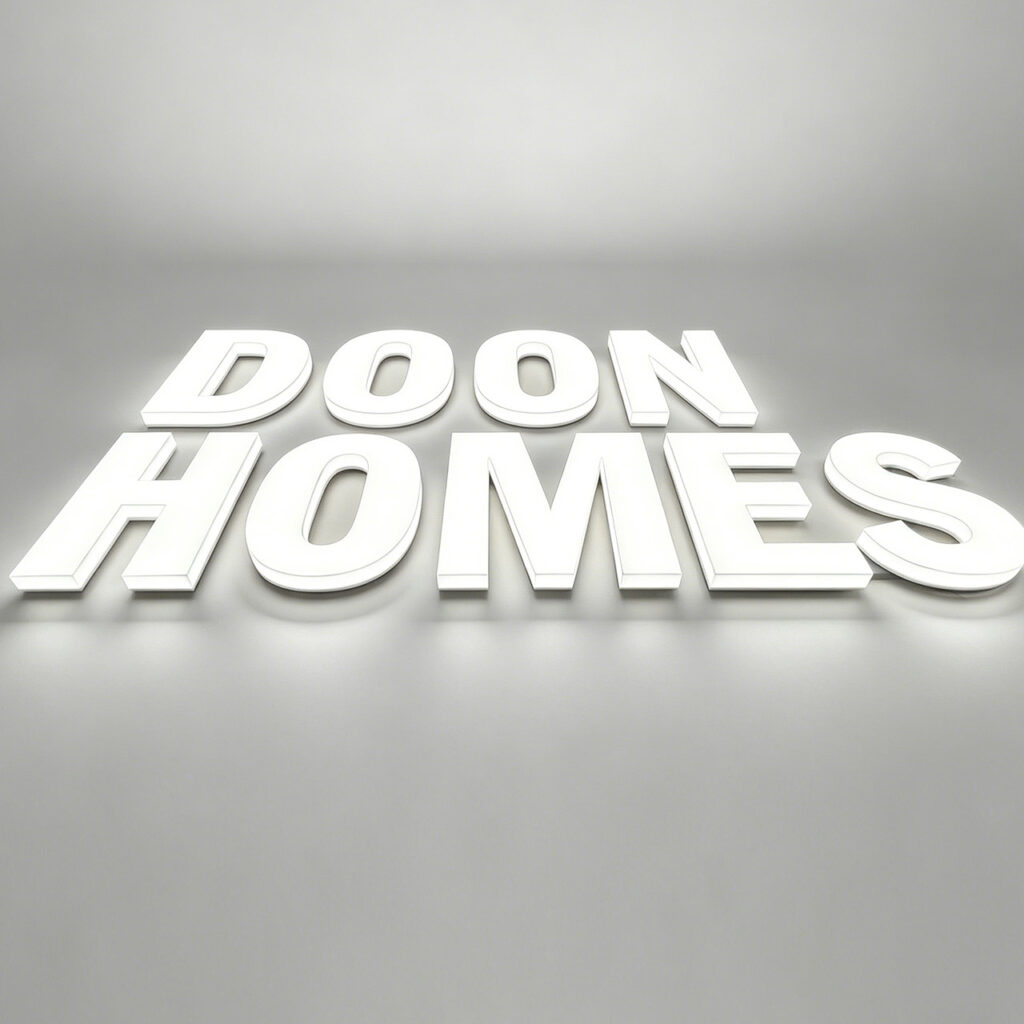

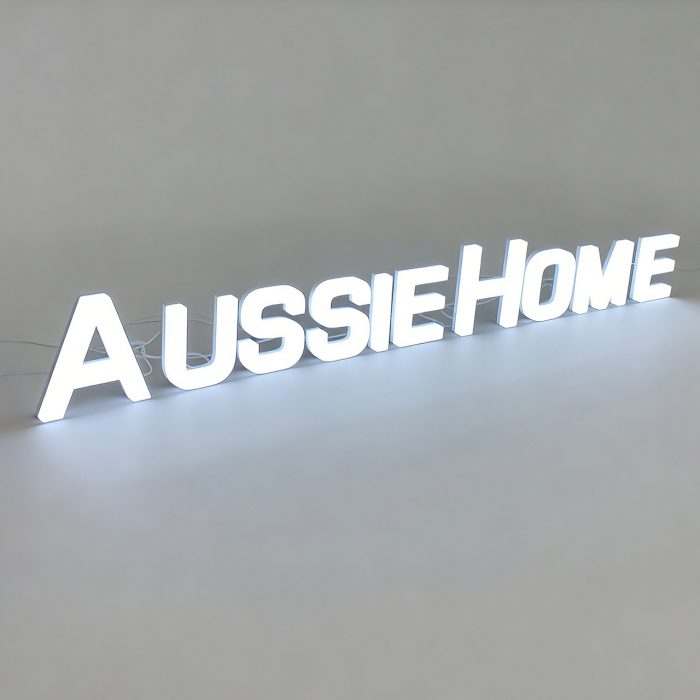

Standard metal channel letters feature opaque stainless steel or aluminium sides (returns), meaning light can only exit through the front acrylic face. Acrylic Fabricated LED Channel Letters are constructed completely out of high-grade 3mm solid opal acrylic across both the face and the side returns. Using an advanced two- or three-face glue-sealing process, the entire 3D structure glows uniformly. This double-direction light emission provides a massive boost to viewing angles and lateral visibility, making it much easier for passing foot or vehicle traffic to read the sign from a distance.

Despite being crafted completely out of acrylic, these channel letters are engineered to withstand fully external, uncovered outdoor applications. The acrylic sheets used are highly UV-stabilized to combat yellowing and structural brittleness. Furthermore, the letters are put together using commercial-grade, weatherproof bonding agents and feature integrated drain holes at the bottom rear of the structural backing. This allows any internal condensation or moisture to escape immediately, fully protecting the internal electronic LED modules from water pooling.

The backing plate serves as the structural spine of the sign and is tailored to the final mounting environment. It can be enclosed with either a 3mm Acrylic plate or a solid Metal panel:

Acrylic Backing: Excellent for installations onto glass or glossy surfaces where back-shadows need to be minimized.
Metal Backing: Ideal for heavy-duty external brick, concrete, or structural steel installations, giving the mounting screws an exceptionally rigid anchor point.

The letters can be mounted either flat via a Flush Mount or raised using Stand-off pins to create a floating appearance.

Safety and structural compliance are critical for Australian commercial properties. Every illuminated sign kit is supplied with a genuine Meanwell Transformer that converts 240V AC building power down to a safe 12V DC low-voltage system. SAA and C-Tick for Australia/New Zealand, UL/cUL for the US and Canadian markets, and CE/RoHS marks for European regulatory frameworks. Each structural letter features a standard 1.5-metre lead wire that can be extended up to 3 metres during installation to reach centralized power junction boxes cleanly.

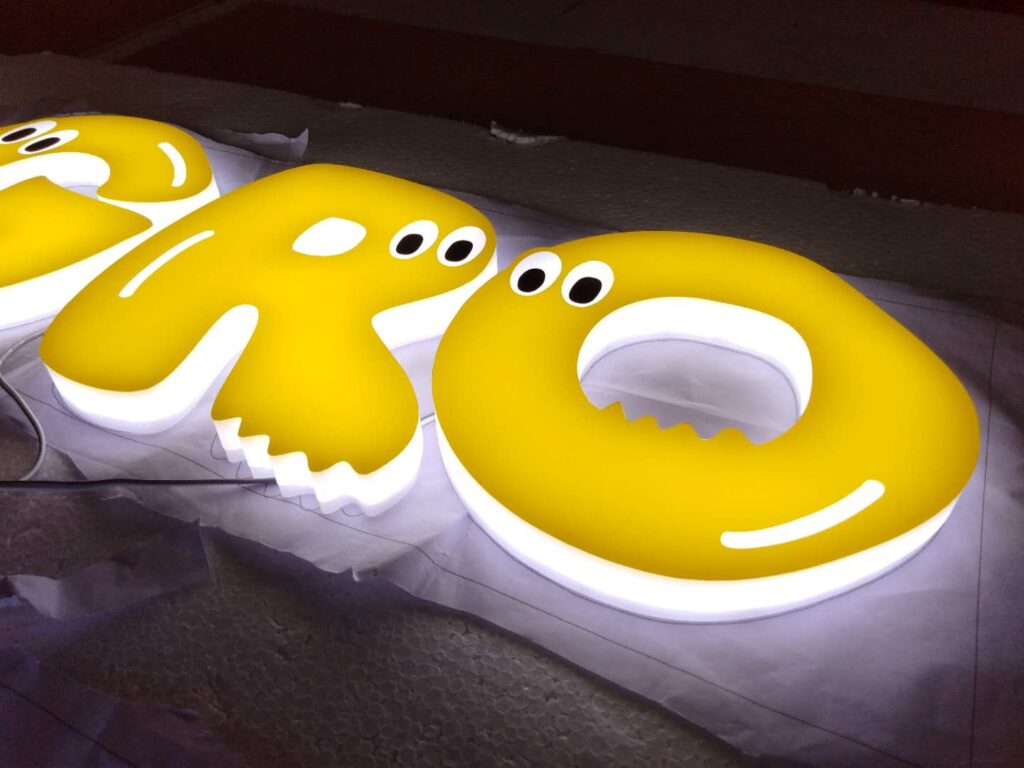

They can be fully customized! While standard translucent opal white acrylic is the most popular choice for a clean, ultra-bright glow, we can customize the face and sides independently. By using specialized colored translucent acrylics, applying premium UV-stable prints, or integrating dynamic RGB LED systems with programmable dimmers, we can create signs where the face emits one crisp color while the side returns glow in another. This makes it fully adaptable to complex corporate branding guidelines.

To deliver a precise, guaranteed custom proposal within 12 working hours, please provide our engineering team with:

Your vector branding layout file (.AI, .EPS, or editable .PDF format) outlining the typography or logo with your required overall width and height marked.
Your choice of metal material and surface finish for the side returns (e.g., Brushed Gold, Mirror Silver, or a specific Pantone powder-coated paint color).
The preferred illumination profile (static color temperature or dynamic RGB color-changing functionality).
The exact installation context (Fully Interior, Shopping Center, or Semi-Outdoor) along with your location details to ensure regional safety compliance matching.
