Push-Through Style LED Light Box | Intracut Signs

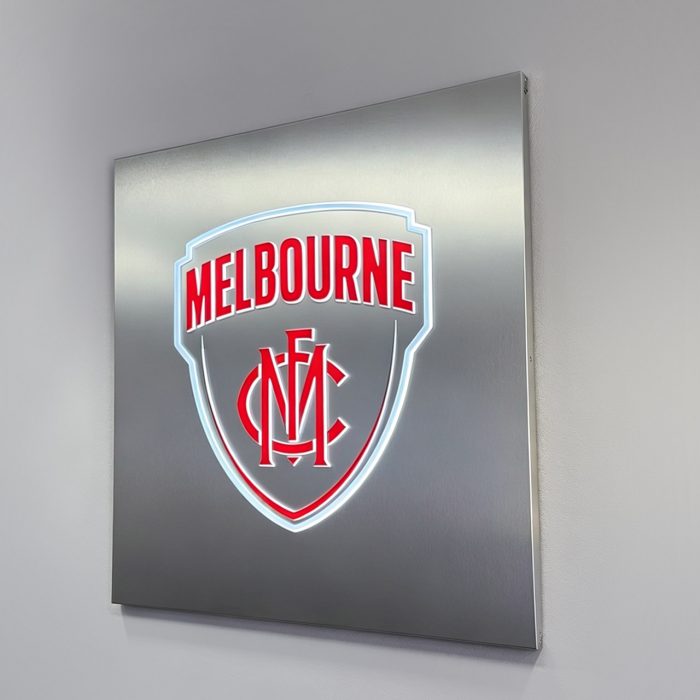

A standard light box features a flat plastic face where the whole board glows, which can cause blinding glare and wash out details at night. An Intracut Sign uses a solid, completely opaque metal face sheet (like aluminium or stainless steel). We laser-cut your logo outlines directly into that metal face, then take thick 20mm acrylic letters and slide them through the stencil from the inside out. When turned on, the background stays completely dark, and only the raised 3D letters light up. This creates incredible visual contrast and a premium, high-end look that flat signs cannot duplicate.

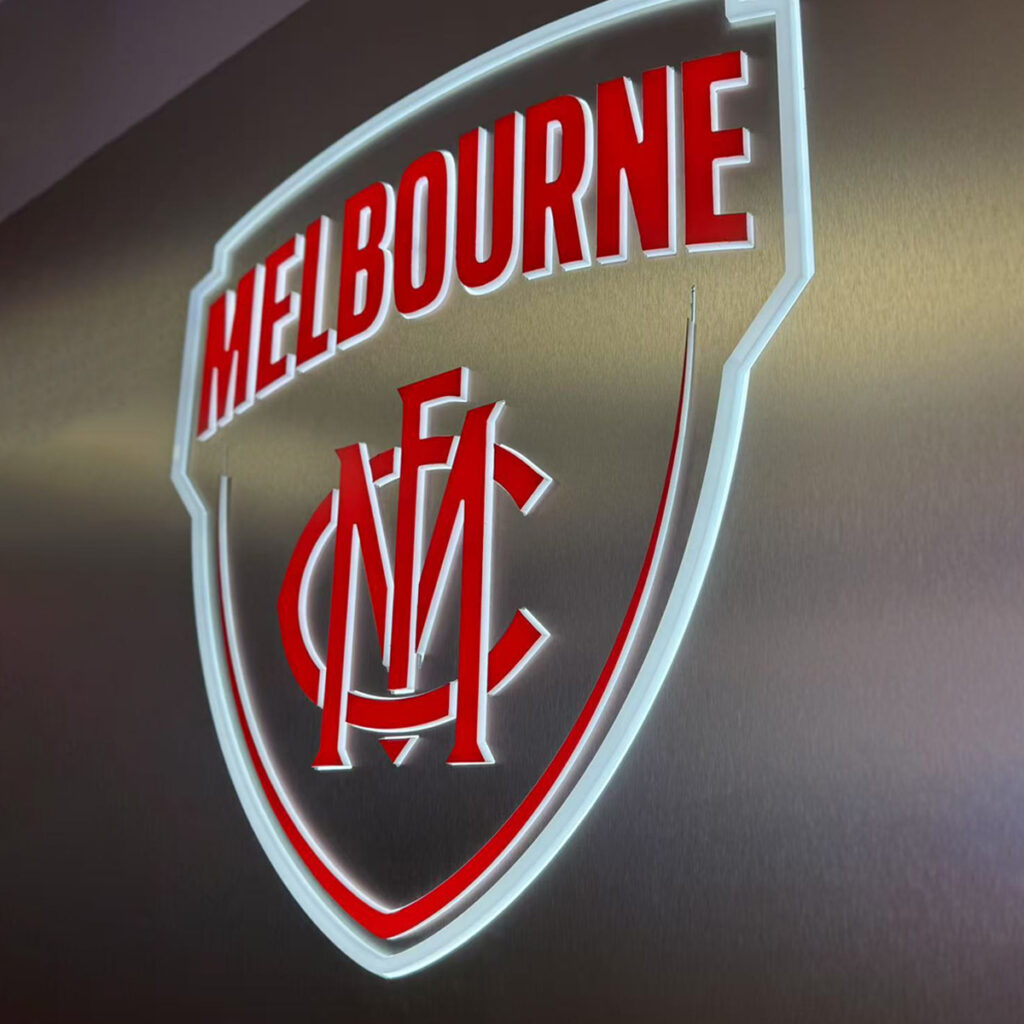

Yes, absolutely. The projection depth is completely customizable and depends on the thickness of the acrylic sheet selected for your project. Standard push-through steps range from a subtle 5mm to a prominent 15mm projection beyond the metal surface. Choosing a deeper push (like 15mm) exposes more of the acrylic’s side walls, allowing light to bleed out sideways and create a beautiful “halo border” effect that surrounds each individual letter contour.

Yes, these signs are engineered to full commercial outdoor facade standards. The thick acrylic characters are manufactured with a specialized structural “shoulder flange” (a lip) on the inside of the sign. When pushed through the metal stencil openings, this flange is mechanically locked and sealed from the inside using high-strength, weatherproof structural adhesives and rubber gaskets. This ensures that the front face remains 100% water-tight, keeping the internal IP67-rated LED modules bone-dry during storms.

Yes. We can modify the lighting output by applying specialized graphic treatments. For example, by applying an opaque or translucent colored vinyl layer directly onto the flat front face of the pushed-through acrylic letters, we can make the front face glow in your exact brand color (e.g., solid red or blue), while leaving the exposed 3D acrylic side returns clear or opal white. This creates a dual-color look where your letters are sharply defined by a bright white edge glow.

To receive a guaranteed custom proposal within 12 working hours, please provide our engineering team with the following details:

1. Your branding layout file in vector format (.AI, .EPS, or editable .PDF) with the overall target width and height of the box marked.
2. Your preferred metal finish for the box face and returns (e.g., Brushed Black Titanium, Satin Aluminium, or a specific 2pac powder coat color).
3. The preferred acrylic thickness for the letters (e.g., 15mm or 20mm thickness) and color preferences.
4. The installation context (Fully Interior or Exposed Outdoor Facade) along with your location details to ensure proper structural mounting hardware and electrical compliance matching.
