Face Illuminated Rimless LED Channel Letters | Front-Lit Rimless Signage

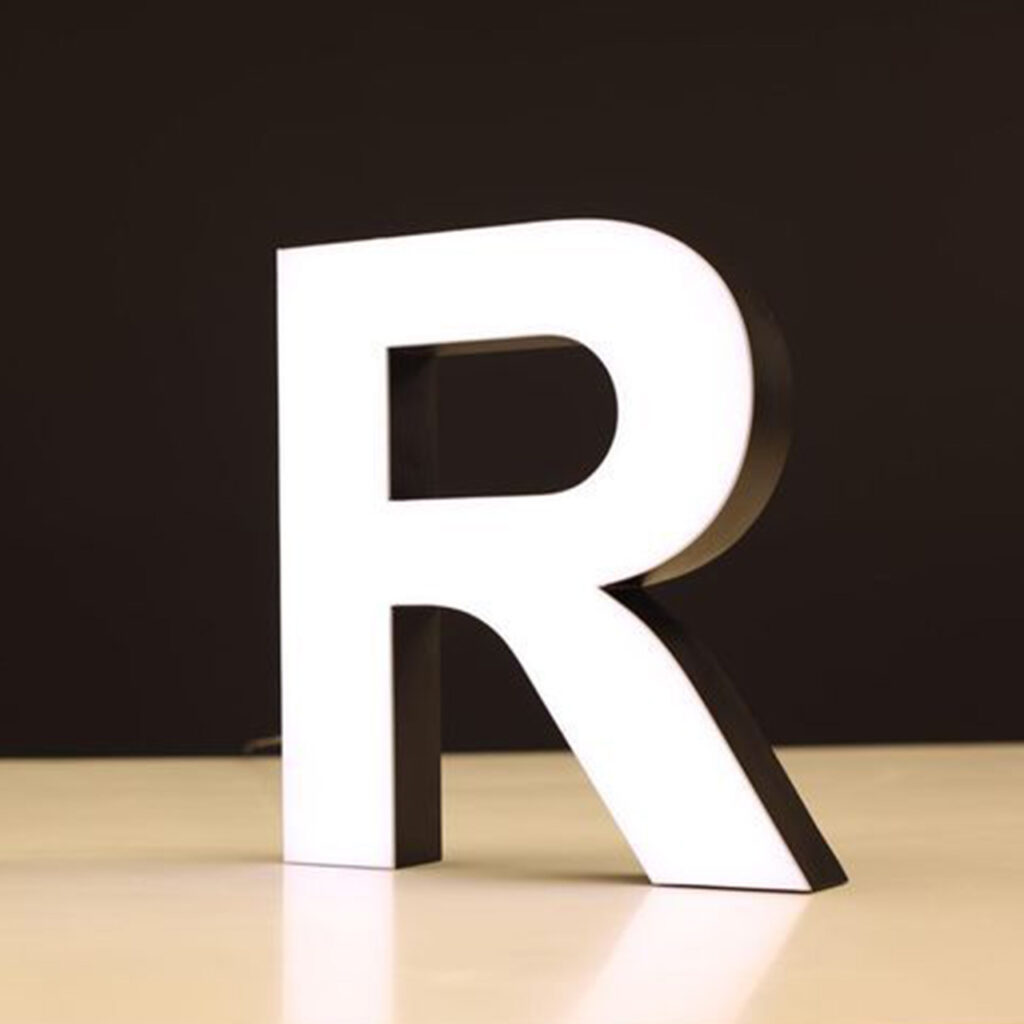

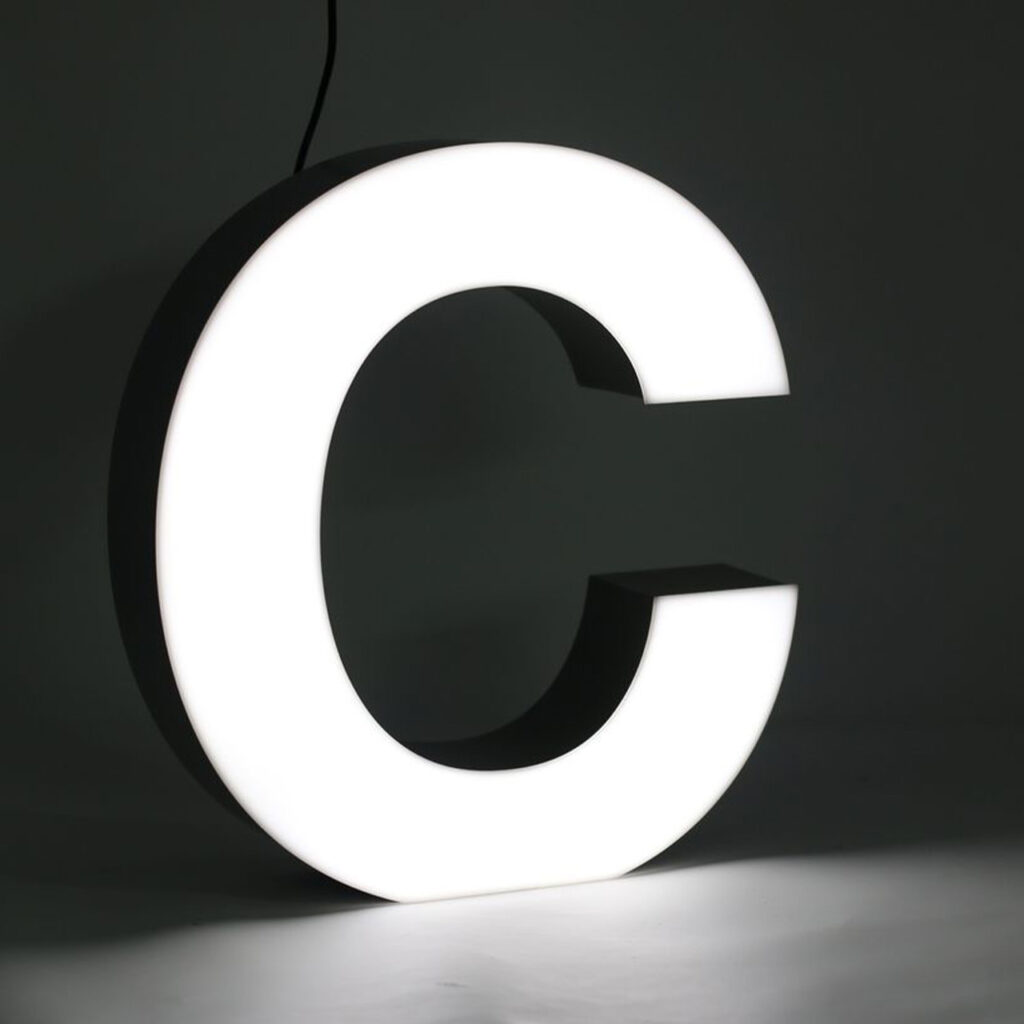

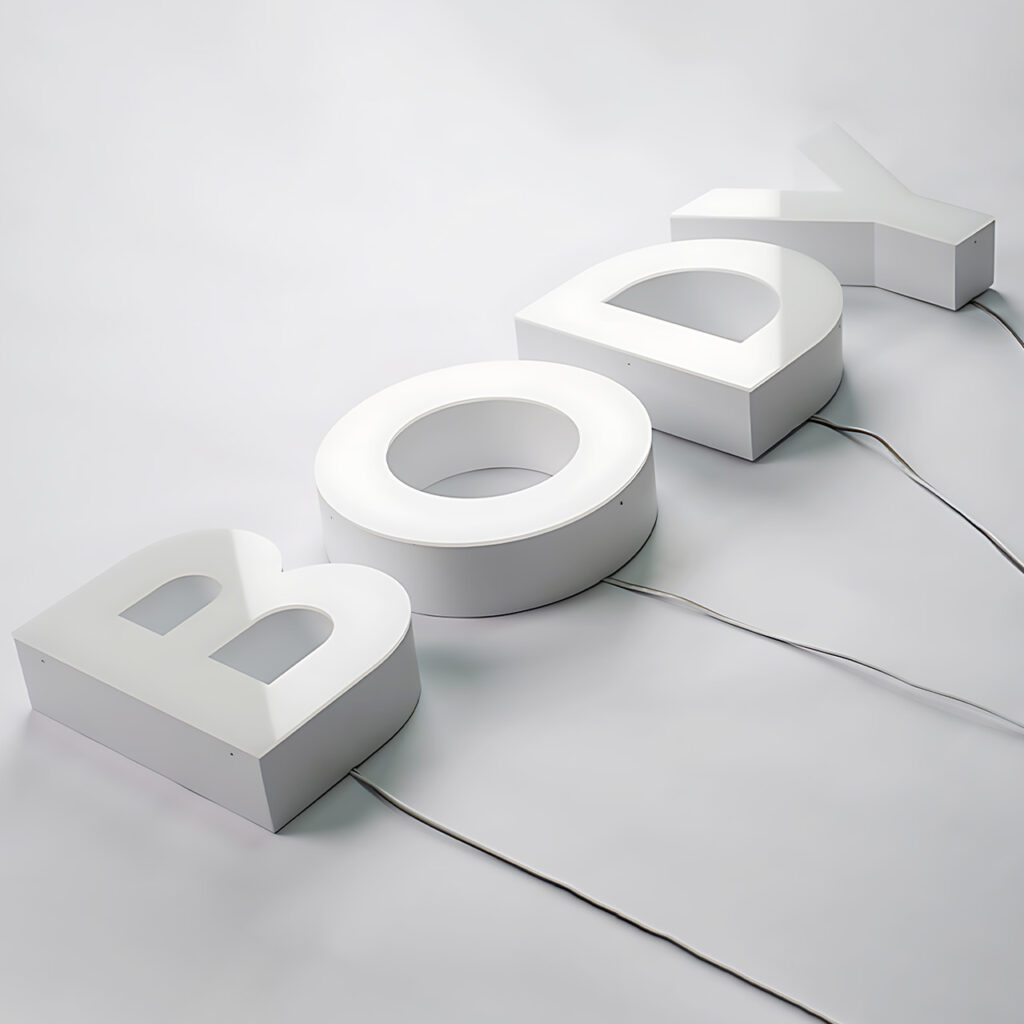

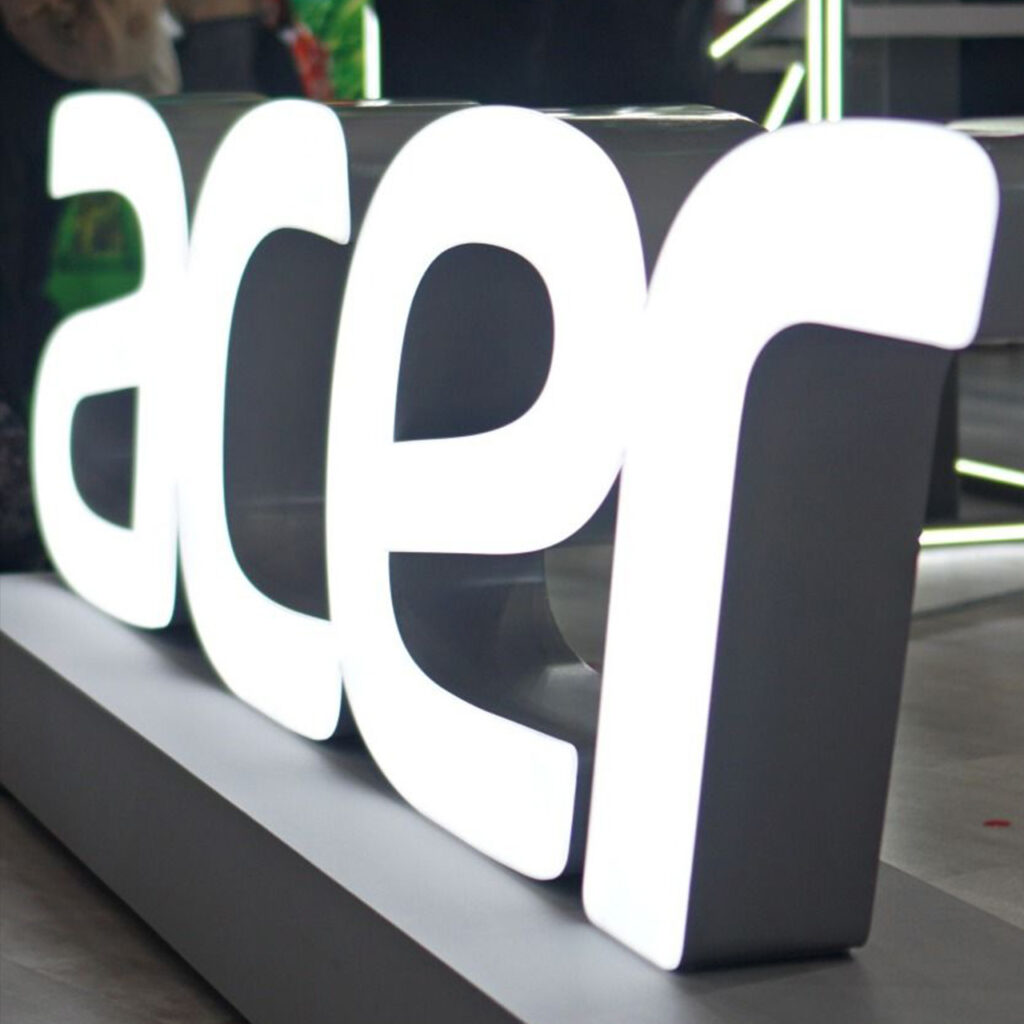

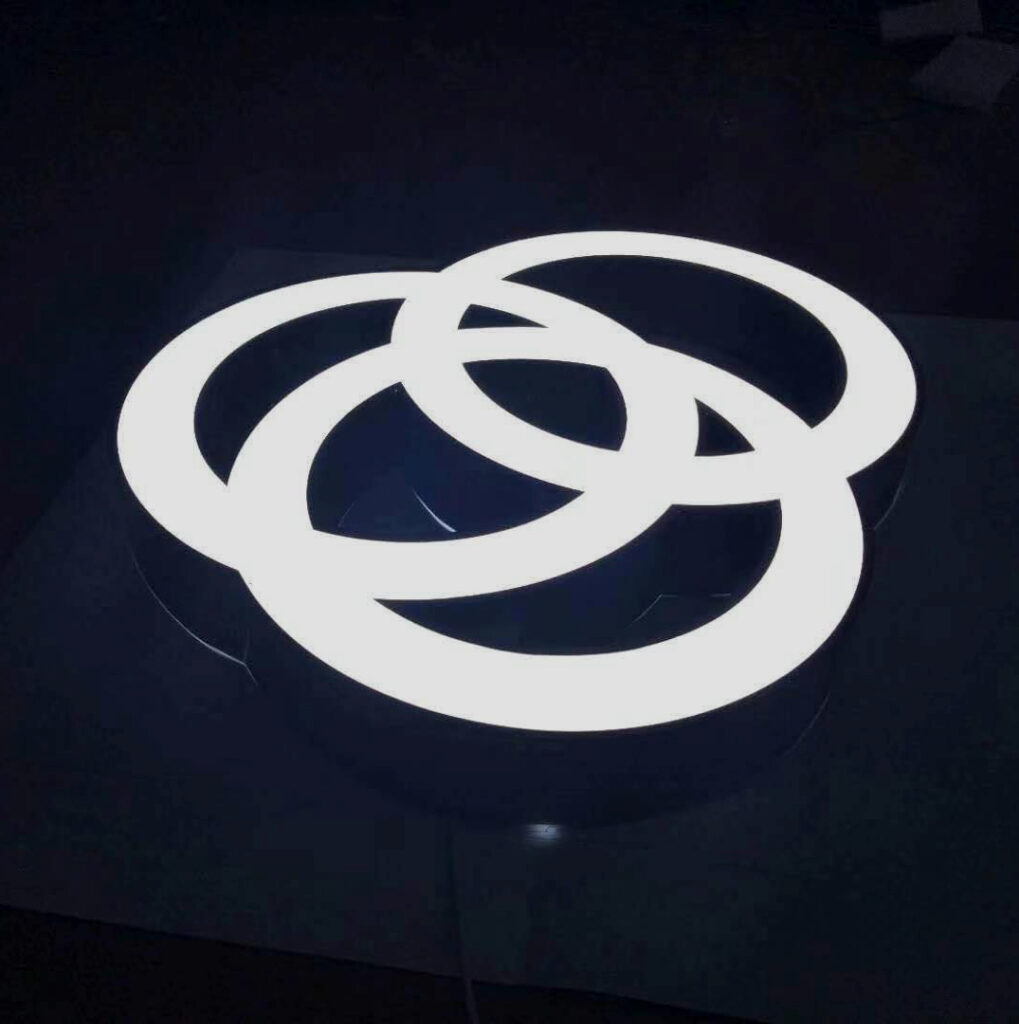

Traditional channel letters utilize a plastic or metal “trim cap” to clip the front acrylic face to the metal side returns. Over time, these plastic borders can degrade, fade, warp, or form small gaps that trap water inside the letters. Face Illuminated Rimless Channel Letters eliminate the trim cap completely. The acrylic face is seamlessly bonded directly to the 1mm metal returns using high-strength structural adhesives or hidden sub-fasteners. This results in a sleek, completely smooth 3D presentation, removes common points of failure, and offers a wider, edge-to-edge viewing angle from close range.

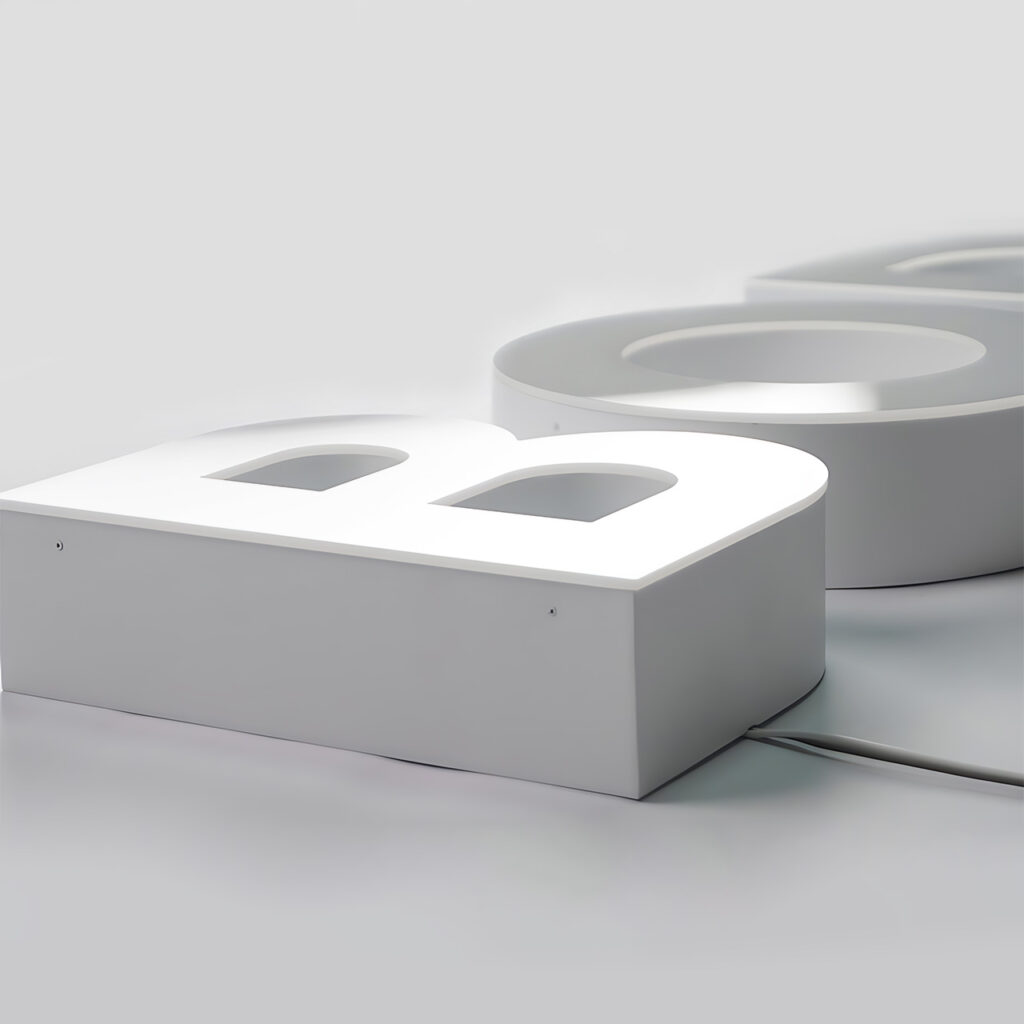

Yes. While rimless letters look delicate and high-end, they are built to heavy-duty architectural standards. The front acrylic panels are highly UV-stabilized to withstand harsh sun exposure without yellowing or cracking. For fully external building facades, the letter bases are fabricated with precision integrated drain holes at the bottom rear. This ensures that any micro-condensation from temperature swings drains out instantly, keeping the internal LED modules dry and functioning perfectly.

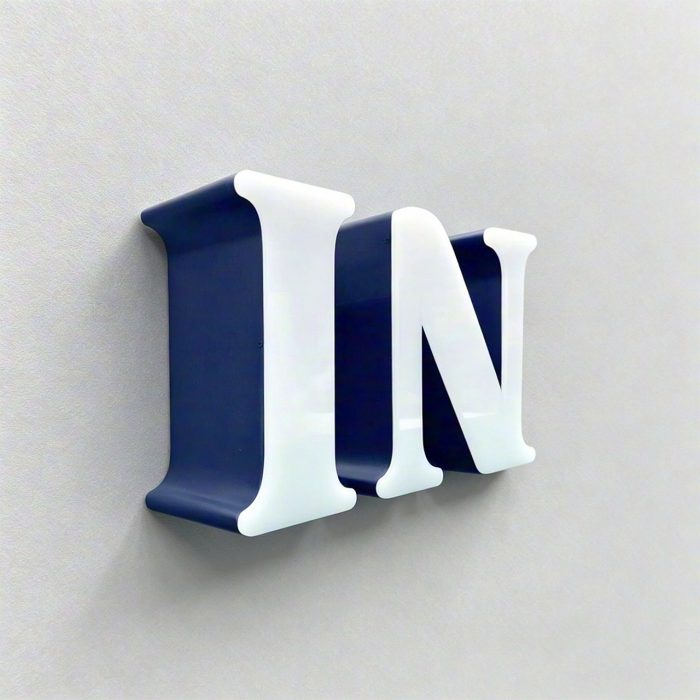

The standard side profile (return depth) is fabricated from high-grade 1mm 304 stainless steels. Depending on your design requirements, return depths can range from a shallow 30mm profile up to a deep 200mm dimensional thickness. For premium marine or highly corrosive environments, upgrades to 316 Marine Grade stainless steel, Aluminium, Brass, or Copper are fully supported. The metal surfaces can be customized with various finishes, including a polished mirror look, a brushed effect, powder coating, electrical plating, or 2pac automotive painting.

Long-term architectural durability and building code compliance are handled by providing low-voltage setups built with an authentic 12V DC Meanwell driver network. Every custom-fabricated sign kit leaves production with specific safety approvals engineered for your destination market: SAA and C-Tick for Australia/New Zealand, UL/cUL for the US and Canadian markets, and CE/RoHS marks for European regulatory frameworks. This eliminates customs clearance complications and guarantees a passing grade from site engineers.

The sign can be installed using two methods: Flush Mount (anchored directly flat against the structural backing panel) or Stand-off Mounting (raised on pins to give the lettering a floating look). To protect the rimless edges from stress, a full-scale paper layout template/draft is included in the crate. This template maps out the precise placement for the mounting holes and structural rear anchors (standard M4/M6/M8/M10 threaded pins). This allows installers to pre-drill and anchor the rear hard PVC or metal bases to the wall without putting pressure on the flawless front acrylic faces.

To deliver a precise, guaranteed custom proposal within 12 working hours, please provide our engineering team with:

1. Your vector branding layout file (.AI, .EPS, or editable .PDF format) outlining the typography or logo with your required overall width and height marked.
2. Your choice of metal material and surface finish for the side returns (e.g., Brushed Gold, Mirror Silver, or a specific Pantone powder-coated paint color).
3. The preferred illumination profile (static color temperature or dynamic RGB color-changing functionality).
4. The exact installation context (Fully Interior, Shopping Center, or Semi-Outdoor) along with your location details to ensure regional safety compliance matching.
