Product Code: 3D-025

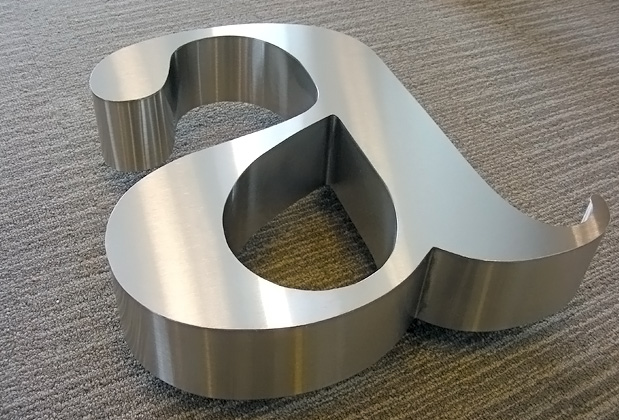

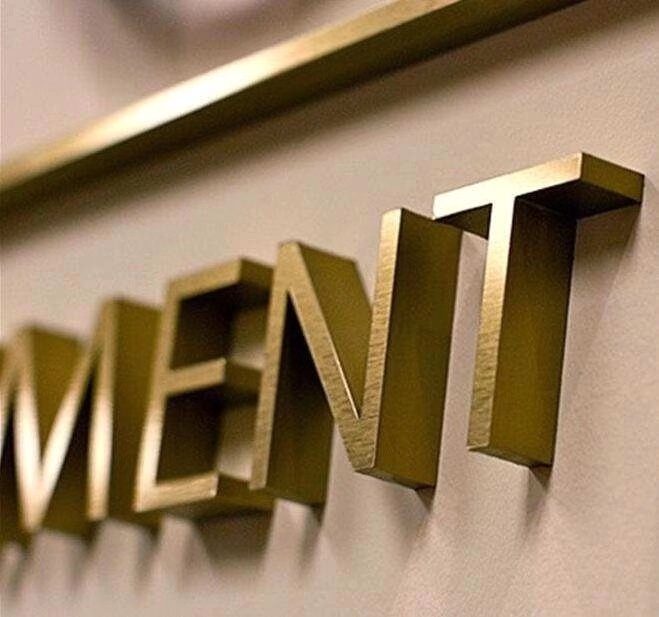

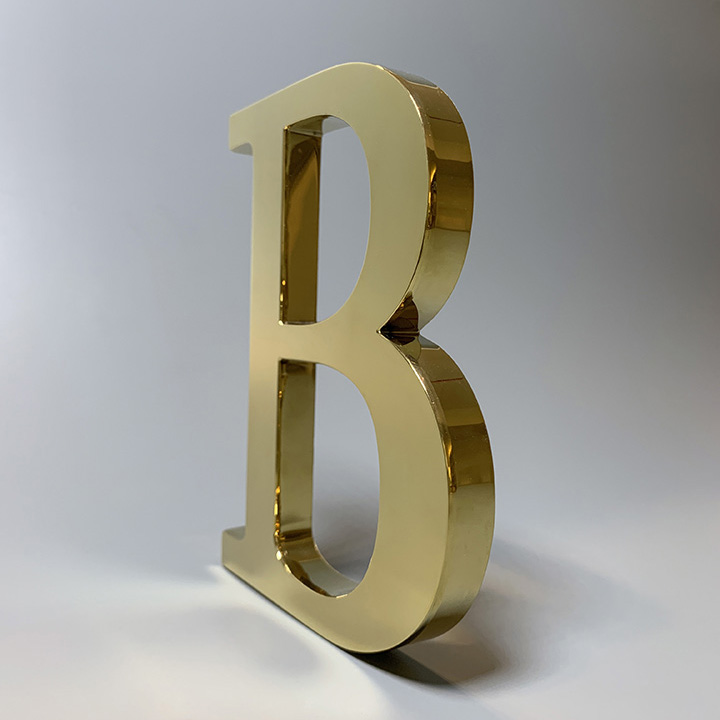

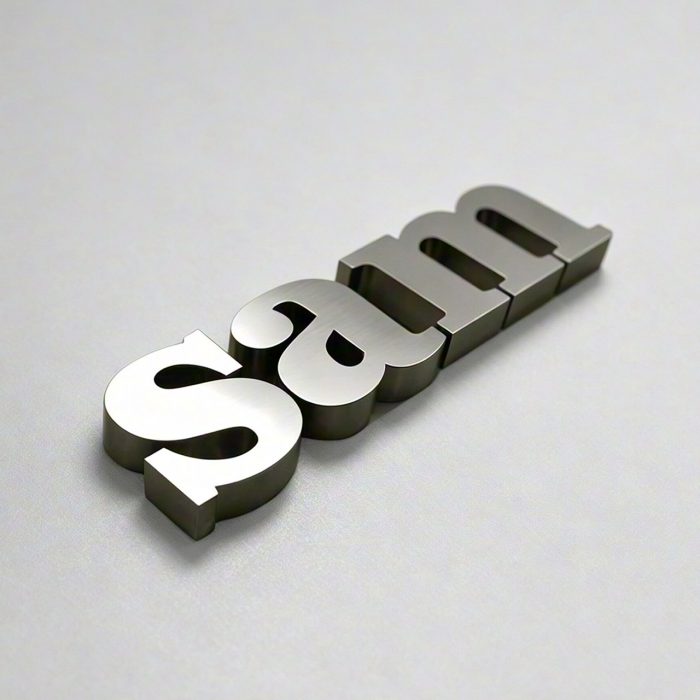

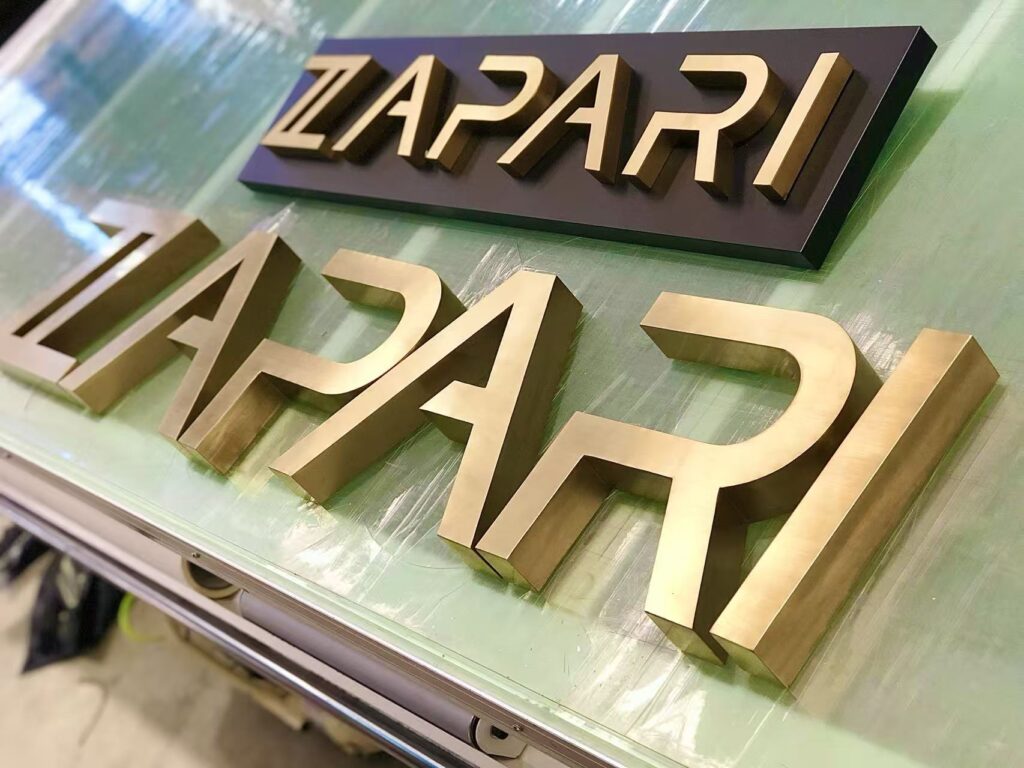

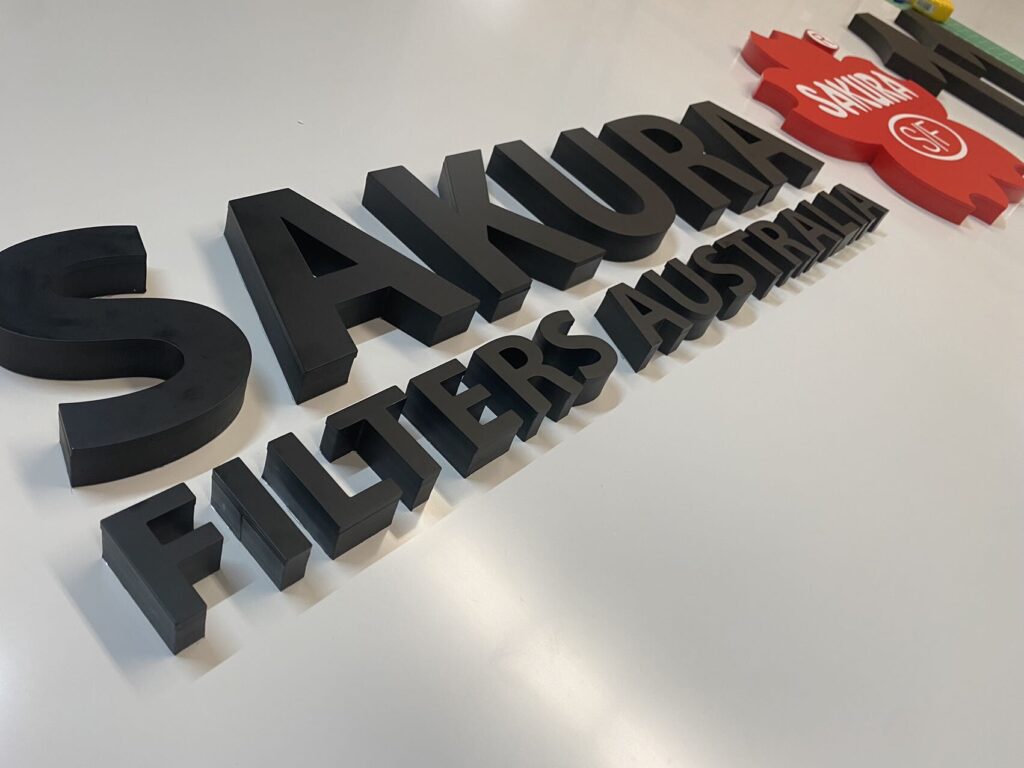

Establish a commanding, highly professional architectural presence with our premium custom-built Non-Illuminated Stainless Steel Channel Letters. Engineered specifically for prestige corporate spaces, luxury hospitality venues, and external building facades that demand clean, minimalist aesthetics, these signs provide maximum structural depth without the need for internal electrical components. Each dimensional character is individually fabricated by precision welding a heavy-gauge solid metal face to matching side return walls, creating a completely seamless, solid-looking 3D block. By eliminating internal LEDs, this configuration focuses entirely on the raw beauty, crisp geometric lines, and natural light-and-shadow play of premium architectural alloys.
Target Applications & Use Cases
Highly recommended for corporate reception lobby walls, executive boardrooms, legal and financial services offices, medical clinic entrance facades, luxury hotel concierge backdrops, high-end retail storefront headers, and external building block identification numbers.
Stainless Steel Channel Letters | Non-Lit Metal Fabricated Signs
Product Code:Â 3D-025

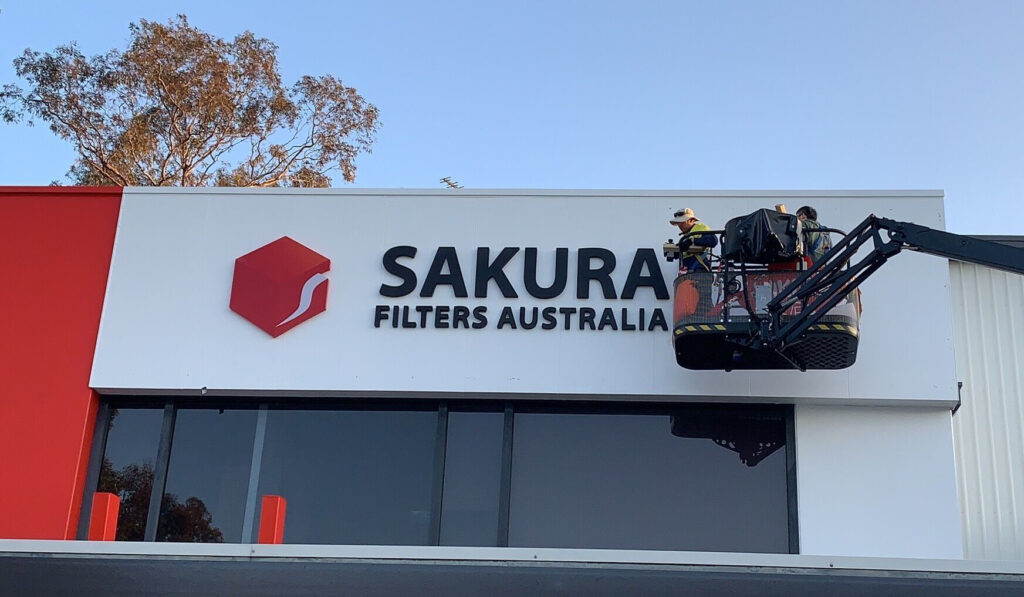

Environment:Â Premium luxury Interior reception features | Rugged, fully exposed Exterior architectural facades
Dimensions:Â Refer to drawing
Material Options:Â Commercial-grade 304 Stainless Steel or 316 Marine-Grade Stainless Steel (enclosures also custom-ordered in heavy-duty Aluminium, solid Brass, or pure Copper)
Depth (Return):Â Standard depths available in 30mm | 50mm | 80mm | 100mm+
Finish & Surface Treatments:
Illumination Style:Â Non-Illuminated (Static hollow-box architectural build optimized to interact with ambient environmental lighting, natural sunlight, or dedicated external tracking spotlights) Installation Guide:Â Full-scale 1:1 paper layout alignment template included
Installation Method:Â Clean, low-profile Flush Mount (anchored flat against the wall substrate) or elevated Stand-off Stud Mounts (using threaded metal rods and spacer sleeves to float the letters 10mm to 30mm forward)
Flat cut letters are sliced from a single sheet of metal plate and are generally limited to a maximum thickness of 10mm due to material weight and machining constraints. Fabricated Non-Illuminated Channel Letters use a hollow-box architectural build. By welding separate side return ribbons (up to 100mm+ deep) to the face profile, you achieve massive, heavy-looking dimensional thickness that stands off the wall dramatically. This creates a bold, premium 3D presence that flat-cut panels simply cannot duplicate, while remaining lightweight enough to mount safely on standard interior partitions.
For premium indoor reception feature walls, enclosed mall corridors, or standard inland corporate office blocks, 304-grade stainless steel provides impeccable structural stability and a lifelong pristine surface. However, if your installation point handles direct external exposure to coastal salt spray, sea winds, heavy seasonal humidity, or aggressive industrial atmospheric chemicals, we strictly specify upgrading to 316 Marine-Grade Stainless Steel. The inclusion of molybdenum in 316-grade alloys delivers crucial protection against pitting and brown “tea-staining” surface corrosion in coastal zones.

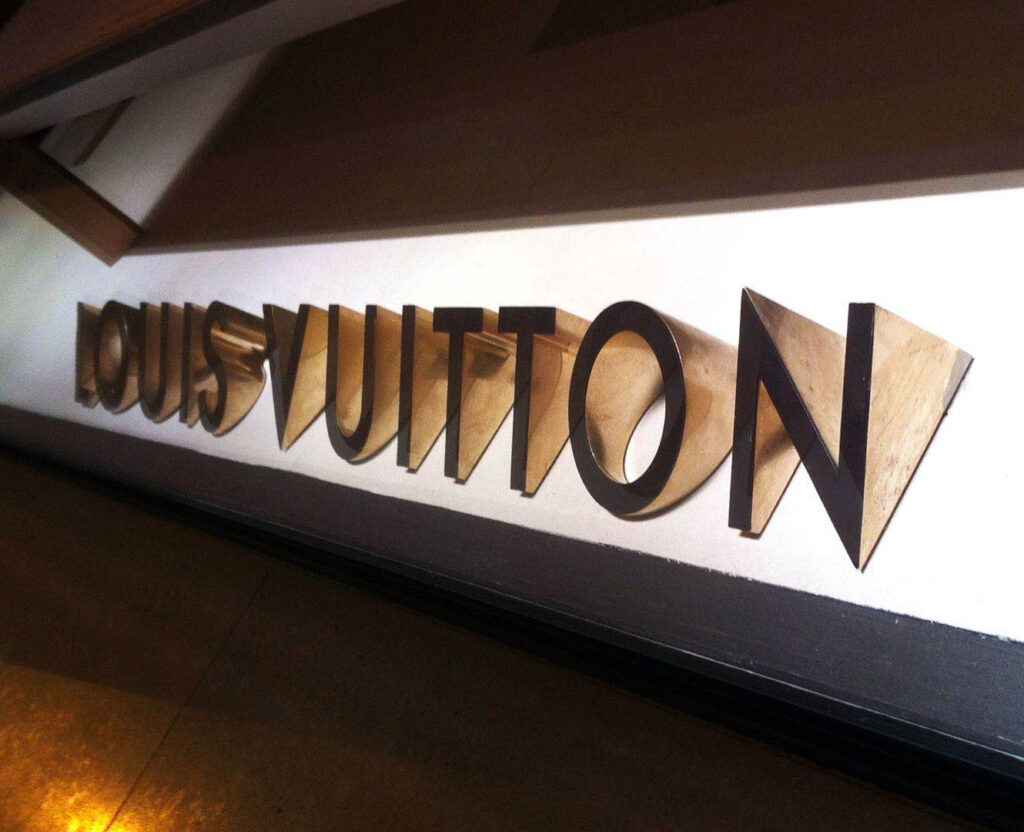

To maximize the visual depth of a non-illuminated sign, we highly recommend a Stand-off Stud Mount setup. During fabrication, discrete threaded mounting bosses are welded internally onto the back panel of the hollow 3D letters. Threaded steel pins are screwed into these bosses and anchor into the wall using our provided 1:1 paper template. By using matching metal spacer sleeves, the letters can be raised 10mm to 30mm forward from your wall fascia, allowing ambient room light or external spotlights to cast rich, natural structural drop shadows underneath the typography.
No. For painted aluminum or steel finishes, we utilize high-solids automotive-grade 2pac coatings or baked powder treatments that resist UV chalking, cracking, and peeling. For premium raw metals like brass and copper—which naturally oxidize when exposed to rainwater and humidity—we apply an industrial-grade, baked-on UV-resistant transparent clear coat sealer. This clear coat completely isolates the metal surface from the elements, ensuring it retains its bright, pristine polished or brushed finish permanently without developing uneven rustic stains.
To deliver an accurate, guaranteed commercial proposal within 12 working hours, please provide our estimating team with the following project parameters:
