Corner Wrap 3D Channel Letters | 90-Degree Architectural Branding

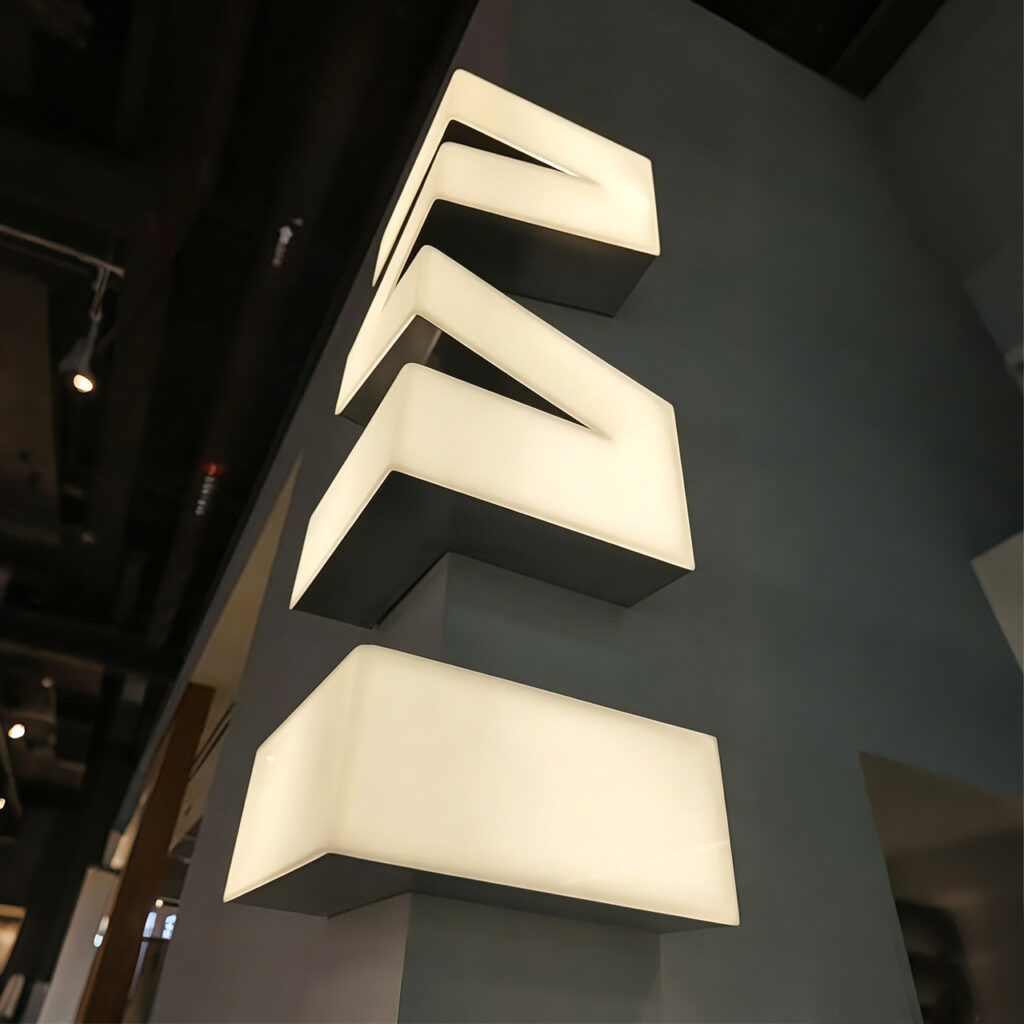

Fabricating a corner-wrap sign requires strict geometric precision. We do not simply bend flat panels over an edge. First, the structural 90-degree pillar on site must be precisely measured. Using those field metrics, our CNC laser cutters carve exact split-face templates from sheet metal, which are then folded on multi-axis press brakes and meticulously TIG-welded along the internal seams. This creates a single, rigid 3D letter housing that slides flush onto the building corner with zero gaps.

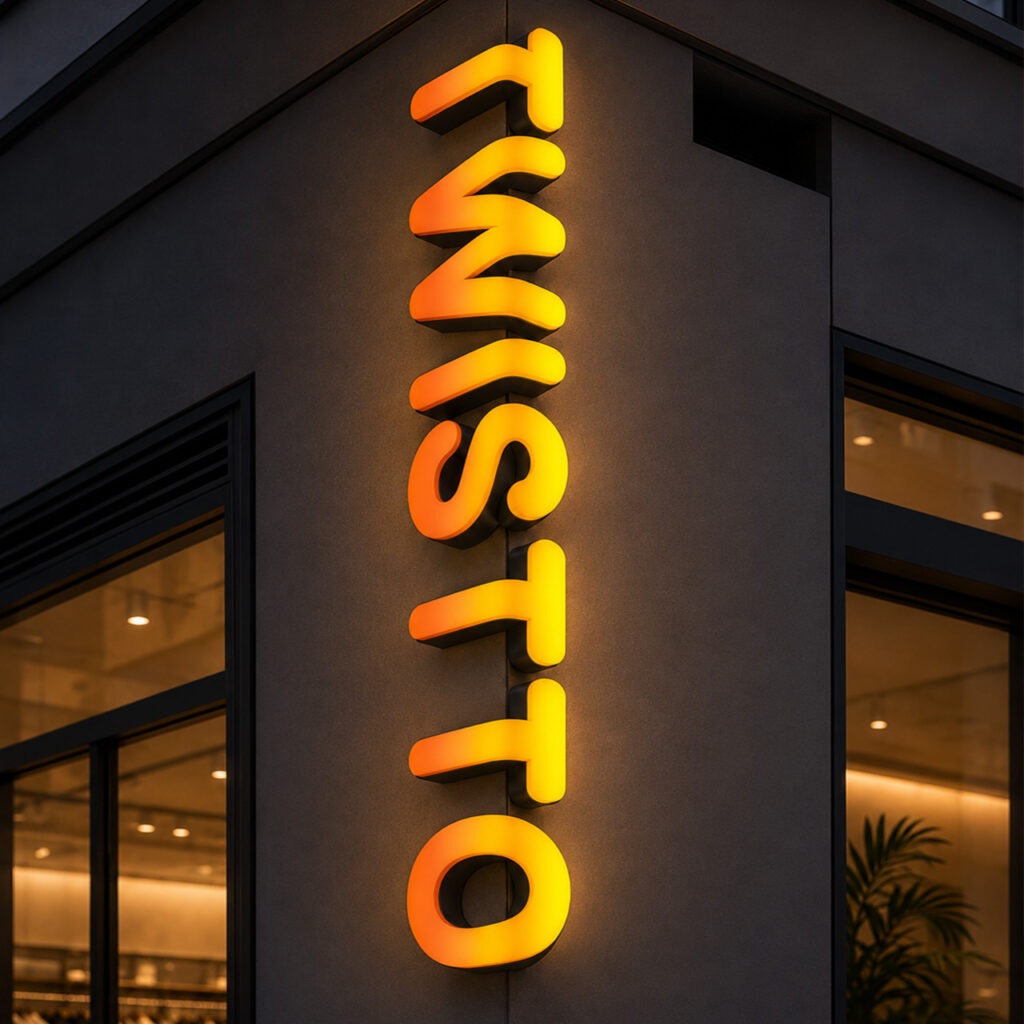

Standard LED placement inside straight letters involves laying modules flat on the backing board. For corner-wrap letters, flat placement would leave the central apex dimmed or cast shadows outward. To overcome this, our engineering team installs custom-angled internal mounting brackets inside the corner cavity. The IP67 LED modules are mounted onto these angled facets, pointing crossways toward the lens or the wall substrate to blend the light paths perfectly and eliminate any dark patches at the corner apex.

Yes. External building corners are high-pressure zones that experience severe wind-shear and turbulence. To handle these forces safely, our corner-wrap letters feature reinforced internal sub-frames built from structural aluminium or thick-gauge steel. The characters are fitted with dual-directional threaded mounting pins that drill deep into both intersecting faces of the wall masonry or structural steel columns, distributing the wind load across two distinct structural planes instead of a single flat surface.

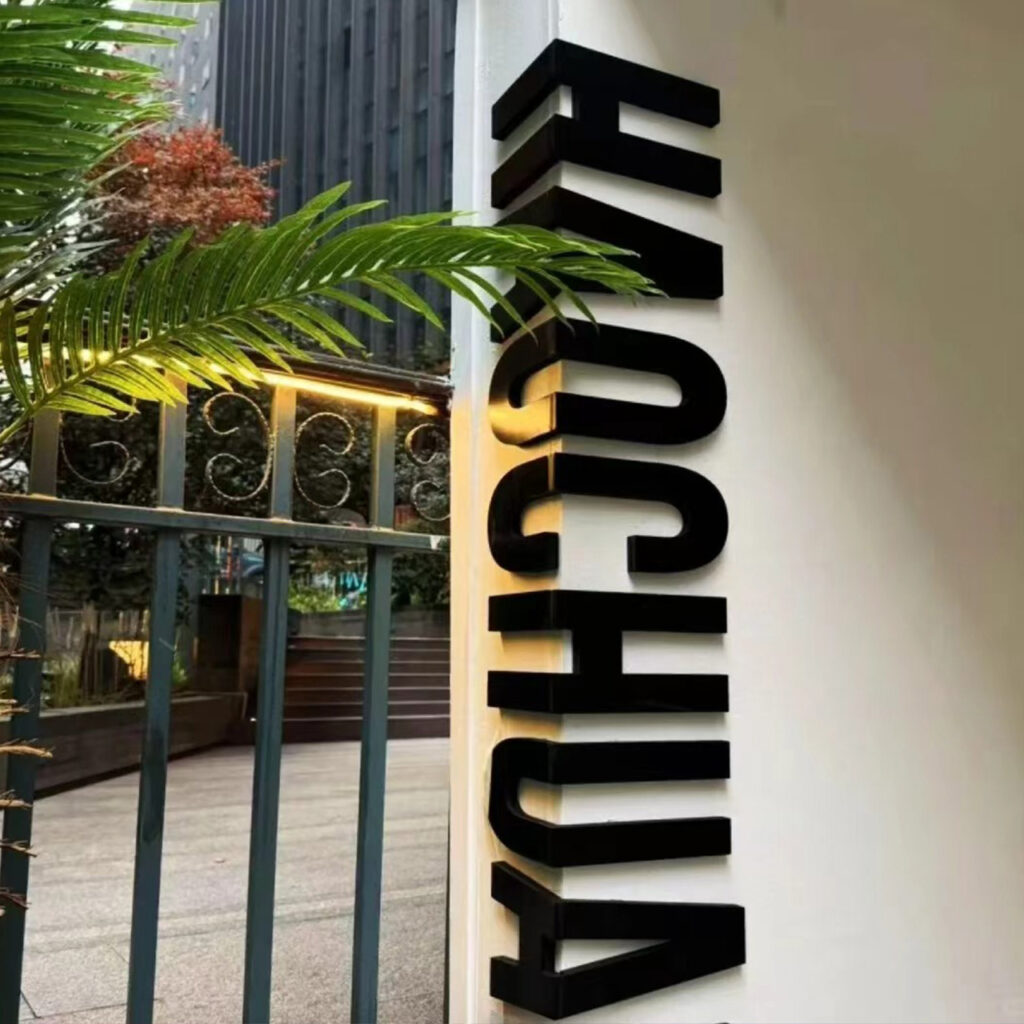

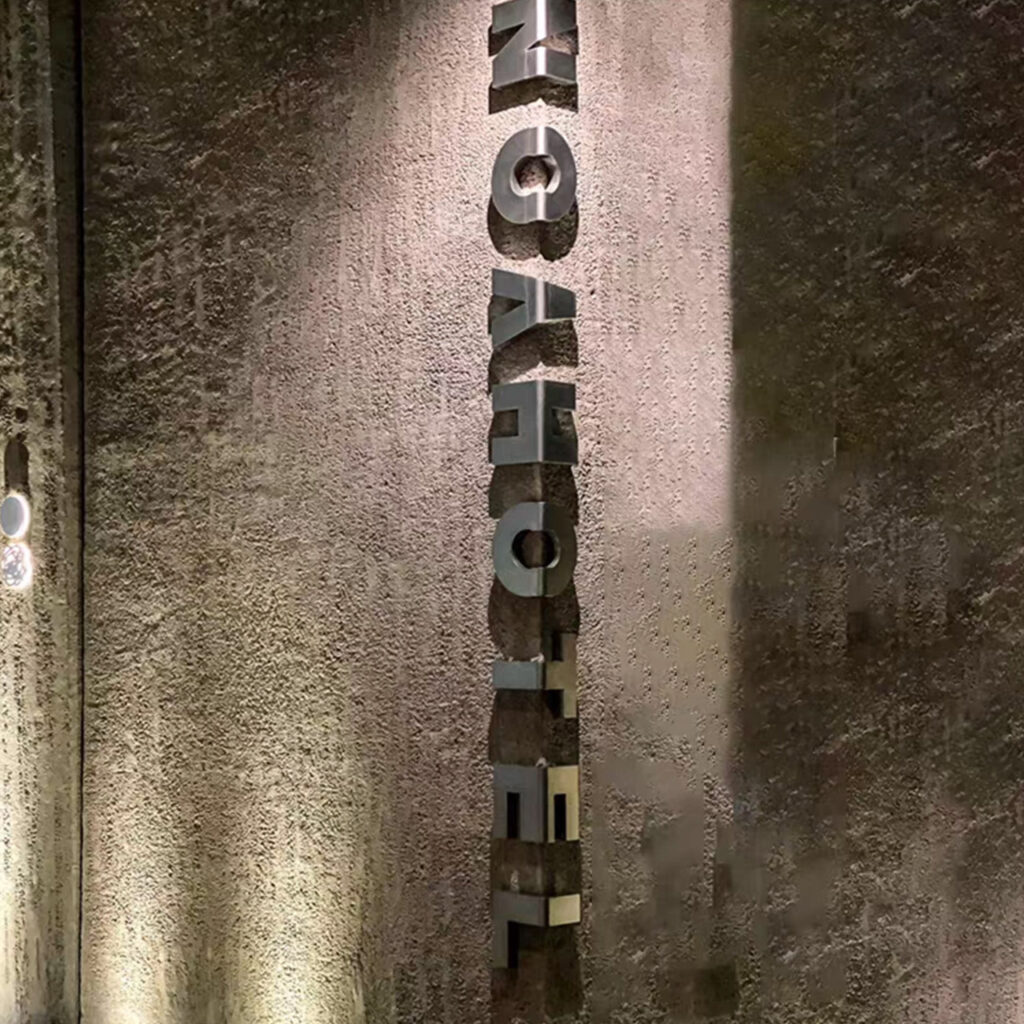

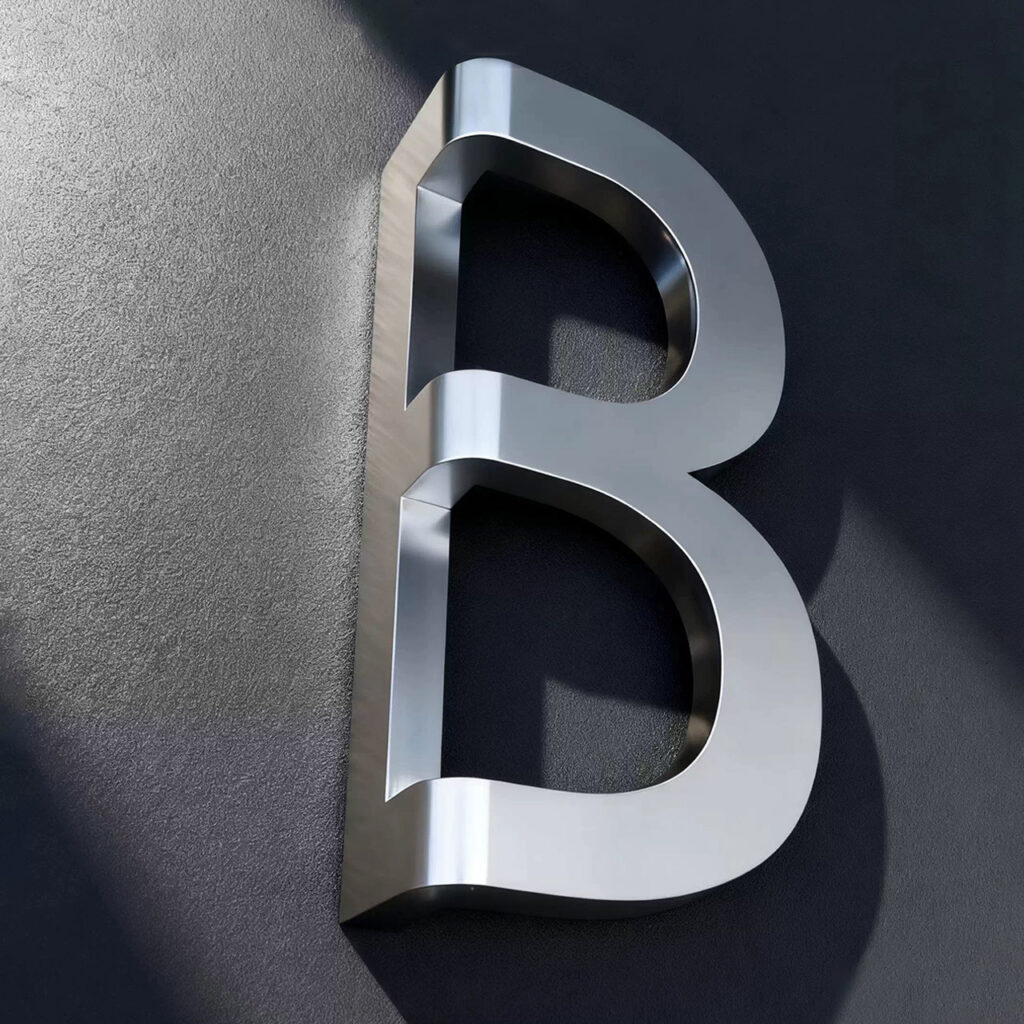

Yes, absolutely. If your project features ample exterior floodlighting, or if you prefer a clean, minimalist architectural aesthetic, we can fabricate these letters as completely static, non-illuminated 3D blocks. By omitting the internal LEDs, the focus shifts entirely to the raw, high-value texture of the satin brushed stainless steel or mirror brass, which interacts with natural sunlight to cast deep, structural architectural shadows down both sides of the facade throughout the day.

To deliver an accurate, guaranteed commercial proposal within 12 working hours, please provide our trade estimation team with:

1. Your vector branding file or typography layout (.AI, .EPS, or editable .PDF format) indicating which letters or components will wrap around the corner axis.
2. The exact material finish (e.g., Mirror Gold Titanium, Satin Brushed 316 Stainless Steel, or a specific Pantone 2pac paint color match).
3. Your choice of illumination (Front-Lit, Halo-Lit, or Non-Illuminated) and the desired return depth (e.g., 80mm or 100mm).
4. The verified field dimensions of the building column corner (including any irregularities or face panel textures) and your shipping postcode.
