Premium Outdoor LED SEG Fabric Lightbox

Key Technical Specifications

Print Media & Technology: High-density 3P Banner fabric featuring advanced full-colour UV printing. Designed specifically for backlit applications to deliver perfect light diffusion, rich colour saturation, and superior fade resistance under direct sunlight.
Illumination System: Outdoor-engineered, IP65-rated weatherproof modular LED lighting. Delivers perfectly uniform, edge-to-edge illumination across the entire fabric face with zero dark spots or shadows.
LED Colour Temperature Options: Customize the visual tone of your branding:
- 3,000K (Warm White): For upscale, inviting, or hospitality-driven atmospheres.
- 6,500K (Natural White): For clean, crisp retail and corporate branding.
- 10,000K (Cool White): High-intensity illumination for maximum contrast and long-distance visibility.
Sizing: Custom manufactured to your exact physical requirements (H x W).

Structural Frame & Wind Protection

Standard Profile Return: 80mm deep structural extrusion engineered for ideal light distribution.
Custom Commercial Profiles: Available in 60mm, 100mm, and 120mm depths to accommodate specific architectural integration needs.
Premium Frame Finishes:
- Heavy-Duty Silver Anodised Aluminium (Standard architectural finish).
- Powder-Coated Matte Black (Premium modern aesthetic).
- Custom RAL Colour Matching available to match building facades or exact corporate guidelines.
Specialized Wind-Lock Accessory: Features a structural internal reinforced framework paired with precision-bent L-trim profiles (20x30 profile). This mechanical edge-cover locks the silicone graphics firmly in place, entirely preventing strong winds or severe weather from opening or loosening the fabric edges.

Electrical Components & Compliance

Power Driver: Premium internal or external 12V–24V DC Meanwell Transformer. Fully SAA and C-Tick certified for strict compliance with Australian Signage Standards, and globally certified (UL/cUL, CE, and RoHS) for international export.
Wiring & Connection: Equipped with a standard 1.5m low-voltage power lead and an Australian 3-pin plug. US, UK, and EU plug configurations are available for international compliance.
Power Lead Outlets: Pre-configured at the bottom corner back panel (available in both Left or Right-side exit positions), or tailored to your specific architectural wiring plan (TBC).

Mounting & Logistics

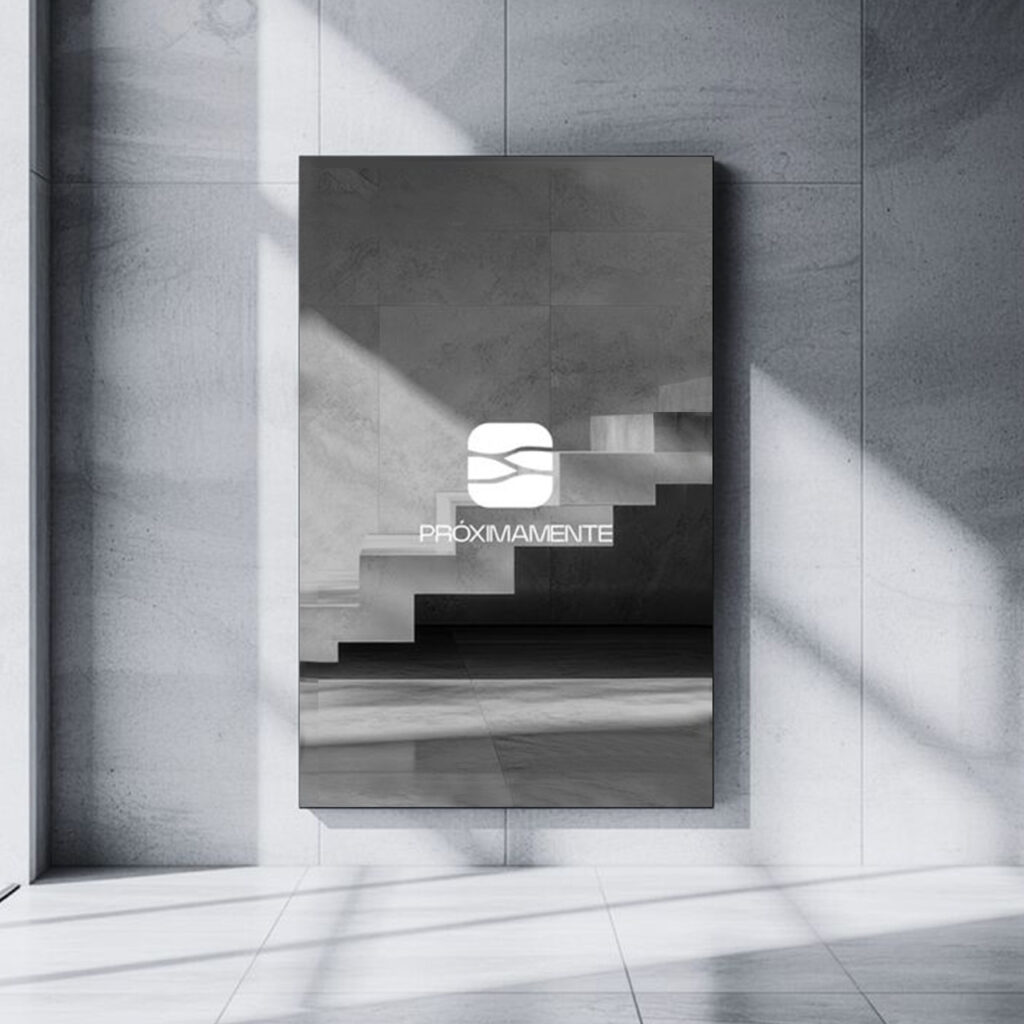

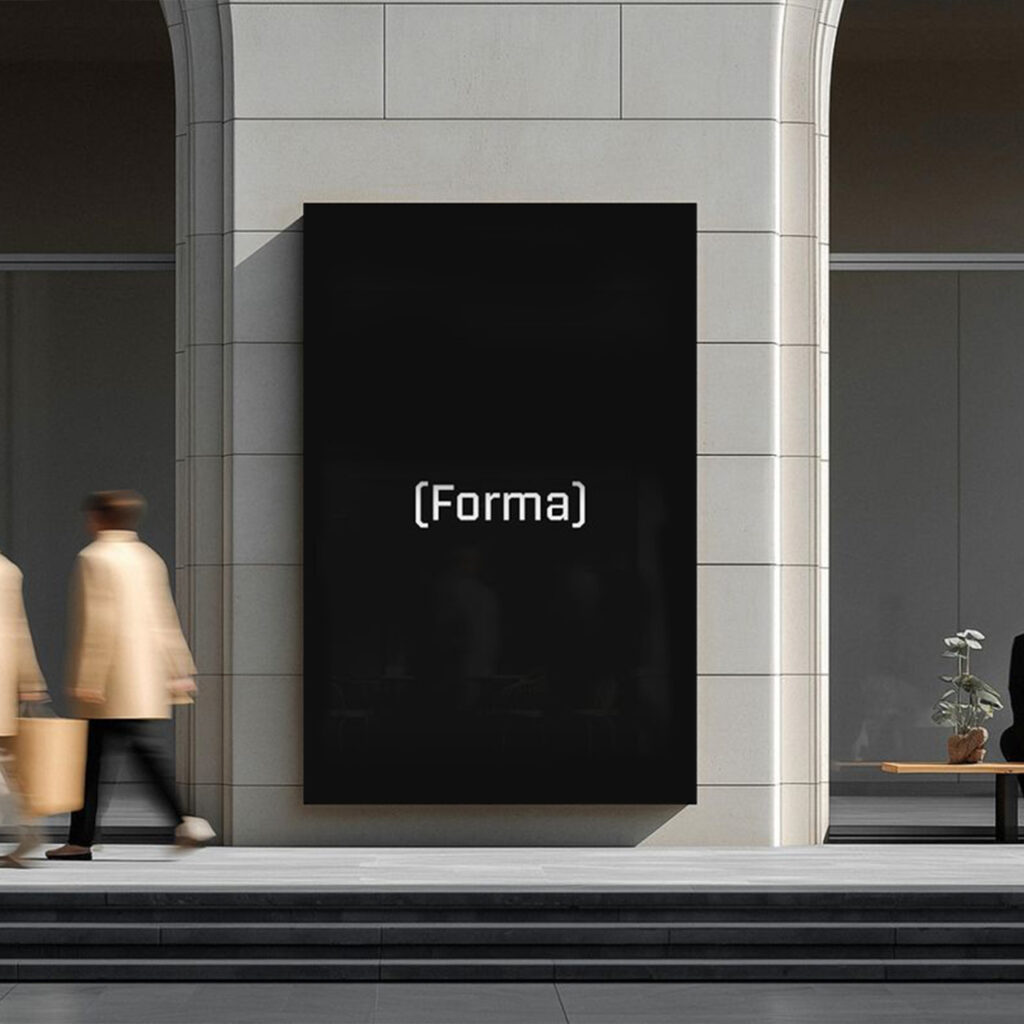

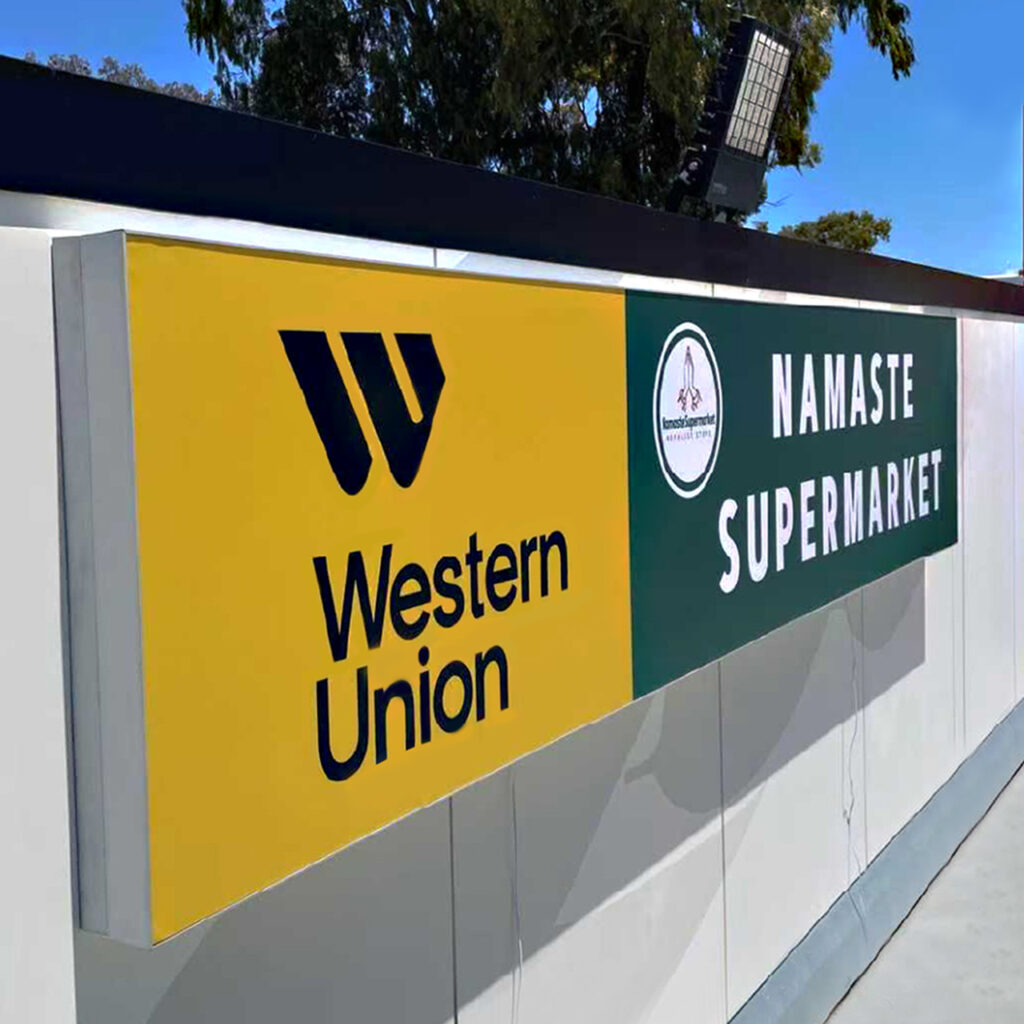

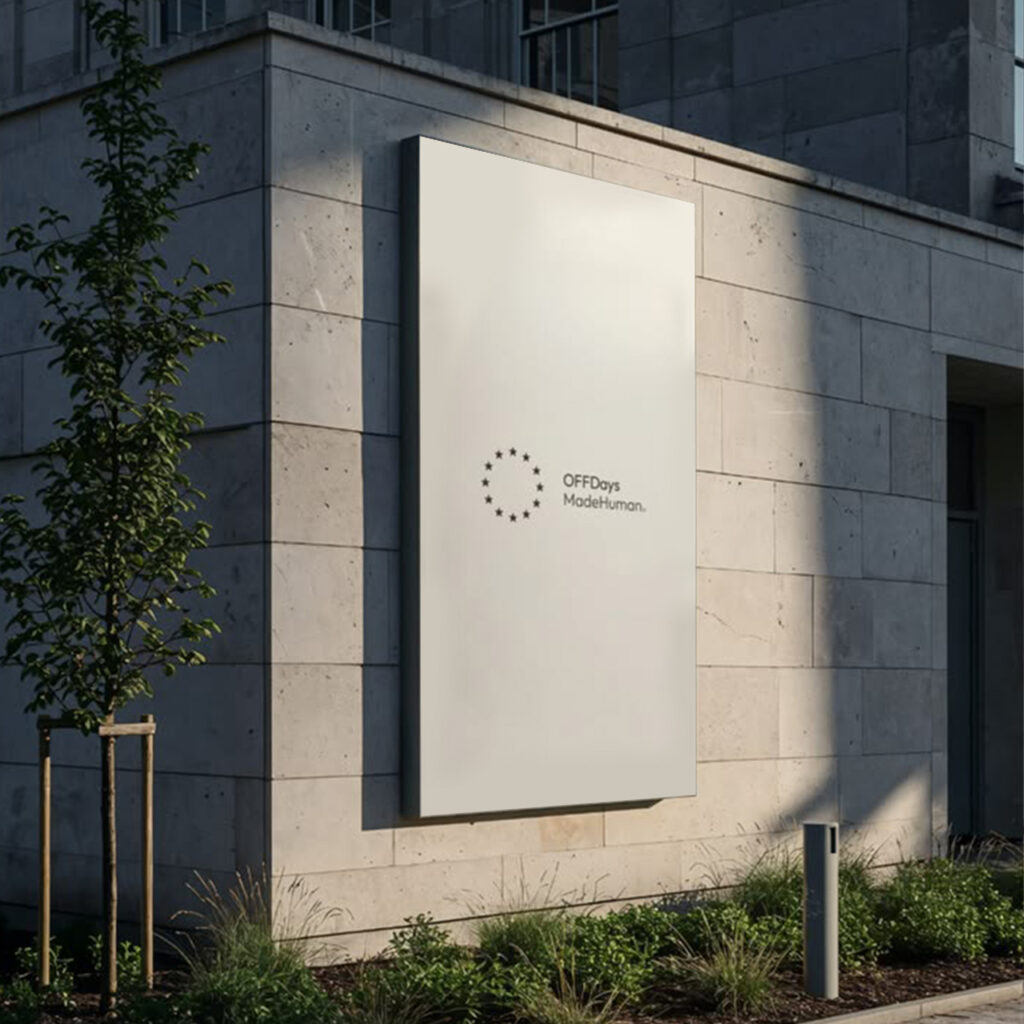

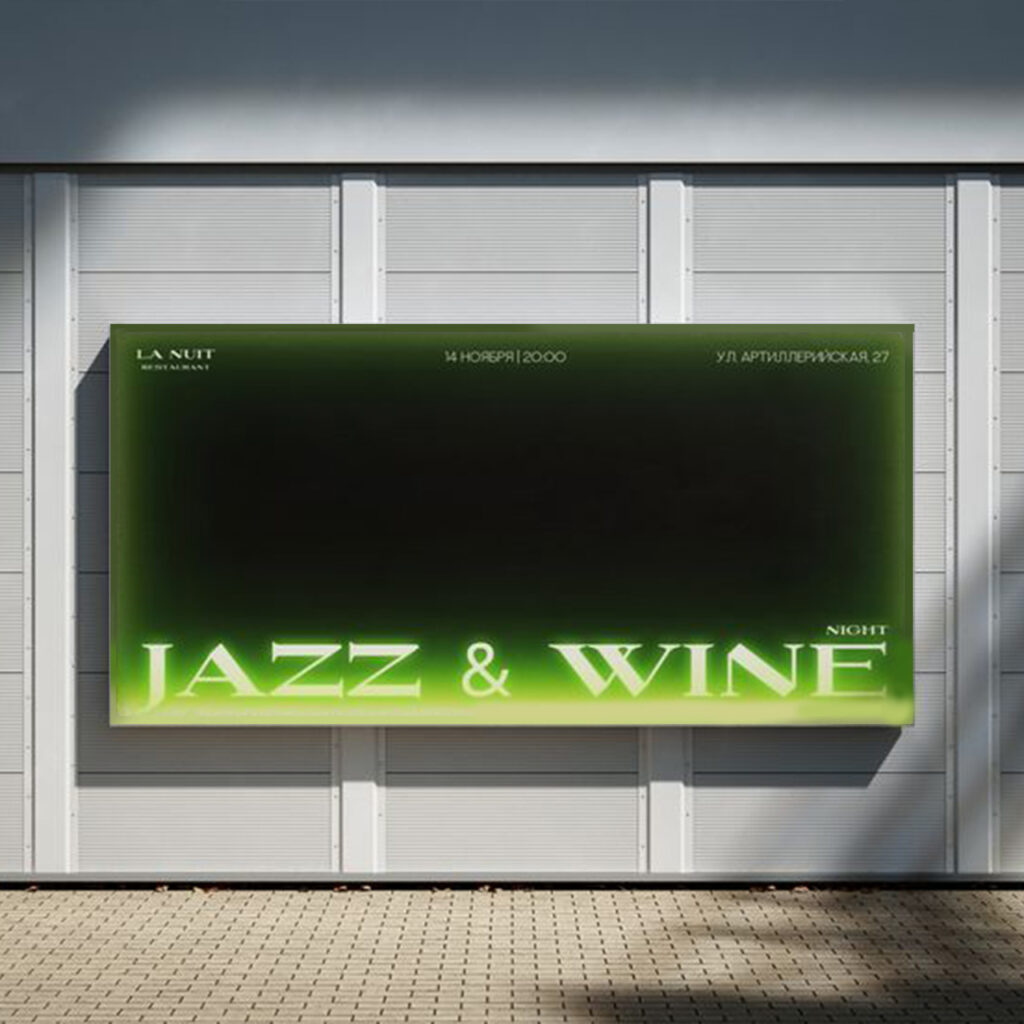

Mounting Method: Engineered for clean, heavy-duty flush mounting directly onto external wall surfaces.
Shipping Configuration: Delivered in a highly secure, flat-packed modular breakdown to guarantee damage-free transit, compact storage, and reduced freight costs.

Premium Outdoor LED SEG Fabric Lightbox
Product Code: SEG-OD

Core Dimensions & Environment

Environment: Fully External Use (Weatherproof)
Sizing: Custom _____ mm H × _____ mm W
Frame Depth (Return): 80mm standard profile (Custom options: 60mm | 100mm | 120mm)
Mounting Method: Flush to wall surface
Packaging: Flat-pack configuration for compact transport

Print & Graphics

Media Type: 3P Banner Fabric
Print Technology: UV full-colour printing
Finishing: Silicone Edge Graphics (SEG)

Frame, Structure & Finish

Base Frame: Heavy-duty silver anodised aluminium modular frame
Finish Options: Silver Anodised (Standard) | Powder-coated Matte Black | Custom RAL Colors
Wind Protection System: Internal reinforced structural framework with bent L-trim profiles (20×30 profile) to secure silicone edges against high winds

Electrical & Illumination Specifications

Light Source: Outdoor IP65 weatherproof LED modular system
Color Temperature Options: 3,000K (Warm White) | 6,500K (Natural White) | 10,000K (Cool White)
Power Driver: Internal or External Meanwell Transformer (12V-24V DC)
Compliance: SAA and C-Tick certified (Fully compliant with Australian Signage Standards); UL/cUL and CE/RoHS certified for international export
Wiring & Connection: Standard 1.5m low-voltage power lead with AU 3-pin plug (US/UK/EU plugs available for export)
Power Exit Location: Bottom corner back panel (Select: Left Side | Right Side | TBC)

Yes, the SEG-OD lightbox is engineered from the ground up for fully external use. It features premium commercial-grade, IP65-rated weatherproof LED modules that are completely sealed against dust and heavy rain. The power supply utilizes highly reliable, certified Meanwell transformers to ensure safe, stable operation outdoors.

Standard indoor fabric frames can slip out under wind pressure, but our outdoor lightbox features a specialized internal reinforced framework combined with bended L-trim borders (20×30 profile). These heavy-duty structural trims clamp down securely over the silicone edge graphics (SEG), locking them mechanically into the track so high winds cannot catch or open the edges.

We use premium 3P Banner fabric printed with state-of-the-art full-colour UV inks. Unlike standard dye-sublimation prints meant for indoors, our UV-cured printing process creates a highly resilient barrier that offers superior resistance to UV rays, preserving vibrant colours and sharp text even under direct Australian sunlight.

Yes. The system maintains the simplicity of standard SEG frames while adding outdoor security. To change the graphic, the bended L-trims are unfastened, allowing you to quickly pull out the old fabric and press the new silicone edge graphic into the frame channel. This means you can update outdoor seasonal marketing campaigns in minutes without replacing the aluminium hardware.

Our outdoor lightboxes are fully compliant with Australian Signage Standards, utilizing Meanwell transformers backed by SAA and C-Tick certification. For clients ordering internationally, our systems also carry full UL/cUL, CE, and RoHS certifications, ensuring complete structural and electrical compliance wherever they are installed.
