Product Code: 3D-032
Make a monumental architectural statement with our Giant 3D Sculpture Letters and Giant Landmark Metal Signs. Engineered specifically for high-profile public plazas, corporate campus entrances, major retail parks, and civic tourist hotspots, these heavy-duty freestanding landmark structures are designed to become permanent, photographable anchors for your property. Precision-built from structural steel internal frameworks and wrapped in heavy-gauge architectural metals, these massive multi-meter installations are meticulously welded and hand-finished to withstand extreme public interaction and severe outdoor weather while maintaining an uncompromised, high-value presence.
Target Applications & Use Cases
The definitive branding solution for shopping center main entry plazas, civic town squares, tourist photo landmarks (“Insta-walls”), university campus centers, airport terminal approaches, music festival gates, and corporate headquarters frontage displays.

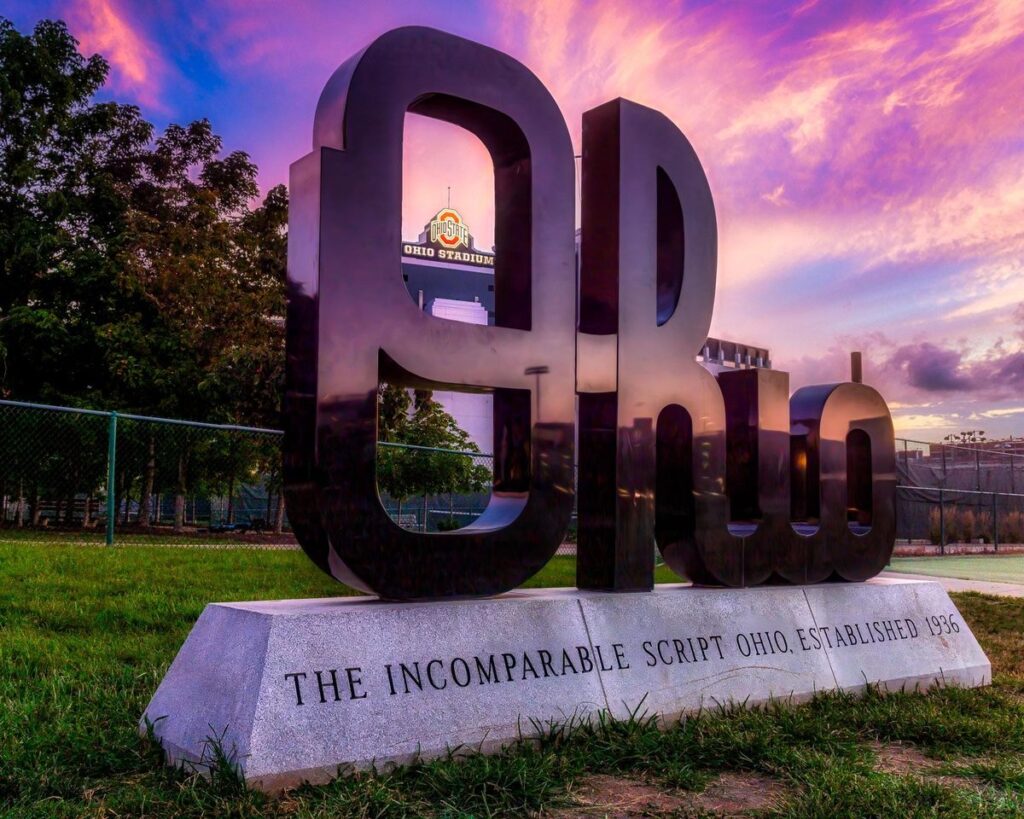

Giant 3D Sculpture Letters | Giant Landmark Metal Signs
Product Code:Â 3D-032
Environment:Â High-profile public plazas | Corporate campus entrances | Major retail parks | Civic tourist hotspots and town squares
Dimensions:Â Refer to drawing (100% custom-manufactured from 1.0 meter up to 5.0+ meters in standalone vertical height)
Material Options:Â Heavy-gauge cladding shell (2.0mm to 5.0mm thickness) in Marine-Grade 316 Stainless Steel, architectural 304 Stainless Steel, high-tensile Aluminium, or weathered Corten Steel Structural Subframe:Â Heavy-wall, hot-dip galvanized structural steel internal cage matrices engineered for high-altitude wind loads and severe public interaction.
Finish:Â Satin brushed / linished directional grain, seamless mirror polished, multi-stage baked automotive 2pac paint, or industrial UV-stable powder coating
Illumination Style Options:
Wiring:Â Standard 1.5m heavy-duty lead wire per character (Maximum extension up to 3m).
Installation Guide:Â structural drawings and foundation layout included
Installation Method:Â Heavy structural steel baseplates anchored deep into a reinforced concrete slab footing via heavy-duty chemical anchors (e.g., Hilti/Ramset) or pre-cast tie-down bolts (can be recessed below grade or mounted flush)
Power Supply: N/A for non-illuminated versions, or commercial-grade waterproof Meanwell transformers carrying regional safety compliance marks (SAA, C-Tick, UL/cUL, CE/RoHS) for LED variants.
Unlike standard storefront letters which are hollow sheet metal shells, Giant Landmark Sculpture Letters are built like structural buildings. We start by welding a heavy-duty internal skeleton using thick-walled, hot-dip galvanized steel square hollow sections (SHS). This structural cage takes 100% of the mechanical load. The outer premium metal skin (like 3mm brushed stainless steel or heavy aluminum) is then wrapped over this internal framework and plug-welded securely from the inside out. This multi-layered assembly ensures the letters can safely handle severe public climbing, leaning, and heavy wind-shear forces without denting, bending, or flexing.
While a high-gloss mirror polish offers an incredible luxury aesthetic, it requires high-frequency cleaning to manage fingerprint oils, water spots, and reflective glare. A Satin Brushed (Linished) Finish is highly recommended for public spaces because its directional texture naturally diffuses intense midday sunlight to prevent blinding glare, masks superficial scratches caused by public contact, and hides atmospheric dust and smudges, allowing the structure to maintain a sleek corporate appearance with significantly lower ongoing maintenance costs.
Due to their massive scale and weight, these giant signs are fabricated with integrated thick steel baseplates welded directly to the internal structural cage. For transport, they are securely crated in specialized heavy-timber shipping frames. On-site, civil contractors pour a reinforced concrete engineering slab footing based on our structural load drawings. The letter assemblies are hoisted into position using crane straps, and the baseplates are anchored deep into the concrete using commercial-grade chemical anchors (like Ramset or Hilti systems) or pre-cast J-bolts, which can then be neatly hidden under final landscape pavers, soil, or synthetic turf.
Yes, absolutely. We can configure the hollow internal architecture of the letters with industrial-grade, low-voltage (24V DC) RGBW LED modules. By using heavy-duty, impact-resistant translucent polycarbonate faces or precision-cut open stencils on the metal backing, we can program the letters to glow in solid corporate brand colors or cycle through dynamic animations, holiday themes, and color washes via an external DMX controller or smart timing network.
To deliver an accurate, guaranteed commercial proposal and structural feasibility review within 24 working hours, please supply our estimating team with:
