Pop-Up SEG Lightbox | Collapsible Lightbox Display

Key Technical Specifications

Print Media & Technology: High-definition Dye-Sublimation full-colour printing on premium backlit polyester fabric. Finished with a heavy-duty silicone edge graphic (SEG) strip sewn around the perimeter for a perfectly flat, wrinkle-free fit.
Graphic Configuration Options:
- Single-Sided: Illuminated front fabric print paired with a blank light-blocking rear fabric panel to maximize forward light intensity.

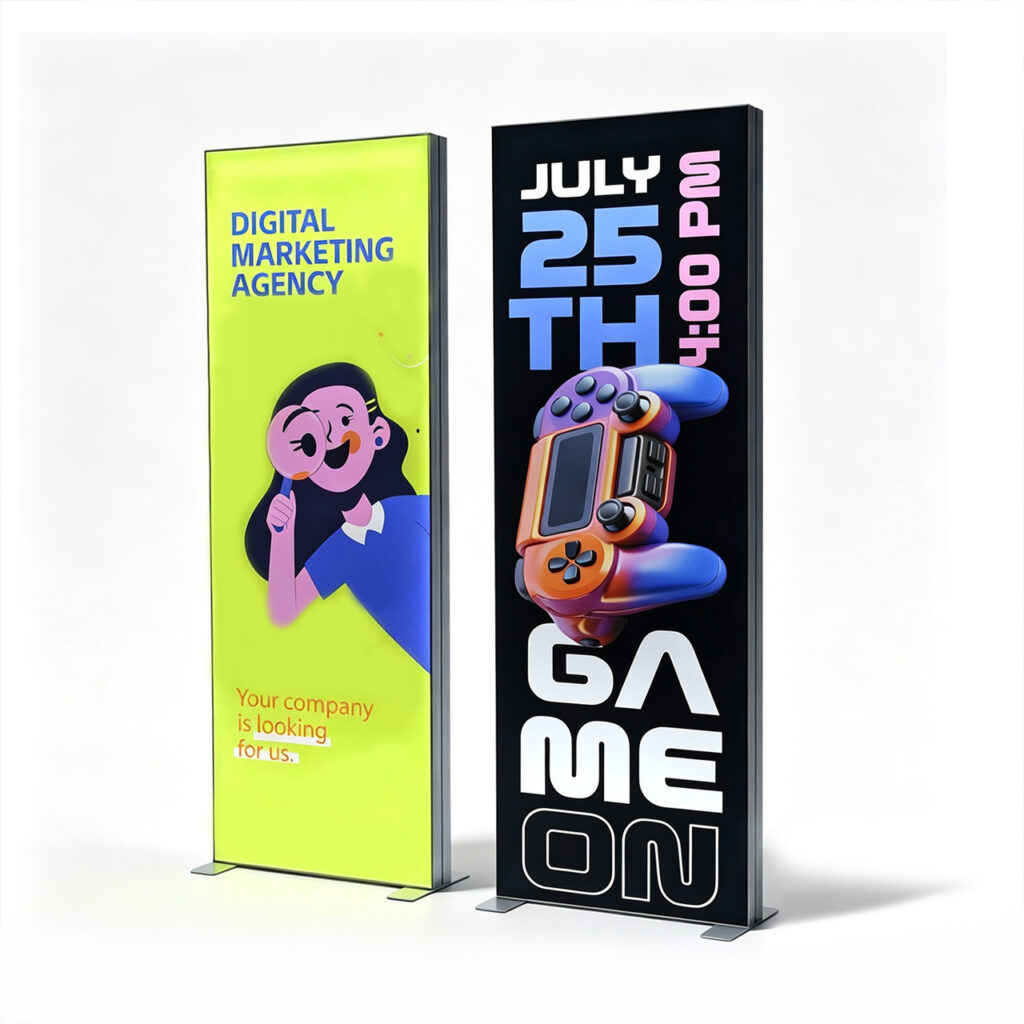

- Double-Sided: High-impact illuminated branding printed on both front and rear display faces.
Illumination System: Integrated energy-efficient LED lighting system delivering a crisp 6,500K Natural White color temperature. Engineered for edge-to-edge, uniform brightness across the entire fabric surface with zero hot spots.

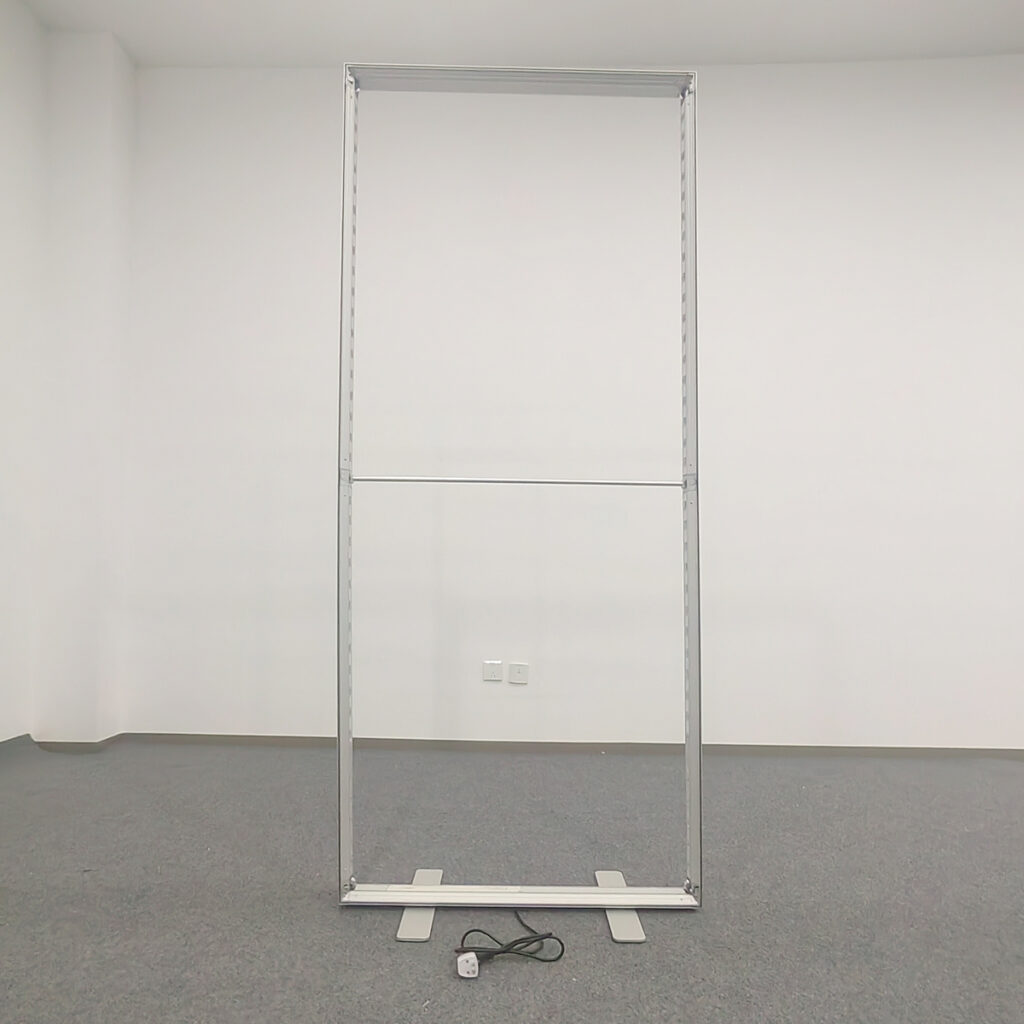

Frame Structure: Architectural-grade, heavy-duty silver anodised aluminium modular frame featuring an 80mm standard depth profile for structural stability.

Frame Finishes:

Natural Heavy-Duty Silver Anodised Aluminium (Standard)
Powder-Coated Matte Black / White
Custom RAL Colour Matching

Electrical Components & Compliance

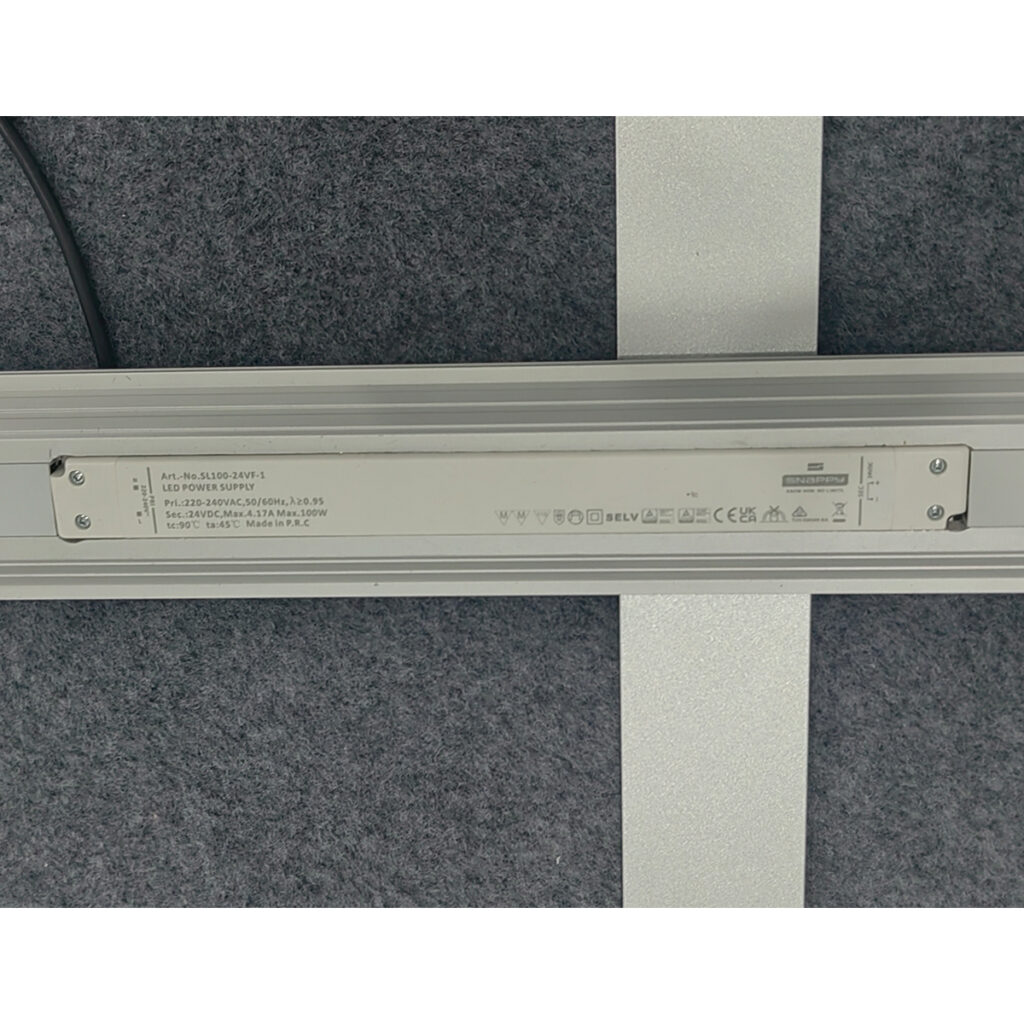

Power Driver: Internal 12V–24V DC Meanwell Transformer. SAA and C-Tick certified for full compliance with Australian Signage Standards (UL/cUL and CE/RoHS certified for international export).
Wiring & Connection: Standard 1.5m low-voltage power lead with AU 3-pin plug (US/UK/EU plug configurations available for export).
Power Exit Location: Discreet bottom corner outlet (Left or Right-side exit options available).

Environment & Logistics

Suitability: Engineered primarily for Interior environments, corporate lobbies, exhibitions, and pop-up retail. Suitable for sheltered Semi-Outdoor concourses or trade events.

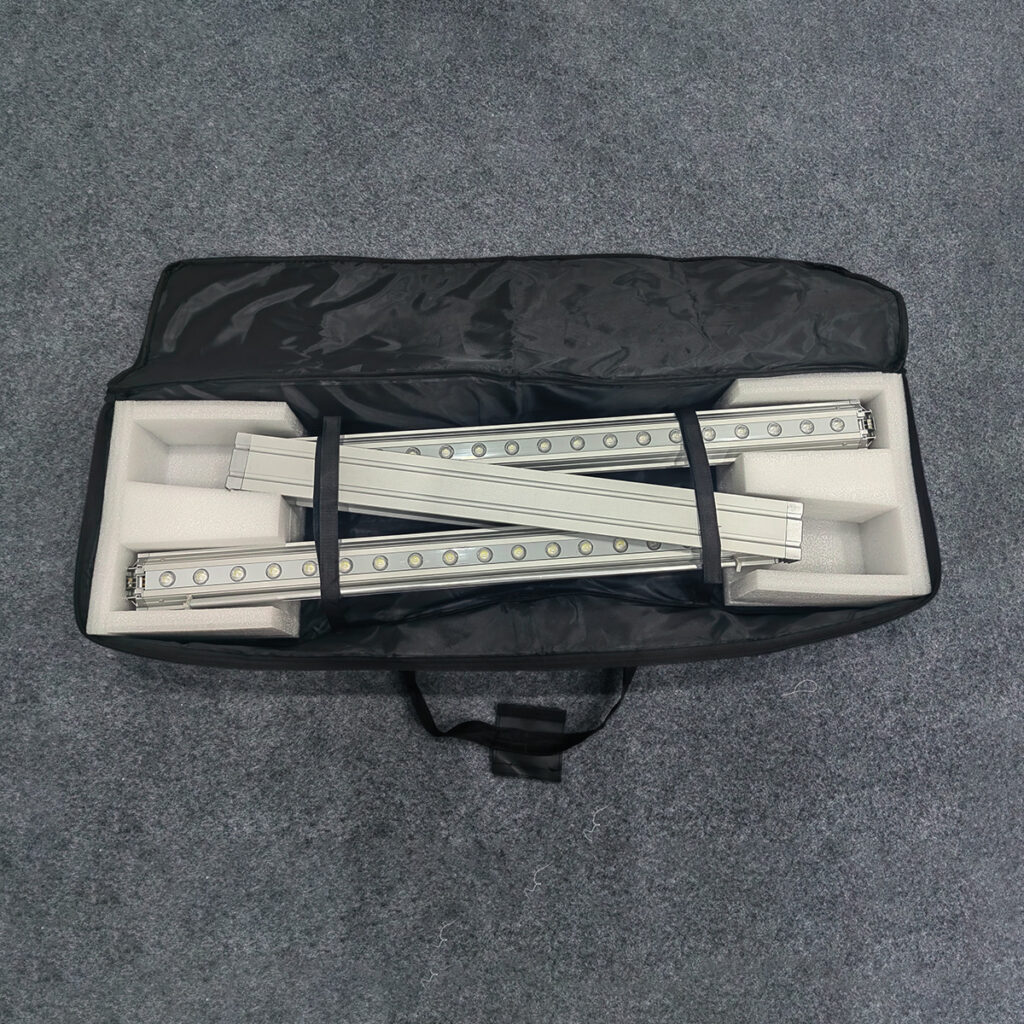

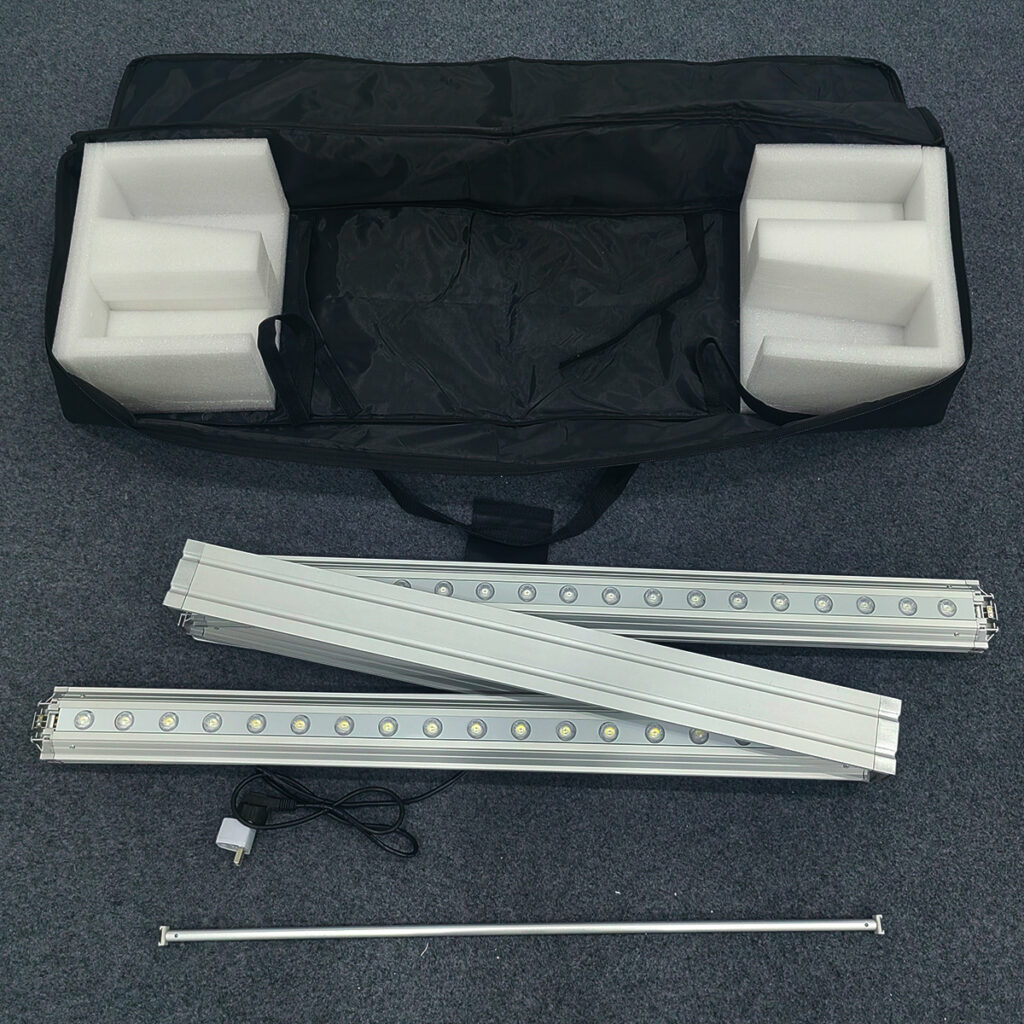

Transport & Packaging: Standard compact flat-pack configuration. An optional heavy-duty padded canvas carry bag with reinforced handles is available for frequent travel and event roadshows.

PUS-L-DS 1000x2000mmH-1 PUS-L-SS 1000x2000mmH-1

Pop-Up SEG Lightbox | Collapsible Lightbox Display
Product Code: SEG-POP

Environment: Interior | Semi-Outdoor | Fully External

Print: Backlit fabric Dye-sublimation full colour, with silicone edge graphics (SEG)

Illumination: Single-sided graphic with blank block-out fabric backing | Double-sided graphic

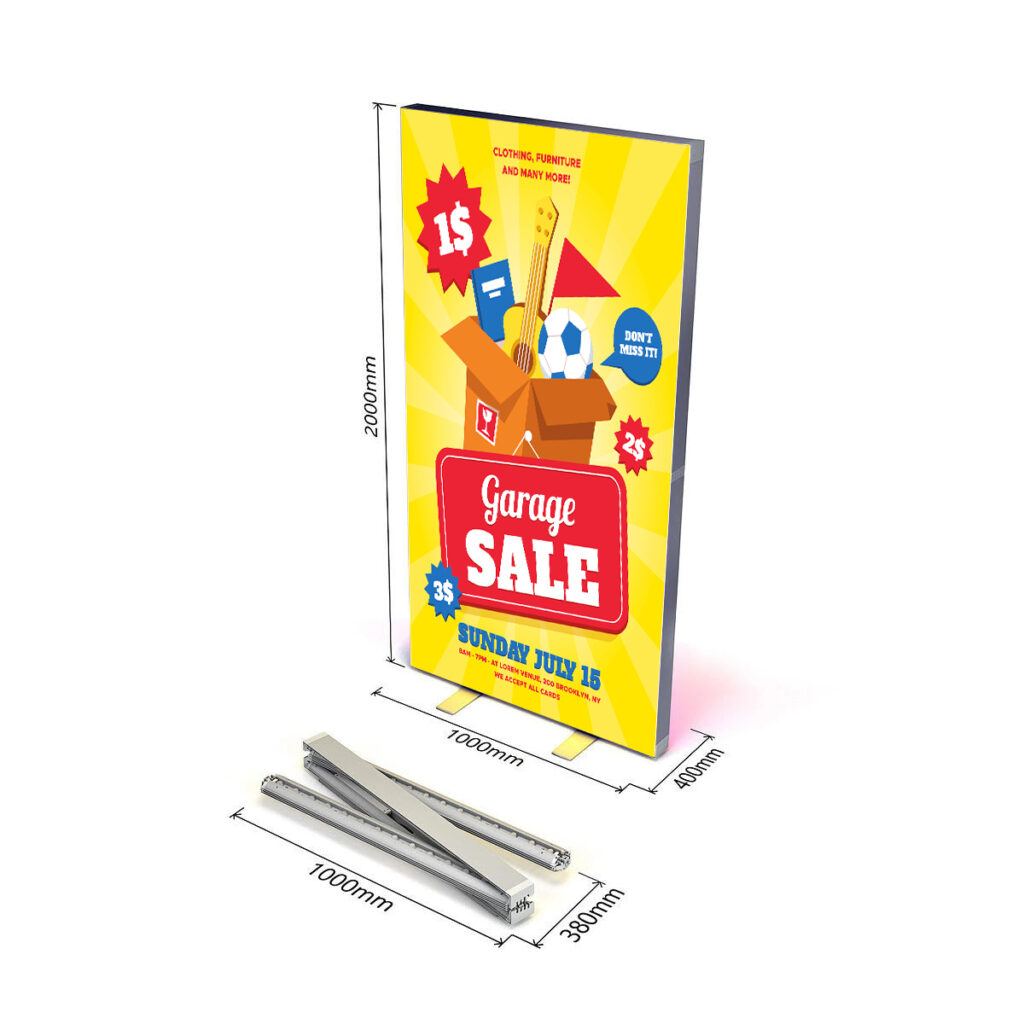

Size: 100mm W x 2000mm H (850×2000 |1000×2000 | 1000×2250 | 1000×2500 | 1500×2250 | 1500×2500)

Return (Depth): 80mm standard profile

Finish: Heavy-duty silver anodised aluminium modular frame (Powder-coated Matte Black / Custom RAL available)

LED Options: 6,500K (Natural White)

Wiring & Plug: Standard 1.5m low-voltage power lead with AU 3-pin plug (US/UK/EU plugs available for international compliance).

Power Driver: Internal 12V-24V DC SAA and C-Tick certified Meanwell Transformer (Fully compliant with Australian Signage Standards; UL/cUL and CE/RoHS certified for international export).

Power Lead Position: Discreet bottom corner exits (Left or Right side options available).

Package: Flat pack configuration for compact transport | Optional heavy-duty padded canvas carry bag with handles.

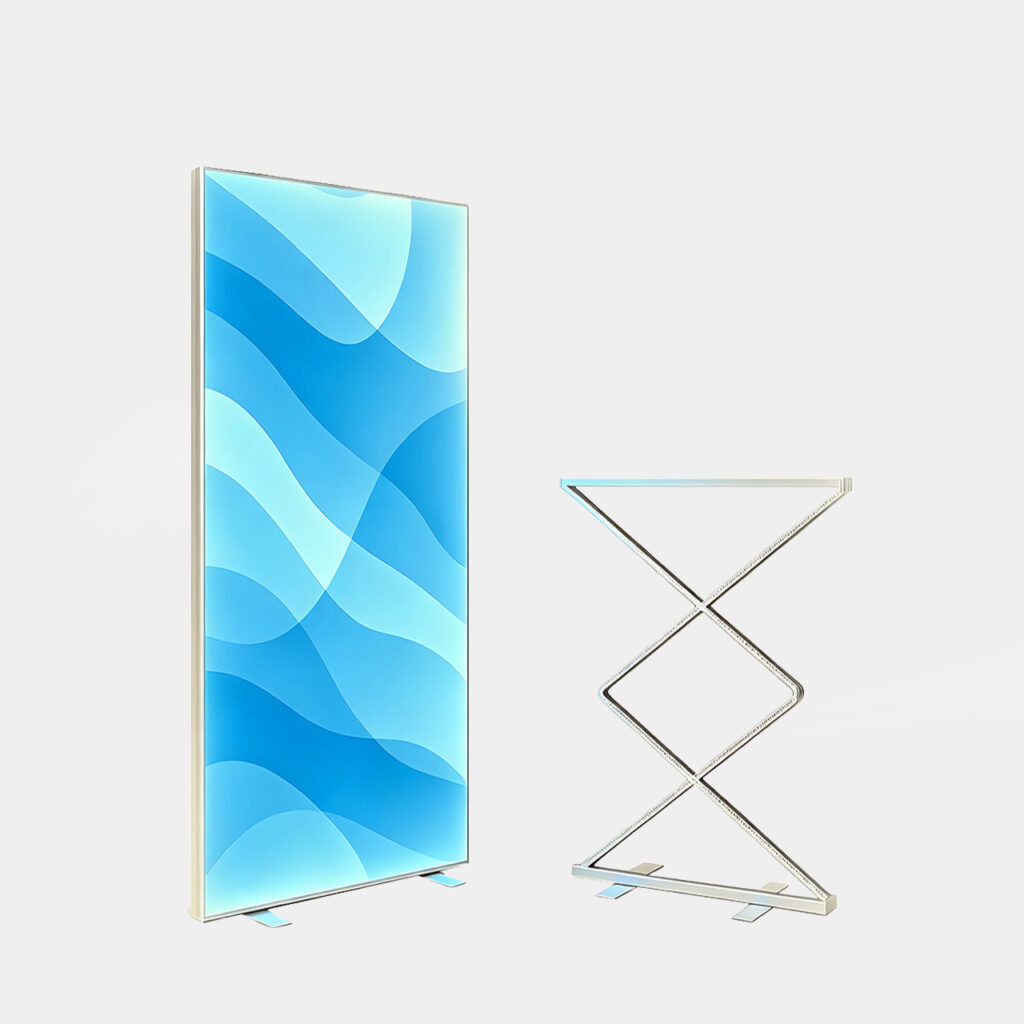

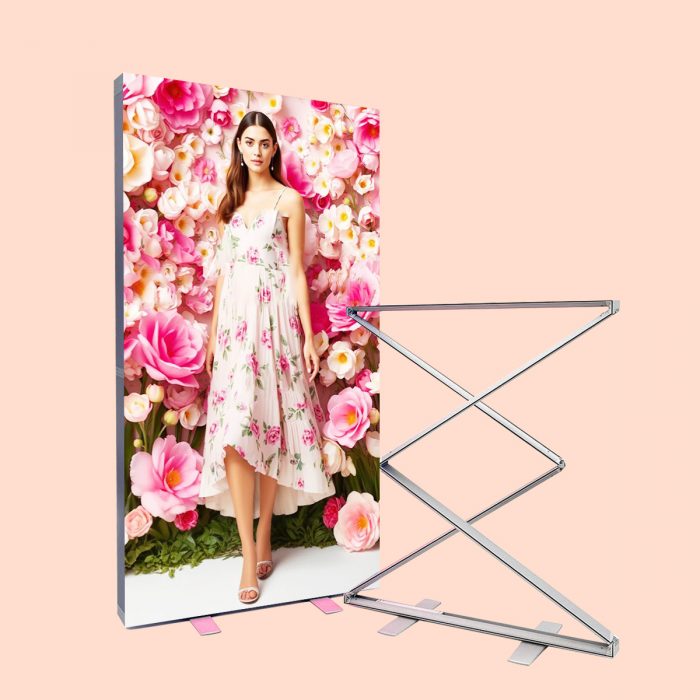

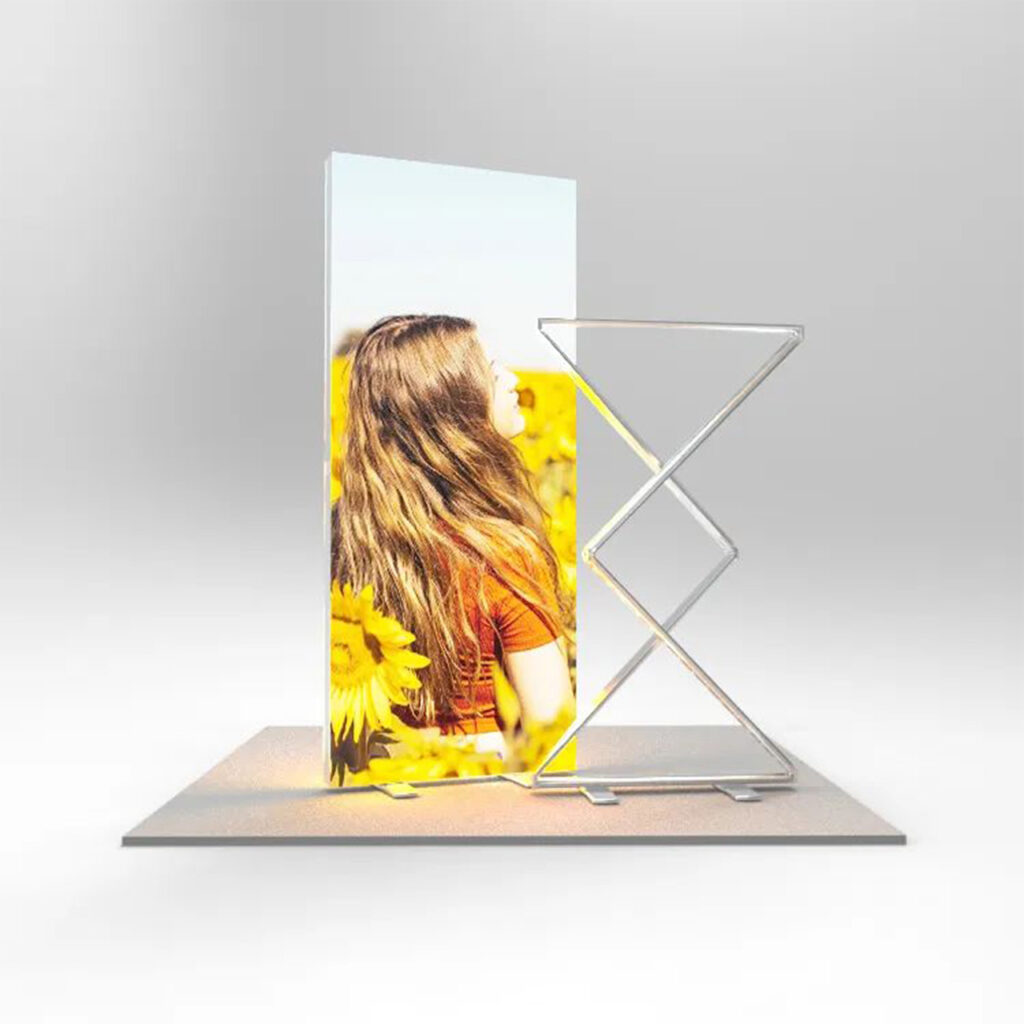

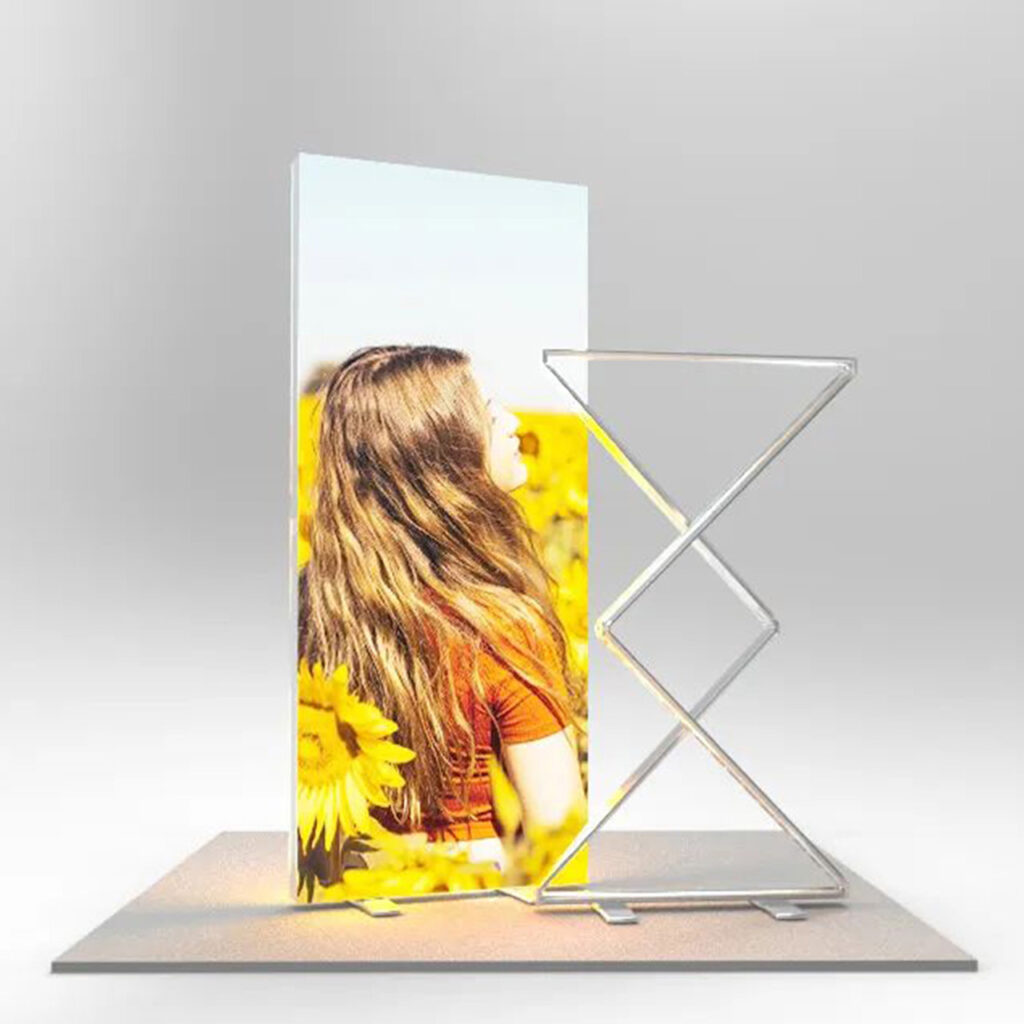

SEG stands for Silicone Edge Graphic. A thin, flexible silicone strip is sewn around the edge of the printed backlit fabric. Once the aluminium pop-up frame is expanded and locked, you simply press the silicone edge into the built-in channel around the frame using your fingers. The fabric stretches smoothly across the frame, creating a drum-tight, borderless illuminated display.

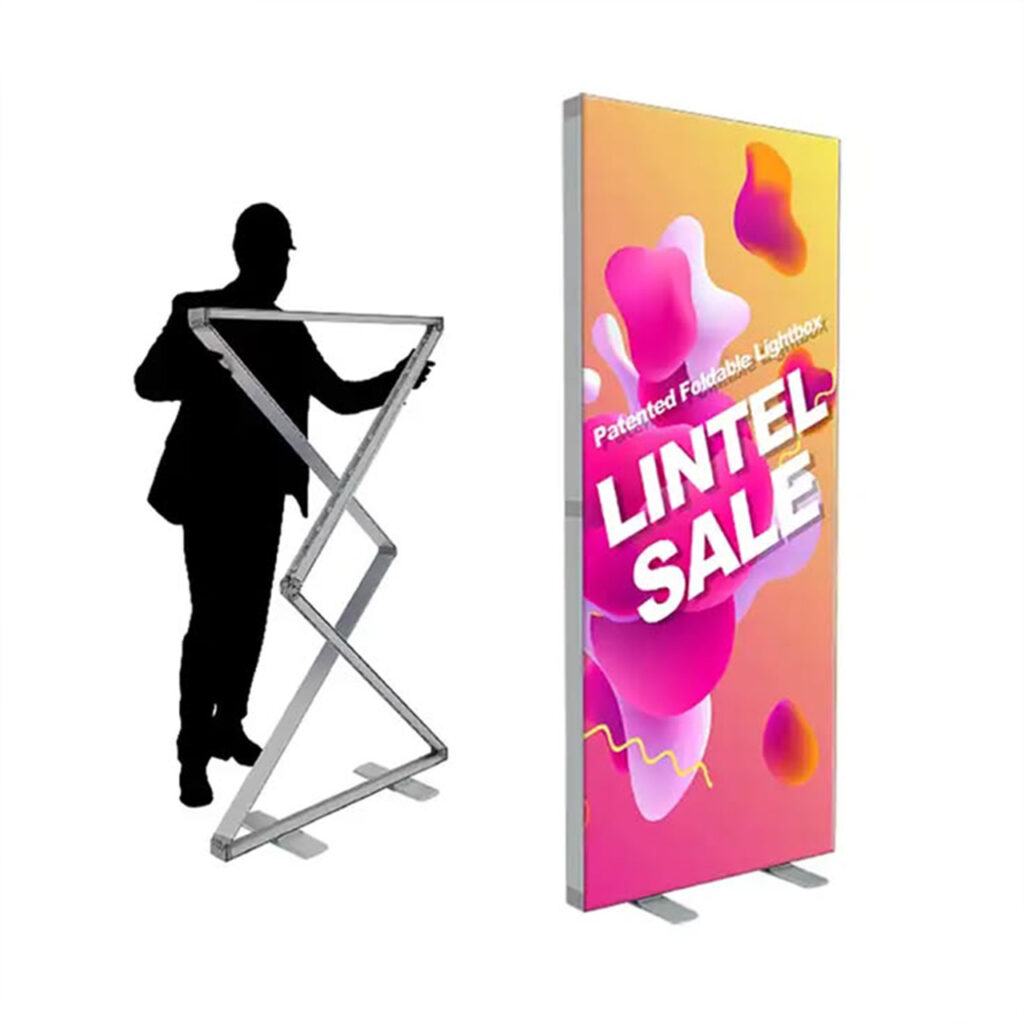

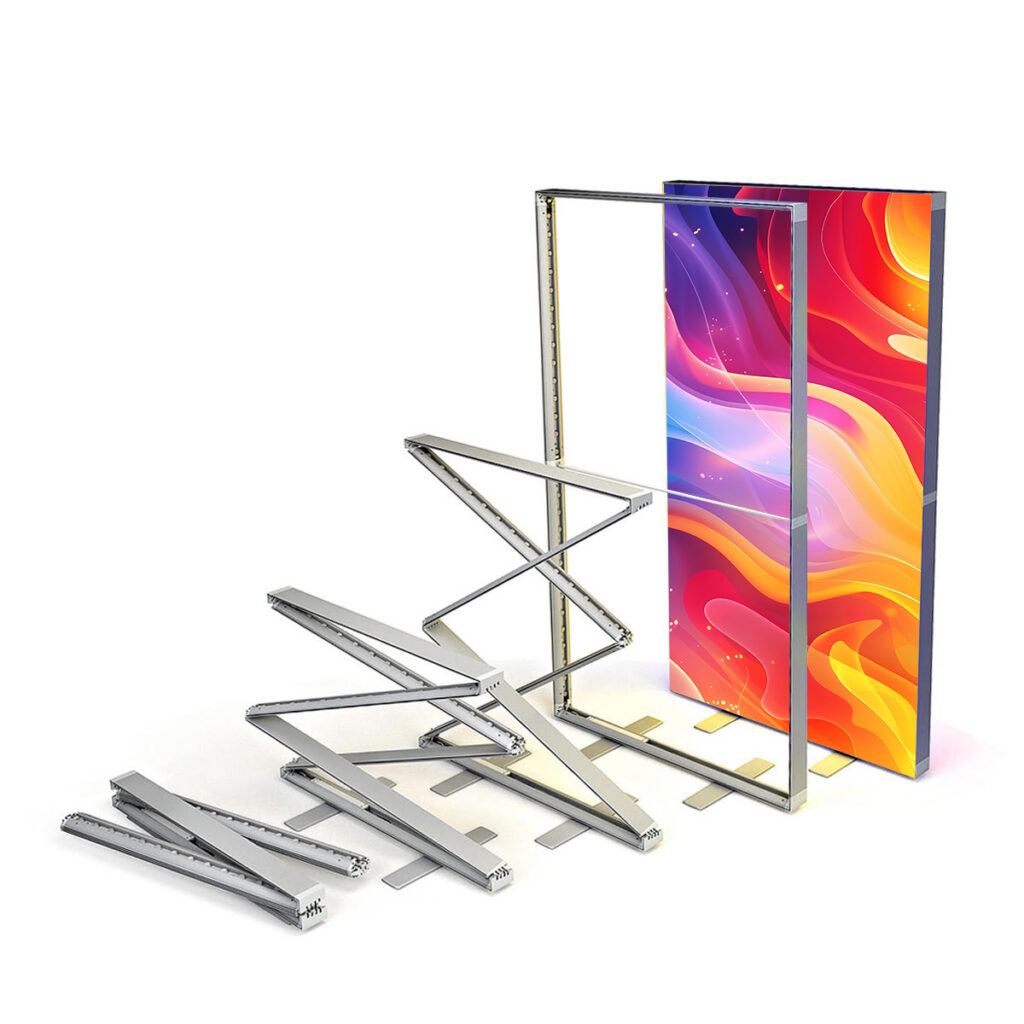

No tools or electrical setup are required. The modular frame snaps together intuitively, and the built-in LEDs connect using simple plug-and-play low-voltage cables. You can plug the transformer directly into any standard Australian wall socket (240V). The entire display can be assembled by one person in 5 to 10 minutes.

To ensure optimal illumination performance, the back of the lightbox must be sealed. The blank light-blocking rear panel prevents light from escaping through the back, reflecting all internal light forward to make your printed graphic pop with maximum brightness and color saturation.

Yes. The premium dye-sublimated polyester fabric is durable, wrinkle-resistant, and machine-washable on a gentle cold cycle. While minor fold lines may appear during compact transit, the fabric naturally stretches tight and removes all visible creases once mounted back onto the frame.

Absolutely. You do not need to replace the aluminium frame or LED system when updating your brand message. You can order “Replacement Fabric Only” prints whenever you launch new campaigns, making it a cost-effective, reusable display solution long-term.
