Premium Non-Lit SEG Fabric Slimline Frames

Key Technical Specifications

Print Media & Technology

Ultra-vibrant, high-definition Dye-Sublimation full-colour printing on premium block-out polyester fabric. Light-absorbing matte finish prevents glare, making it perfect for high-exposure environments and photography.

Silicone Gasket Profile

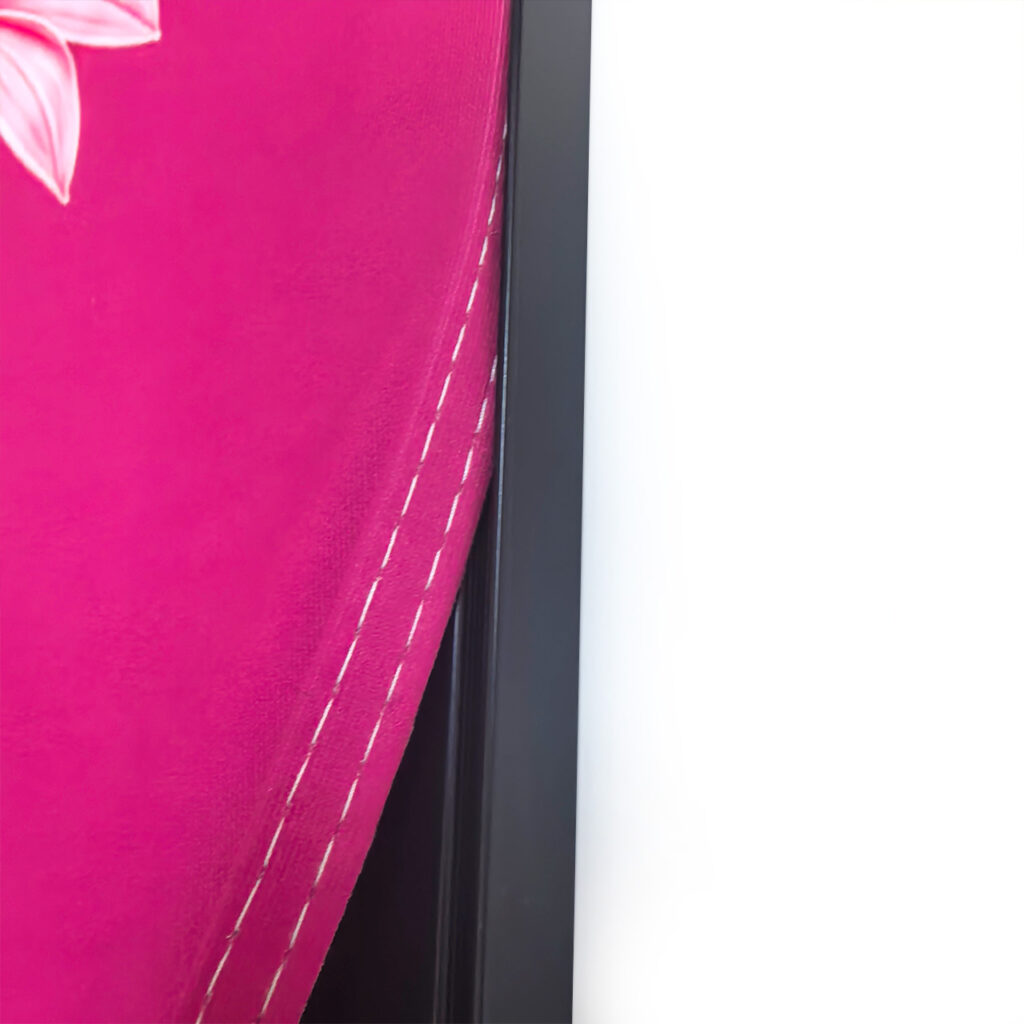

Heavy-duty 3mm thick x 13mm wide silicone edge strip sewn perfectly to the perimeter, compatible with standard 4.5mm frame channels.

Illumination

Non-lit (Frontlit/Ambient application).

Frame Structure

Architectural-grade, heavy-duty modular anodised aluminium frame.

Sizing & Configurations

Custom built to your exact millimetre specifications ($H \times W$) or engineered into complex custom geometric shapes.

Graphic Replacement System

Tool-free front-loading SEG system allows graphics to be installed, removed, or replaced in minutes without dismantling the frame, making it ideal for retail promotions, exhibitions, and frequently updated branding campaigns.

Extrusion Depths & Finishes

Standard Extrusion Profiles: Ultra-Slim 20mm or Medium 40mm depths.
Custom Commercial Profiles: Available in 60mm, 80mm, 100mm, and 120mm depths for larger scale or free-standing rigid structural requirements.
Premium Finishes:
- Natural Heavy-Duty Silver Anodised Aluminium (Standard)
- Powder-Coated Matte Black (Premium)
- Custom RAL Colour Matching available upon request to match corporate branding or architectural interiors.

Architectural Mounting Options

Engineered for versatile integration across any spatial layout:

Wall Mounted: Flush mount directly to plasterboard, concrete, or timber wall surfaces.
Recessed: Seamlessly integrated into window tracks or custom joinery cavities for a completely flat architectural finish.
Ceiling Suspended: Overhead rigging configuration utilizing heavy-duty rigging rings or eye-hooks for hanging aerial displays.
Ceiling Flush Mount: Anchored flat against ceiling structures to create overhead accent panels.

Environment & Durability

Suitability: Engineered primarily for Interior spaces, corporate lobbies, and retail environments. Also highly capable in Semi-Outdoor sheltered zones or protected mall concourses. Full external use is supported under specific structural mounting constraints.
Maintenance: Reusable, wrinkle-resistant, and machine-washable fabric skins.

Logistics & Assembly

Shipping Configuration: Flat-packed modular breakdown for highly cost-effective, compact, and safe transport.
Installation: Rapid, tool-free hardware assembly with intuitive corner lock connectors. Fabric skin presses seamlessly into the channel in minutes without requiring professional installers.

Where to use it: Perfect for indoor spaces, semi-outdoor areas, or fully external locations.

Print Quality: High-quality, full-colour fabric that blocks light, using a silicone edge (SEG) for a perfect fit.

Lighting: Non-lit (no built-in illumination).

Sizes: Custom-made to your specific height and width, including custom shapes.

Frame Depth: Choose from standard 20mm or 40mm depths. Custom depths (60mm, 80mm, 100mm, or 120mm) are also available.

Frame Finish: Strong, silver aluminium frame as standard. We can also do matte black or custom colours.

Mounting Options: Can be mounted flat against walls or ceilings, suspended from the ceiling (using rings or hooks), or recessed into window frames.

Shipping: Ships flat-packed to save space and keep transport costs low.

Non-Lit SEG Fabric Frame | Fabric Stretch Frame Graphic
Product Code: SEG-NONLIT

Core Dimensions & Environment

Environment: for indoor spaces, semi-outdoor areas, or fully external locations
Sizing: Custom _____ mm H × _____ mm W (Complex geometric custom shapes available).
Frame Depth (Return): Standard Ultra-Slim 20mm or Medium 40mm depths (Custom options: 60mm | 80mm | 100mm | 120mm).
Mounting Method: Select one: Flush Wall Mounted | Recessed | Ceiling Suspended | Ceiling Flush Mount.
Packaging: Flat-packed modular breakdown for compact, cost-effective transport.

Print & Graphics

Media Type: Premium block-out polyester fabric (reusable, wrinkle-resistant, and machine-washable).
Print Technology: Ultra-vibrant, Dye-Sublimation full-colour printing.
Finishing: Heavy-duty 3mm thick × 13mm wide silicone edge strip (SEG) sewn to the perimeter.
Channel Compatibility: Engineered for standard 4.5mm frame channels.

Frame, Structure & Finish

Base Frame: Architectural-grade, heavy-duty modular anodised aluminium frame.
Finish Options: Select one: Natural Silver Anodised (Standard) | Powder-Coated Matte Black | Custom RAL Colour Matching.
Assembly: Rapid, tool-free hardware assembly with intuitive corner-lock connectors.

Electrical & Illumination Specifications

Illumination: Non-lit (Frontlit / Ambient applications only).

Yes, absolutely. Once you have purchased the initial frame kit, you can order “Replacement Fabric Only” prints whenever you need to update your marketing campaigns, branding, or seasonal promotions. The fabric graphics are easily interchangeable, saving you significant costs on future hardware.

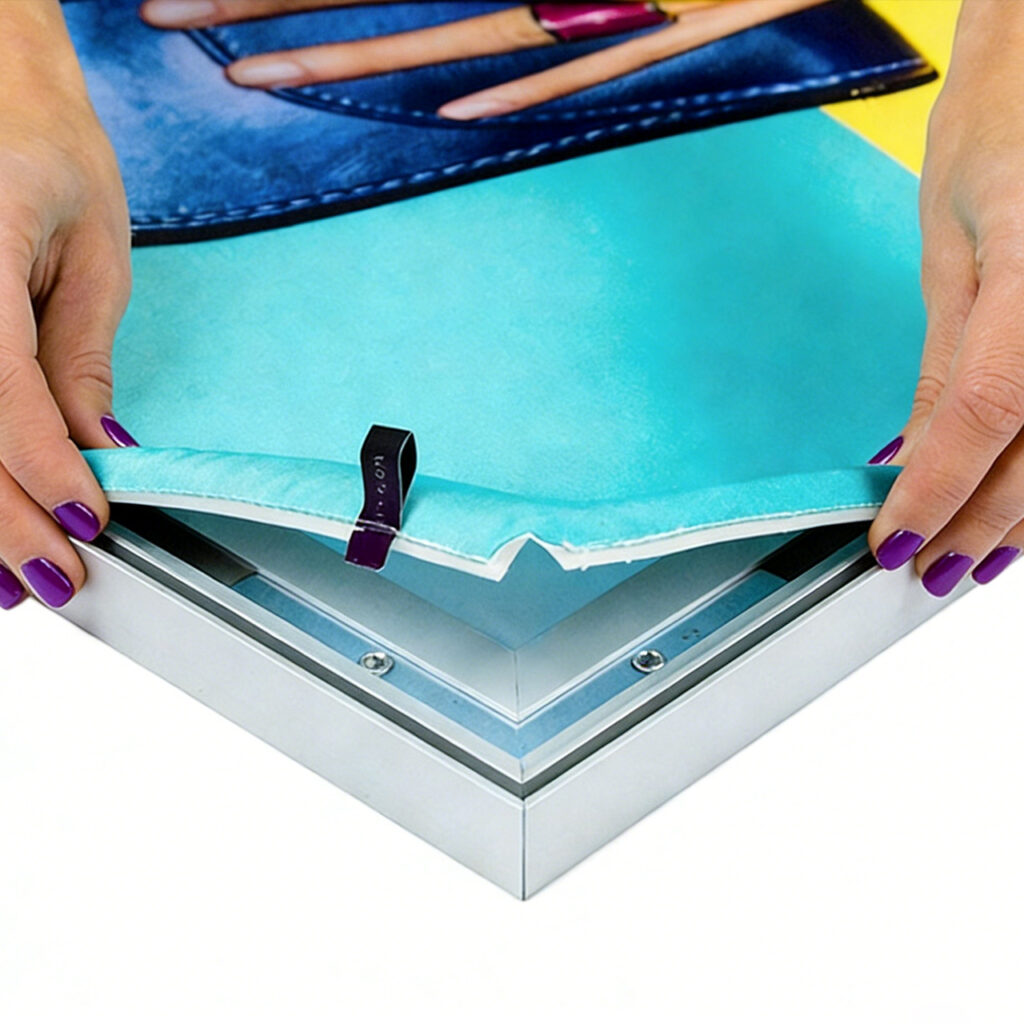

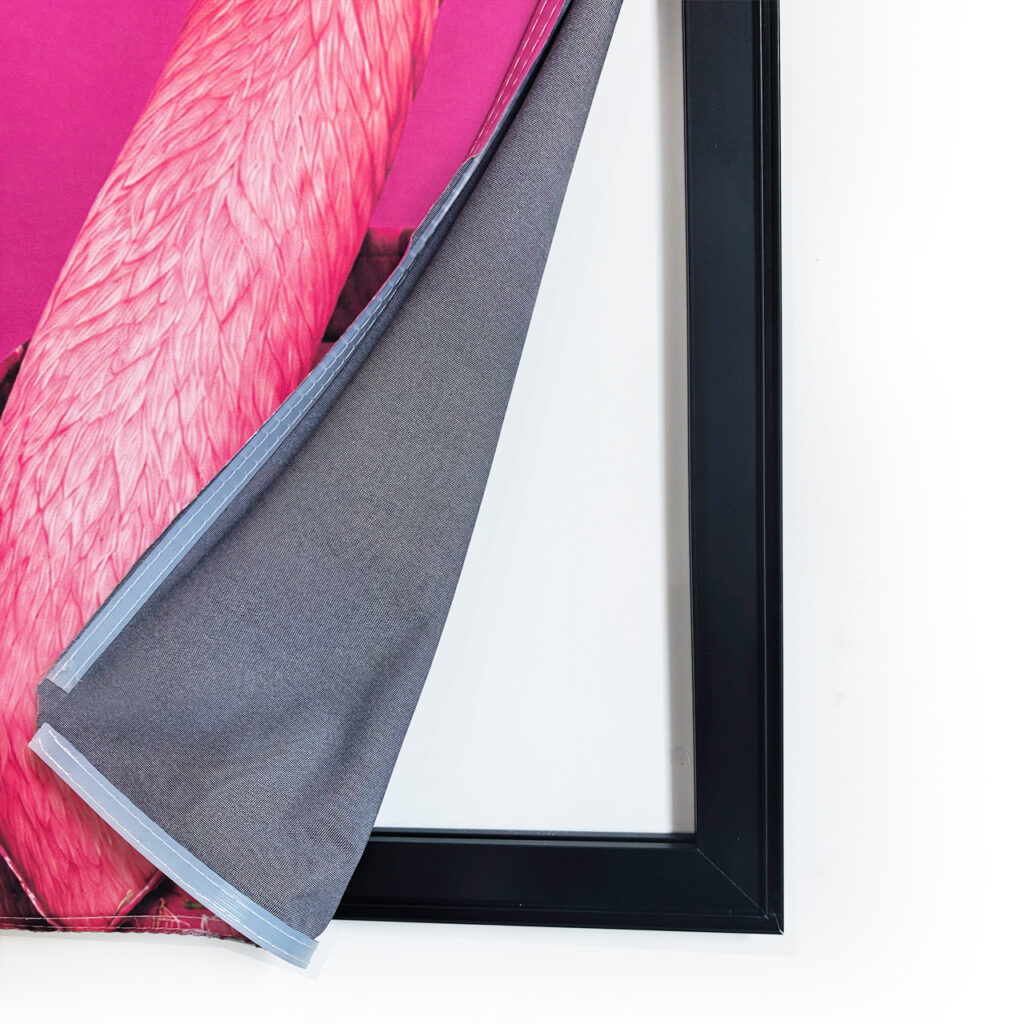

No tools are required to change the graphic. Our SEG (Silicone Edge Graphic) system is designed for quick, hassle-free updates. You simply press the silicone gasket edge of the fabric into the frame’s channel using your fingers. It takes just a few minutes and results in a perfectly tensioned, wrinkle-free display every time.

We use a heavy-duty, standard 3mm thick x 13mm wide silicone gasket profile sewn onto the perimeter of the fabric, engineered to fit standard 4.5mm frame channels. If your pre-existing third-party frames share these industry-standard specifications, our replacement fabric prints will fit them perfectly.

To keep shipping costs low and protect the product during transit, the aluminium frames are shipped in a compact flat-pack configuration. Assembly is quick and straightforward: the modular pieces connect seamlessly using included corner-lock hardware, requiring only basic hand tools for the initial setup.

Yes, our premium dye-sublimation polyester fabric is highly durable, wrinkle-resistant, and machine-washable. If it accumulates dust or minor marks during handling, you can wash it on a gentle cycle with cold water and a mild detergent, then hang it dry. Any minor transit creases will naturally pull tight and disappear once the graphic is fully tensioned into the frame.
