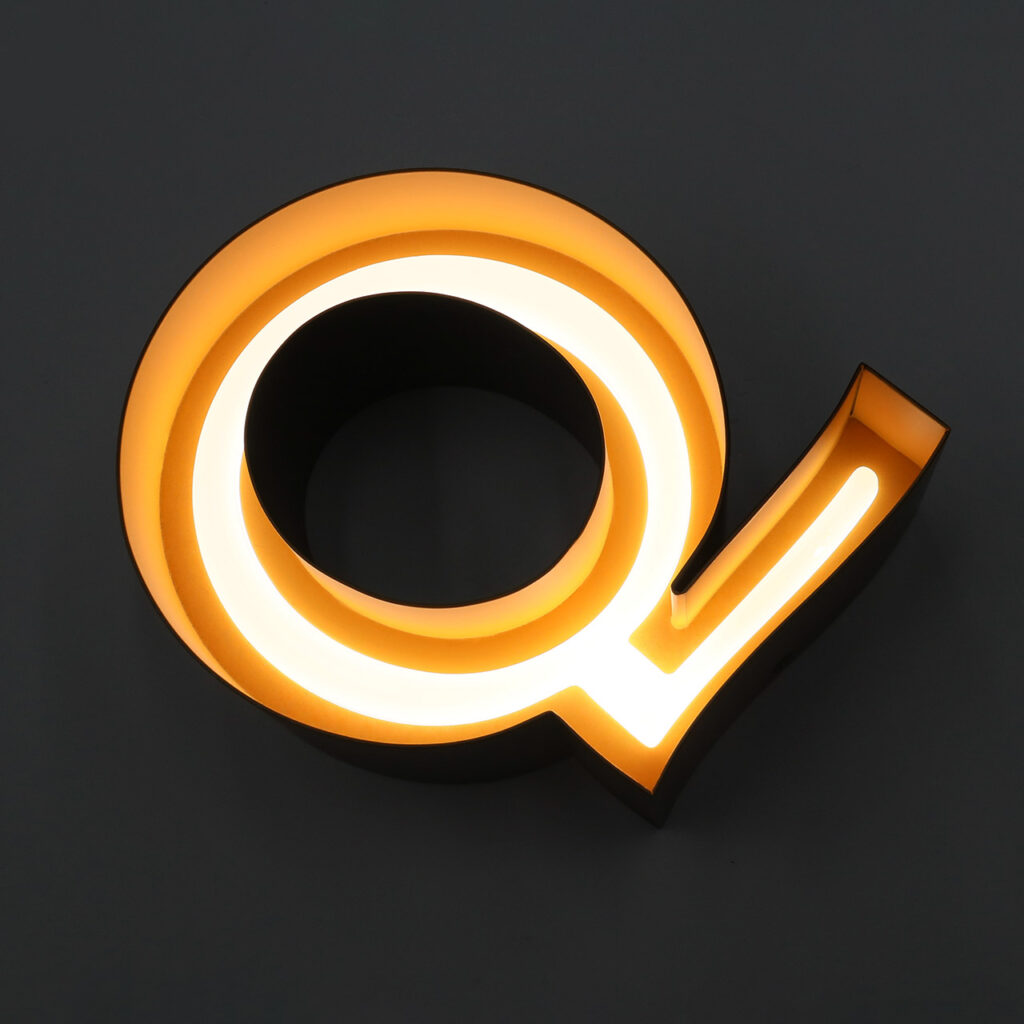

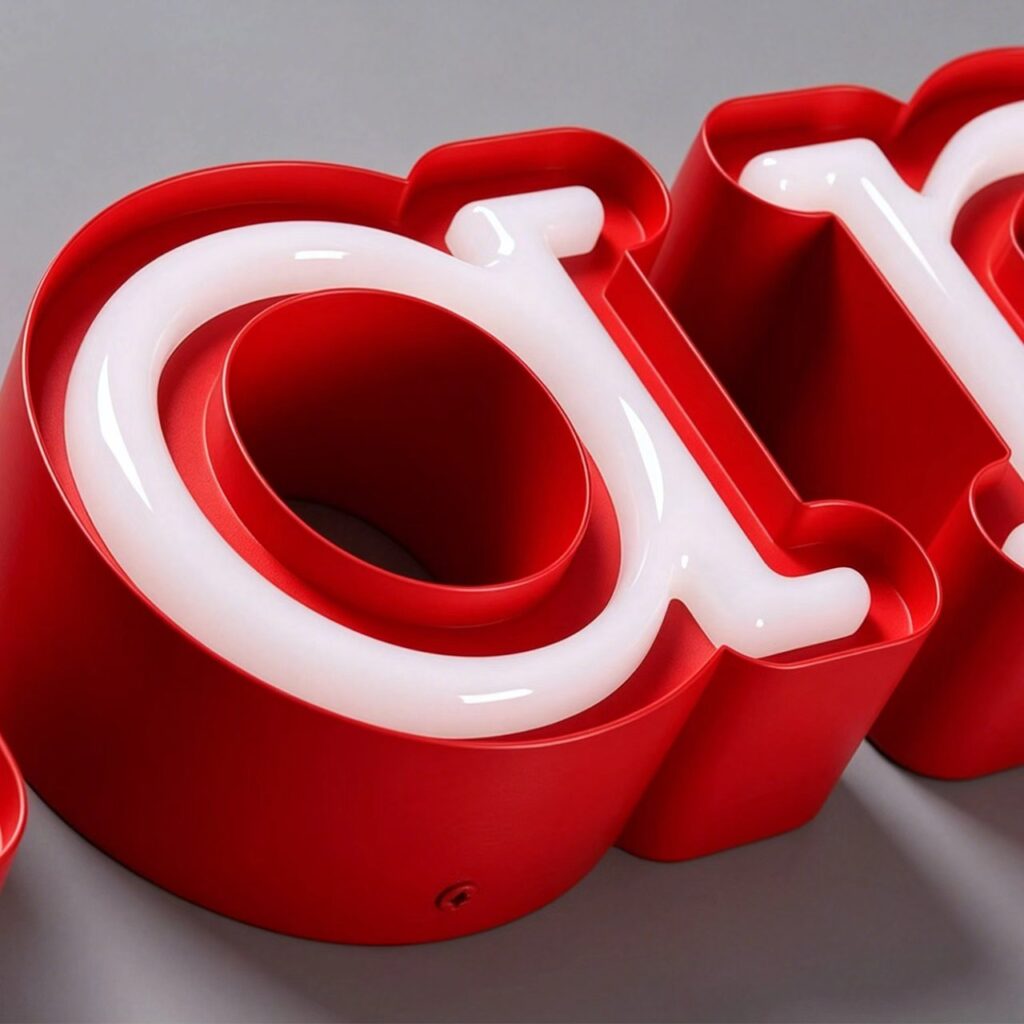

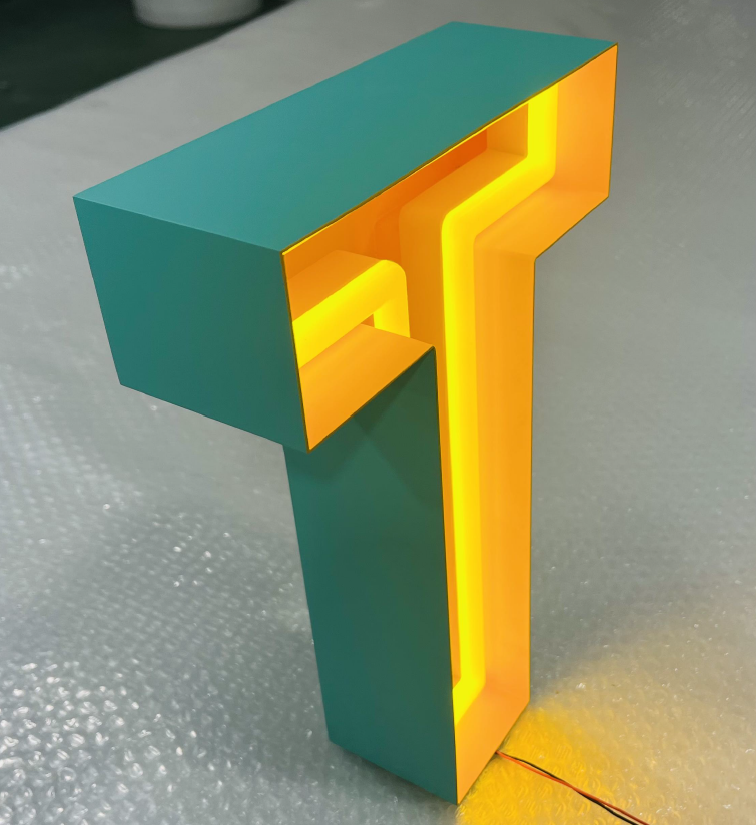

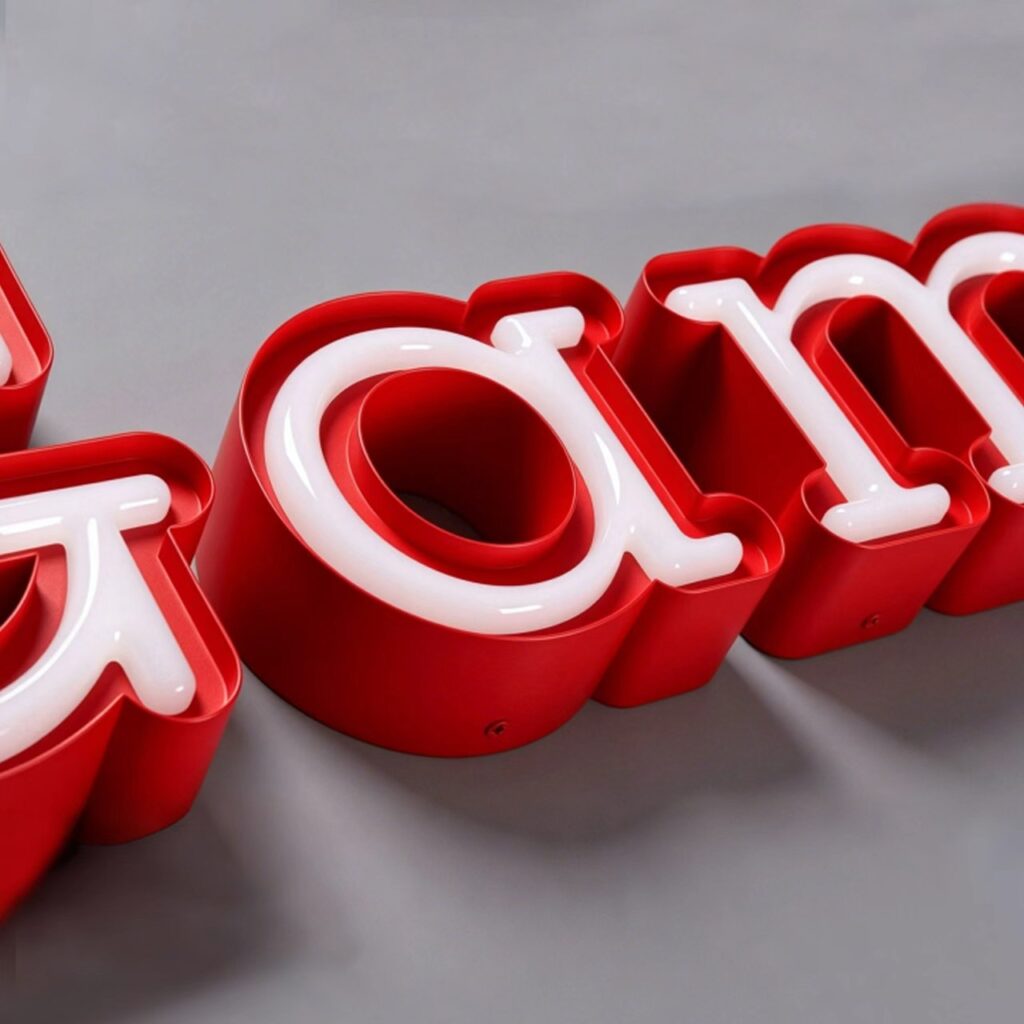

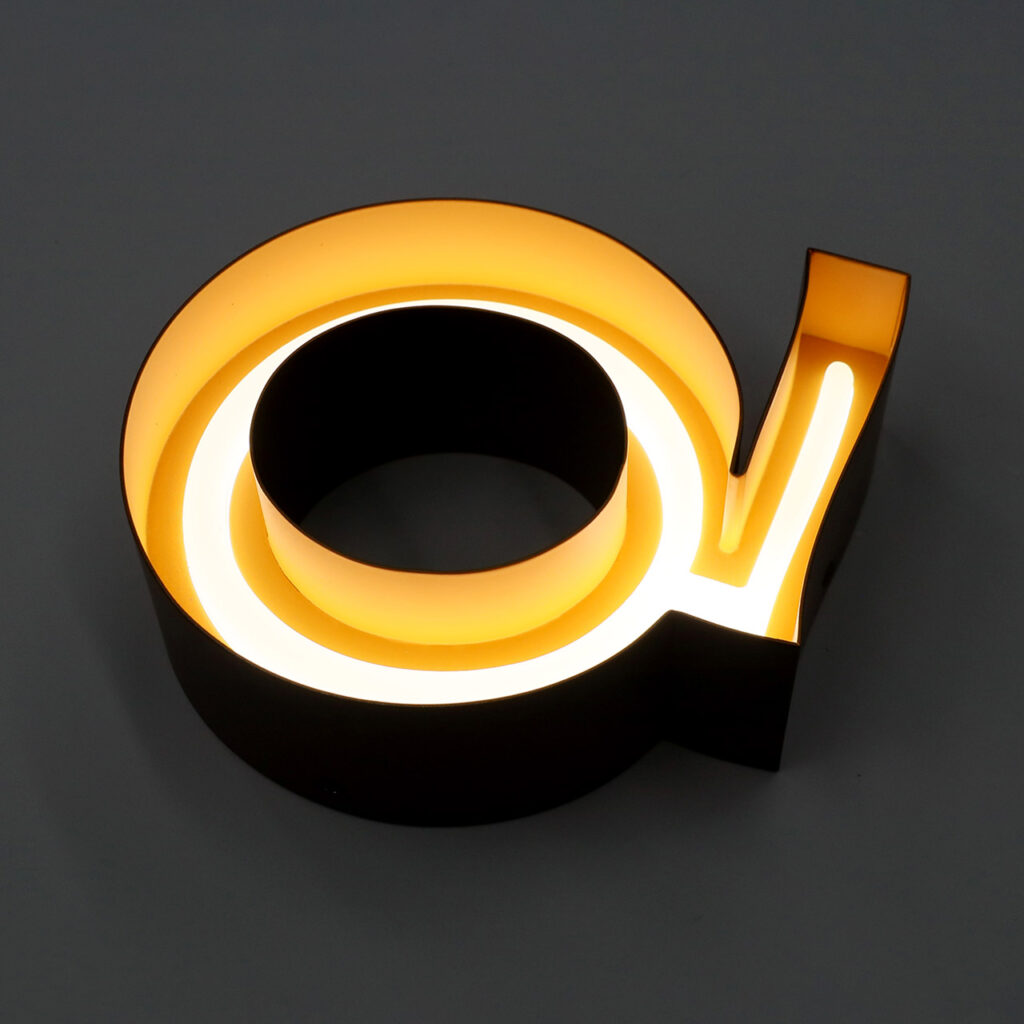

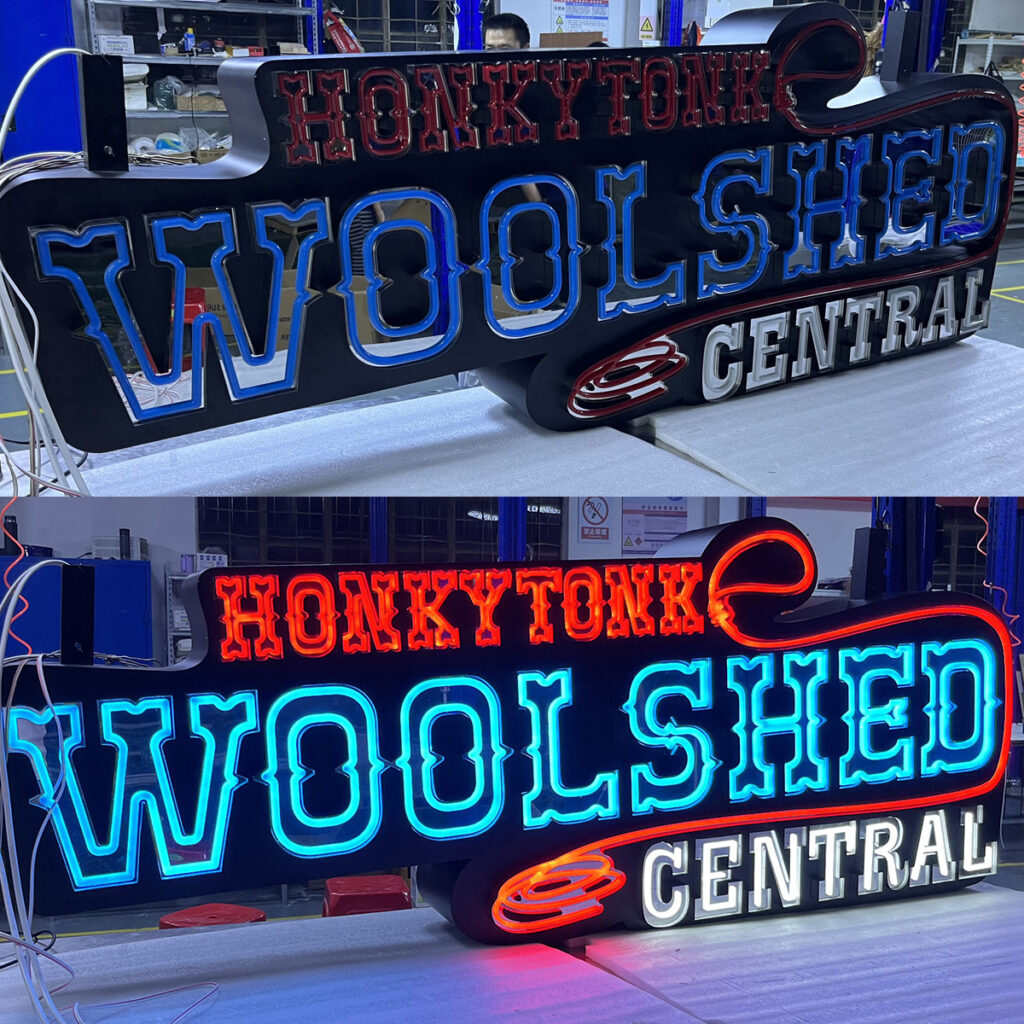

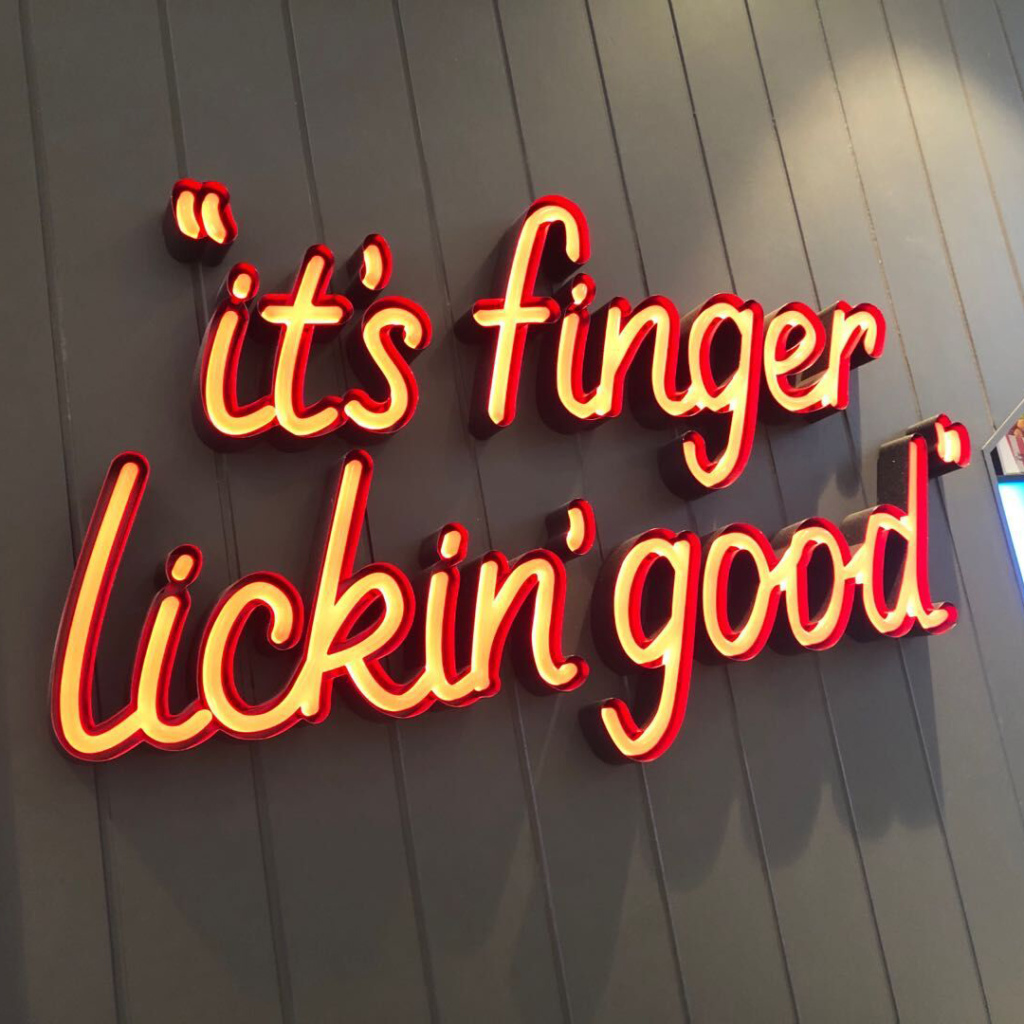

Acrylic Engraved Curved LED Neon Sign

Material & Build: Heavy-duty 15mm to 25mm solid cast acrylic 3D engrave face and body paired with a rugged Metal or ABS backing panel.
Illumination Style: Acrylic Neon Body Illuminate profile featuring rich, uniform forward-facing face illumination paired with clean, painted side block-out styling to maximize front-facing light contrast.
LED Color Temperatures: Powered by high-efficiency LED modules available in 3,000K (Warm White), 6,500K (Natural White), and 10,000K (Cool White). Coloured acrylic bases, dynamic RGB LEDs, and custom inline Dimmers are available at an extra cost.
Finishes & Customization: Completely customizable in font styling, scale, and graphic shapes. Premium base finish treatments include plain silver, polished, brushed, electrical plated, powder-coated, UV printed, or 2pac coated.
Power Supply: High-reliability 12V DC – 240V AC Meanwell Transformer equipped with electrical certifications matched to your destination country: SAA and C-Tick for Australia/New Zealand, UL/cUL for North America, and CE/RoHS for Europe.
Wiring & Installation: Standard 1.5m lead wire (extendable up to a maximum length of 3m). Each sign package includes a full-scale paper layout template/draft for mistake-free installation on-site.
Mounting Methods: Supports Flush Mount or Stand-off Mounting configurations via standard structural threaded pins (M4, M6, M8, or M10 based on overall sign scale) with optional sleeves or spacers available in custom colors.

Target Applications & Use Cases

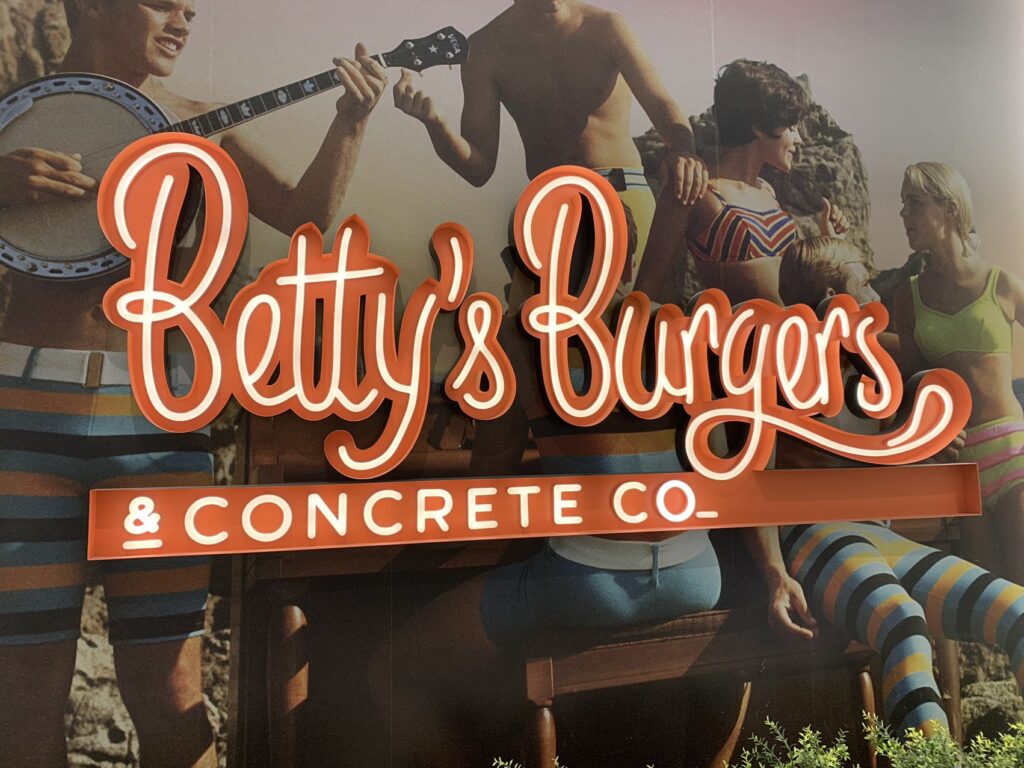

Perfect for high-end retail storefronts, commercial building facades, corporate reception lobbies, prestige hospitality properties, boutique interior restaurant decor, and heavy-duty external architectural signage installations requiring a high-end, continuous neon aesthetic.

Side View Drawing

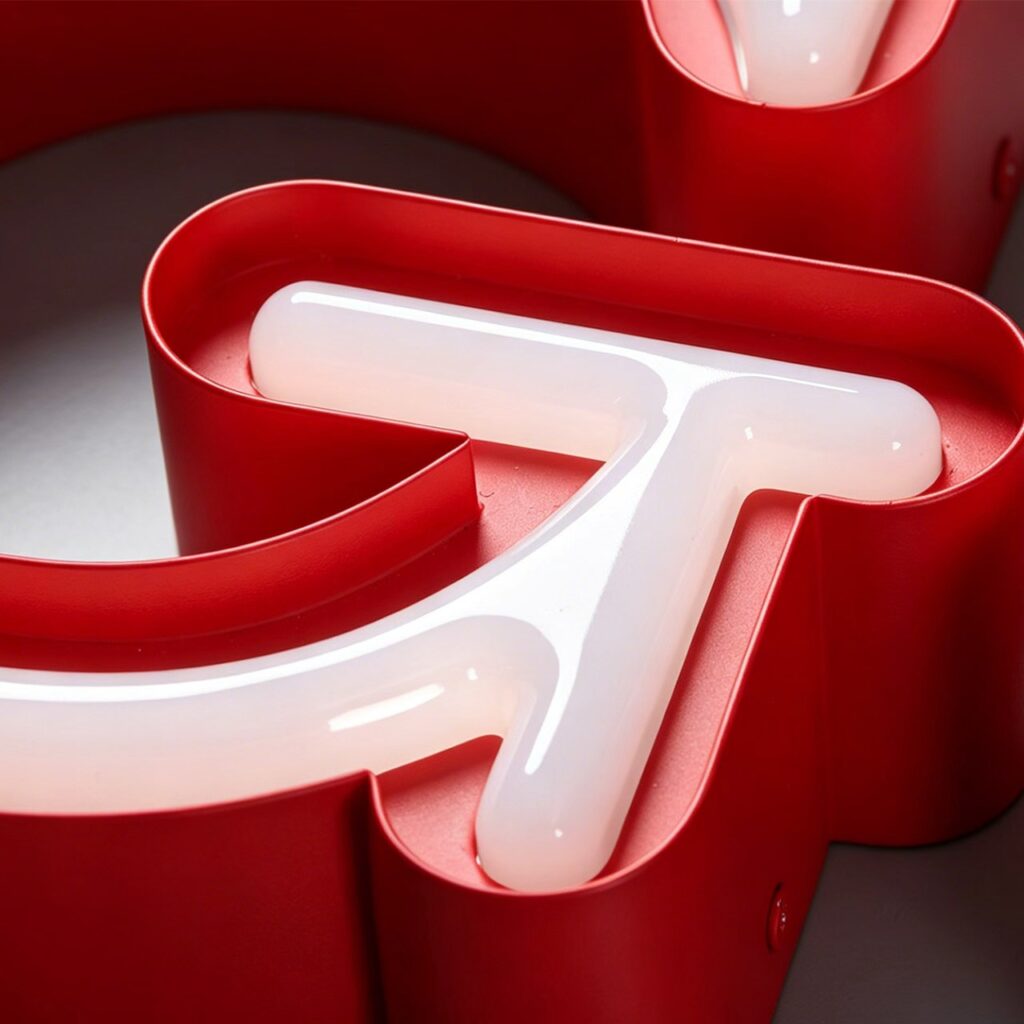

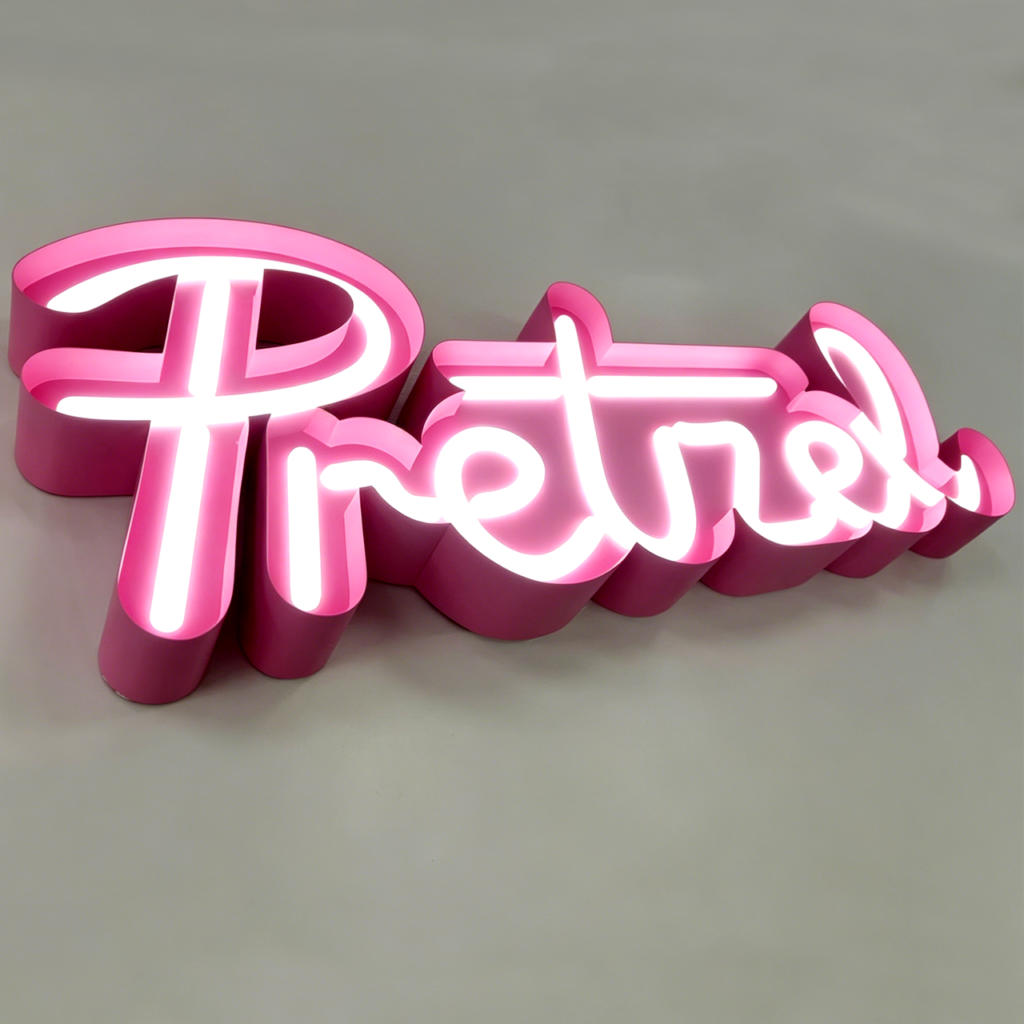

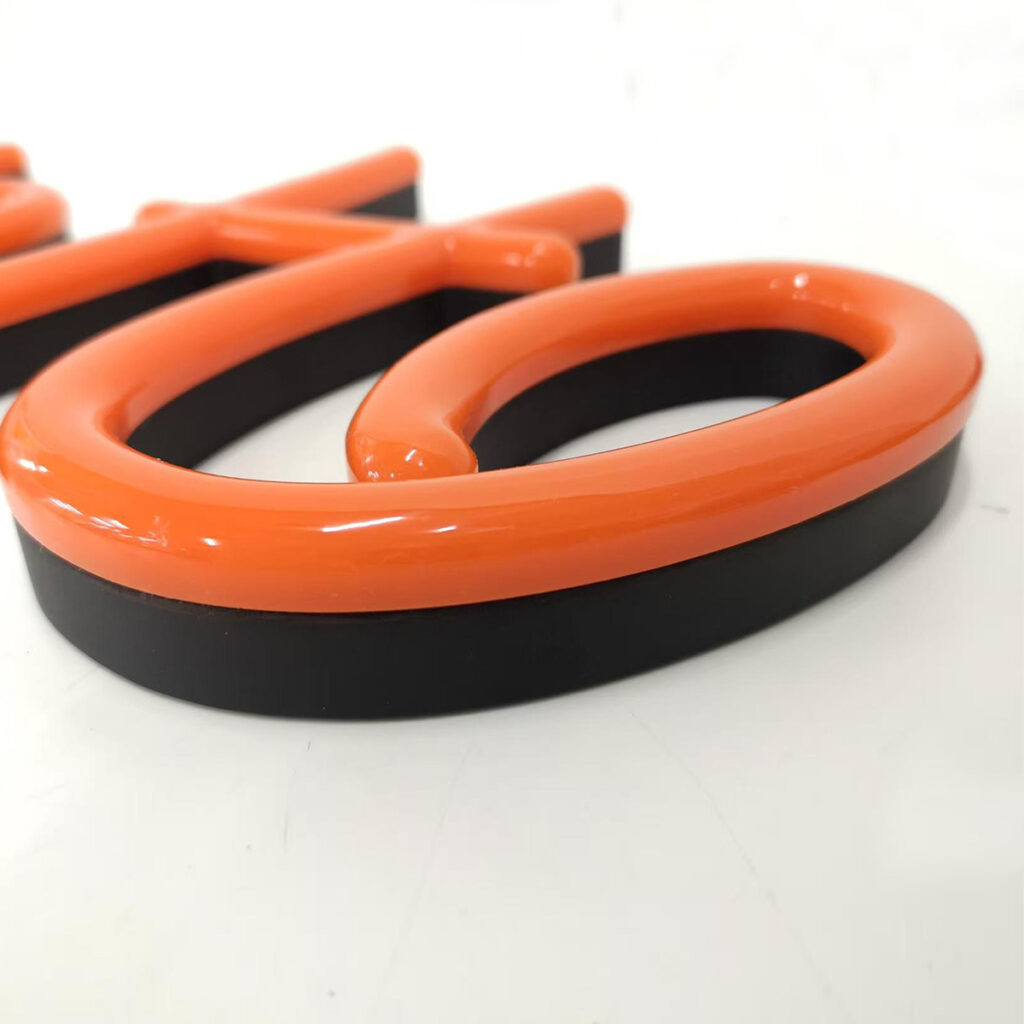

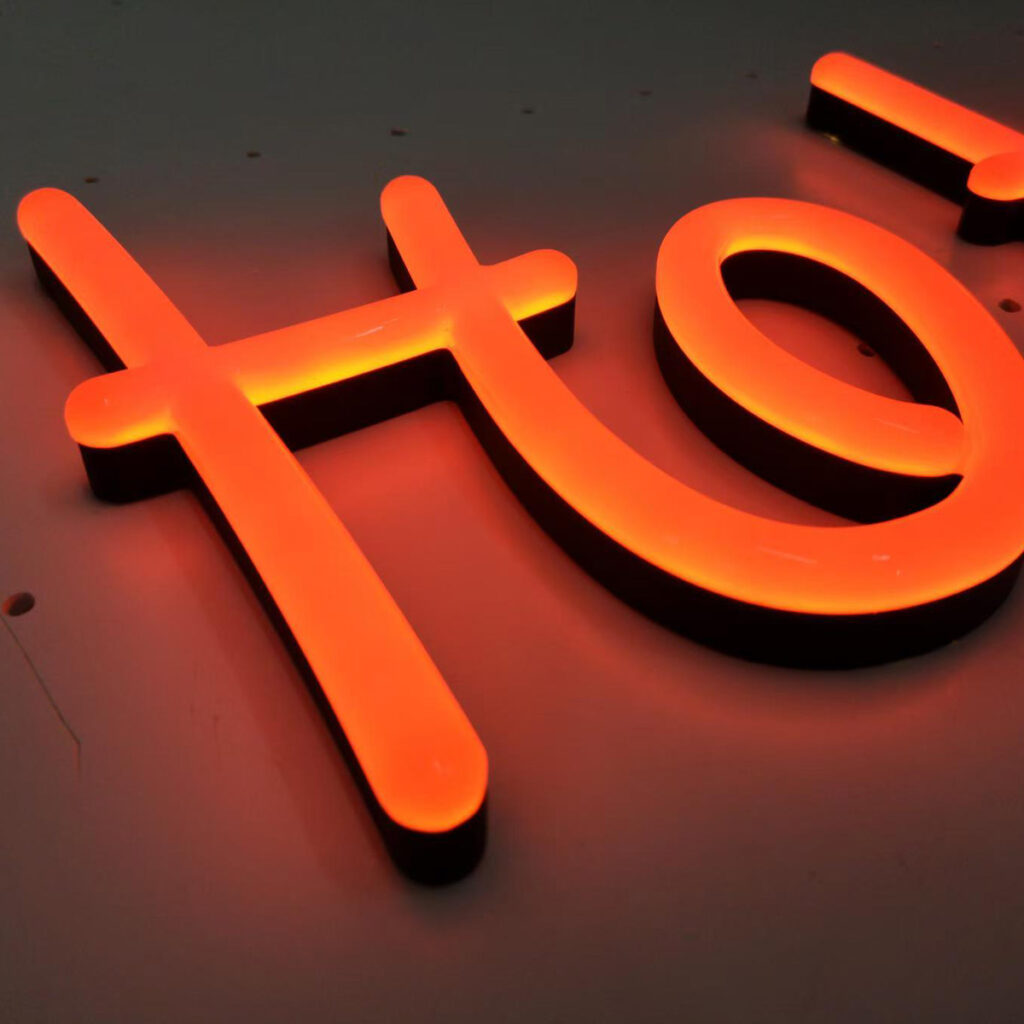

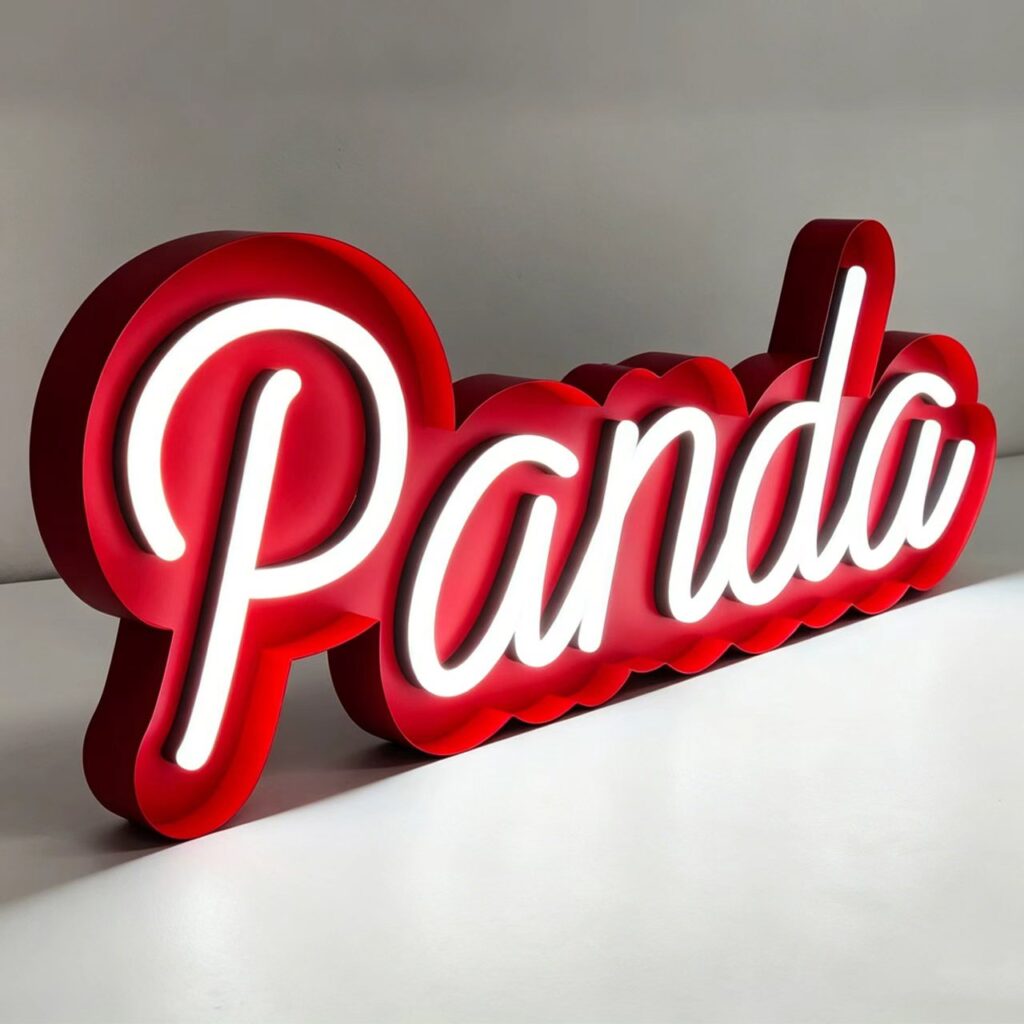

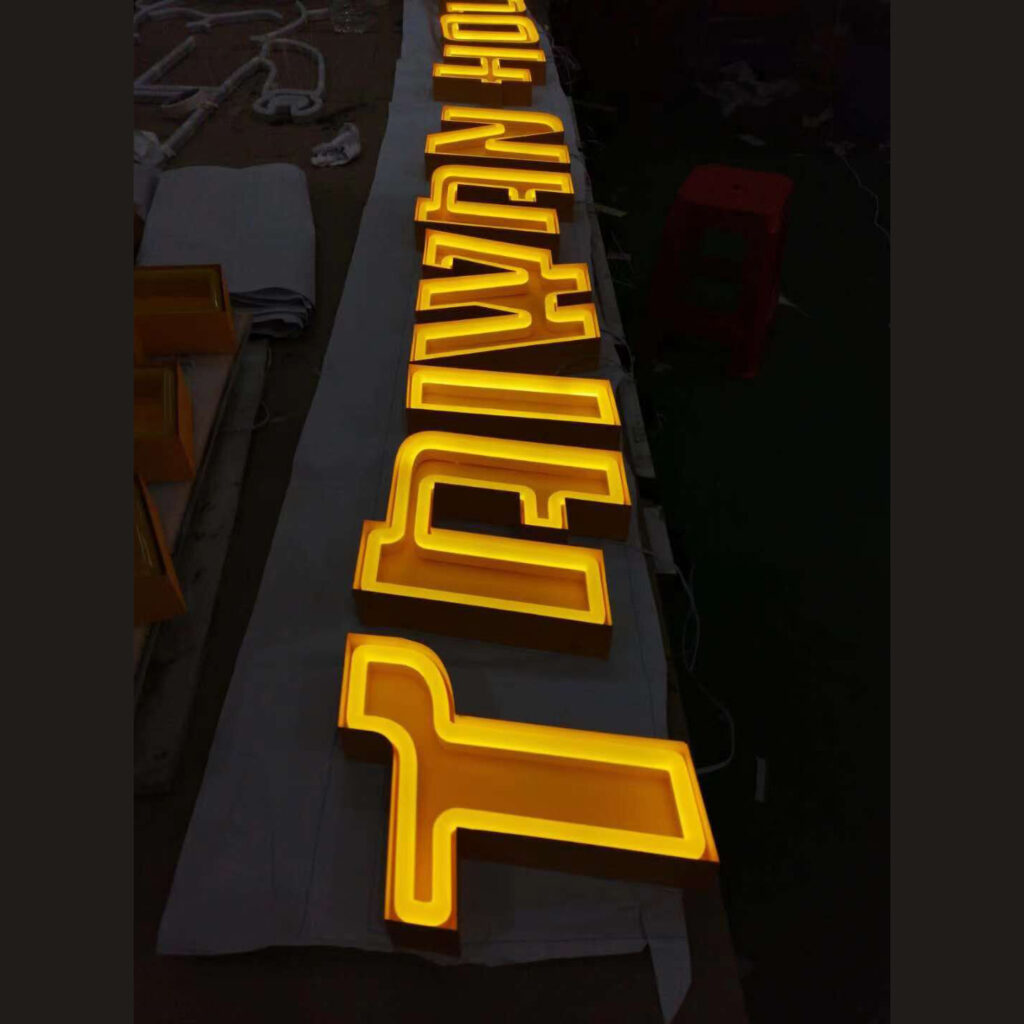

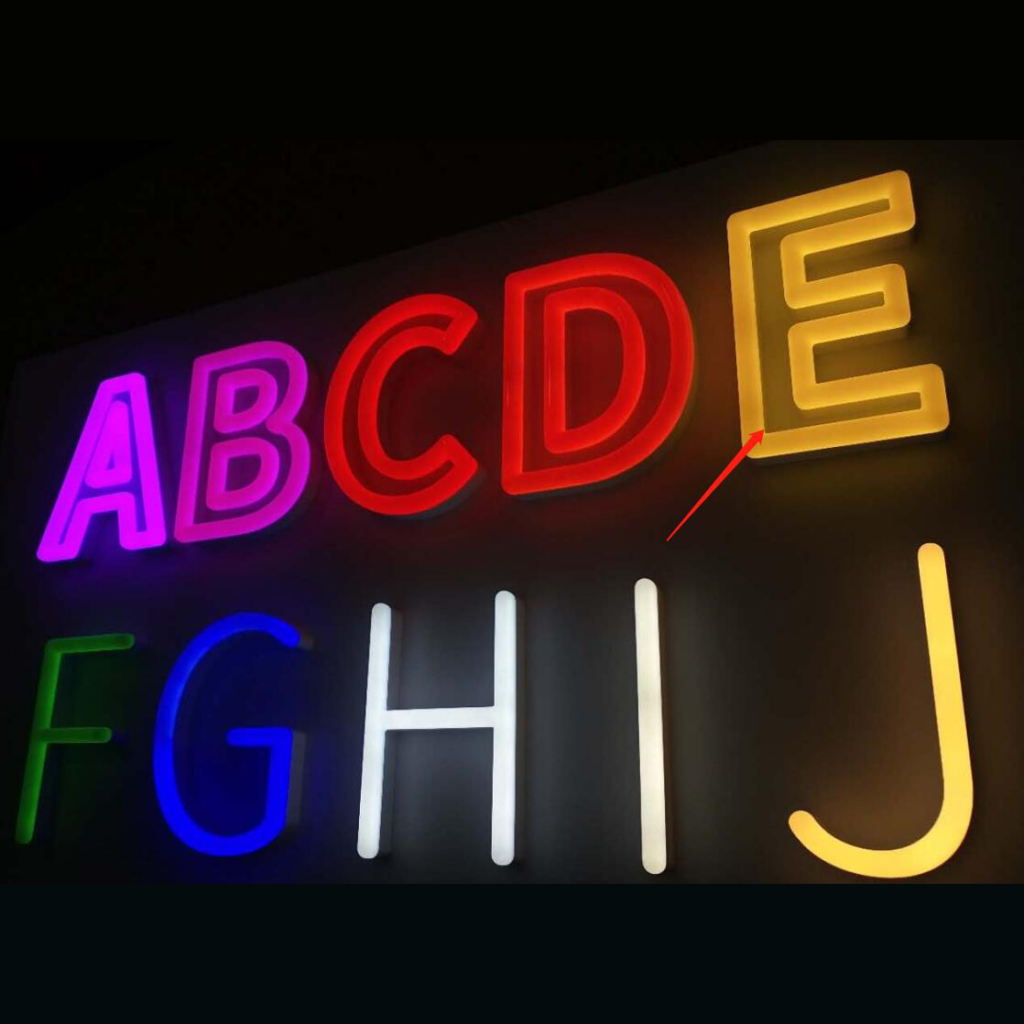

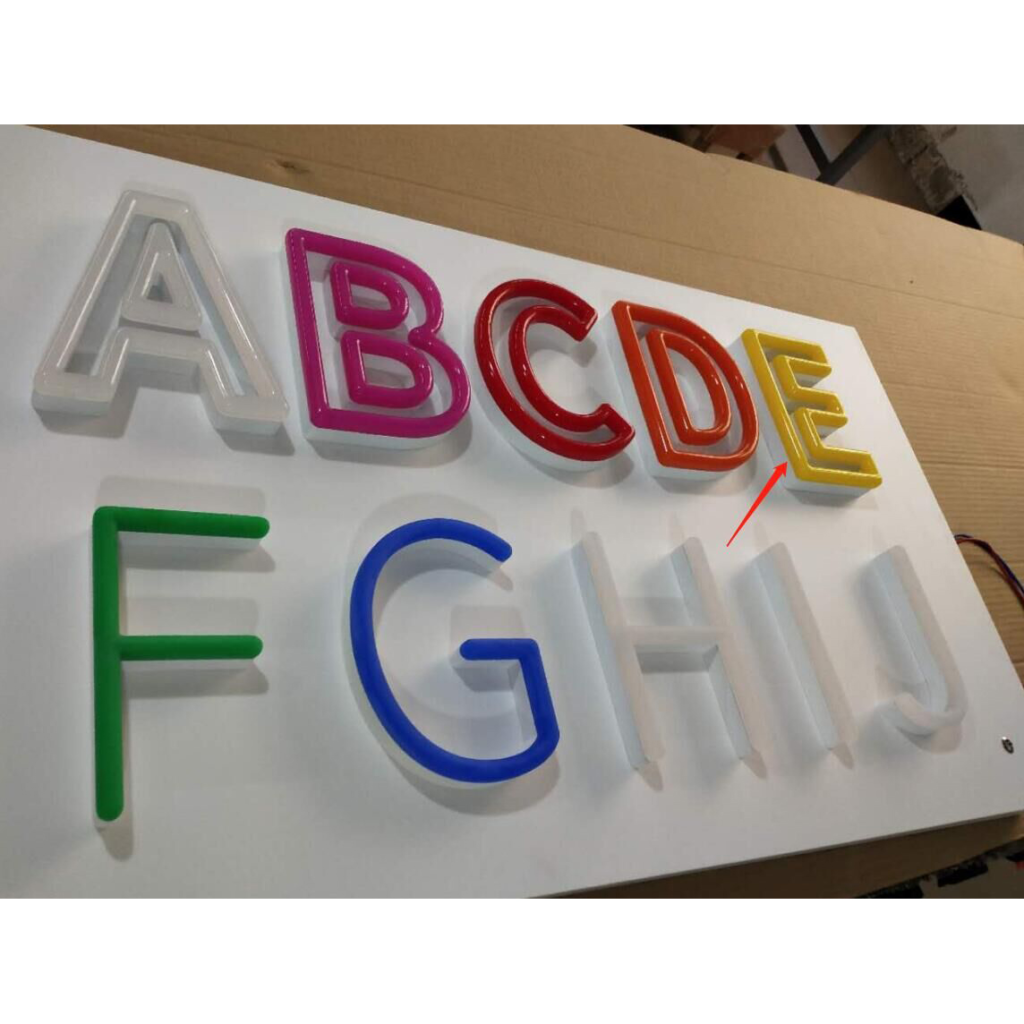

Curved Acrylic Glass-like Neon Sign | Acrylic Neon Letters

Product code: 3D-008

Environment: Interior | Semi-Outdoor | Fully External (drain holes at bottom rear)
Dimensions: Refer to drawing
Face & Body: 15mm-25mm solid acrylic 3D engrave
Back: Metal Base
Return(Depth): Demanded size
Finish: Plain silver, polished / brushed, electrical plated, powder coated, UV printed, 2pac coated, etc.
LED Options: LED modules 3,000K (Warm White) | 6,500K (Natural White) | 10,000K (Cool White)
Coloured acrylic, RGB LEDs and Dimmers available at extra cost.
Illumination Style: Acrylic Neon Body Illuminate
Wiring: Standard 1.5m lead (Maximum extension up to 3m).
Installation Guide: Full-scale installation template/draft included
Installation Method: Flush Mount or Stand-off Mounting
-M4 / M6 / M8 / M10 threaded pins (Optional sleeves/spacers available in custom colours).
Power Supply: 12V DC – 240V AC C-Tick certified Meanwell Transformer.

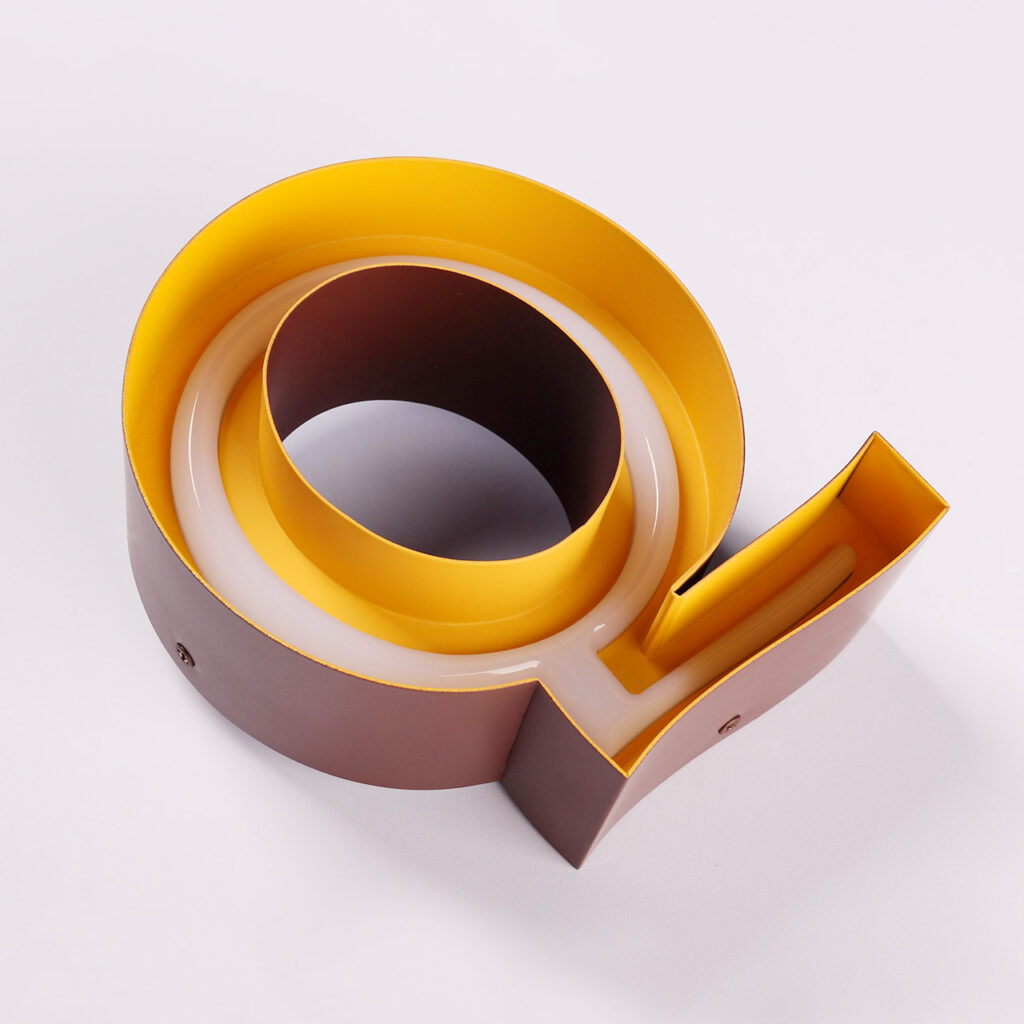

Standard LED flex neon relies on bending a silicone tube across a flat backing substrate, which can wrinkle at sharp corners, drop or sag over time, and leave visible electrical wiring joints. Acrylic Engraved Curved LED Neon Letters are precision CNC-machined from a solid block of 15mm–25mm cast acrylic. A physical canal is carved directly into the acrylic structure to encapsulate the LED light source flawlessly. This structural housing guarantees perfectly crisp angles, prevents warping, provides uniform light diffusion, and eliminates hotspots or tracking failures.

Because the main body is carved out of thick solid acrylic, light naturally wants to scatter in all directions. To focus the light and mimic the look of traditional neon glass tubes, a professional “side block-out” treatment is applied. The outer vertical returns of the acrylic characters are sealed and painted using a multi-layer 2pac automotive coat or opaque masking. This blocks light from bleeding sideways, forcing 100% of the lumen output through the smooth, polished front face for a high-contrast 3D neon effect.

Yes. While thin interior neon novelties quickly short-circuit from moisture, our commercial-grade signs are built to architectural facade standards. The solid engraved acrylic body is deeply glue-sealed against its heavy metal or ABS base. For fully exposed external buildings, precision drain holes are engineered at the bottom rear of the letter canals. This stops moisture from trapping inside, ensuring the internal low-voltage LED modules remain dry and highly weatherproof.

All systems run on a low-voltage 12V DC infrastructure coupled with top-tier Meanwell Transformers to ensure cooler operating temperatures and high energy efficiency. To eliminate customs clearance issues and comply with local commercial building codes, our power configurations are supplied with regional safety approvals matched explicitly to your project’s destination country: SAA and C-Tick for Australia/New Zealand, UL/cUL for North America, and CE/RoHS for Europe.

To provide an accurate, tailored quote, please prepare the following project details:

A draft or vector layout file of your logo/typography with the specific overall dimensions marked.
The installation environment configuration (Fully Interior, Semi-Outdoor, or Fully External Exposed).
The preferred LED color temperature (3,000K Warm White, 6,500K Natural White, 10,000K Cool White, or dynamic RGB).
Your required delivery deadline and site installation conditions (e.g., wall material, fixing height, access restrictions).
