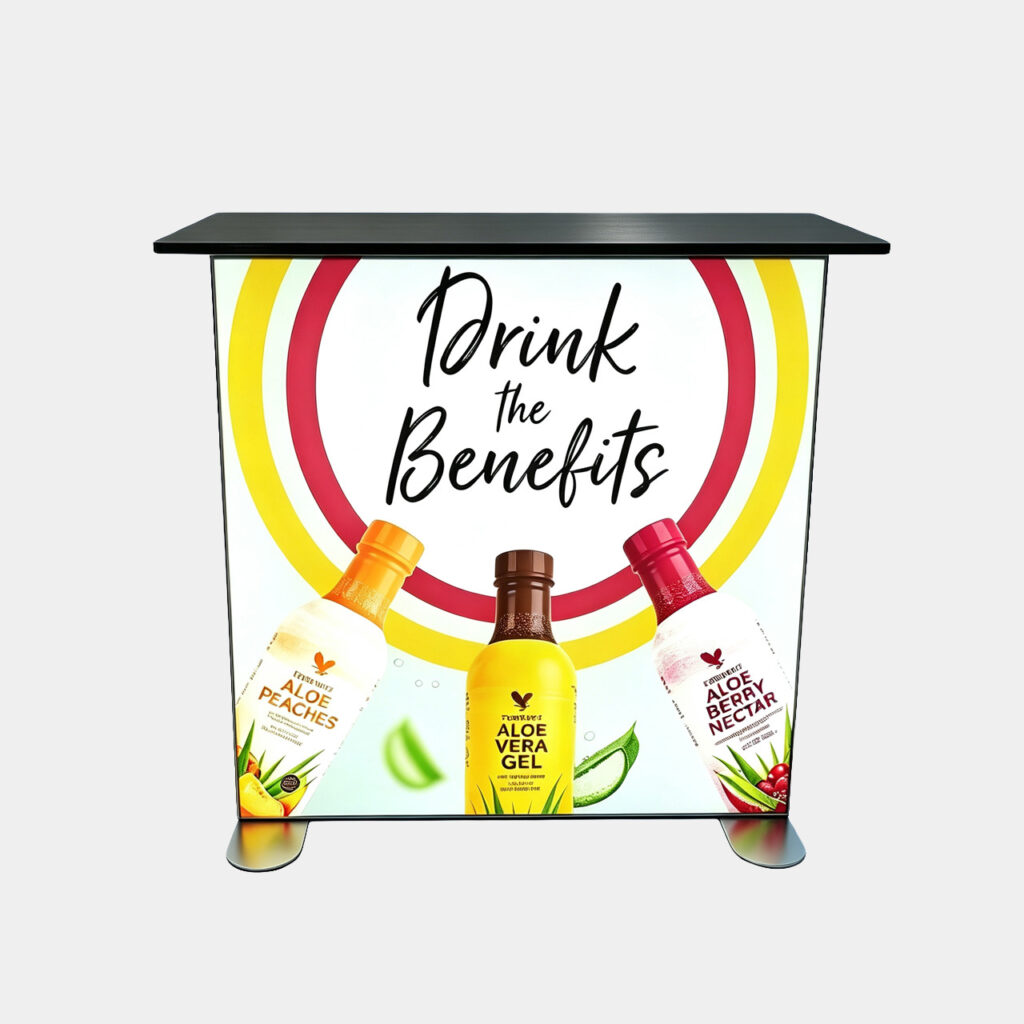

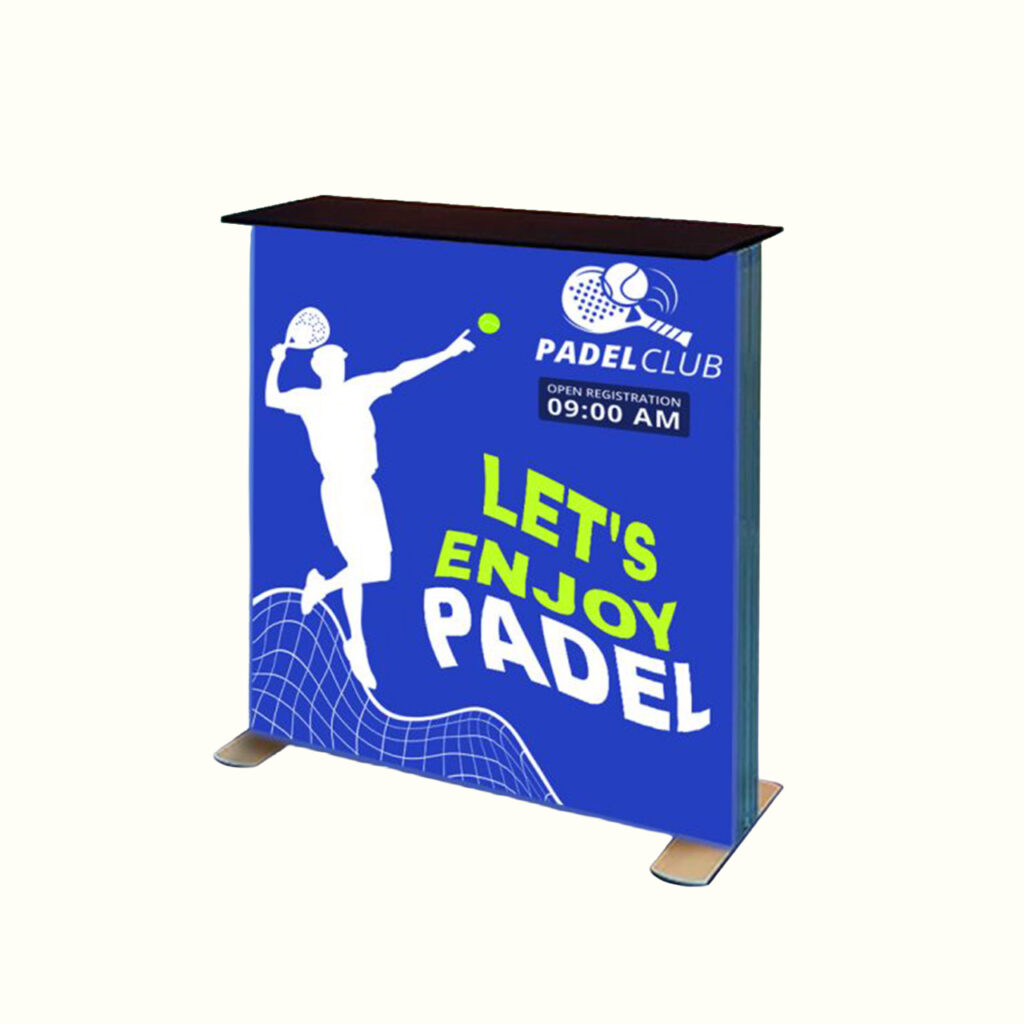

Premium SEG Side-Lit Exhibition Counter

Key Technical Specifications

Print Media & Technology: High-definition Dye-Sublimation full-colour printing on premium backlit polyester fabric. Finished with a heavy-duty silicone edge graphic (SEG) strip sewn along the perimeter for a perfectly tensioned, drum-tight, borderless presentation.
Illumination System: Integrated, high-efficiency side-emitting/edge-lit LED lighting modules delivering a crisp 6,500K Natural White color temperature. Positioned internally along the vertical frame profiles to cast smooth, uniform, edge-to-edge illumination across the entire fabric graphic with zero hot spots or shadows.
Graphic Configuration Options:
- Single-Sided Graphic: Front illuminated fabric print with a light-blocking rear fabric panel to maximize forward light intensity.
- Double-Sided Graphic: High-impact illuminated branding on both front and rear faces.
Countertop Surface: Heavy-duty black countertop surface measuring 1060mm × 400mm, engineered to support laptops, promotional literature, lead sheets, and product samples up to 15–20kg.

Base Structure Options & Frame Finishes

Structural Base Configurations:
- Side Base Profile: Ultra-clean, flush-fitting side base alignment. Ideal for tight spaces, reception counters, or placing multiple counters side-by-side to form a seamless modular reception desk.
- Bottom Flat Base Profile: Features an extended, heavy-duty flat metal foot plate at the bottom. Designed for extra ground support and tip resistance in high-foot-traffic exhibition halls or sheltered semi-outdoor environments.
Frame Structure & Return Depth: Architectural-grade, heavy-duty modular anodised aluminium frame featuring a 120mm extrusion depth profile for maximum structural rigidity and light diffusion.
Frame Finishes:
- Natural Heavy-Duty Silver Anodised Aluminium (Standard)
- Powder-Coated Matte Black
- Custom RAL Colour Matching

Electrical Components & Compliance

Power Driver: Premium internal 12V–24V DC Meanwell Transformer. Fully SAA and C-Tick certified for strict compliance with Australian Signage Standards (UL/cUL and CE/RoHS certified for international export).
Wiring & Plug: Standard 1.5m low-voltage power lead with AU 3-pin plug (US/UK/EU plug options available for international compliance).
Power Exit Location: Discreet bottom corner exits (Left or Right side options available).

Dimensions, Weight & Portability

Overall Product Size: 1000mm W × 1000mm H × 400mm D
Counter Top Size: 1060mm W × 400mm D (Matte Black Finish)
Environment: Interior | Semi-Outdoor sheltered zones

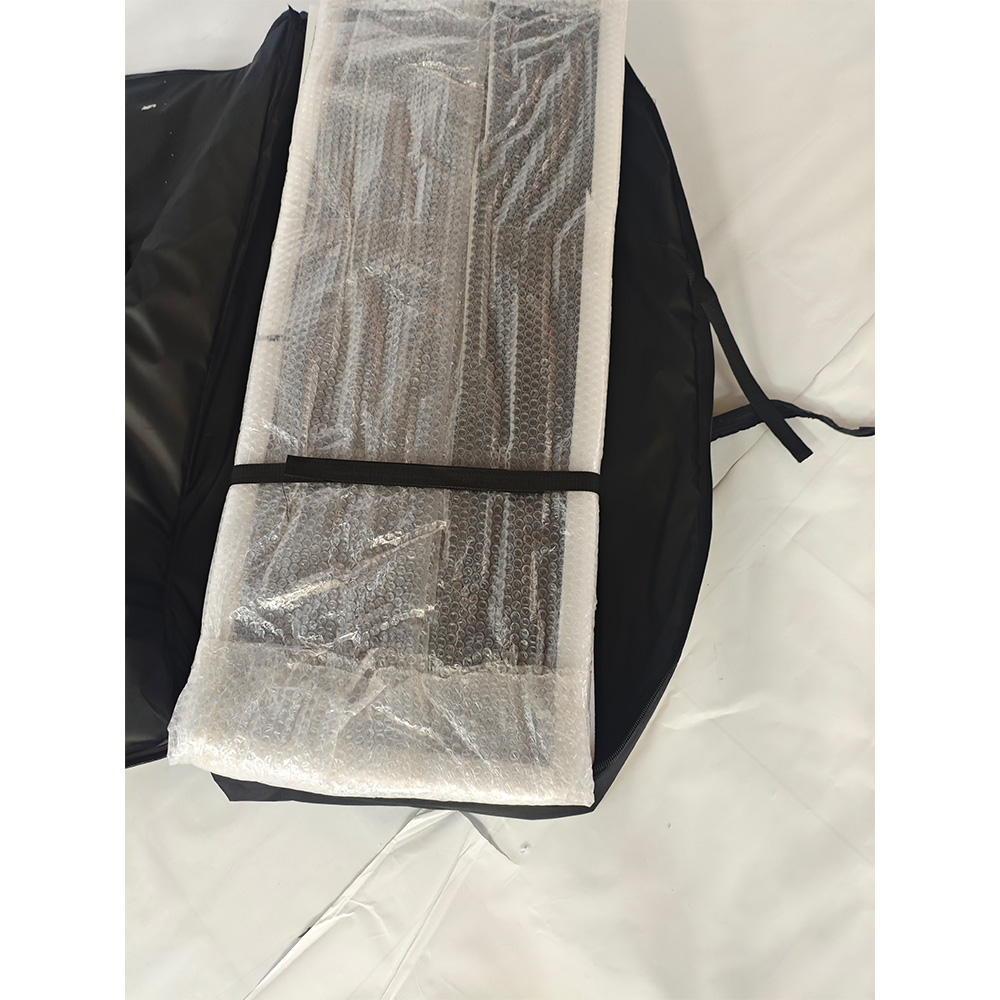

Package Specifications: Delivered in a flat-pack configuration for compact transport, complete with a heavy-duty padded canvas carry bag with handles.
- Package Carton Size: 115cm × 45cm × 20cm
- Total Weight: 13.0 kg

PRODUCT DETAILS

* Product Code: SEG-PT

* Product Name: Premium SEG Side-Lit Exhibition Counter

* Product Size: 1000mm (W) x 1000mm (H) x 400mm (D)

* Counter Top Size: 1060mm (W) x 400mm (D) – Black Finish

* Frame Depth: 120mm Heavy-Duty Extrusion Profile

BASE SELECTION (SELECT ONE)

☐ Side Base Profile (Flush side edges – ideal for placing counters side-by-side)

☐ Bottom Flat Base Profile (Extended flat foot plate – max stability in high traffic)

PRINT & GRAPHIC CONFIGURATION

☐ Single-Sided Graphic (Front Illuminated Print + Blank Light-Block Backing)

☐ Double-Sided Graphic (Front & Rear Illuminated Prints)

☐ Replacement Fabric Skins Only (Customer already owns SEG-PT hardware)

☐ Hardware Only (Frame, Black Countertop, Built-in LEDs & Carry Bag – No Print)

FRAME FINISH

☐ Natural Silver Anodised Aluminium (Standard)

☐ Powder-Coated Matte Black

☐ Custom RAL Colour Matching (Code: ____________)

ELECTRICAL & POWER SPECIFICATIONS

☐ Illumination: 6,500K Natural White Side-Lit LED System

☐ Power Driver: Internal 12V-24V DC Meanwell Transformer (SAA & C-Tick Certified)

☐ Plug Configuration: ☐ AU 3-Pin (Standard) ☐ Export (US / UK / EU)

☐ Power Lead Outlet: ☐ Bottom Left Corner ☐ Bottom Right Corner

PACKAGING & FREIGHT DETAILS

* Included Packaging: Heavy-Duty Padded Canvas Carry Bag with Handles

* Carton Package Dimensions: 115cm x 45cm x 20cm

* Total Package Weight: 13.0 kg

The Side Base profile keeps the counter’s footprint strictly inline with its sides, giving it a minimalist look that allows two or more counters to sit flush side-by-side to create a long reception desk. The Bottom Flat Base includes flat steel stabilizer feet that extend slightly outward at the bottom, offering extra physical stability and tip-resistance in high-foot-traffic areas or on uneven carpeted exhibition floors.

No tools or technical electrical skills are needed. The modular aluminium frame sections push/lock together intuitively without screws, and the LEDs are built into the side extrusions. You simply connect the plug-and-play power lead into any standard Australian 240V wall socket.

Yes. The structural 120mm aluminium frame and solid black counter top (1060×400mm) are engineered to hold up to 15–20kg of weight. It is designed for practical event use, easily supporting laptops, tablet stands, stacks of product brochures, lead collection boxes, or promotional samples.

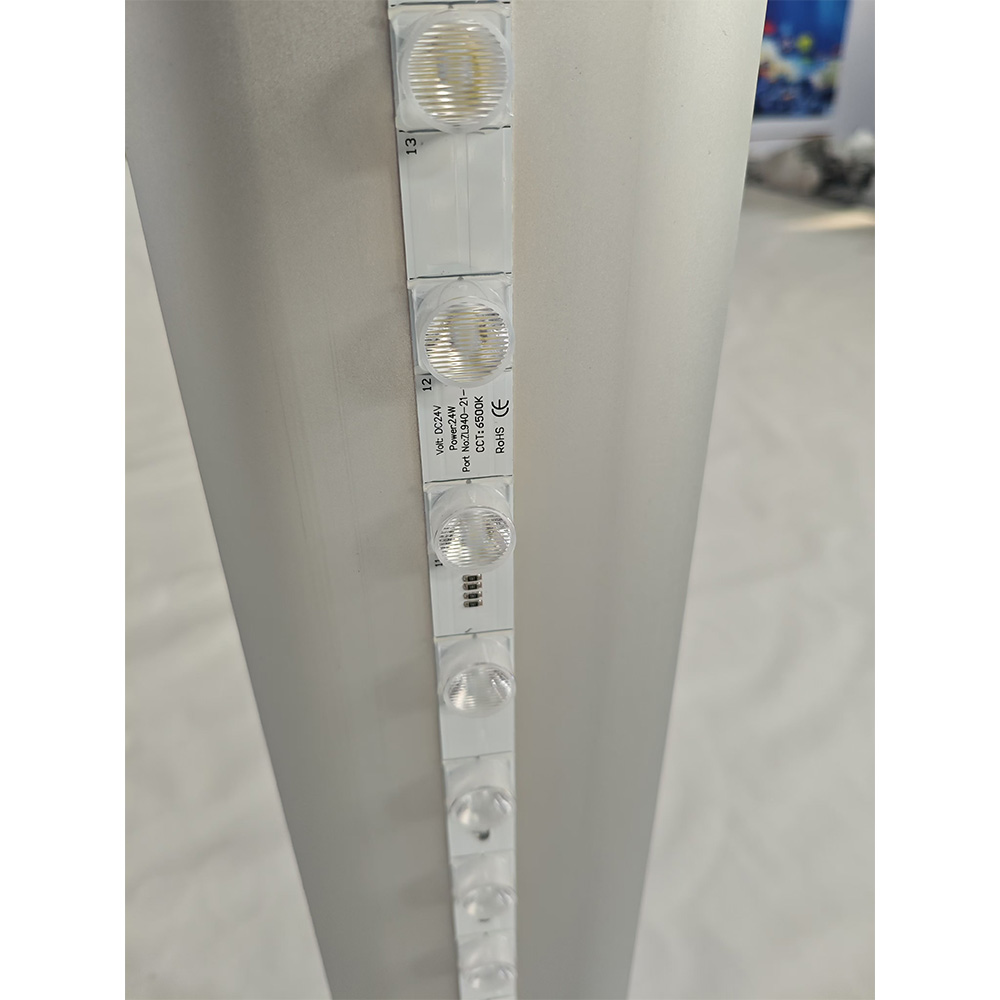

Side-lit lightboxes use high-output optical LED lenses positioned inside the left and right vertical frame channels. The light is cast horizontally across the interior of the box, reflecting off the specialized fabric backing to ensure perfectly even, shadow-free backlighting across the entire front graphic.

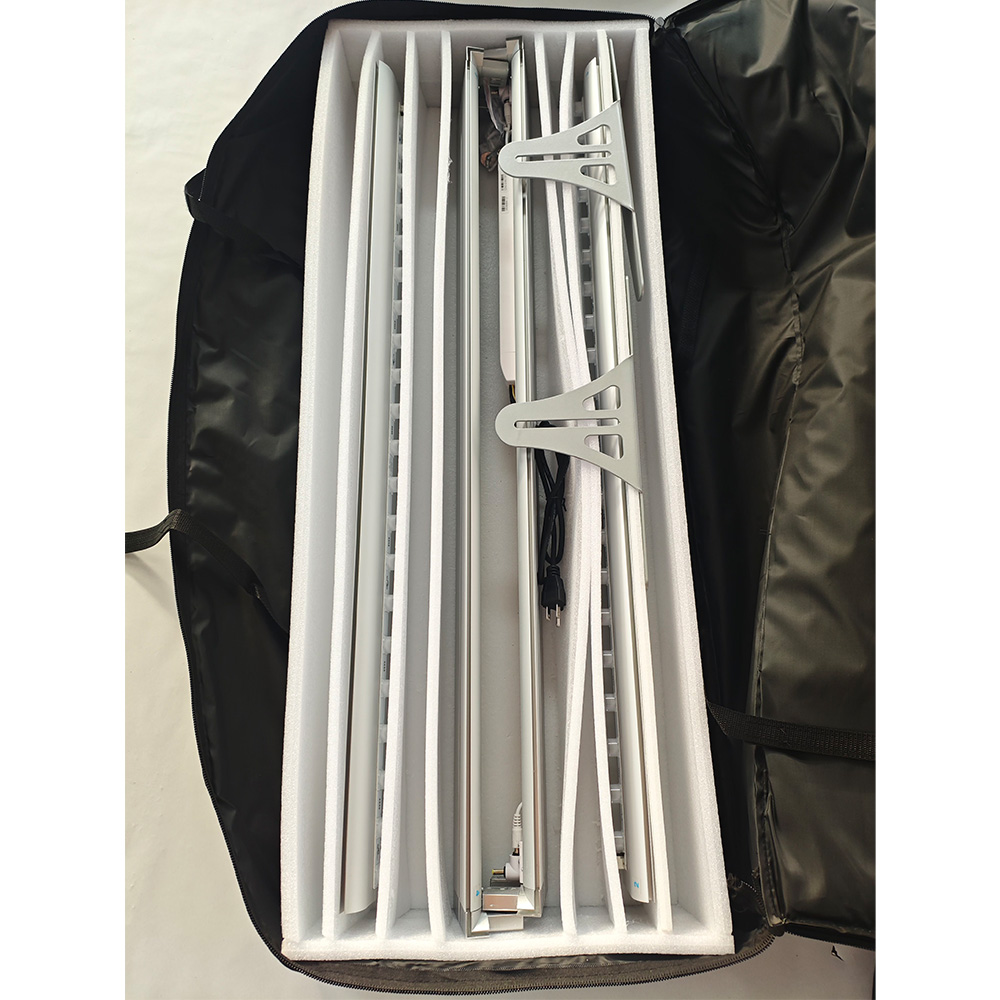

Yes. The entire counter breaks down into flat, compact sections. The packed bag measures 115cm × 45cm × 20cm and weighs 13kg, making it very easy to fit into the boot or backseat of any standard passenger car or carry on flights.

Absolutely. The frame, countertop, base, and LED system are built for long-term reusable hardware. When you launch a new product or update your corporate branding, you simply order new replacement SEG fabric skins without having to purchase a new table.
