3D Square-based Dome-topped Arch Display | Architectural Entrance & Media Wall

Product Code: Arch-006

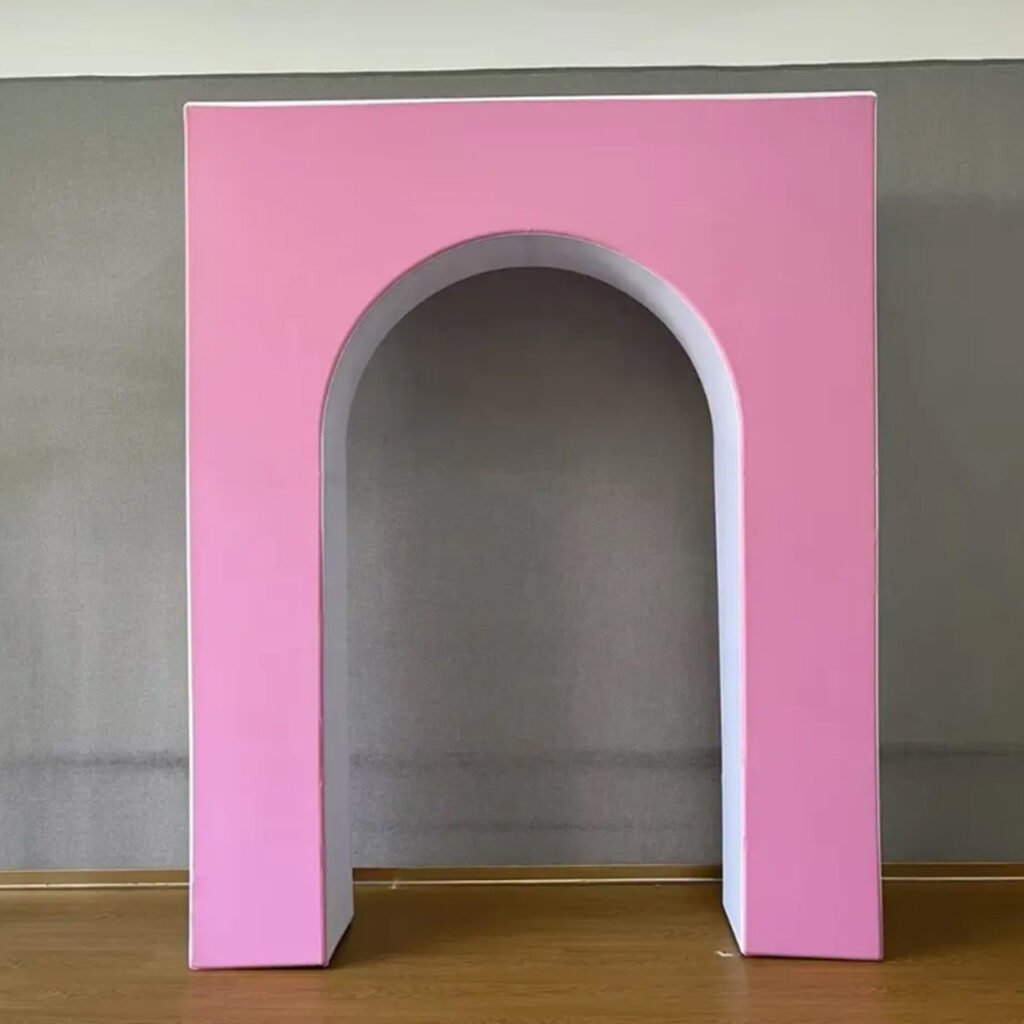

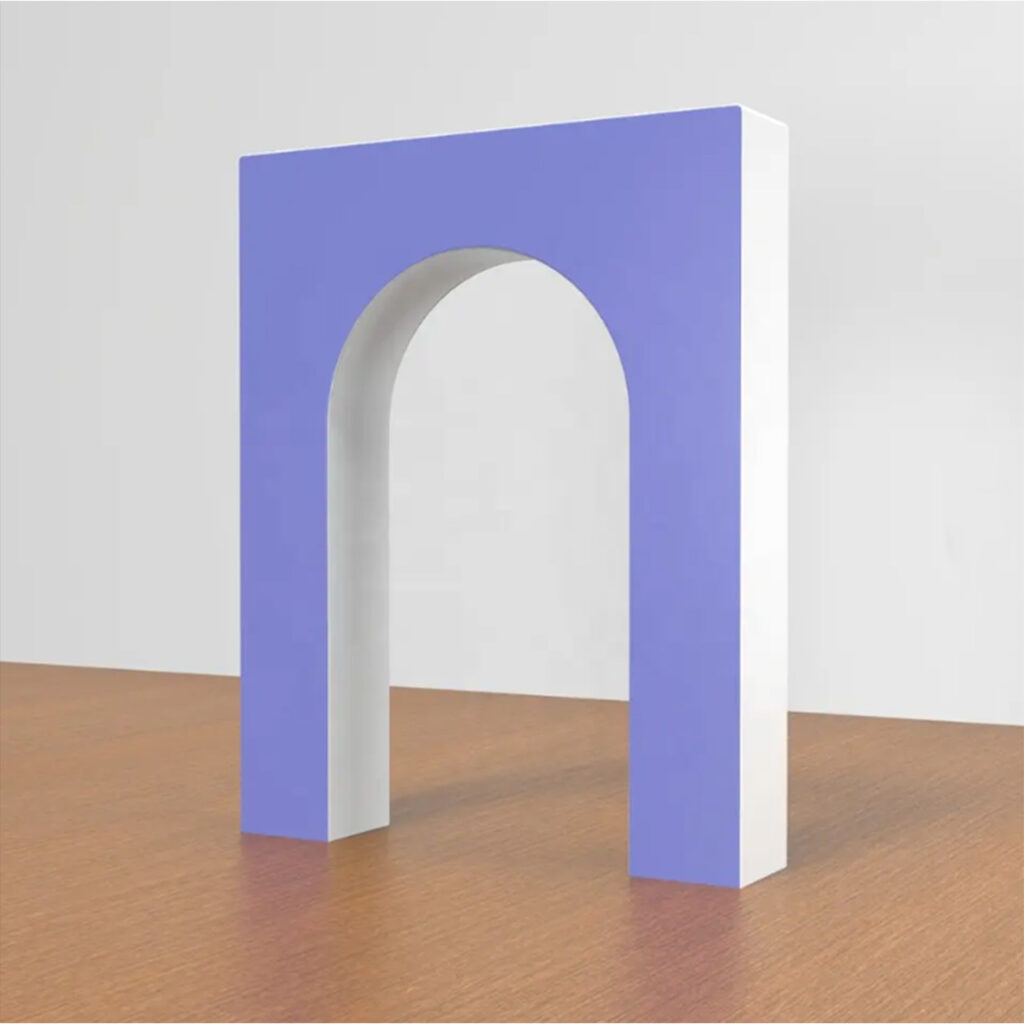

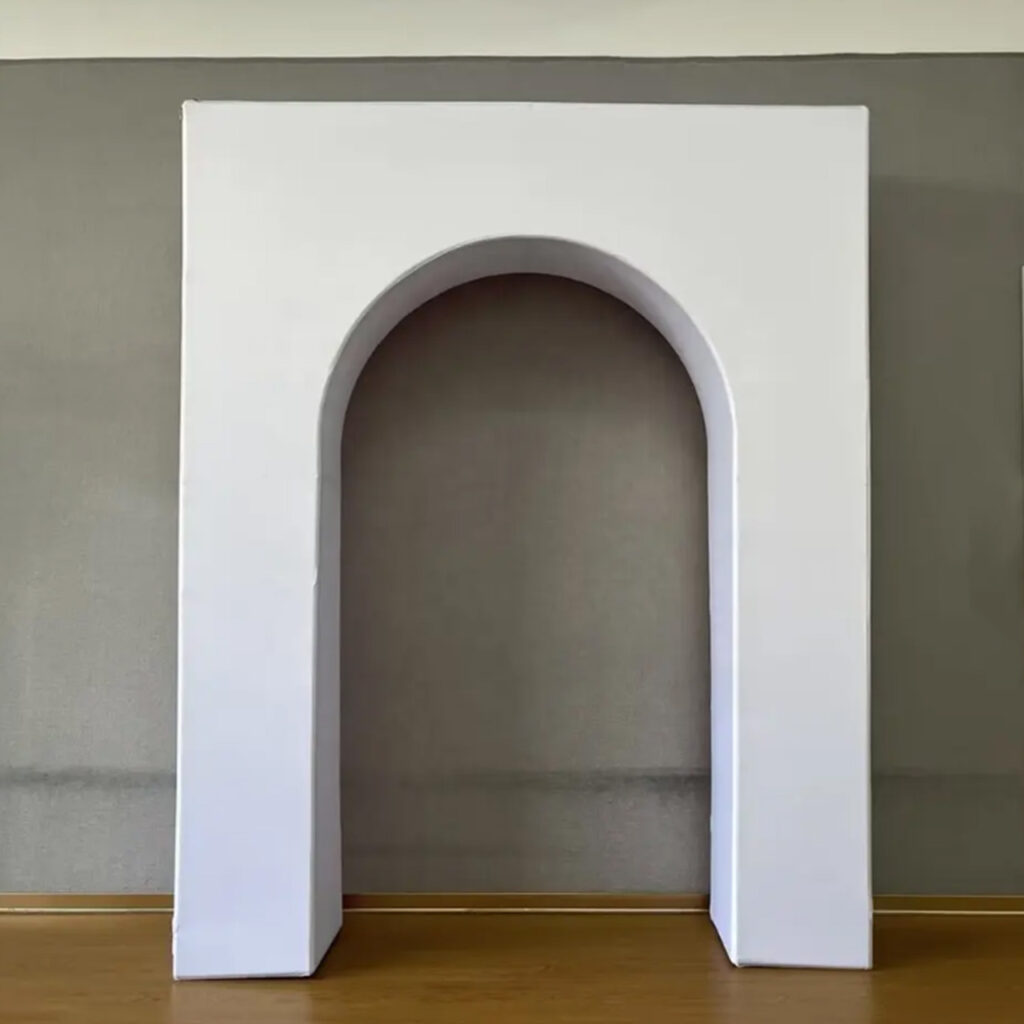

Transform retail entrances, trade show booths, and event walkways with the 3D Square-based Dome-topped Arch Display. Combining a tall, vertical rectangular outer profile with an elegant interior domed passageway, this display creates a dramatic architectural portal with a generous 500mm structural depth.

Engineered around a lightweight, high-strength tubular aluminium frame, the arch structure is wrapped in a custom-printed, high-stretch tension fabric graphic skin. The pillowcase zipper design slides over the 3D frame profile to create a smooth, drum-tight, wrinkle-free display that elevates brand presence from every angle.

Key Technical Specifications

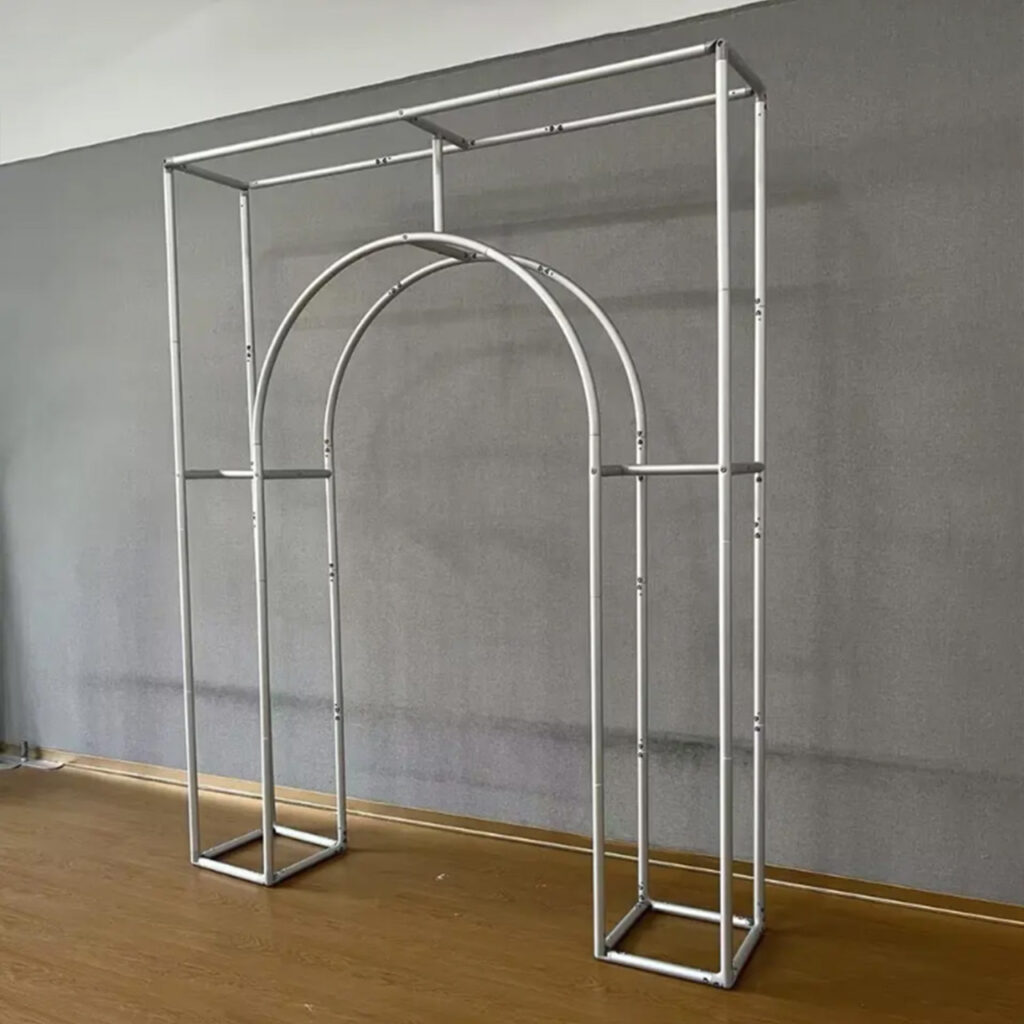

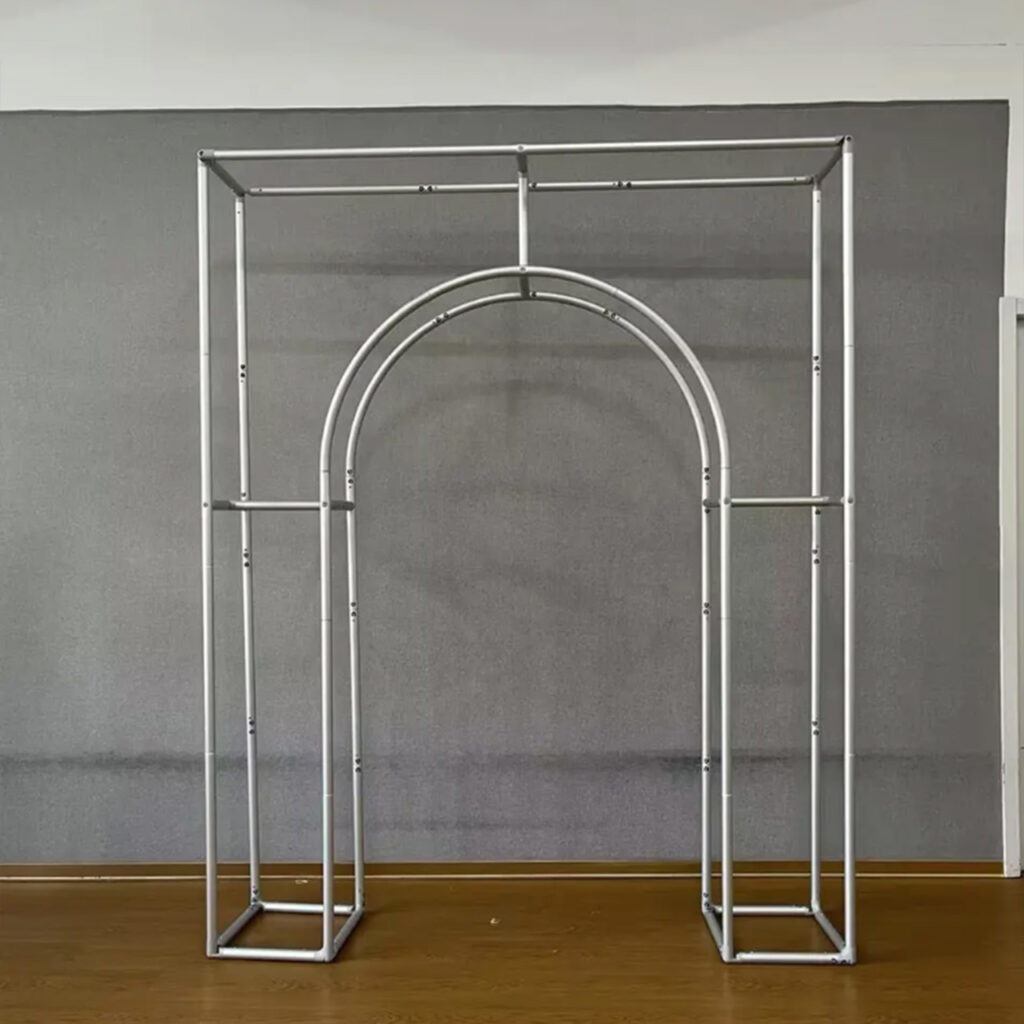

Frame System: Heavy-duty Ø32mm tubular aluminium profile with internal bungee cord connectors for fast, tool-free snap-locking assembly.
Graphic Media: Premium seamless 260gsm stretch tension fabric skin with vibrant, high-definition dye-sublimation printing.
Print Configuration:
- Single-Sided: High-impact custom graphics on the front face and outer returns, finished with a clean neutral blockout backing.
- Double-Sided: 360° double-sided custom graphic coverage across all front, rear, outer perimeter, and inner archway faces.
Print Method: Full-color CMYK dye-sublimation printing for rich, fade-resistant, machine-washable visuals.
Illumination Options (Add-ons):
- Non-Lit (Standard): Sleek, modern profile designed for ambient indoor commercial environments.
- LED Upgrade Available: Optional top-mounted spotlights or internal/external LED strip lighting modules (static or color-changing) for added visual engagement.
Product Dimensions (Adjusted to Vertical Proportions):
- Small (3m x 3.5m):
  - Assembly Size: 3000mm W x 3500mm H x 500mm D
  - Passageway Clearance: 1800mm W x 2800mm H x 500mm D
- Medium (4m x 4.5m):
  - Assembly Size: 4000mm W x 4500mm H x 500mm D
  - Passageway Clearance: 2400mm W x 3600mm H x 500mm D
- Large (5m x 5m):
  - Assembly Size: 5000mm W x 5000mm H x 500mm D
  - Passageway Clearance: 3000mm W x 4000mm H x 500mm D
- (Custom proportions available upon request)
Assembly Style: Tool-free push-button interlocking frame components; pillowcase zipper graphic skin.
Portability: Flat-packs compactly into included soft-padded carry bags for easy transit and storage.

What’s Included

1x 3D Square-based Dome-topped Aluminium Frame System (with bungee-corded poles)
1x Custom-Printed Stretch Fabric Graphic Skin (Single or Double-Sided)

1x Heavy-Duty Soft Nylon Padded Carry Bag

The wide rectangular base pillars combined with the 500mm structural box depth provide a low center of gravity and a stable, self-standing footprint without needing extended floor feet.

The passageway clearance measures the open inner walking space under the domed arch. Due to the taller vertical proportions of this design, it offers higher vertical headroom clearance relative to its overall width, making it ideal for tall venue entries and prominent walk-through portals.

Yes! The aluminium frame structure is designed for long-term reusability. You can order new tension fabric graphic skins separately whenever you launch a new promotional campaign or update your brand messaging.

Yes, the high-stretch polyester fabric stretches taut over the frame to pull out wrinkles. If it collects dirt during setup or travel, it can be machine-washed on a cold gentle cycle and air-dried without fading the dye-sublimation print.

Yes, optional spotlight attachments and static or color-changing LED strip lighting modules are available to highlight your custom artwork in ambient or dim environments.

Thanks to the internal bungee-corded frame sections and push-button connectors, two people can assemble the frame and pull the zip-up fabric skin over the structure in roughly 30 to 50 minutes without tools.
