3D Square Arch Display | Architectural Entrance & Media Wall

Product Code: Arch-005

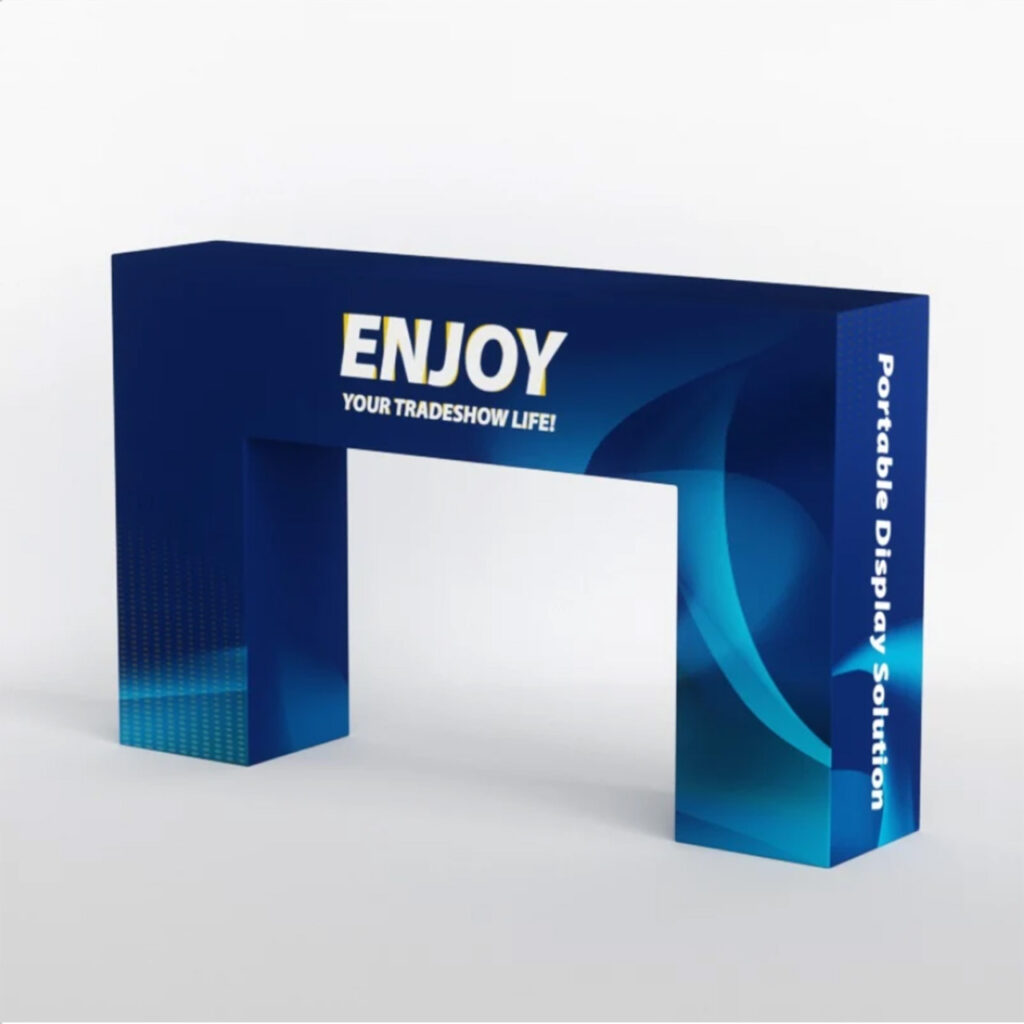

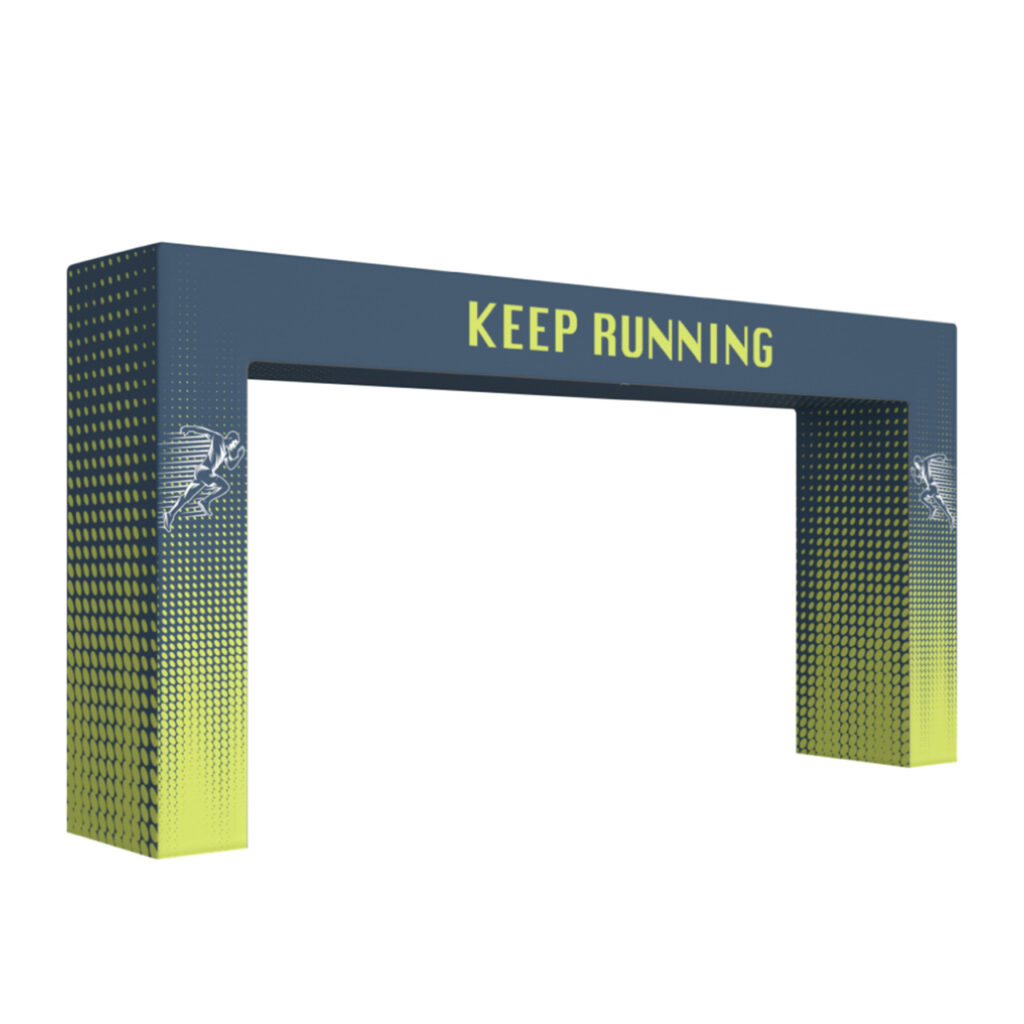

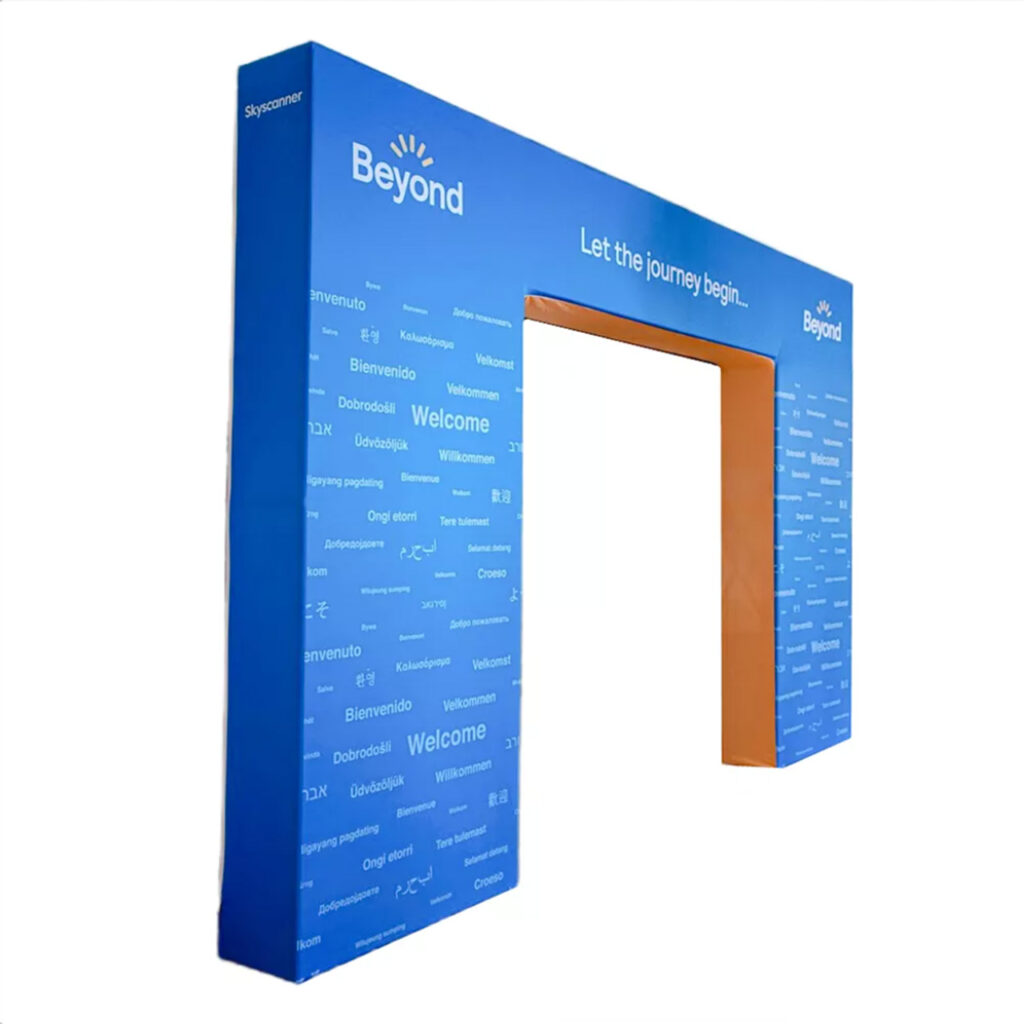

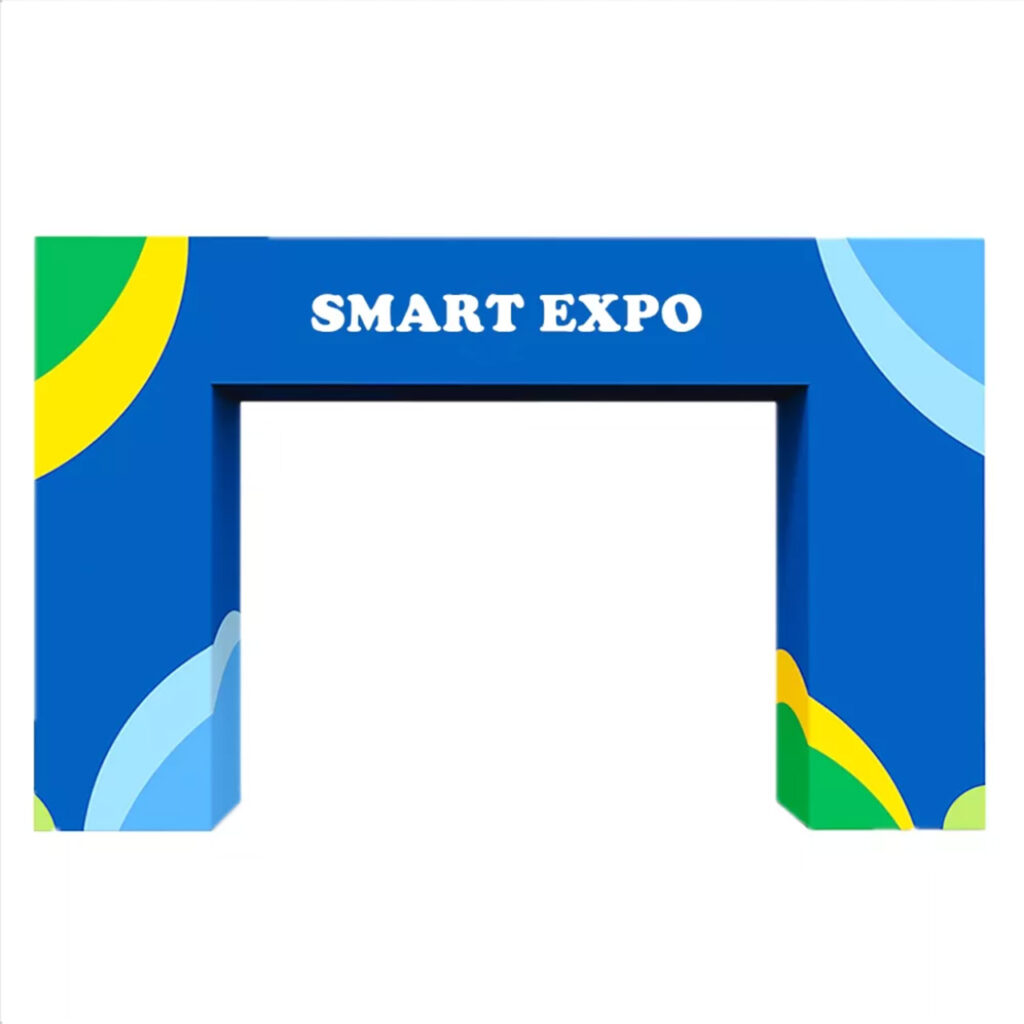

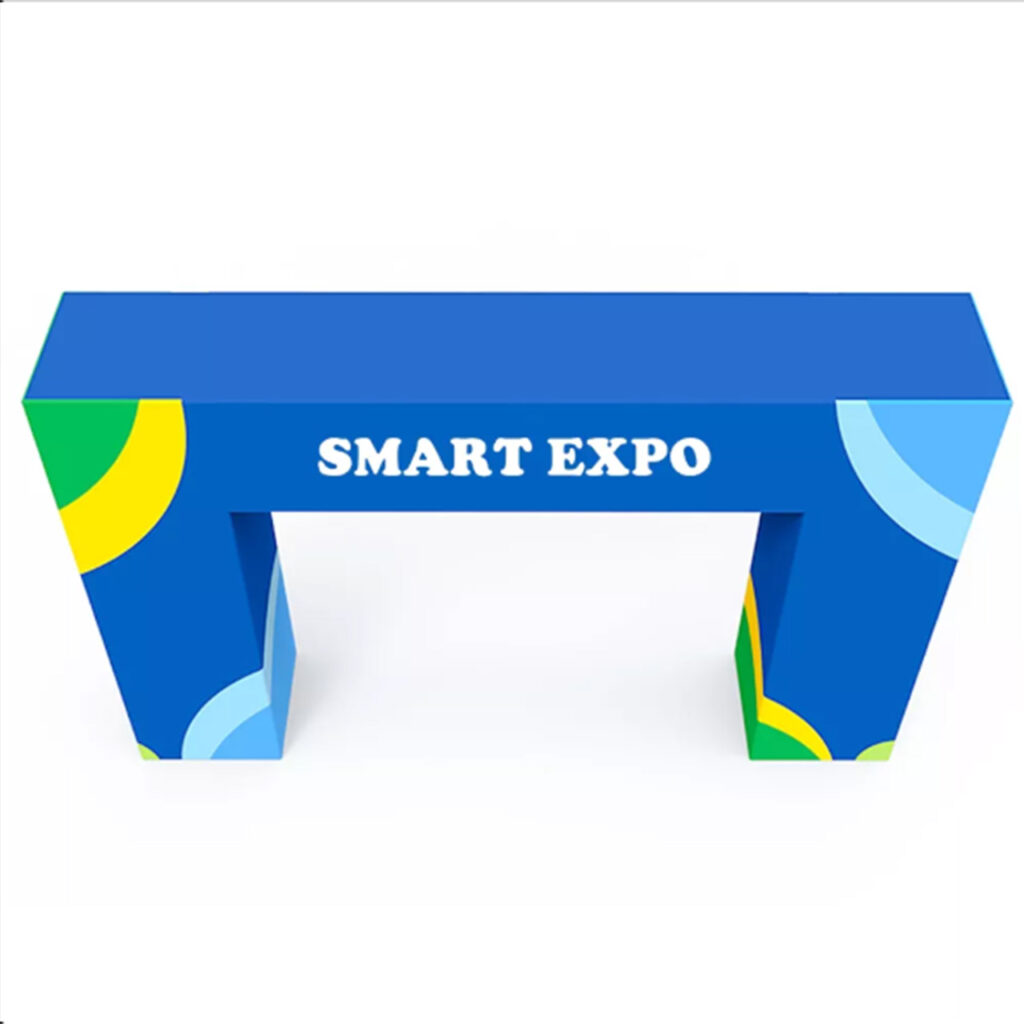

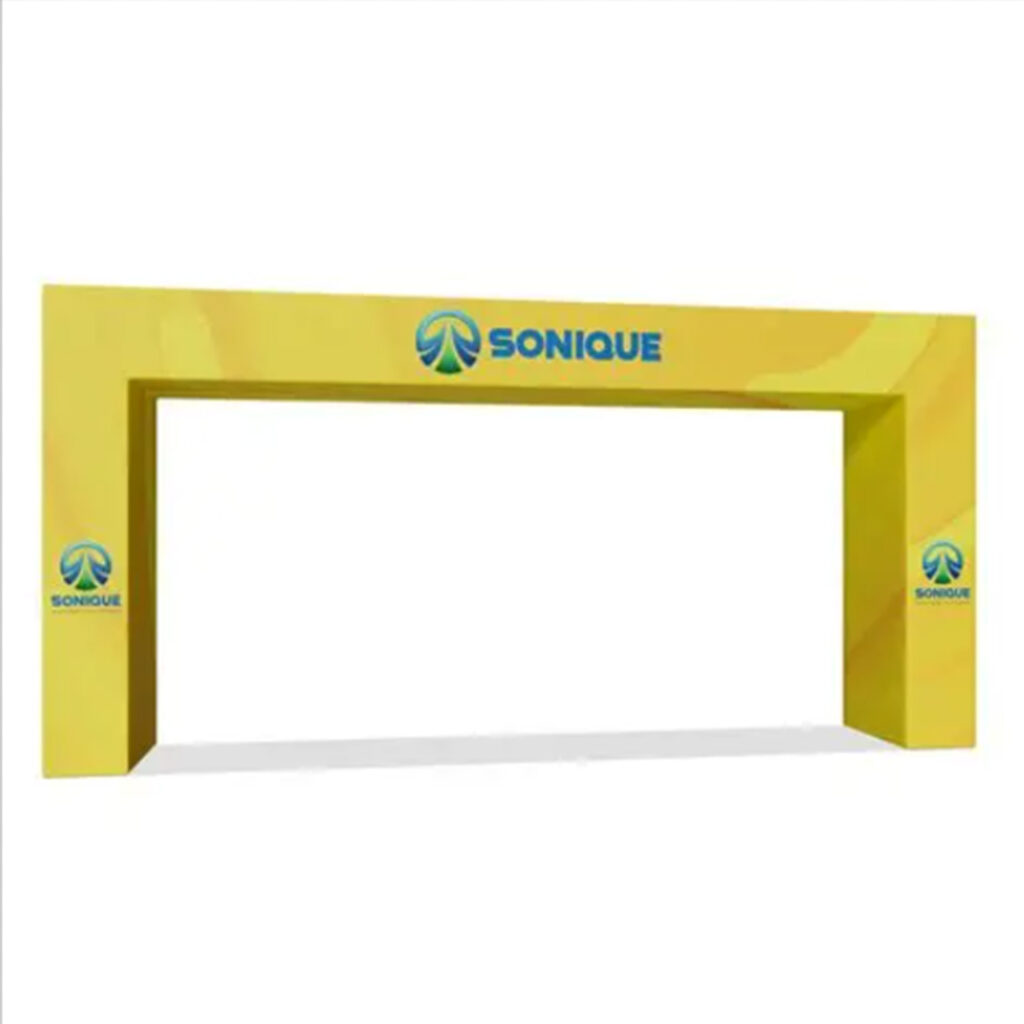

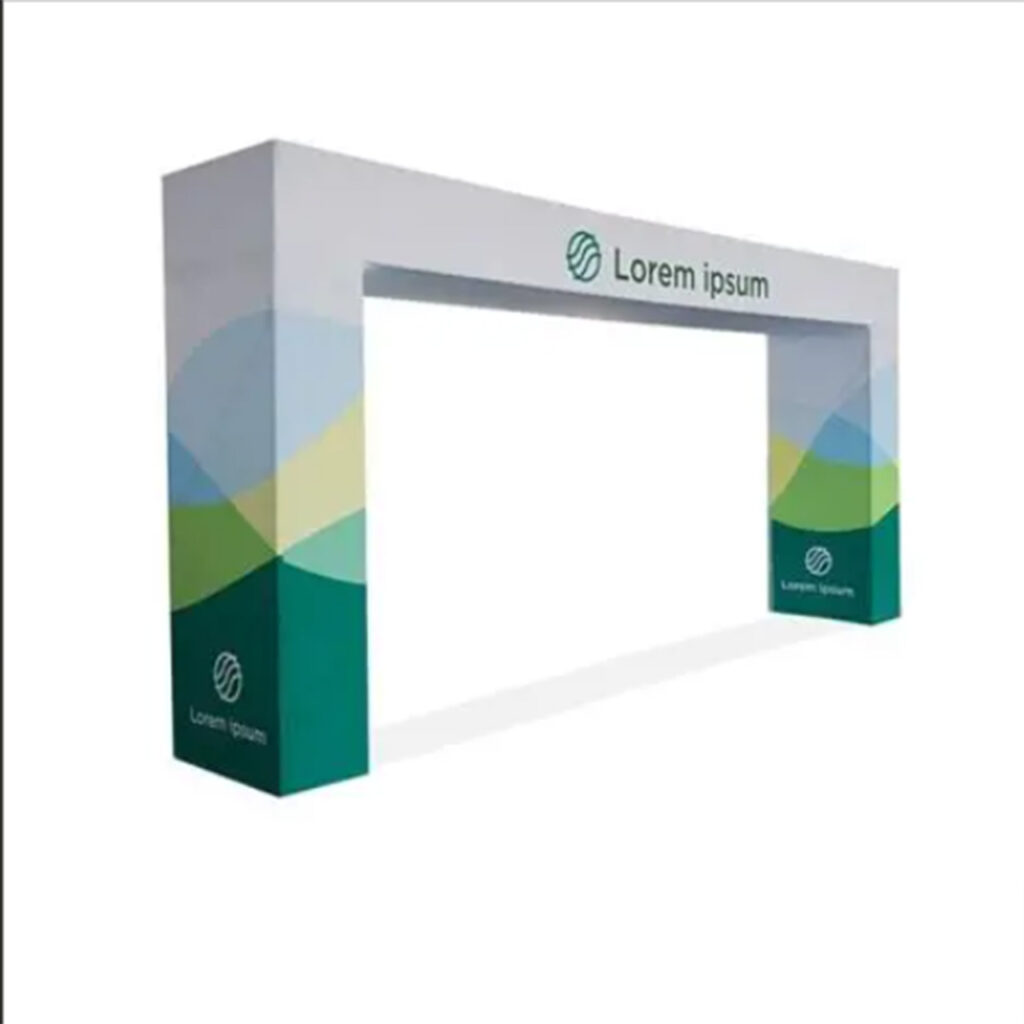

Command immediate attention at trade shows, corporate conventions, retail entrances, and promotional events with the 3D Square Arch Display. Featuring sharp, clean right-angled geometric lines, this display provides a bold, modern entrance portal with a generous 500mm structural depth.

Engineered around a lightweight, heavy-duty tubular aluminium frame, the square portal is wrapped in a custom-printed, high-stretch tension fabric graphic skin. The pillowcase zipper design slides effortlessly over the 3D frame profile to create a smooth, drum-tight, wrinkle-free visual statement that maximizes brand impact from all directions.

Key Technical Specifications

Frame System: Heavy-duty Ø32mm tubular aluminium profile featuring internal bungee cord connectors for fast, tool-free snap-locking assembly.
Graphic Media: Premium seamless 260gsm stretch tension fabric skin with vibrant, high-definition dye-sublimation printing.
Print Configuration:
- Single-Sided: High-impact custom artwork on the main front face and outer structural sides, finished with a clean neutral blockout backing.
- Double-Sided: Full 360° double-sided custom graphic coverage across all front, back, outer perimeter, and inner archway faces.
Print Method: Full-color CMYK dye-sublimation printing for rich, fade-resistant, machine-washable visuals.
Illumination Options (Add-ons):
- Non-Lit (Standard): Sleek, modern architectural profile suited for well-lit exhibition halls and trade show environments.
- LED Upgrade Available: Optional top-mounted spotlights or internal/external LED strip lighting modules (static or color-changing) for heightened visual engagement.
Product Dimensions:
- Small (6m x 3m):
  - Assembly Size: 6000mm W x 3000mm H x 500mm D
  - Passageway Clearance: 5000mm W x 2500mm H x 500mm D
- Medium (7m x 3.5m):
  - Assembly Size: 7000mm W x 3500mm H x 500mm D
  - Passageway Clearance: 6000mm W x 3000mm H x 500mm D
- Large (8m x 4m):
  - Assembly Size: 8000mm W x 4000mm H x 500mm D
  - Passageway Clearance: 7000mm W x 3000mm H x 500mm D
- (Custom dimensions available upon request)
Assembly Style: Tool-free push-button interlocking frame components; pillowcase zipper graphic skin.
Portability: Compact flat-pack breakdown designed to fit easily into included soft-padded travel carry bags.

What’s Included

1x 3D Square Arch Aluminium Frame System (with bungee-corded poles)
1x Custom-Printed Stretch Fabric Graphic Skin (Single or Double-Sided)
1x Heavy-Duty Soft Nylon Padded Carry Bag

The broad, flat base columns combined with the 500mm structural box depth give the archway a low center of gravity. This creates a stable, self-standing entrance portal without requiring protruding floor feet.

Passageway clearance refers to the open walking area inside the square frame. For example, the 6m W x 3m H display provides an inner clearance of 5000mm W x 2500mm H x 500mm D, leaving ample room for crowd walk-throughs, VIP entries, or photo opportunities.

Yes! The aluminium frame structure is built for long-term reuse. You can order new tension fabric graphic skins separately whenever you launch a new marketing campaign or update your brand messaging.

Yes, the high-stretch polyester fabric stretches taut over the frame to pull out wrinkles. If it collects dirt during setup or travel, it can be machine-washed on a cold gentle cycle and air-dried without fading the dye-sublimation print.

Yes, optional spotlight attachments and static or color-changing LED strip lighting modules are available to illuminate your custom artwork and make your display stand out in ambient or dim venues.

Thanks to the internal bungee-corded frame sections and push-button connectors, two people can assemble the frame and pull the zip-up fabric skin over the structure in roughly 30 to 50 minutes without tools.
