3D Arch Tension Fabric Display | Curved Entrance & Stage Media Wall

Product Code: Arch-002

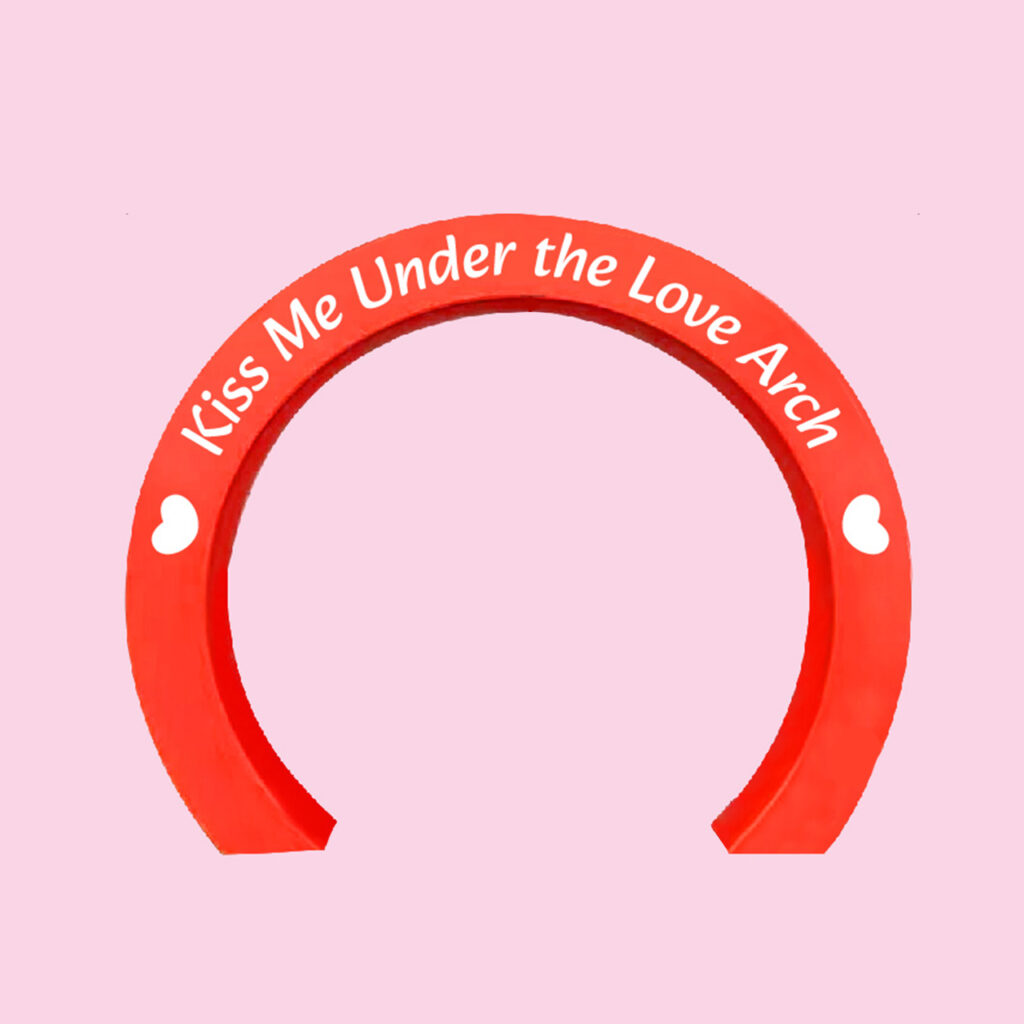

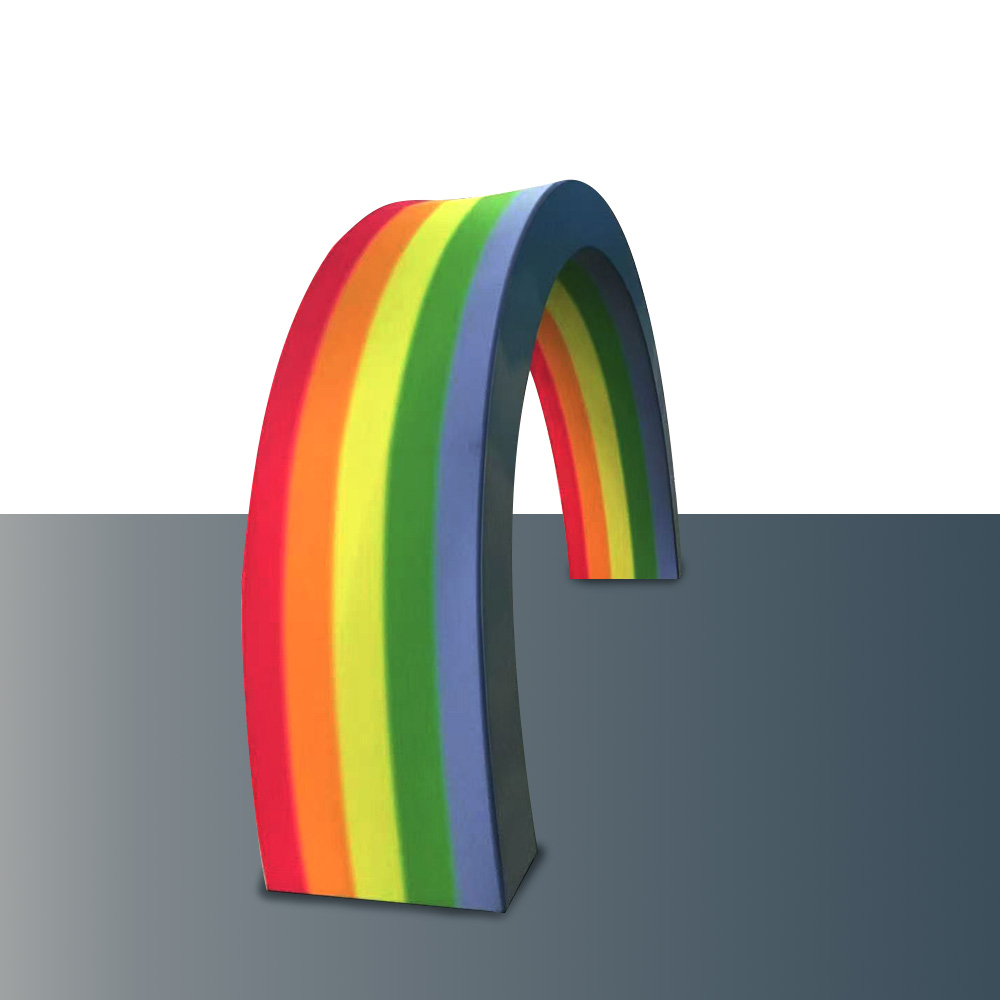

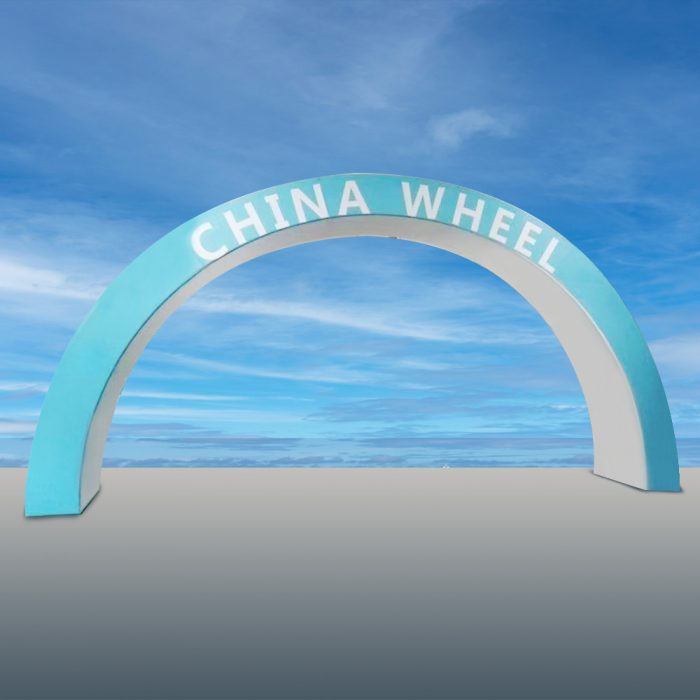

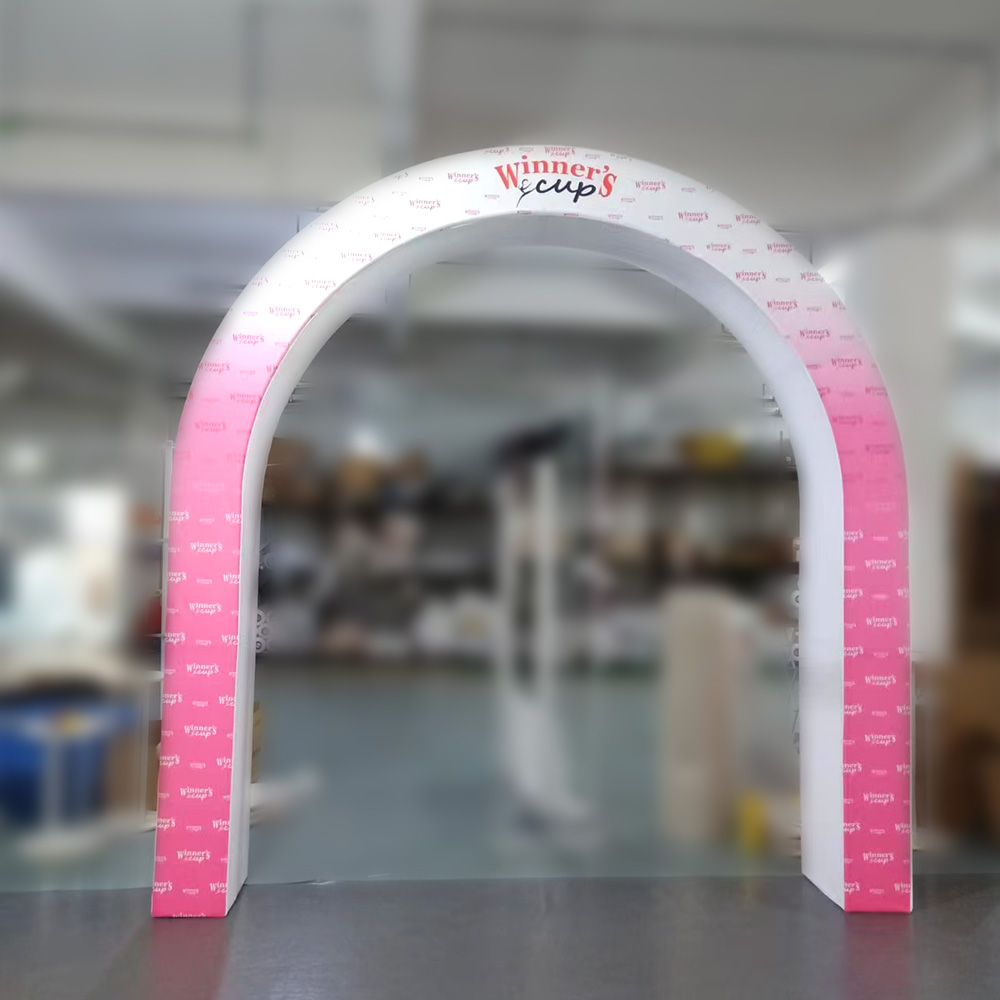

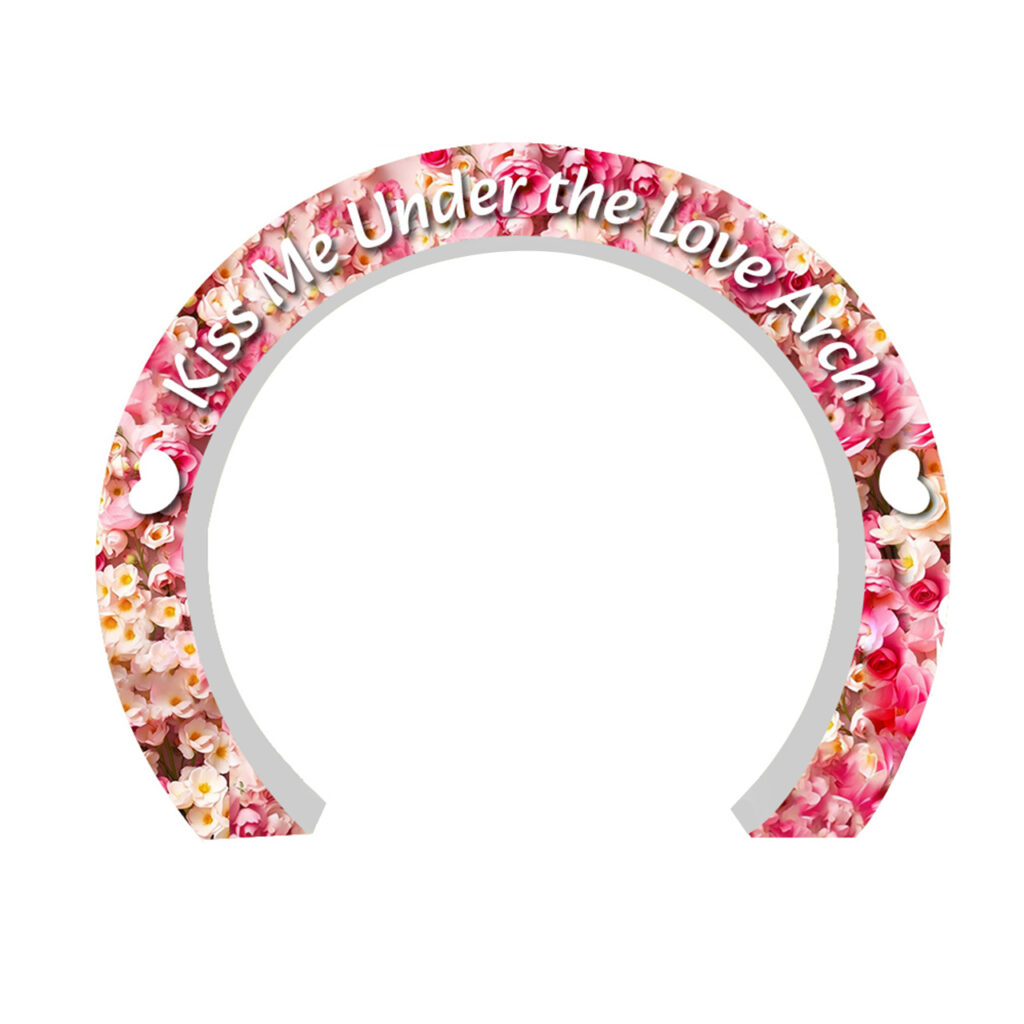

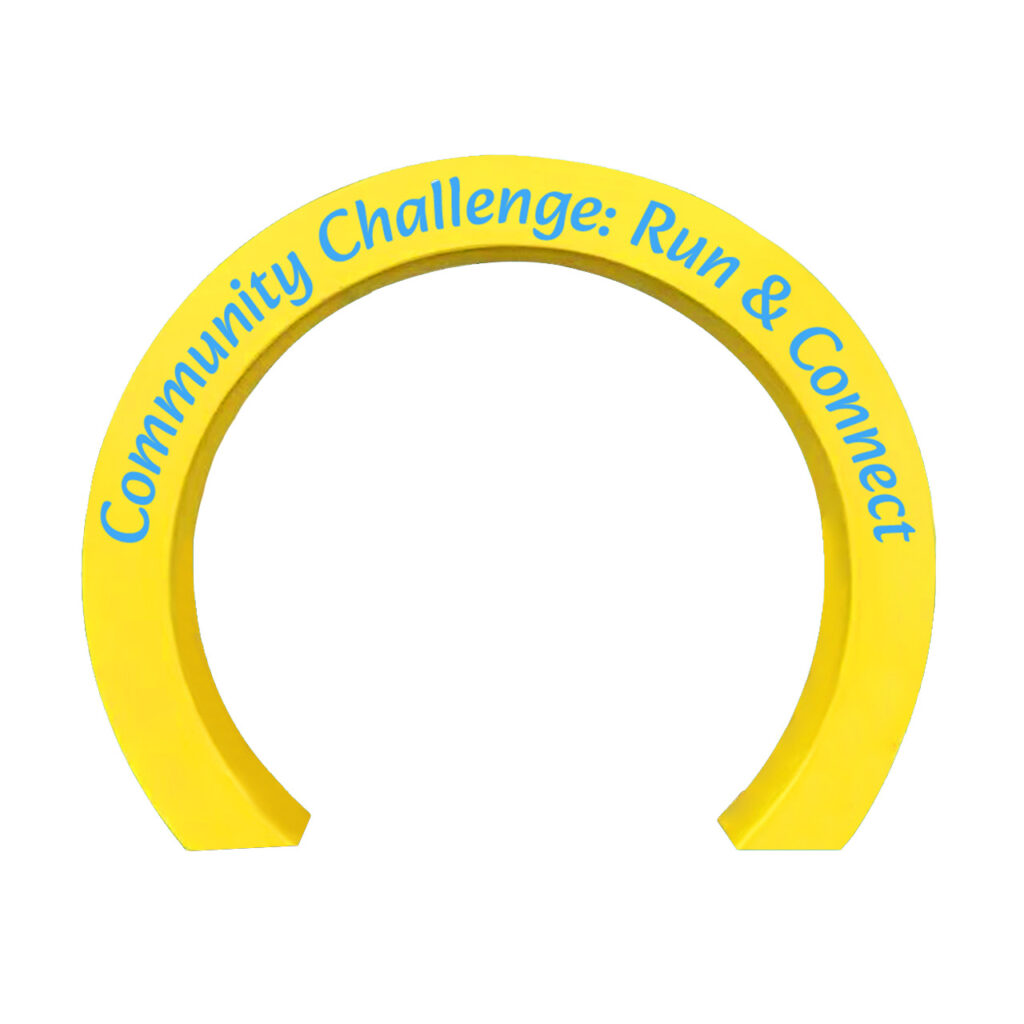

Make an unforgettable impression at trade shows, exhibitions, product launches, and corporate events with the 3D Arch Tension Fabric Display. Stepping away from standard flat media walls and rigid partitions, this display features an elegant, smoothly contoured curved arch profile with a deep 500mm 3D structure.

Engineered around a lightweight yet durable tubular aluminium frame, the arch structure is fitted with a premium custom-printed tension fabric graphic skin. The pillowcase zipper design slides over the frame to form a seamless, drum-tight, wrinkle-free visual focal point that draws foot traffic from all directions.

Key Technical Specifications

Frame System: High-strength, portable Ø32mm tubular aluminium profile featuring internal bungee cord connectors for fast, tool-free snap-lock assembly.
Graphic Media: Premium seamless 260gsm stretch tension fabric graphics with high-definition dye-sublimation printing.
Print Configuration:
- Single-Sided: Vibrant custom graphics on the front outer arch face and returns, backed by a clean neutral blockout panel.
- Double-Sided: 360° full double-sided custom graphic coverage across all outer and inner archway faces.
Print Method: Full-color CMYK dye-sublimation printing for rich, fade-resistant, machine-washable visual graphics.
Illumination Options (Add-ons):
- Non-Lit (Standard): Modern architectural aesthetic perfect for ambient event lighting and trade show booths.
- LED Upgrade Available: Optional top-mounted spotlights or internal/external LED strip lighting modules (static or color-changing) for added visual impact.
Product Dimensions:
- Small (6m x 3m):
  - Assembly Size: 6000mm W x 3000mm H x 500mm D
  - Passageway Clearance: 5000mm W x 2500mm H x 500mm D
- Medium (7m x 3.5m):
  - Assembly Size: 7000mm W x 3500mm H x 500mm D
  - Passageway Clearance: 6000mm W x 3000mm H x 500mm D
- Large (8m x 4m):
  - Assembly Size: 8000mm W x 4000mm H x 500mm D
  - Passageway Clearance: 7000mm W x 3500mm H x 500mm D
- (Custom dimensions available upon request)
Assembly Style: Tool-free push-button interlocking frame components; pillowcase zipper graphic skin.
Portability: Flat-packs easily into included soft-padded travel bags for convenient transport and storage.

What’s Included

1x 3D Arch Aluminium Wall Frame System (with bungee-corded poles)
1x Custom-Printed Stretch Fabric Graphic Skin (Single or Double-Sided)
1x Heavy-Duty Soft Nylon Padded Carry Bag

The curved architectural shape combined with the wide 500mm box depth provides a balanced, self-standing footprint without needing extended protruding legs. This ensures maximum floor stability while maintaining a clean, modern aesthetic.

Passageway clearance refers to the open space beneath the archway. For example, the 6m W x 3m H option provides a clearance of 5000mm W x 2500mm H x 500mm D, ensuring plenty of room for high-volume pedestrian entry or event staging.

Not at all. The internal bungee cords keep the matching curved tubular frame sections grouped in order. The poles snap together using tool-free push-button connectors, and the stretch graphic slides over like a pillowcase before zipping secure.

Yes! The aluminium frame is built for long-term reusability. You can order replacement tension fabric skins at any time to refresh your branding without purchasing a whole new frame structure.

Yes. The high-stretch polyester fabric stretches tight over the frame to eliminate wrinkles. If it gets dirty during transport, it can be machine-washed on a cold gentle cycle and air-dried without damaging the dye-sublimation print.

Yes, you can enhance your display with optional spotlight attachments or LED strip lighting (static or color-changing) to make your graphics stand out in dim or ambient environments.
