Nikko's Smart Modular Floor System

Key Features & Highlights

Ultra-Fast, Tool-Free Assembly: Features an intuitive Self-Locking Clicker System. A single platform tile (50x50cm) weighs just 1.5kg, allowing 1 square meter to be laid in under 1 minute without specialized tools.
Double-Layer Concealed Cable Management: Integrated underfloor routing channels cleverly conceal power lines, internet/LAN wires, air hoses, and water lines up to 25mm (or cross-sections up to 10mm) entirely beneath the surface.
Extreme Load Bearing Capacity: Supports up to 3,000 kg/m², making it robust enough for heavy equipment displays, automotive trade shows, and high-foot-traffic commercial events.
100% Sustainable & Eco-Friendly: Crafted from recycled flame-retardant ABS granulates. Old tiles are ground down to produce new ones, eliminating waste and supporting green exhibition initiatives.
Custom Surface Finishes & Printed Covers: Choose from UV-printed plates (wood grain, marble, stone, ceramic, cement board) or crystal-clear polycarbonate (PC) protective covers to feature under-floor graphics or custom branding.
Adjustable Height & System Compatibility: Standard 30mm base tiles or 60mm height-adjustable systems (1-18mm range) compensate for uneven venue floors. Built-in M8 connection accessories enable direct mounting of display columns, walls, and structures.

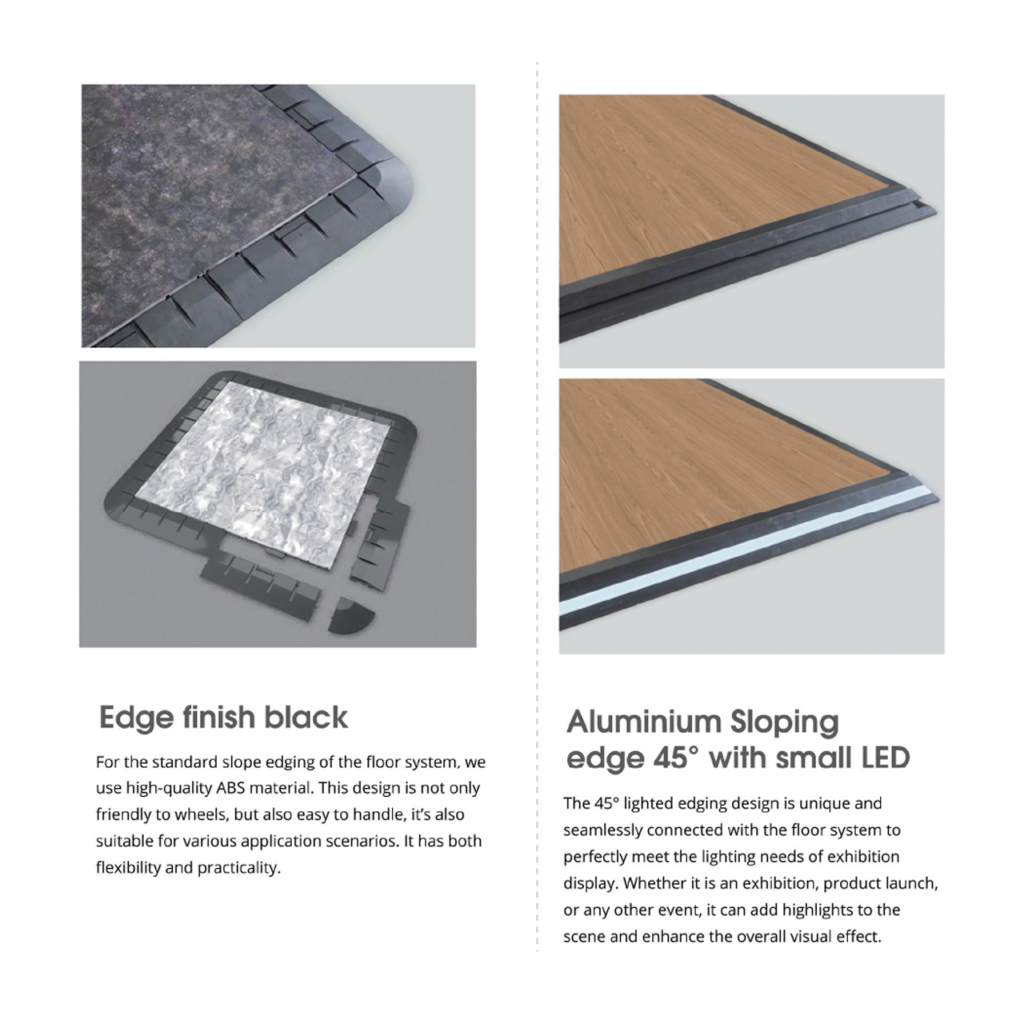

Wheelchair-Friendly Edging & Ambient LED Strips: Choose from 45 ° 80 ° or 90 ° or 150 ° sloped aluminum/ABS ramp profiles equipped with integrated LED light channels to enhance visual safety and ADA/accessibility compliance.

Applications

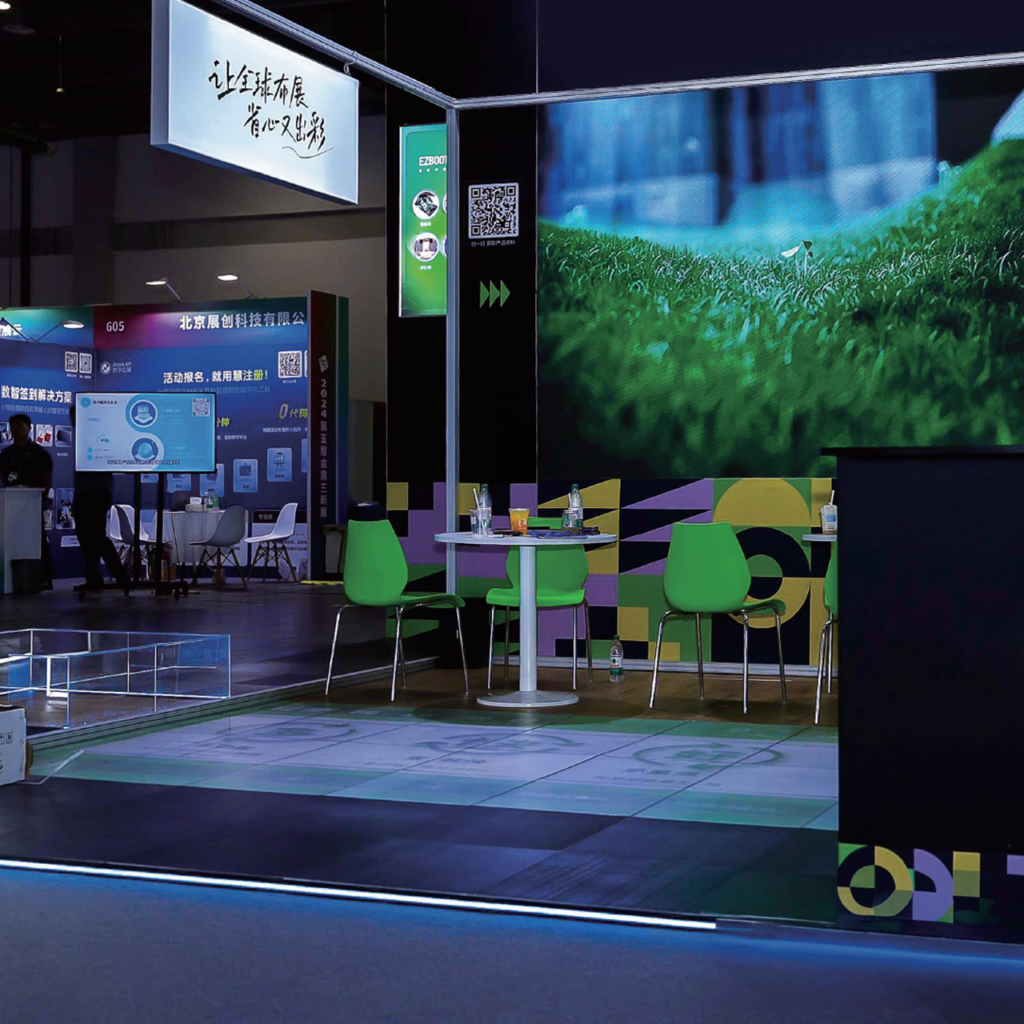

Trade Shows & Exhibitions: Build clean, elevated, professional booths in minutes.
Automotive & Heavy Product Launches: High load-bearing tiles safely support vehicles and industrial equipment.
Retail Activations & Pop-Up Shops: Create sleek temporary elevated platforms with LED-lit borders.
Art Galleries & Showrooms: Combine with display columns and multi-level cube platforms.

Component	Dimensions / Size	Material & Specifications
Floor Tile Base	500x500mm (Height: 30mm or60mm)	100% Recycled ABS Granulate, 1.5kg/pc
Floor Cover Plate	500x500mm	Custom UV Print / PC Transparent / Carpet Tile
Interlocking Clip / Clicker	80x60mm	Flame Retardant ABS, Black (32.8g)

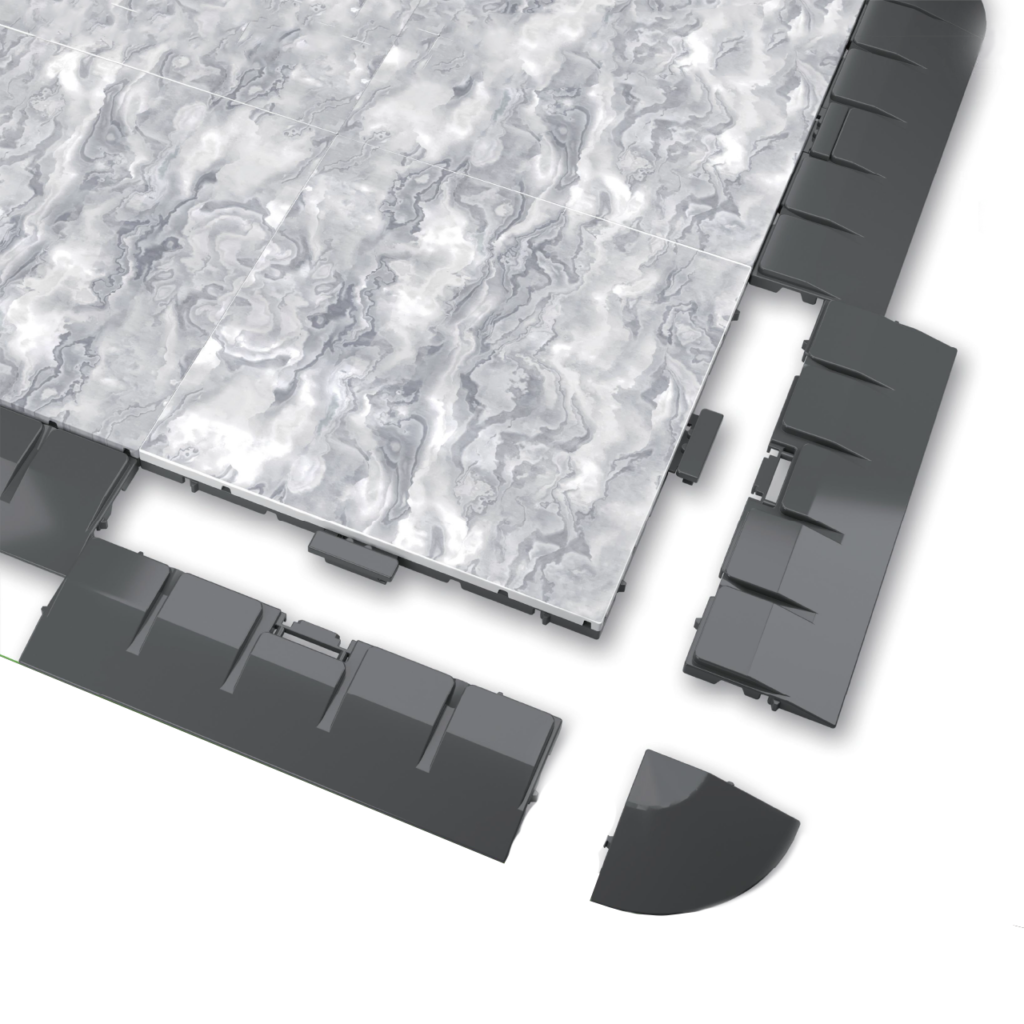

Sloping Edge Profiles	500 x 150mm (ABS) / Aluminum 45 ° 80 ° or 90 ° or 150 °)	Wheelchair-friendly ramp edge; optional LED insertion profile
Corner Edge Profiles	150x150mm	ABS Black smooth corner transition
Platform Display Module	500x500x200mm	Modular stacking cube for multi-level product elevation (60kg /pc)
Transport Solution	Heavy-Duty Flight Case	Wheeled flight case for compact storage and rapid transit

The base tiles (500x500mm) feature integrated double-layer wire channels directly beneath the surface. They allow electricity cables, LAN/internet cords, air hoses, and water lines up to 25mm thick to run freely across the floor without any top-surface clutter. Cables can exit cleanly through designated cable ports anywhere in your booth setup.

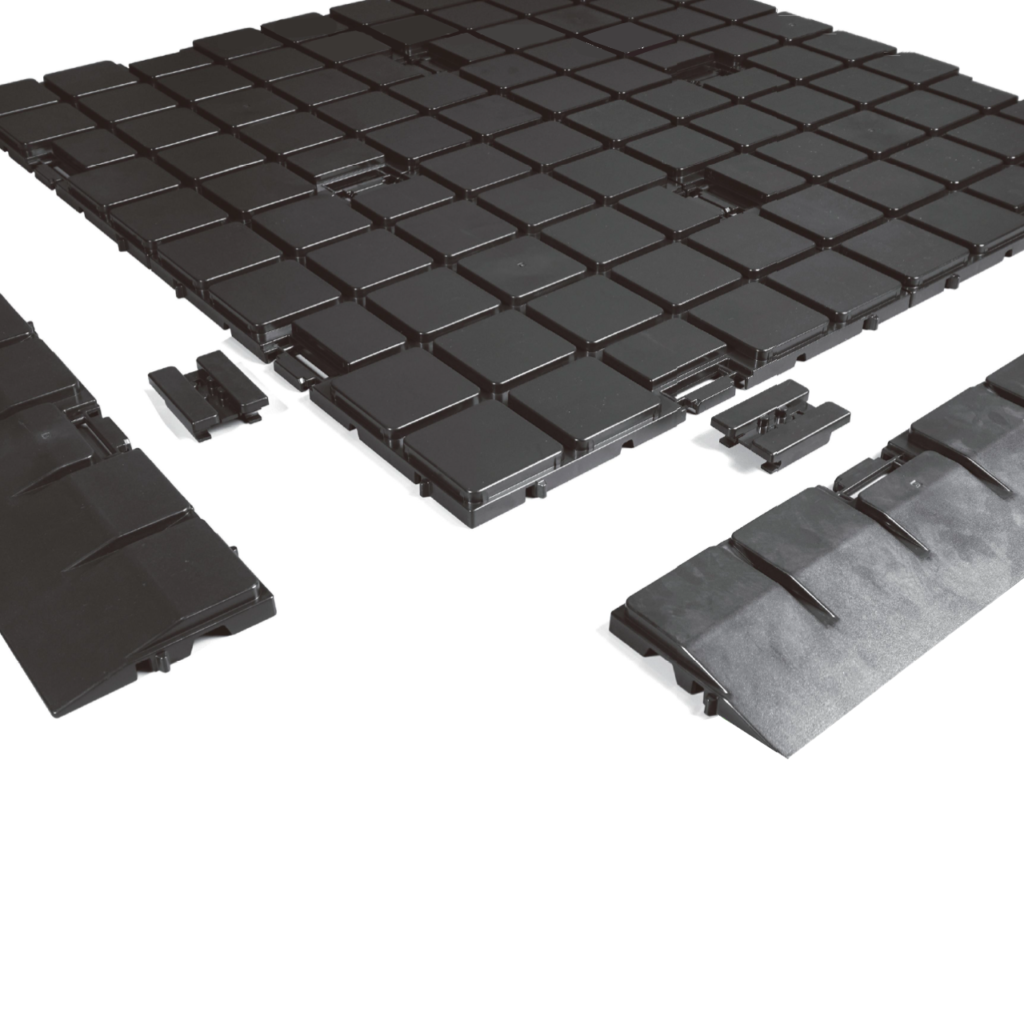

Assembly is completely tool-free! The tiles utilize a self-locking clicker connection where clips simply push into place. A single person can assemble 1m² (4 tiles) in under a minute. To disassemble, you simply lift a tile slightly with a standard flathead screwdriver or lifting key to release the self-locking clicker mechanism.

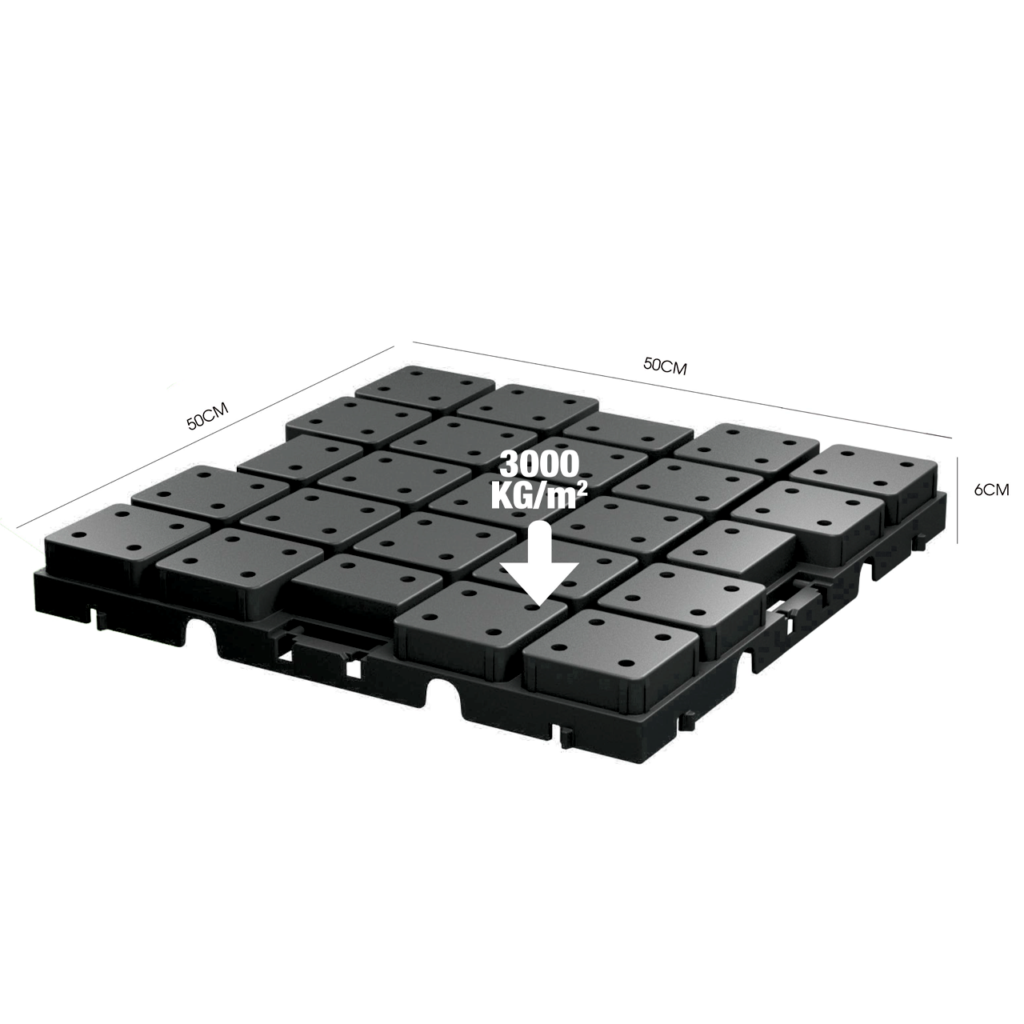

The platform supports up to 3,000kg/m². This heavy-duty load capacity makes it suitable for high-traffic public venues, heavy trade show equipment, display furniture, and even full-sized automotive/vehicle displays.

The floor tiles use interchangeable cover plates. You can select high-definition UV-printed plates that realistically mirror textures like wood, marble, granite, cement, or metal. Alternatively, you can use transparent PC (polycarbonate) cover plates to place promotional graphics underneath, or opt for compatible carpet tiles. Surface plates include a wear-resistant, anti-scratch coating for long-term reuse.

Yes! While the standard 30mm base works on flat grounds, we also offer the 60mm Height-Adjustable Modular System. This system features fine-tuning height adjustments ranging from 1-18mm, allowing you to level out uneven exhibition hall floors effortlessly.

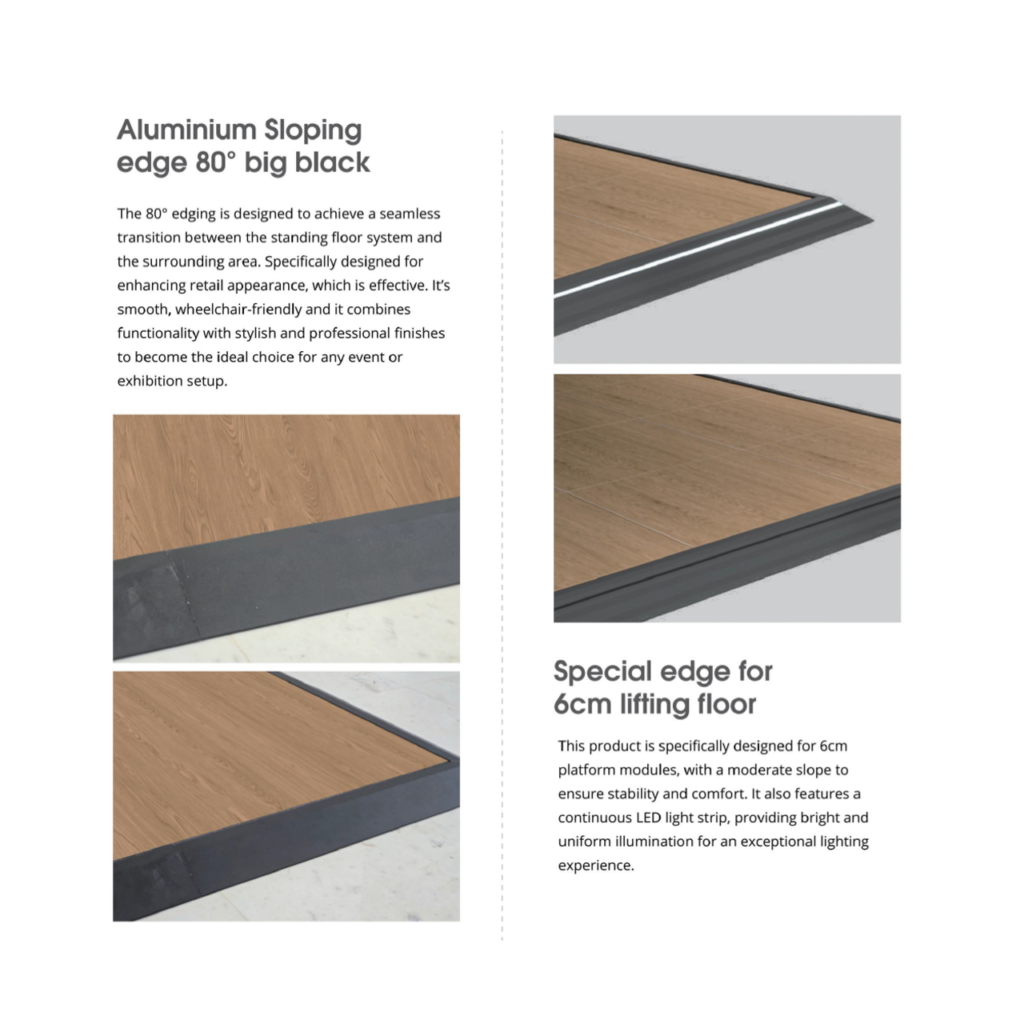

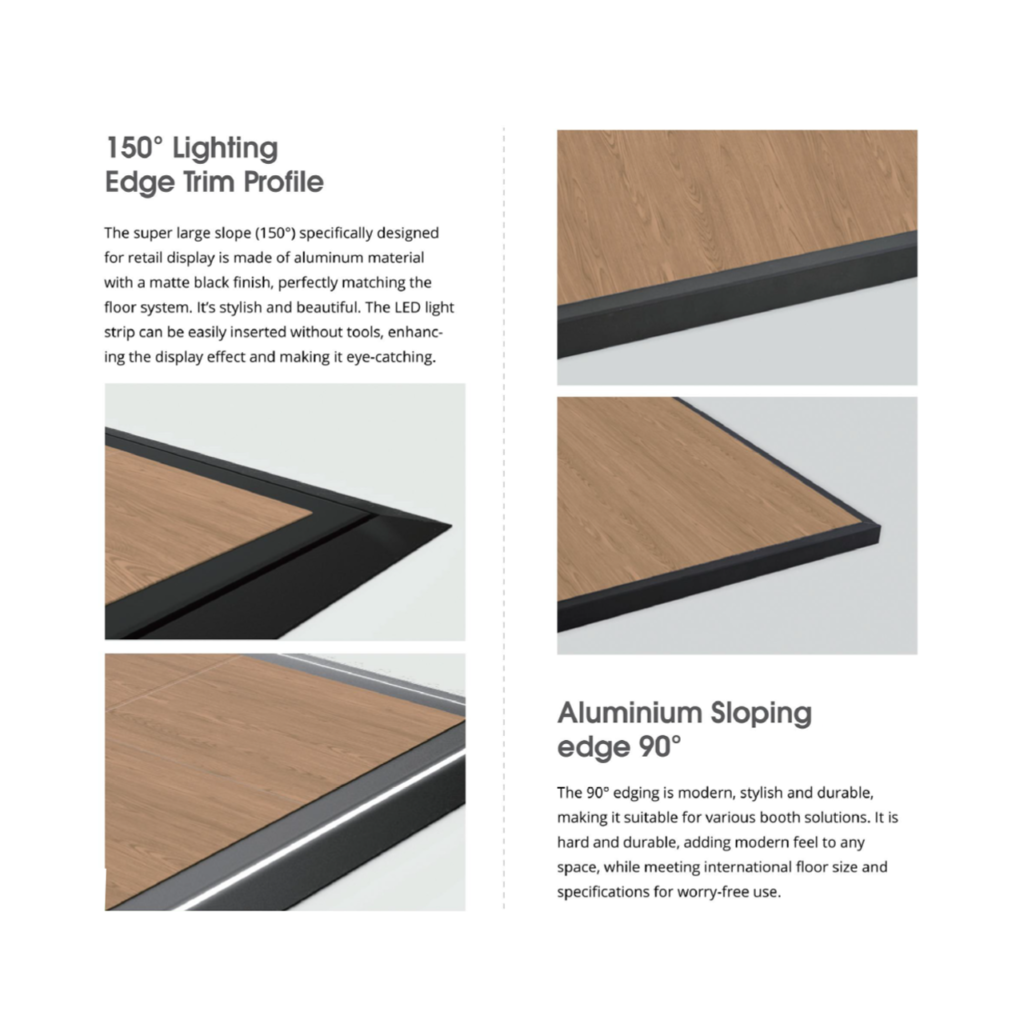

Absolutely. We offer both standard ABS sloped edges and extruded aluminum ramp profiles (45 ° 80 ° or 90 ° or 150 °) designed to create a smooth, wheelchair-friendly transition from the venue floor to your booth. Select edge models include built-in channels for continuous LED light strips to give your stand a modern, luminous perimeter.
