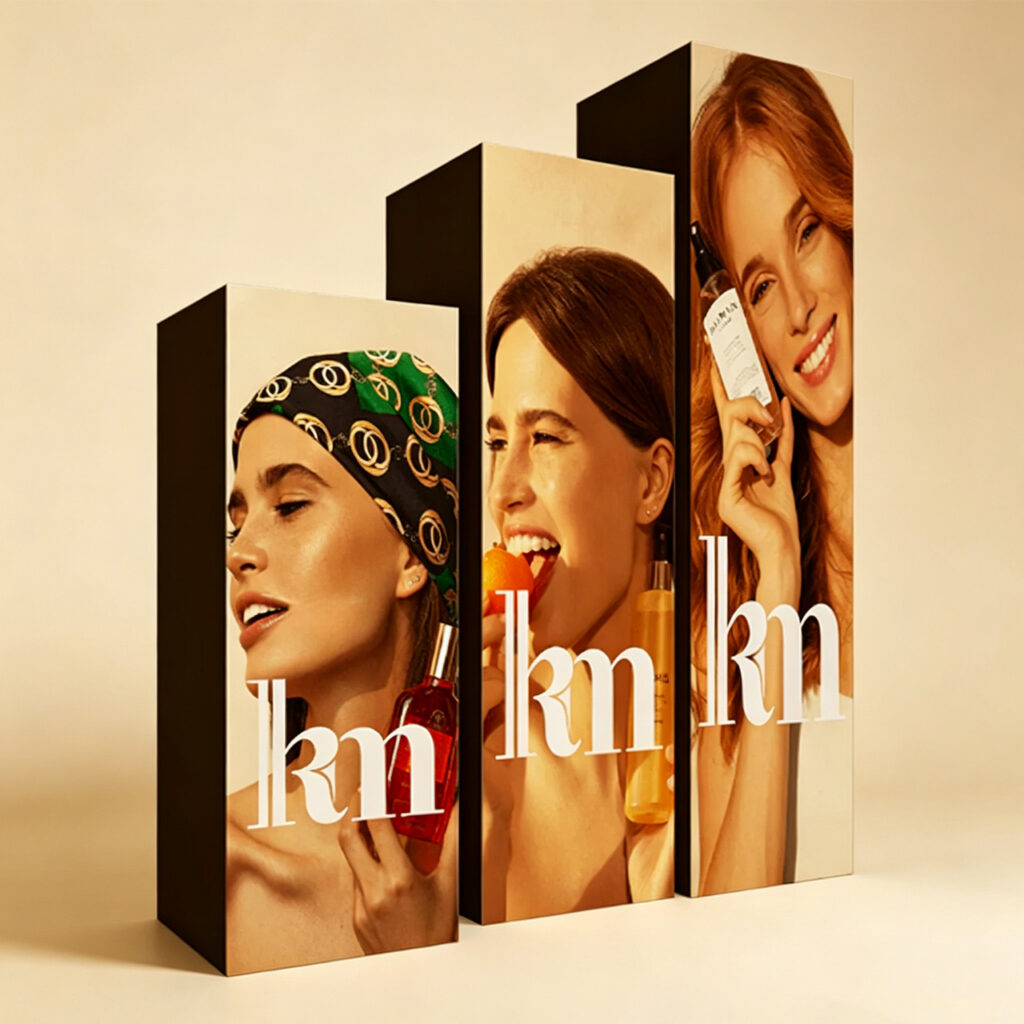

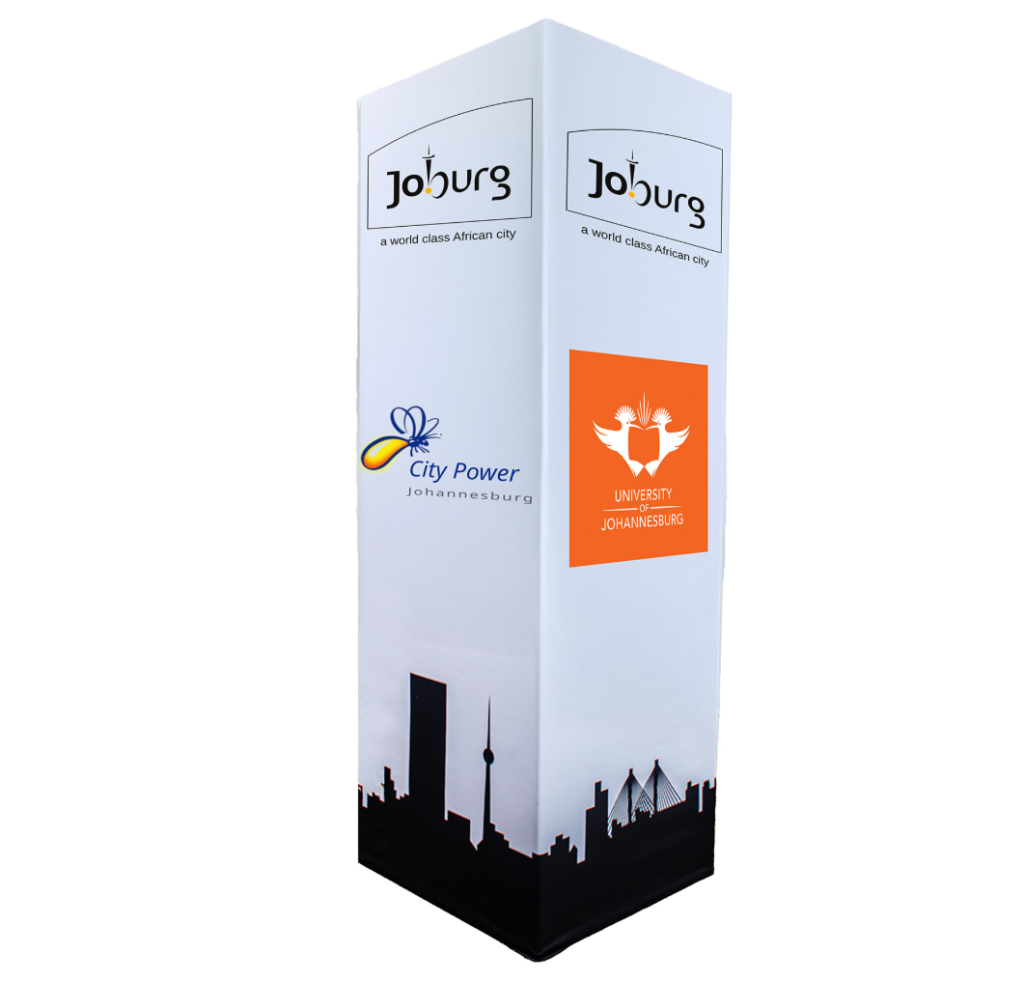

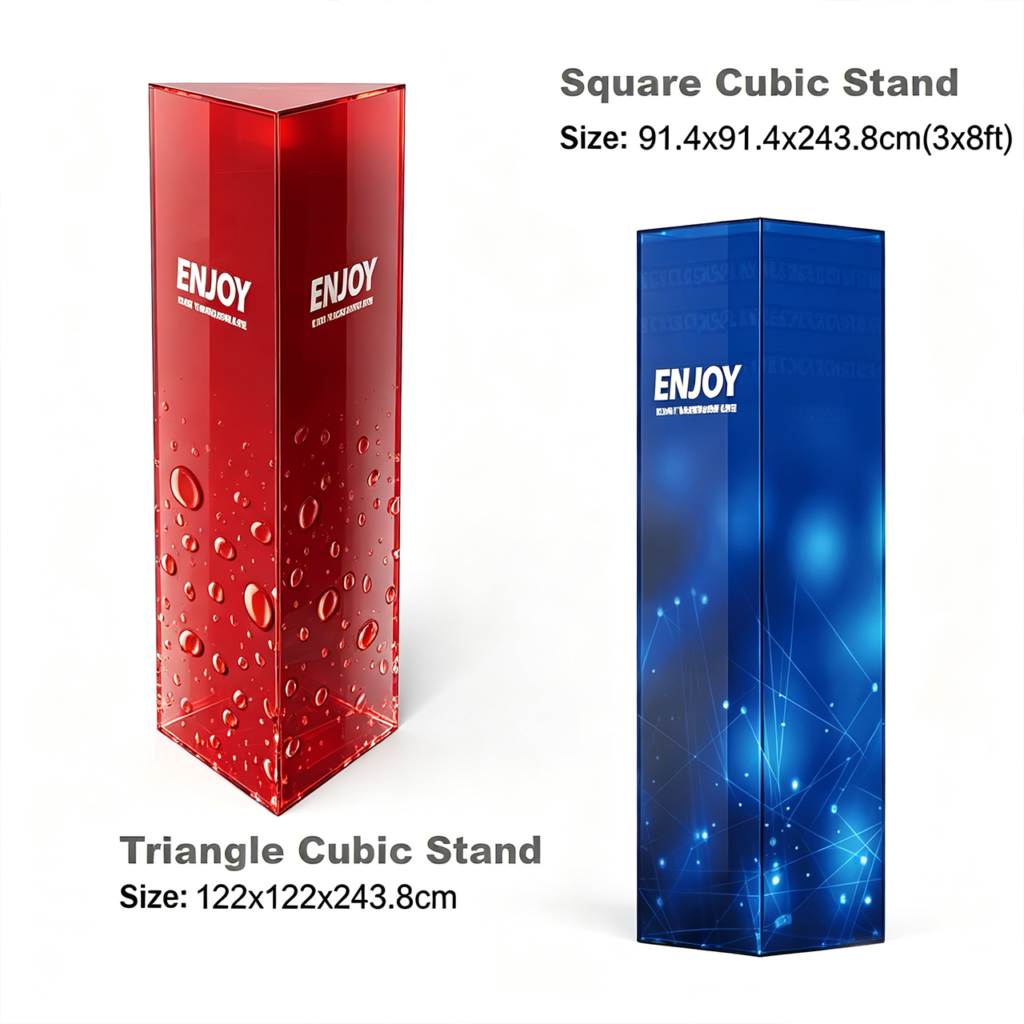

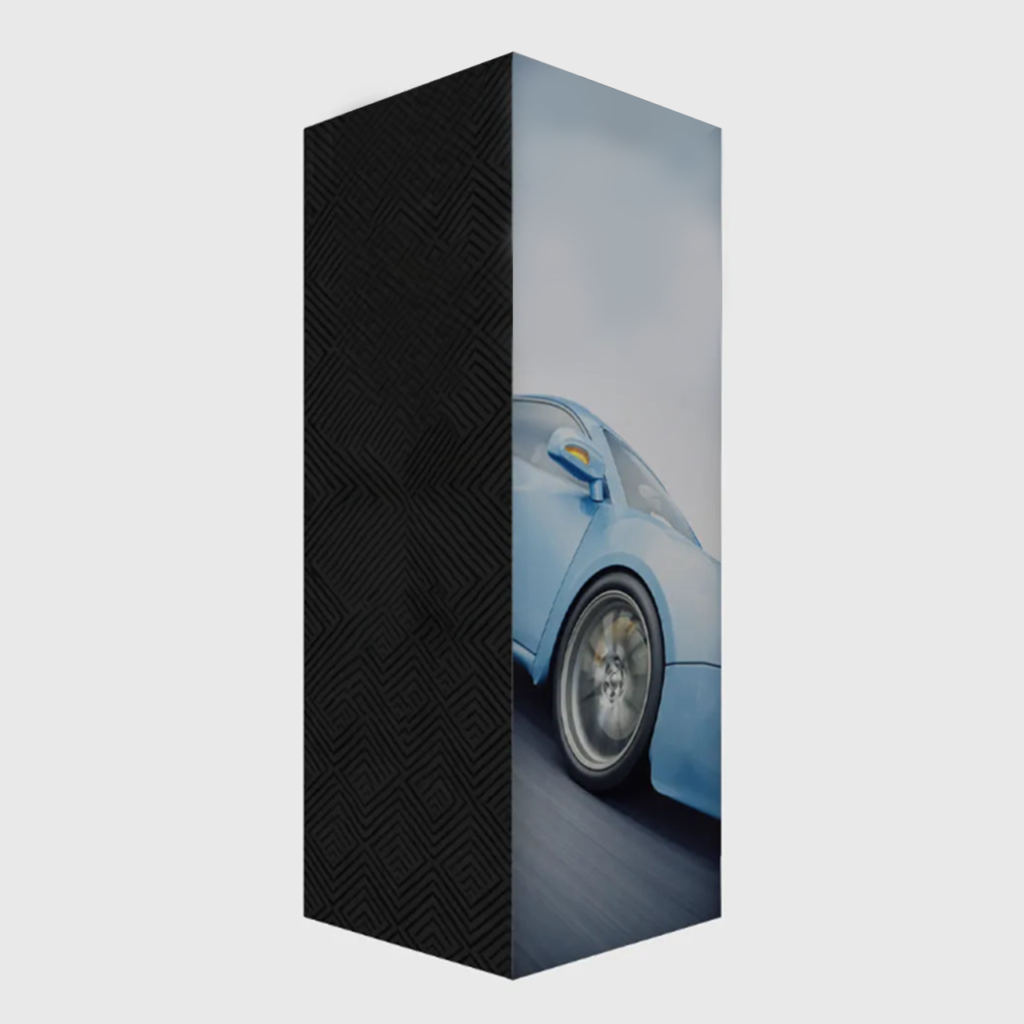

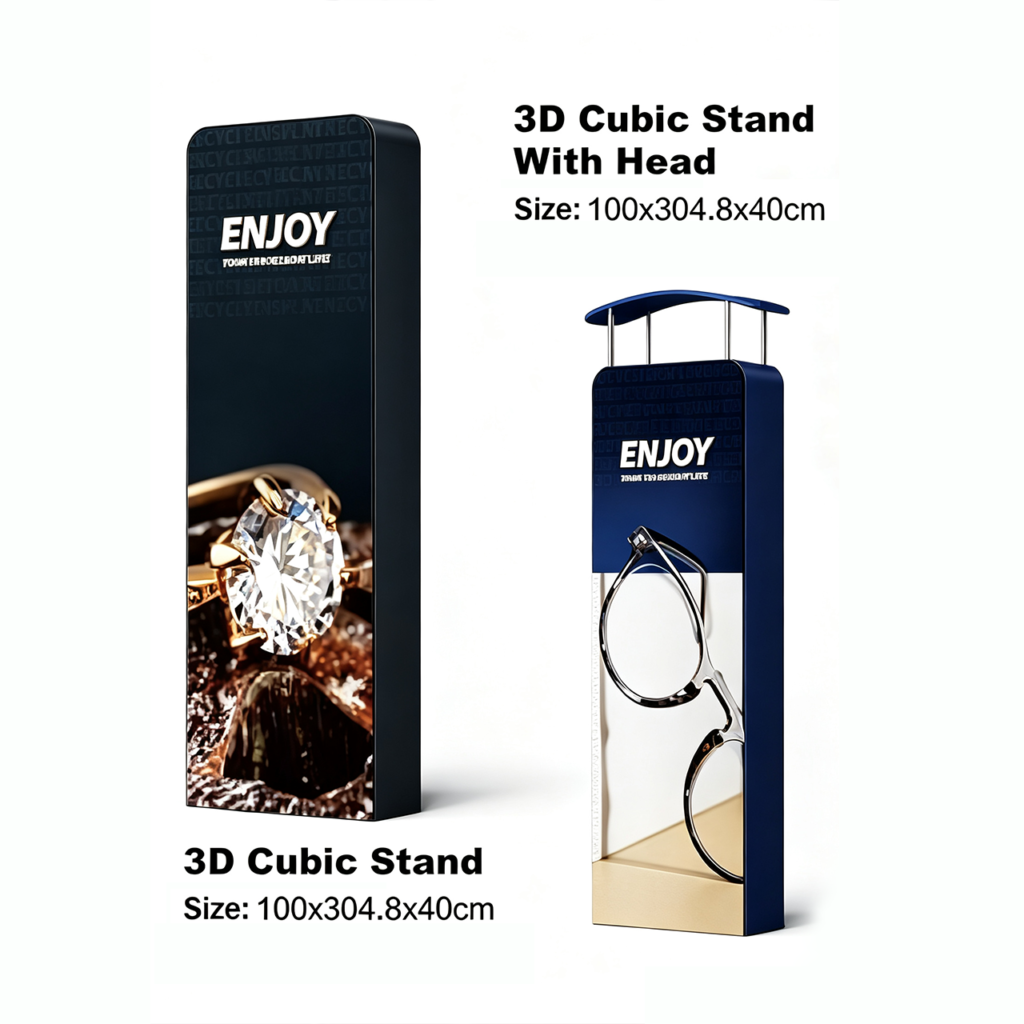

Modular Tension Cubic Fabric Tower Display

Key Technical Specifications

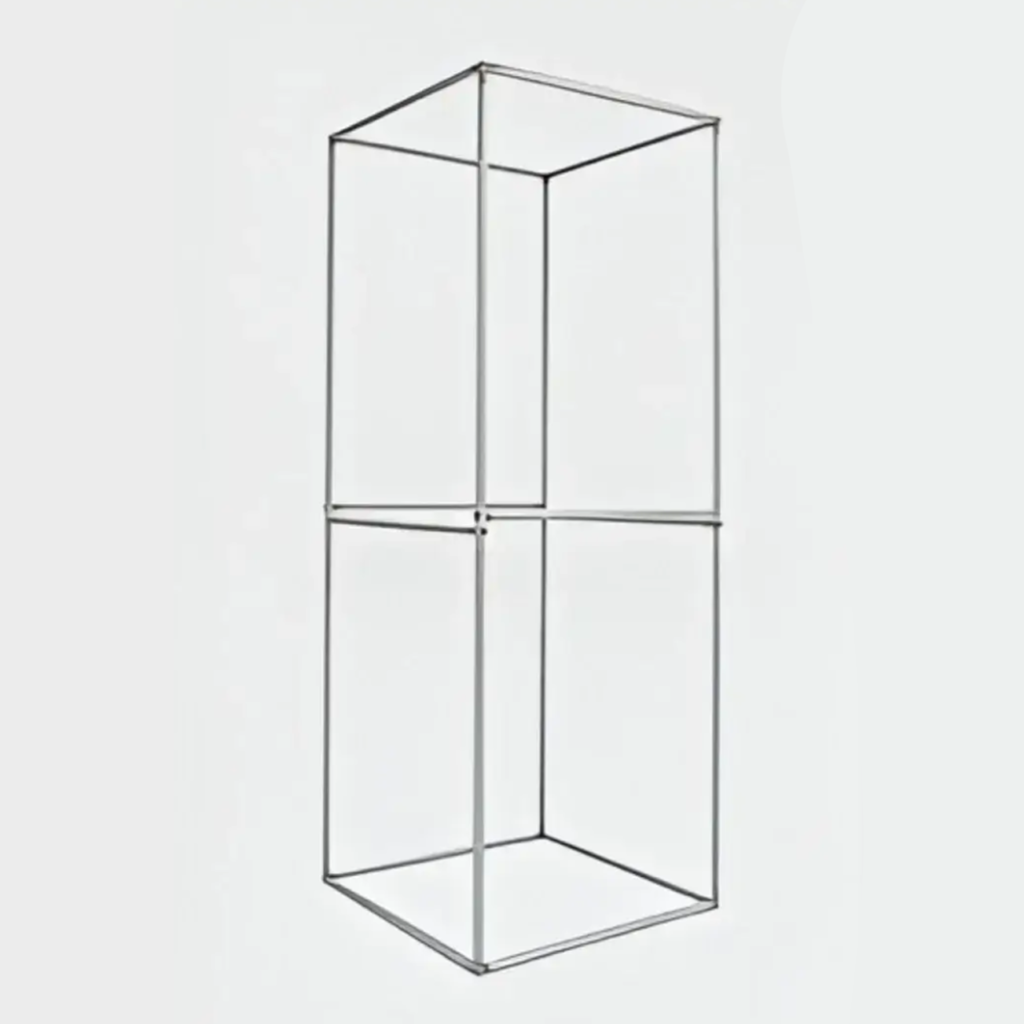

Frame System: Heavy-duty Ø32mm aluminium tubular profile (1.5mm thickness) with internal bungee cord connectors for intuitive, tool-free snap-locking assembly.
Graphic Media: 260gsm tension stretch polyester fabric with vibrant, high-definition dye-sublimation printing.
Print Configuration:
- 4-side custom graphic coverage covering all four vertical faces of the tower.
- Print Method: Full-color CMYK dye-sublimation for rich, lasting prints

Illumination Options:

- Non-Lit (Standard): Sleek, non-illuminated 3D structure ideal for brightly lit exhibition halls and indoor stages.
- Backlit (LED Upgrade Available): Optional internal LED lighting modules for an edge-to-edge illuminated glow.

Product Dimensions:
- Frame dimension: 0.8m wide x 2.4m height x 0.8m depth
  Graphic Dimension: 792mm width x 2438mm height * 4sides
  Package Dimension: 27cm x 27cm x 76cm
  Package Weight: 11kgs
- Frame dimension: 0.8m wide x 3m height x 0.8m depth
  Graphic Dimension: 792mm width x 3048mm height * 4sides
  Package Dimension: 27cm x 27cm x 91cm
  Package Weight: 12.7kgs
- Frame dimension: 1m wide x 3m height x 1m depth
  Graphic Dimension: 1007mm width x 3051mm height * 4sides
  Package Dimension: 30cm x 30cm x 76cm
  Package Weight: 14.5kgs
- Frame dimension: 1.2m wide x 3m height x 1.2m depth
  Graphic Dimension: 1220mm width x 3051mm height * 4sides
  Package Dimension: 30cm x 30cm x 76cm
  Package Weight: 15kgs
- Frame dimension: 1m wide x 3.6m height x 1m depth
  Graphic Dimension: 1007mm width x 3662mm height * 4sides
  Package Dimension: 30cm x 30cm x 76cm
  Package Weight: 17kgs
- Frame dimension: 1.2m wide x 3.6m height x 1.2m depth
  Graphic Dimension: 1220mm width x 3662mm height * 4sides
  Package Dimension: 30cm x 30cm x 76cm
  Package Weight: 17.5kgs

Assembly Style: Tool-free snap-lock button connectors; pillowcase-style zip closure graphics that slip easily over the frame.
Portability: Compact flat-pack breakdown designed to fit easily into standard vehicle boots.

What’s Included

1x Cubic Tower - Aluminum frame (with bungee-corded poles)
1x Custom-Printed Stretch Fabric Graphic skin
1x Soft nylon carry bag for portability

The tower relies on its square, four-corner base profile (0.8m x 0.8m up to 1.2m x1.2m). This wide, equal-depth footprint provides excellent balance and self-standing stability for indoor trade show floors, retail spaces, and entryways without requiring external guy wires or wide support feet.

The internal bungee cords keep the matching aluminium tube sections connected together in proper order. This eliminates guesswork during setup, prevents missing parts, and allows a single person to snap the frame together in under 15 minutes without any tools.

The custom-printed 260gsm tension fabric skin is sewn into a 3D four-sided sleeve. You slide the fabric sleeve over the assembled tower frame from top to bottom and zip it securely along the bottom perimeter to achieve a smooth, drum-tight finish.

Yes! Because the fabric skin is printed using full-colour dye-sublimation, you can feature unique artwork, different product images, or distinct messaging on all four faces at no additional printing cost.

Absolutely. You can keep the aluminium bungee frame indefinitely. When changing branding or starting a new campaign, you simply order a replacement fabric skin custom-tailored to your tower’s dimensions.

Yes, the polyester tension fabric is inherently wrinkle-resistant. If it becomes dirty during travel or events, it can be cold-machine-washed on a gentle cycle and air-dried without fading or damaging the print.
