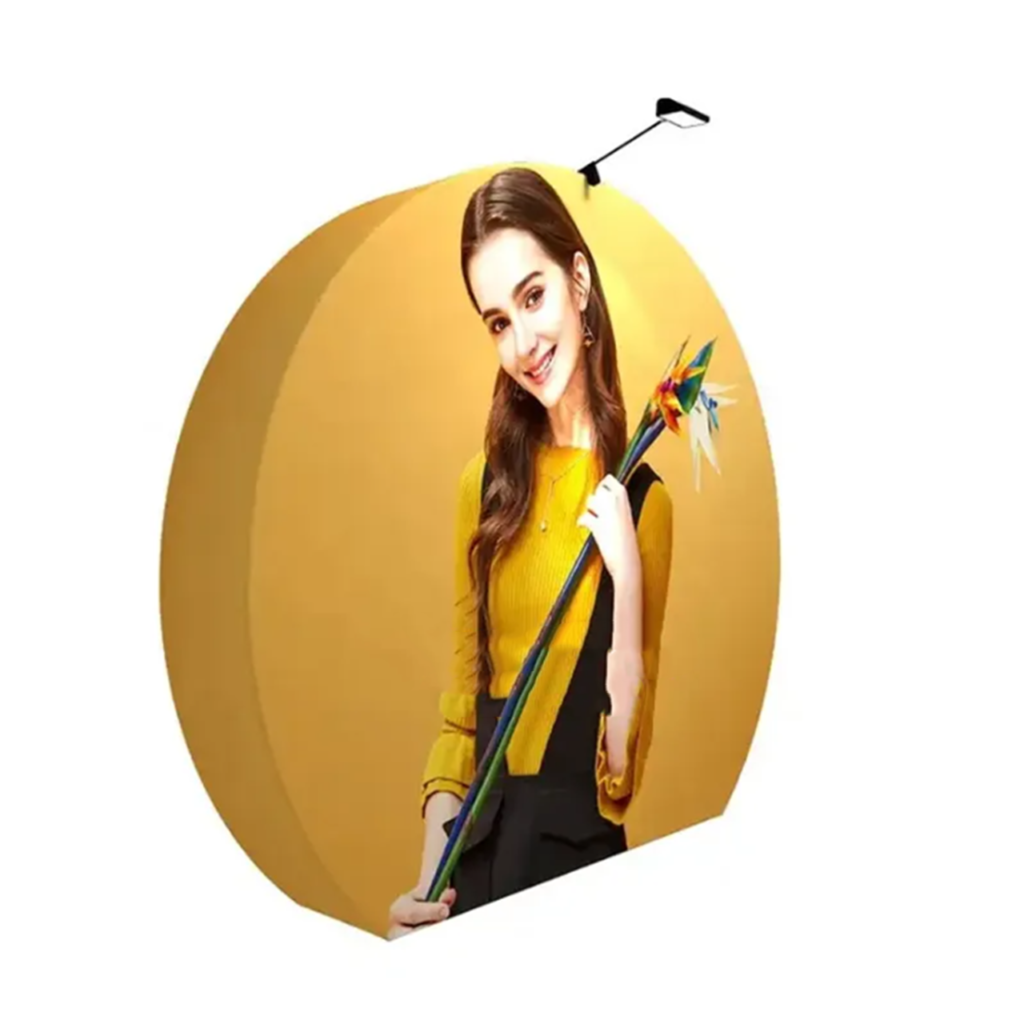

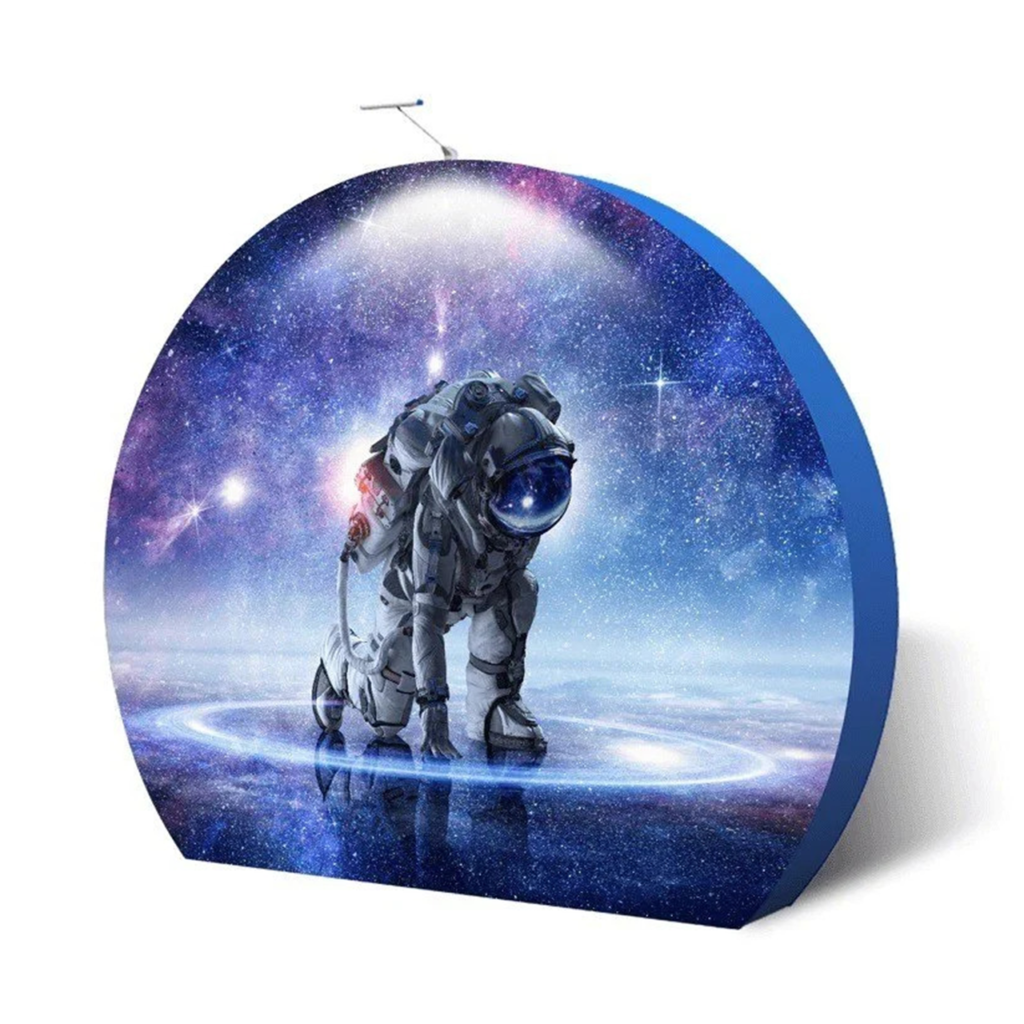

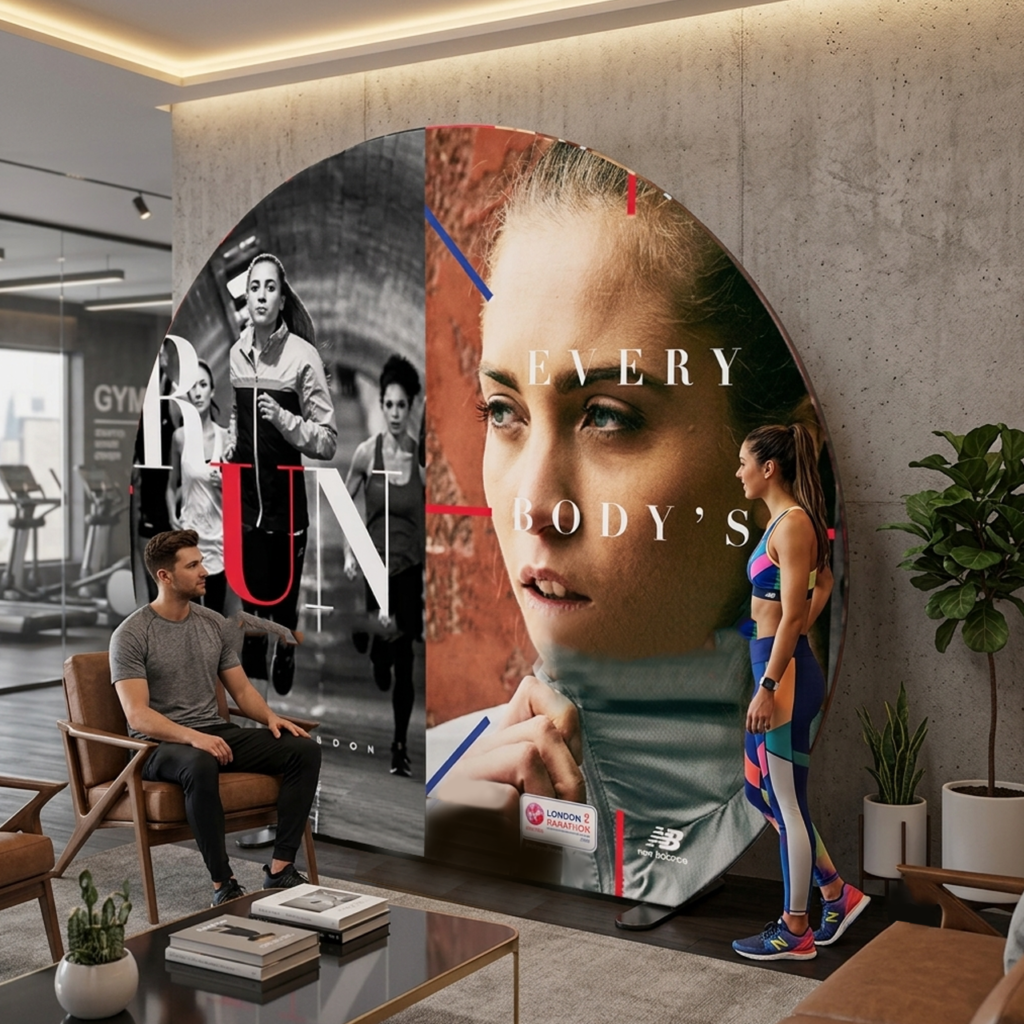

3D Moon Shape Tension Fabric Display | Circular Media Wall

Product Code: SF-WB02

Command attention at trade shows, media activations, and corporate events with the 3D Moon Shape Tension Fabric Display. Moving away from traditional square/flat backdrops, this display features a striking, full-circle 3D architectural profile with a flat-bottom base.

Built around a lightweight 32mm snap-lock aluminium frame, the display is enveloped in a custom-printed, high-stretch polyester skin. The pillowcase zipper design slides over the entire 3D circular frame to create a completely frameless, drum-tight, wrinkle-free visual statement with a generous 400mm structural depth.


Select Illumination Options:
Select Graphic Options:

Key Technical Specifications

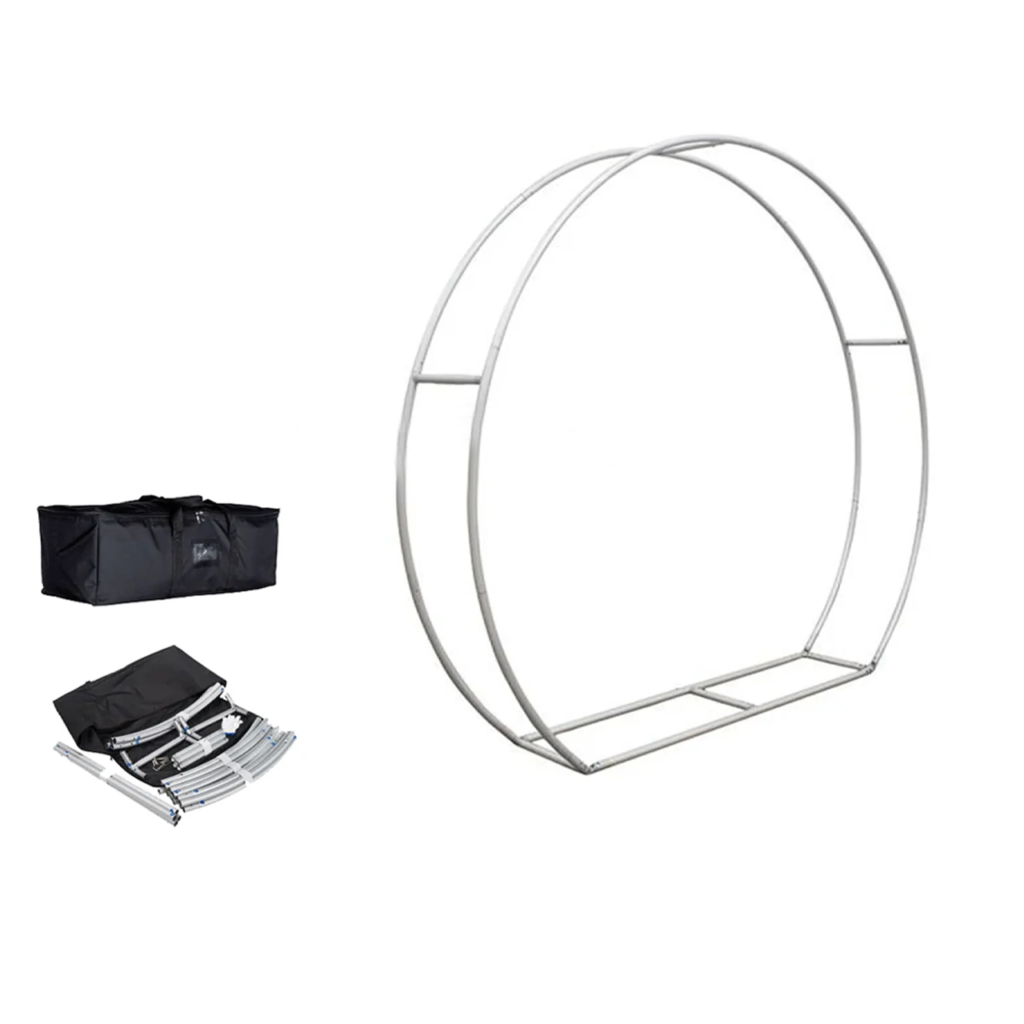

  • Frame System: Heavy-duty Ø32mm aluminium tubular profile (1.5mm thickness) with internal bungee cord connectors for intuitive, tool-free snap-locking assembly.
  • Graphic Media: Β 260gsm tension stretch polyester fabric with vibrant, high-definition dye-sublimation printing.
  • Print Configuration:
    • Single-Sided: High-impact custom artwork on the front face and curved outer sides, finished with a clean, neutral blockout rear panel.
    • Double-Sided: Full 360Β° double-sided custom graphics covering the front, back, and perimeter return sides.
    • Print Method: Β Full-color CMYK dye-sublimation for rich, lasting prints
  • Illumination Options:
    • Non-Lit (Standard): Ultra-slim depth profile ideal for ambient front-lit commercial spaces.
    • Backlit (LED Upgrade Available): Integrated high-efficiency LED array for an even, hot-spot-free glow.
  • Product Dimensions:
  • Frame Dimensions: 2.5m wide x 2.2m height x 0.4m depth
    Graphics Dimension: 2560mm wide xΒ 2200mm heightΒ x 400mm
    Package Dimension: 38cm x 38cm x 76cm
    Package Weight: 11.4kg
  • Assembly Style: Tool-free snap-lock button connectors; pillowcase-style zip closure graphics that slip easily over the frame.
  • Portability: Compact flat-pack breakdown designed to fit easily into standard vehicle boots.

πŸ“¦ What’s Included

  • 1x 3D Moon Aluminium Wall Frame System (with bungee-corded poles)
  • 1x Custom-Printed Stretch Fabric Graphic Skin (Single or Double-Sided)

1x Heavy-Duty Soft Nylon Padded Carry Bag

FAQs

The “Moon” shape is specifically engineered with a flattened base section along the bottom perimeter. This flat base, combined with the 400mm structural box depth, provides a stable, self-standing footprint without needing prominent protruding feet.

The circular tubular frame uses an internal bungee cord system that keeps the matching curve sections attached in sequence. The poles click together using tool-free push-button connectors in under 15 minutes.

Single-sided printing features your custom branding on the main front face and outer sides, while the back remains a neutral white/black blockout fabric. Double-sided printing gives you full 360-degree custom graphics on both the front and rear faces, making it ideal for island booths or open exhibition spaces.

Yes! The aluminium bungee frame structure is built for long-term reuse. You can order replacement fabric graphic skins at any time to refresh your marketing campaign without buying a new frame.

Yes, the polyester tension fabric is inherently wrinkle-resistant. If it becomes dirty during travel or events, it can be cold-machine-washed on a gentle cycle and air-dried without fading or damaging the print.

Thanks to the hollow aluminium frame profile and lightweight fabric, the complete kit weighs significantly less than traditional pop-up or wood-based displays. Packed in its included nylon carry bag, it can easily be carried by a single person. The physical weight will be depending on different sized wall box.
